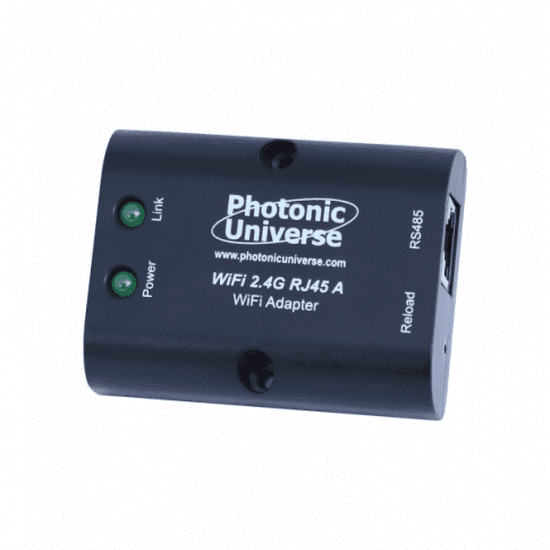

WI-FI MODULE FOR MONITORING AND PROGRAMMING A SOLAR CHARGE CONTROLLER THROUGH THE MOBILE APP

Get easy control of your solar power system. Our Wi-Fi Module lets you check and change your solar charge controller. Do it right from your mobile phone. This smart device gives you live updates. You can adjust settings too. It makes sure your solar setup works its best.

This module is made for anyone with solar panels. It simply plugs into your charge controller. Then, it creates its own Wi-Fi network. Just use the free, easy-to-pair mobile app. It works for both Apple and Android phones. You'll quickly see important details. This includes info about your solar panels and battery. You can manage your system from almost anywhere.

Key Features for Smart Solar Management:

• Remote Monitoring: Check important numbers. See voltage and current for your solar panels. Watch connected devices. Know your battery's charge level. See how much energy has been used or added over time.
• Complete System Control: The app lets you do more than just watch. You can change how your system charges. You can manage what loads it powers. This helps your solar setup run better. It also helps it last longer.
• Unlock Advanced Settings: Get access to special controls. Adjust your battery type and size. Set the right charging voltage for different stages. You can even create your own battery type. Use custom settings if needed.
• Smart Load Automation: Set timers for things like lights, fans, or pumps. These can be connected to your solar system. This adds smart control to your daily power use.
• Wide Compatibility: This module works well with many controllers. These include Tracer TR / PTR series, VS****BN, DM, MSC series, LS**24B, and PU series controllers.
• Simple Installation: It features small LED lights. These show power and network status. It also has mounting holes. This makes setup quick and easy.
• Very Low Power Use: The module itself uses almost no power. It works very efficiently. (Only 0.2W standby, 0.5W when active).
• Good Wi-Fi Coverage: Enjoy a 30-meter Wi-Fi range. This gives you flexibility. You can check your system from a comfortable distance.
• Ready to Go: It includes a 1.9-meter cable. It has RJ45 connectors for immediate use. (You can replace this cable with a shorter or longer one if you prefer).

Important Notes on What It Works With:

• If your solar charge controller has an RS485 port, you will need an extra RS485 to RJ45 cable to make the connection.
• Please note: This Wi-Fi module is not for solar charge controllers that manage two separate batteries.

Technical Specifications:

• Wi-Fi Range: 30 meters
• Compatible With: TR, PTR, VS****BN, LS**24B, PU series controllers
• Cable Length: 1.9m
• Connection Type: RJ45
• Power Consumption: 0.2W (standby), 0.5W (operation)
• Serial Port Parameters: 9600bps-115200bps, 8N1
• Protection Rating (Enclosure): IP54
• Dimensions: 66.24 x 51.28 x 23.76mm
• Weight: 38.5g

Step into a new level of solar management. This Wi-Fi module gives you power. You can perfectly manage your solar charge controller. This ensures top performance. It also gives total peace of mind. Monitor every detail. Adjust settings with ease. Use special features. Do it all from your mobile phone. Upgrade your solar system today. Get smarter, simpler, and more efficient power control.
