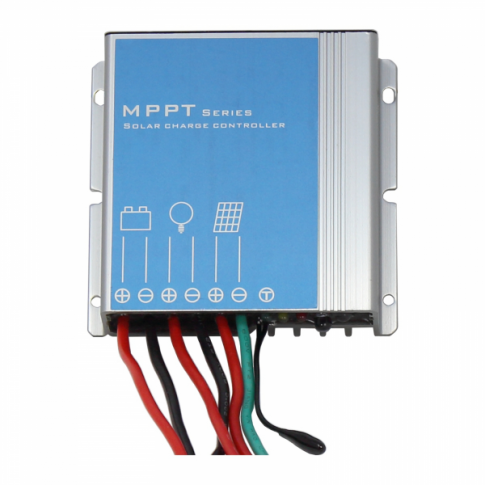

Waterproof 10A 12V MPPT solar charge controller with Bluetooth connectivity for caravans, motorhomes, campervans, boat, yacht and marine applications
Waterproof 10A 12V MPPT solar charge controller with Bluetooth connectivity for caravans, motorhomes, campervans, boat, yacht and marine applications
SKU:LUX1012WP-BT
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
10A 12V MPPT Solar Charge Controller
Waterproof IP67 | Bluetooth Connectivity | LUX1012WP-BT
The Photonic Universe LUX1012WP-BT is a high-efficiency 10A 12V MPPT solar charge controller designed for demanding outdoor and marine environments. This advanced MPPT controller maximises power harvest from your solar panels, ensuring optimal charging for your 12V battery system.
Featuring a robust, fully sealed IP67 waterproof aluminium housing, the LUX1012WP-BT is ideal for caravans, motorhomes, campervans, boats, yachts, and other marine applications where protection against water and humidity is crucial. Integrated Bluetooth connectivity allows for convenient monitoring and parameter adjustment via a dedicated smartphone app.
MAXIMISE SOLAR HARVEST: MPPT technology can significantly improve charging efficiency by 20-30% compared to standard PWM controllers.
Key Features
| ▶ Advanced MPPT Technology — Achieves over 99.9% tracking efficiency for maximum power extraction. |
| ▶ IP67 Waterproof Design — Fully sealed aluminium case ensures durability in harsh outdoor and marine conditions. |
| ▶ Integrated Bluetooth — Monitor real-time status and adjust charging parameters via a smartphone app. |
| ▶ Multi-Battery Compatibility — Supports Gel, Liquid (Flooded), AGM, and Lithium (LiFePO4) 12V batteries. |
| ▶ Comprehensive Protection — Built-in safeguards against overcharge, over-discharge, short-circuit, and reverse polarity. |
Technical Specifications
| Parameter | Value |
|---|---|
| System Voltage | 12V DC |
| Max Charging Current | 10A |
| Max Solar Input Power | 130W (for 12V battery) |
| Max Solar Input Voltage (VOC) | 45V |
| Protection Rating | IP67 |
| Self-Consumption | <10mA |
| Dimensions (L x W x H) | 85.8 x 81 x 23.1 mm |
| Weight | 260g |
Charging & Battery Modes
The LUX1012WP-BT controller offers versatile charging for various 12V battery types, including Gel, Liquid (Flooded), AGM, and Lithium (LiFePO4). The intelligent 4-stage charging algorithm (MPPT, Boost, Equalisation, Float) optimises battery health and longevity.
Through the dedicated Bluetooth app, users can monitor charging status in real-time and customise charging parameters to precisely match their battery's requirements, ensuring efficient and safe power management.
Typical Applications
| Application | Description |
|---|---|
| Marine & Boating | Ideal for yachts, boats, and narrowboats, providing reliable power in high-humidity and wet environments. |
| Caravans & Motorhomes | Efficiently charges 12V leisure batteries for mobile living and touring. |
| Off-Grid Systems | Suitable for small remote cabins, sheds, garden offices, or lighting setups up to 130W. |
Built-In Protection Functions
The Photonic Universe LUX1012WP-BT is equipped with a comprehensive suite of electronic protection features to ensure system safety and battery longevity. These include: Overcharge Protection • Over-discharge Protection • Overload Protection • Short-Circuit Protection • Reverse Polarity Protection • Reverse Current Protection at Night (from battery to solar panel).
Common Questions
What is MPPT technology?
MPPT (Maximum Power Point Tracking) technology intelligently tracks the maximum power point of your solar panels, allowing the controller to extract up to 30% more power compared to traditional PWM controllers, especially in varying weather conditions.
Can I use this controller with a 24V battery system?
No, the LUX1012WP-BT is specifically designed for 12V battery banks only. Connecting it to a 24V system may cause permanent damage to the unit and invalidate any warranty.
What battery types are supported by this controller?
This controller is compatible with Gel, Liquid (Flooded), AGM, and Lithium (LiFePO4) 12V batteries. You can select the appropriate charging profile via the Bluetooth app to match your battery type.
Installation Notes
- Always connect the battery to the controller first. Ensure the battery voltage is within the 10V-15V range for proper system recognition.
- Connect solar panels to the controller next. Verify that the total open-circuit voltage (VOC) of your solar array does not exceed 45V.
- Ensure adequate ventilation around the battery, especially for flooded lead-acid types, to prevent gas build-up.
- For optimal performance, keep the wire length between the battery and the controller as short as possible.
Before You Buy
- Confirm your battery system is 12V. This controller is not compatible with 24V systems.
- Check your total solar panel power. This 10A controller supports up to 130W of solar input for a 12V battery.
- Verify the open-circuit voltage (VOC) of your solar panels. It must not exceed 45V.
- Consider the installation environment; the IP67 rating ensures protection against dust and water immersion.
Please verify all specifications and compatibility requirements for your specific system before purchase. Product specifications are subject to change by the manufacturer.
