WATERPROOF 10A 12V MPPT SOLAR CHARGE CONTROLLER / REGULATOR FOR LITHIUM BATTERIES IN CARAVANS, MOTORHOMES, CAMPERVANS, BOATS, YACHTS AND MARINE APPLICATIONS

Discover the ultimate power guardian for your adventures – our Waterproof 10A 12V MPPT Solar Charge Controller.

Designed specifically for lithium batteries, this robust controller is perfect for your caravan, motorhome, campervan, or boat. It ensures your power system stays charged and protected, giving you reliable energy wherever you go. Maximize every ray of sunshine with advanced MPPT technology, enjoying worry-free power and extended battery life on the open road or water.

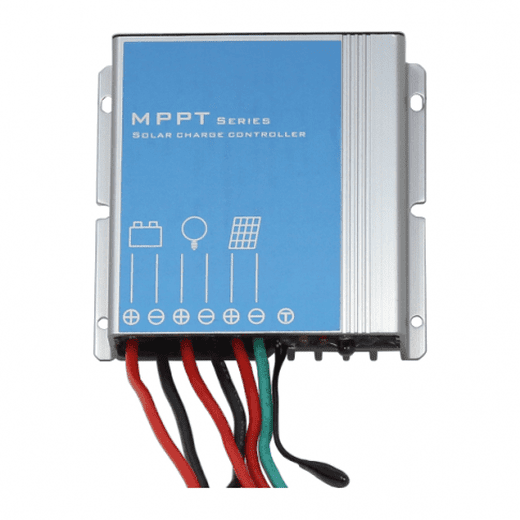

This high-quality, fully sealed solar charge controller is engineered to deliver peak performance and safety for your mobile or marine power setup. It intelligently manages your solar panels to efficiently charge your 12V lithium batteries, providing a seamless and reliable power source.

Key Features & Benefits:

• Optimized Charging with MPPT Technology: This controller uses Maximum Power Point Tracking (MPPT) to extract the most power possible from your solar panels, boosting charging efficiency and ensuring your batteries get the energy they need quickly.
• Built for Lithium Batteries: Specifically designed to work flawlessly with 12V lithium battery systems, ensuring proper charging profiles and extending battery lifespan.
• Truly Waterproof Design (IP67): With an IP67 protection rating, this controller is completely sealed against water and dust, making it perfectly safe for use in all weather conditions and harsh marine environments. You can trust it to perform reliably, come rain or shine.
• Comprehensive Battery Protection: Enjoy peace of mind with a full suite of automatic protection features. This includes:

  • Reverse Current Stop: Prevents power from flowing back from your battery to the solar panel at night, so your battery maintains its charge.
  • Overcharge/Discharge Shut-off: Protects your battery from damage due to extreme charging or discharging.
  • Overload & Short Circuit Protection: Safeguards your connected loads from unexpected power surges or faults.
  • Overheating Protection: Keeps your battery safe from excessive temperatures during operation.
• Wide Solar Panel Compatibility: Accepts a wide range of solar input voltages (up to 45V), meaning it can work not only with standard off-grid panels but also with higher-voltage on-grid solar modules.
• Ample Power Capacity: Capable of handling up to 130W of solar panels, making it an excellent choice for small to medium-sized solar PV systems in vehicles or boats.
• Smart Lighting Control (with Optional IR Programmer): When paired with the separately purchased remote IR programmer, this controller offers advanced lighting functions. It features a fully programmable timer with dimmer capability, automatically adjusting load power through five independent stages based on dusk and dawn, ideal for outdoor lighting systems.

Technical Specifications:

• Protection rating: IP67
• Current rating: 10A
• Max solar input power: 130W
• Max solar input voltage: 45V
• Self-consumption: 6mA
• Ambient conditions: -35 to +60°C, 0 to 100% RH humidity, <4000m altitude
• Dimensions: 85.8 x 81 x 23.1 mm
• Weight: 260g
• Mounting holes included for ease of installation.

This product comes with a 1-year manufacturer warranty for your peace of mind.

For detailed setup and operation, you can download the User manual for LUX1012WP-LI Photonic Universe 10A 12V waterproof MPPT solar charge controller.

In summary, the Waterproof 10A 12V MPPT Solar Charge Controller is your go-to solution for reliable and efficient power management in your mobile or marine lifestyle. Its advanced MPPT technology maximizes energy harvest, while its robust waterproof design and comprehensive protection features ensure your lithium batteries are always safe and optimally charged. Choose this controller for unparalleled peace of mind, superior performance, and effortless power wherever your adventures take you.
