Waterproof 10A 12V/24V solar charge controller / regulator for caravans, motorhomes, campervans, boat, yacht and marine applications
Waterproof 10A 12V/24V solar charge controller / regulator for caravans, motorhomes, campervans, boat, yacht and marine applications
SKU:PU1024BW
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Waterproof 10A 12V/24V Solar Charge Controller
PWM Technology | IP67 Marine Rated | Remote Monitoring Ready

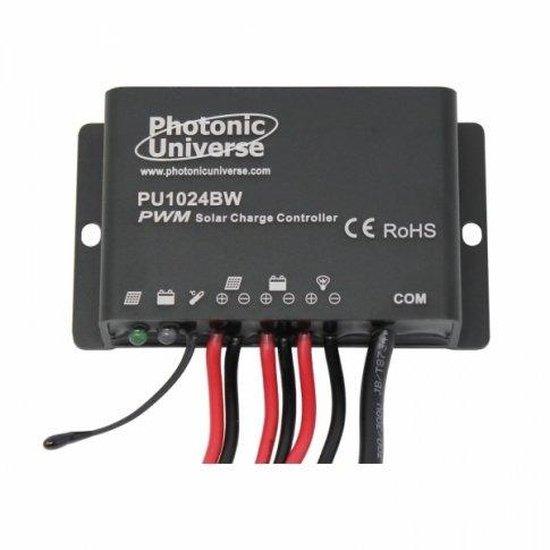

The Photonic Universe Waterproof 10A 12V/24V Solar Charge Controller (SKU: PU1024BW) is engineered to provide reliable and worry-free energy management for a range of off-grid applications. This robust solar regulator is an ideal solution for caravans, motorhomes, campervans, boats, yachts, and other marine environments, ensuring your batteries are protected and efficiently charged.
Designed to withstand challenging conditions, this charge controller features IP67 waterproof protection, making it suitable for outdoor and marine use. It intelligently manages your solar power, preventing common battery issues like overcharging and deep discharge, thereby extending the overall lifespan of your battery bank.
BATTERY HEALTH: Intelligent PWM charging prevents overcharging and deep discharge, significantly extending battery lifespan.
Key Features
| ▶ Automatic Battery Protection — Prevents overcharging and deep discharge to prolong battery life. |
| ▶ Advanced PWM Technology — Enhances charge acceptance and can recover some lost battery capacity. |
| ▶ No Reverse Current — Stops power drain from battery to solar panel at night. |
| ▶ Comprehensive Safety — Built-in protection against overcharge, over-discharge, overload, short circuit, and overheating. |
| ▶ Highly Compatible — Works seamlessly with sealed, gel, and flooded battery types. |
| ▶ Wide Solar Input Range — Accepts solar input voltage up to 50V for various panel types. |
| ▶ Full Waterproofing (IP67) — Completely sealed for safe and reliable operation in all weather conditions. |
| ▶ Accurate Temperature Sensing — Internal and external sensors optimise charging based on ambient temperature. |
| ▶ User-Friendly Indicators — Clear LED indicators show charging status, battery levels, and load operation. |
| ▶ Flexible Load Work Modes — Includes dual timer function and various load modes for connected devices. |
Technical Specifications
| Parameter | Value |
|---|---|
| System Voltage | 12V / 24V Auto-detect |
| Max. Charge Current | 10A |
| Max. Solar Panel Power (12V) | 160W |
| Max. Solar Panel Power (24V) | 320W |
| Max. Solar Input Voltage | 50V |
| Battery Types | Sealed, Gel, Flooded |
| Self-Consumption | <9mA (12V), <7mA (24V) |
| Operating Temperature | -35°C to +55°C |
| IP Rating | IP67 |
| Dimensions | 10.9 x 6.3 x 2.6 cm |
| Weight | 300g |
Charging & Monitoring Capabilities
This Photonic Universe charge controller offers advanced communication options for monitoring and programming your solar system. Gain detailed insights and adjust parameters to suit your specific needs:
| Method | Description & Benefits |
|---|---|
| Remote Meter (MT50) | Connect an optional MT50 LCD screen for real-time system performance data and manual parameter adjustments. (Requires separate RS485 to RJ45 cable) |
| Wi-Fi Module | Create a Wi-Fi network to connect your mobile phone or tablet. Use the free mobile app (Android/iOS) to monitor or adjust charging parameters remotely. (Requires separate RS485 to RJ45 cable) |
| PC / Laptop Connection | Directly link to a Windows PC or laptop using an RS485 to USB cable. Monitor and adjust parameters via the free Solar Station Monitor program. |
Through these methods, you can access vital charging parameters such as voltage, current (for solar panel and load), battery state of charge, accumulated energy, and min/max voltage. Advanced customisation options include:
- Amending battery type and capacity.
- Setting precise charging voltages for different stages.
- Specifying the duration of each charging stage.
- Creating user-defined battery types with custom charging parameters.
- Personalising 'load' settings, such as timers for lighting or fans.
Typical Applications
| Application | Description |
|---|---|
| Caravans & Motorhomes | Ensures efficient charging and protection for leisure batteries, powering lights, appliances, and electronics on the go. |
| Boats, Yachts & Marine | Its IP67 waterproof rating makes it ideal for harsh marine environments, protecting service batteries from overcharge. |
| Campervans | Provides reliable power management for compact off-grid setups, maintaining battery health for extended trips. |
| Small Off-Grid Systems | Suitable for remote cabins, sheds, or backup power solutions where a robust and waterproof controller is required. |
Built-In Protection Functions
This charge controller is equipped with multiple safety features to ensure reliable and secure operation of your solar system. It includes protection against: overcharge • over-discharge • overload • short circuit • overheating. These safeguards help to protect both the controller and your connected batteries and devices.
Common Questions
What battery types are compatible with this controller?
The Photonic Universe 10A charge controller is compatible with 12V and 24V sealed, gel, and flooded lead-acid batteries. It automatically detects the system voltage.
Can I monitor my solar system remotely with this controller?
Yes, this controller supports remote monitoring and parameter adjustment via an optional MT50 remote meter, a Wi-Fi module (with a free mobile app), or a direct PC connection using an RS485 to USB cable and free software. Please note that additional cables or modules are required for these functions.
What is the maximum solar panel capacity this controller can handle?
This 10A charge controller can manage up to 160W of solar panels for a 12V battery system or up to 320W for a 24V battery system. The maximum solar input voltage is 50V.
Installation Notes
- Always connect the battery to the controller first, then the solar panel.
- Ensure correct polarity for all connections to prevent damage.
- Mount the controller in a location that allows for adequate ventilation, even though it is sealed.
- Refer to the included instruction manual for detailed wiring diagrams and operational guidance.
- For complex installations or if unsure, consider consulting a qualified electrician or solar installer.
Before You Buy
- Verify your battery system voltage (12V or 24V) matches the controller's auto-detection range.
- Confirm your total solar panel power (in Watts) does not exceed the controller's maximum capacity (160W for 12V, 320W for 24V).
- Ensure your solar panel's open-circuit voltage (Voc) does not exceed 50V.
- Check the type of battery you are using (sealed, gel, or flooded) for compatibility.
- Consider if remote monitoring features are desired and budget for additional accessories if needed.
Please verify all specifications and compatibility requirements before purchase. This product is covered by a 1-year manufacturer warranty.
