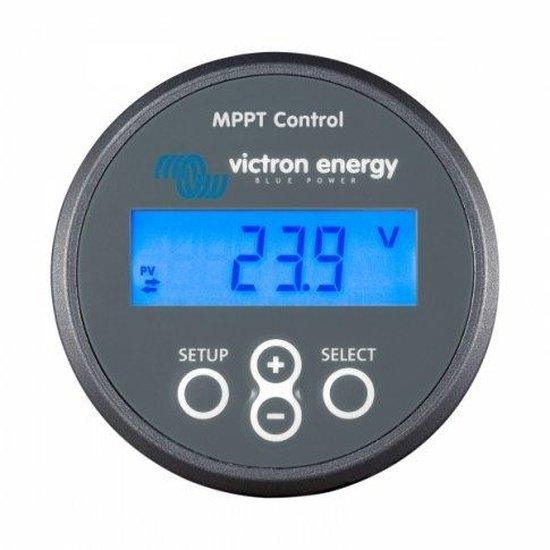

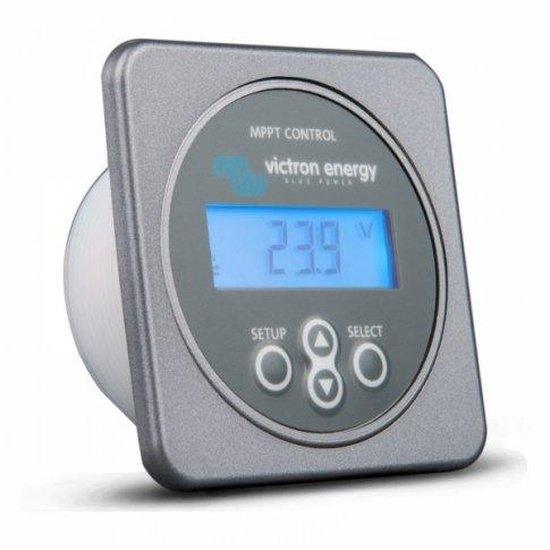

Victron VE.Direct MPPT Control Panel with LCD Display
Model: VE-CONTROL | For BlueSolar / SmartSolar MPPT Charge Controllers
The Victron VE.Direct MPPT Control panel (Model: VE-CONTROL) provides comprehensive monitoring and control for compatible Victron BlueSolar and SmartSolar MPPT solar charge controllers. This essential accessory allows users to access live status data, review daily and monthly performance logs, and personalise system settings directly from an intuitive LCD display. It's designed to enhance the management of your solar power system, offering detailed insights into energy production and battery charging status.
Ideal for UK homeowners, off-grid enthusiasts, and small businesses, this control panel simplifies the process of checking and programming charging parameters, ensuring your solar installation operates efficiently. Its flush-mount design integrates neatly into your system setup, providing a professional and accessible interface.
COMPATIBILITY NOTE: Designed for Victron MPPT charge controllers with a VE.Direct port. Not compatible with discontinued BlueSolar MPPT 70/15 or VE.Can controllers.
Key Features
| ▶ Real-Time Data Display — Monitor solar panel output, battery voltage, current, and load status live. |
| ▶ 30-Day Data Logging — Access daily and cumulative system activity logs for performance analysis. |
| ▶ User-Defined Charging — Customise absorption, float, equalisation voltages, and temperature compensation. |
| ▶ Load Configuration Options — Select preset or create user-defined load management programs for controllers with load terminals. |
| ▶ VE.Direct Port Connectivity — Seamless integration with compatible Victron BlueSolar and SmartSolar MPPT controllers. |
| ▶ Flush Mount Design — Offers a clean, integrated look when installed into a panel or wall surface. |
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage Range | 5V |
| Current Draw (without backlight) | < 4mA |
| Operating Temperature Range | -20°C to +50°C |
| Diameter of Front Round Face | 63 mm |
| Dimensions (Entire Unit) | 69 x 69 x 31 mm |
| Hole Required for Flush Mounting | approx. 54mm diameter (31mm depth) |
| Weight | 61g |
Monitoring & Control Features
| Feature | Description |
|---|---|
| Live Data Transmission | Displays real-time information including solar panel output, battery voltage and current, load status and current, and current charging stage. |
| 30-Day Data Logs | Provides access to system activity, showing daily values (energy yield, max power/voltage, charging stage time, min/max battery voltages, errors) or cumulative values for the past 30 days. |
| User-Defined Charging Algorithm | Allows customisation of charging parameters such as absorption voltage, absorption time, float voltage, equalisation voltage, and temperature compensation settings. |
| Load Configuration | For BlueSolar or SmartSolar MPPT controllers with load terminals, users can choose from pre-set load management programs or create a custom program. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Provides essential monitoring and control for standalone solar installations in cabins, remote homes, or workshops. |
| Motorhomes & Caravans | Enables easy oversight of leisure battery charging and solar panel performance while on the move. |
| Marine Applications | Offers crucial data for managing solar charging systems on boats and yachts, ensuring reliable power. |
| Small Commercial Installations | Facilitates monitoring and optimisation of solar power systems in small businesses or remote equipment setups. |
System Monitoring & Diagnostics
The VE.Direct MPPT Control panel acts as a vital interface for understanding your solar charge controller's operation. It provides detailed insights into charging stages, battery health, and energy yield, allowing users to identify potential issues or optimise system performance. The data logging feature is particularly useful for long-term analysis and troubleshooting, helping to ensure the longevity and efficiency of your solar power setup.
Common Questions
What Victron controllers is this panel compatible with?
This control panel is compatible with Victron BlueSolar and SmartSolar MPPT charge controllers that feature a VE.Direct communication port. It is not compatible with the discontinued BlueSolar MPPT 70/15 or any Victron MPPT controller with a VE.Can port.
Is the VE.Direct connection cable included?
No, the VE.Direct connection cable required to link the control panel to your MPPT charge controller is not included. It must be purchased separately and is available in various lengths (1.8m, 3m, or 5m).
How is the control panel mounted?
The VE.Direct MPPT Control panel is designed for flush mounting. This requires cutting a circular recess of approximately 54mm in diameter and 31mm depth into the mounting surface. An optional Victron wall mounting enclosure is available for surface mounting if preferred.
Can I customise battery charging settings?
Yes, the control panel allows you to disable preset values and define personalised charging parameters, including absorption voltage, absorption time, float voltage, equalisation voltage, and temperature compensation settings.
Installation Notes
- Ensure the Victron MPPT charge controller has a VE.Direct port for connection.
- Prepare a circular cut-out of approximately 54mm diameter and 31mm depth for flush mounting.
- The VE.Direct connection cable is sold separately; ensure you have the correct length for your setup.
- Refer to the detailed user manual for wiring diagrams and operational instructions.
- Consider an optional surface mount enclosure if flush mounting is not suitable for your application.
Before You Buy
- Verify compatibility with your specific Victron BlueSolar or SmartSolar MPPT charge controller model.
- Confirm that your controller has a VE.Direct port; this panel is not compatible with VE.Can models.
- Remember to purchase a separate VE.Direct connection cable of the appropriate length.
- Assess your mounting preference (flush or surface) and plan accordingly for installation.
- Review the product specifications to ensure it meets your system's environmental and operational requirements.
Please verify all specifications and compatibility requirements with your existing system before purchase. This product is covered by a 5-year warranty.
