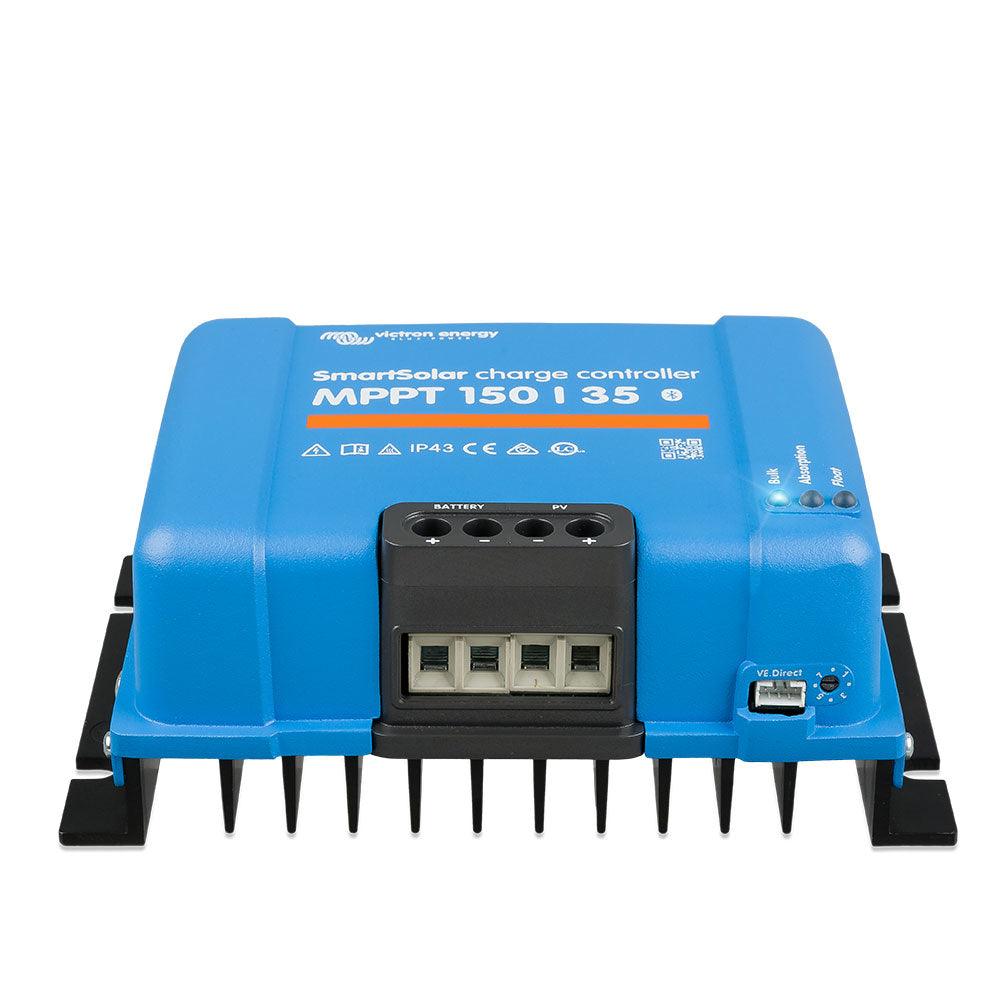

Victron SmartSolar MPPT 150/35 Solar Charge Controller
Ultra-Fast MPPT | 12/24/48V Auto | 35A Charge Current
The Victron SmartSolar MPPT 150/35 Solar Charge Controller is engineered to maximise energy harvest from your solar panels, making it an ideal choice for a wide range of applications including off-grid cabins, motorhomes, caravans, and small business solar systems. This advanced MPPT (Maximum Power Point Tracking) controller intelligently adapts to changing light conditions, ensuring every available watt is efficiently converted and stored in your battery bank.
Featuring built-in Bluetooth Smart connectivity, the SmartSolar MPPT 150/35 allows for seamless setup, monitoring, and updates via the VictronConnect app on your smartphone or tablet. It supports 12V, 24V, and 48V battery systems automatically, with an option for 36V via software, providing exceptional flexibility for various solar installations.
BUYER NOTE: Ensure PV array voltage and current are within 150V and 35A limits for optimal performance.
Key Features
| ▶ Ultra-Fast MPPT Tracking — Maximises energy harvest, especially in variable light conditions. |
| ▶ Multi-Stage Adaptive Charging — Optimises battery health and extends lifespan with flexible algorithms. |
| ▶ Built-in Bluetooth Smart — Enables wireless setup, monitoring, and updates via VictronConnect app. |
| ▶ VE.Direct Communication Port — For wired data connection to GX devices or PC. |
| ▶ BatteryLife Intelligent Load Output — Prevents battery over-discharge and promotes daily 100% recharge. |
| ▶ Advanced MPP Detection — Ensures maximum energy harvest even under partial shading. |
| ▶ High Conversion Efficiency — Exceeds 98% with passive cooling for silent operation. |
| ▶ Extensive Electronic Protection — Safeguards against common electrical faults. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | SmartSolar MPPT 150/35 |
| MPN | SCC115035210 |
| Product Type | MPPT Solar Charge Controller |
| Battery Voltage | 12V / 24V / 48V Auto Select (36V via software) |
| Rated Charge Current | 35A |
| Nominal PV Power (12V) | 500W |
| Nominal PV Power (24V) | 1000W |
| Nominal PV Power (36V) | 1500W |
| Nominal PV Power (48V) | 2000W |
| Max. PV Open Circuit Voltage | 150V (absolute max), 145V (operating max) |
| Max. PV Short Circuit Current | 40A |
| Peak Efficiency | >98% |
| Self-Consumption | < 20mA (12V), < 15mA (24V), < 10mA (48V) |
| Charge Algorithm | Multi-stage adaptive (8 pre-programmed or user-defined) |
| Data Communication | VE.Direct, Bluetooth Smart |
| Operating Temperature | -30°C to +60°C (full output up to 40°C) |
| IP Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm |
| Weight | 1.25 kg |
| Warranty | 5 Years |
| Certifications | CE, IEC 62109 |
Charging & Battery Modes
| Mode/Feature | Description |
|---|---|
| Adaptive 3-Stage Charging | Optimises charge cycles (Bulk, Absorption, Float) for various battery types, ensuring longevity. |
| BatteryLife Algorithm | Intelligent load output management that prevents battery over-discharge and aims for 100% recharge daily. |
| Flexible Charge Algorithm | Choose from eight pre-programmed algorithms or define your own for specific battery requirements. |
| External Temperature/Voltage Sensing (Optional) | Enhances charging accuracy by compensating for battery temperature and voltage via Smart Battery Sense or BMV-712 Smart. |
| Deep Discharge Recovery | Capable of initiating charging even for severely depleted batteries (down to 0V), provided cells are not permanently damaged. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Efficiently manages solar power for standalone homes, cabins, and remote installations. |
| Motorhomes & Caravans | Ensures reliable battery charging for mobile leisure vehicles. |
| Marine Vessels | Robust performance for yachts and boats requiring consistent power. |
| Small Business Solar | Provides efficient solar energy management for commercial applications. |
Built-In Protection Functions
The Victron SmartSolar MPPT 150/35 incorporates comprehensive electronic protections to ensure safe and reliable operation. These include: Over-temperature protection and power derating when temperature is high • PV short circuit protection • PV reverse polarity protection • PV reverse current protection • Output short circuit protection.
Common Questions
What is the main benefit of MPPT technology?
MPPT (Maximum Power Point Tracking) technology continuously monitors the voltage and current output of your solar panels to find the optimal power point. This ensures that the maximum available power is harvested, especially in conditions where light intensity is constantly changing, such as partially clouded skies, improving energy yield by up to 30% compared to traditional PWM controllers.
How can I monitor my SmartSolar MPPT 150/35?
The SmartSolar MPPT 150/35 features built-in Bluetooth Smart, allowing you to monitor and configure it wirelessly via the free VictronConnect app on your smartphone or tablet. For internet-connected installations with a Victron GX device, the Victron Remote Management (VRM) Portal provides remote access from anywhere.
What battery types are compatible with this controller?
The SmartSolar MPPT 150/35 automatically supports 12V, 24V, and 48V battery systems. It can also be configured for 36V systems using a software tool. Its flexible charge algorithm allows for customisation to suit various battery chemistries, including AGM, GEL, Flooded, and Lithium (LiFePO4 with internal BMS).
What is the BatteryLife feature?
BatteryLife is an intelligent load output function that prevents damage caused by running batteries completely flat. It allows you to configure a voltage at which the SmartSolar disconnects a load. If a 100% recharge isn't achieved daily due to poor weather, it incrementally raises the disconnect voltage until success is met, thereby maintaining battery health and extending its life.
Installation Notes
- Mount the charge controller in a well-ventilated, dry location, away from direct sunlight and heat sources.
- Ensure all wiring is correctly sized for the expected current and voltage, adhering to local electrical codes.
- Always connect the battery to the charge controller first, before connecting the solar PV array.
- Observe correct polarity for all connections to prevent damage to the unit and other system components.
- Refer to the official Victron Energy manual for detailed installation instructions and safety guidelines.
Before You Buy
- PV Voltage Compatibility: Verify that your total solar array's open circuit voltage (Voc) will not exceed 145V under the coldest conditions.
- Battery Voltage: Confirm your battery bank operates at 12V, 24V, 36V, or 48V. Note that 36V requires manual software selection.
- PV Current: Ensure your PV array's short-circuit current (Isc) does not exceed the controller's 40A limit.
- System Sizing: Calculate your total PV power to ensure it aligns with the controller's nominal PV power ratings for your chosen battery voltage.
Product specifications are subject to change by the manufacturer. Always verify compatibility with your specific system components before purchase and installation.
