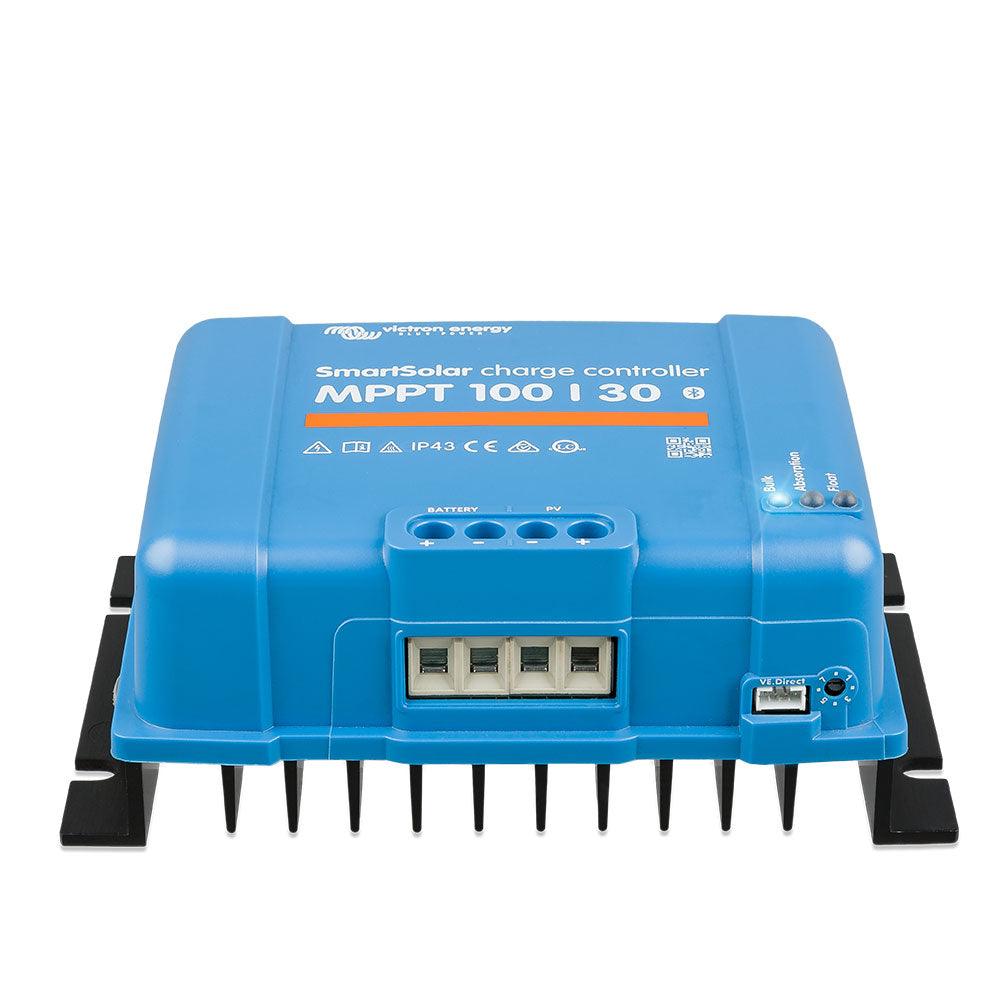

Victron SmartSolar MPPT 100/30
Victron SmartSolar MPPT 100/30
SKU:792-SCC110030210
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron SmartSolar MPPT 100/30 Solar Charge Controller
12V/24V Auto Select | 30A Charge Current | 100V PV Input
The Victron SmartSolar MPPT 100/30 Solar Charge Controller is an advanced solution for optimising energy harvest from your solar panels, designed for 12V and 24V battery systems. Utilising ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller ensures maximum efficiency, especially under challenging conditions like partial shading or rapidly changing light intensity.
Ideal for off-grid applications, cabins, RVs, and marine setups, the SmartSolar 100/30 intelligently manages your solar input to charge batteries efficiently and extend their lifespan. With built-in Bluetooth Smart, you can monitor and configure your system remotely via the VictronConnect app, offering unparalleled control and insight into your solar performance.
SMART CHARGING: Features a multi-stage adaptive charge algorithm with the unique BatteryLife function to protect and prolong battery health.
Key Features
| ▶ Ultra-Fast MPPT Tracking — Maximises energy harvest from your PV panels, especially in variable weather conditions. |
| ▶ Built-in Bluetooth Smart — Enables wireless setup, monitoring, and updates via the VictronConnect app on your smartphone or tablet. |
| ▶ Intelligent Load Output — Prevents battery damage from excessive discharge with a configurable voltage disconnect and BatteryLife algorithm. |
| ▶ Advanced MPPT for Partial Shading — Innovative algorithm ensures optimal energy harvest even when panels are partially shaded. |
| ▶ High Conversion Efficiency — Achieves over 98% efficiency without a cooling fan, ensuring silent operation. |
| ▶ Flexible Charge Algorithm — Features multi-stage adaptive charging, fully programmable, or selectable from eight pre-programmed options. |
| ▶ VE.Direct Port — Provides a wired data connection for Victron GX devices, PCs, or other compatible equipment. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 30A |
| Nominal PV Power (12V) | 440W |
| Nominal PV Power (24V) | 880W |
| Max. PV Open Circuit Voltage | 100V |
| Max. PV Short Circuit Current | 35A |
| Maximum Efficiency | >98% |
| Self-Consumption | 12V: 30mA / 24V: 20mA |
| Operating Temperature | -30°C to +60°C (Full output up to 40°C) |
| IP Rating | IP43 (electronics), IP22 (connection area) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
| Warranty | 5 Years |
Charging & Battery Modes
| Feature | Description |
|---|---|
| Multi-stage Adaptive Charging | Optimises battery charging through Bulk, Absorption, and Float stages, ensuring a full charge and extended battery life. |
| BatteryLife Algorithm | Intelligently adjusts load disconnect voltage to prevent deep discharge, ensuring batteries are fully recharged daily and extending their service life. |
| Programmable Settings | Customise charge parameters (float, absorption, equalisation, temperature compensation) via the VictronConnect app to match specific battery types. |
| Deeply Discharged Battery Recovery | Can initiate charging even if a battery has been discharged to zero volts, provided the cells are not permanently damaged. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Homes | Provides reliable and efficient solar charging for standalone power systems in remote locations. |
| Recreational Vehicles (RVs) | Optimises solar panel output for charging leisure batteries in caravans, motorhomes, and campervans. |
| Marine Vessels | Ensures consistent battery charging from solar arrays on boats and yachts, even in challenging marine environments. |
| Small Industrial & Mobile Systems | Suitable for telecommunications, monitoring stations, and other remote infrastructure requiring robust power management. |
Built-In Protection Functions
The Victron SmartSolar MPPT 100/30 includes comprehensive electronic protection features for enhanced safety and system longevity. These include over-temperature protection with power derating when temperatures are high • PV short circuit protection • PV reverse polarity protection • PV reverse current protection • and an internal temperature sensor for optimal charge voltage compensation. The unit is certified to EN/IEC 62109-1, UL 1741, and CSA C22.2 standards, ensuring reliable and safe operation.
Common Questions
What is MPPT technology and why is it important?
MPPT (Maximum Power Point Tracking) technology constantly monitors your solar panels' voltage and current output to find the optimal power point. This maximises energy harvest, especially in changing light conditions, improving efficiency by up to 30% compared to older PWM controllers.
Can I monitor the SmartSolar MPPT 100/30 remotely?
Yes, the SmartSolar 100/30 has built-in Bluetooth Smart. You can connect to it wirelessly using the VictronConnect app on your smartphone or tablet to monitor real-time data, view historical performance, and configure settings. For internet-connected systems, the Victron Remote Management (VRM) portal offers global access.
What battery types are compatible with this charge controller?
The Victron SmartSolar MPPT 100/30 is compatible with a wide range of battery types, including AGM, GEL, Flooded, and Lithium (LiFePO4) batteries. Its flexible and programmable charge algorithm allows you to tailor charging profiles to suit your specific battery chemistry.
What is the purpose of the Load Output?
The intelligent Load Output function protects your batteries from being run 'flat' by automatically disconnecting non-essential loads when the battery voltage drops below a configurable level. The unique BatteryLife algorithm then works to ensure the battery is fully recharged daily, extending its overall lifespan.
Installation Notes
- Ensure the charge controller is installed in a dry, well-ventilated area, protected from direct sunlight and moisture.
- Always connect the battery to the charge controller first, before connecting the solar panels, and disconnect solar panels first when dismantling.
- Use appropriate cable gauges for PV and battery connections to minimise voltage drop and ensure safe operation.
- For optimal performance and safety, it is recommended that installation be carried out by a qualified professional.
- Refer to the official Victron Energy manual for detailed installation instructions and wiring diagrams.
Before You Buy
- Verify your battery bank voltage (12V or 24V) matches the controller's auto-select capability.
- Confirm your solar panel array's total open-circuit voltage (Voc) does not exceed the controller's maximum PV input voltage of 100V.
- Calculate your total PV power to ensure it falls within the nominal PV power ratings (440W for 12V, 880W for 24V) for optimal charging.
- Consider your system's total load and ensure the 30A charge current is sufficient for your battery charging needs.
- For advanced system integration, check compatibility with other Victron GX devices if you plan to expand your setup.
All specifications are based on manufacturer data and are subject to change. Always refer to the official product manual for the most accurate and up-to-date information before purchase and installation.
