Victron SmartSolar Charge Controller MPPT 150/60 up to 250/60
Victron SmartSolar Charge Controller MPPT 150/60 up to 250/60
SKU:VSS-MPPT150/60-TR
Regular price
£641.00 GBP
Regular price
Sale price
£641.00 GBP
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
These Victron SmartSolar Charge Controllers support a PV input with a maximum open circuit voltage of 150V or 250V and have a maximum output of up to 70A. They work with and will automatically recognise 12V, 24V and 48V battery systems (36V also possible via software configuration).
- Internal Bluetooth for wireless communication with smartphones or tablets.
- Ultra-fast Maximum Power Point Tracking (MPPT) for maximum energy harvest.
- Advanced Maximum Power Point Detection in case of partial shading conditions.
- VE.Direct communication port

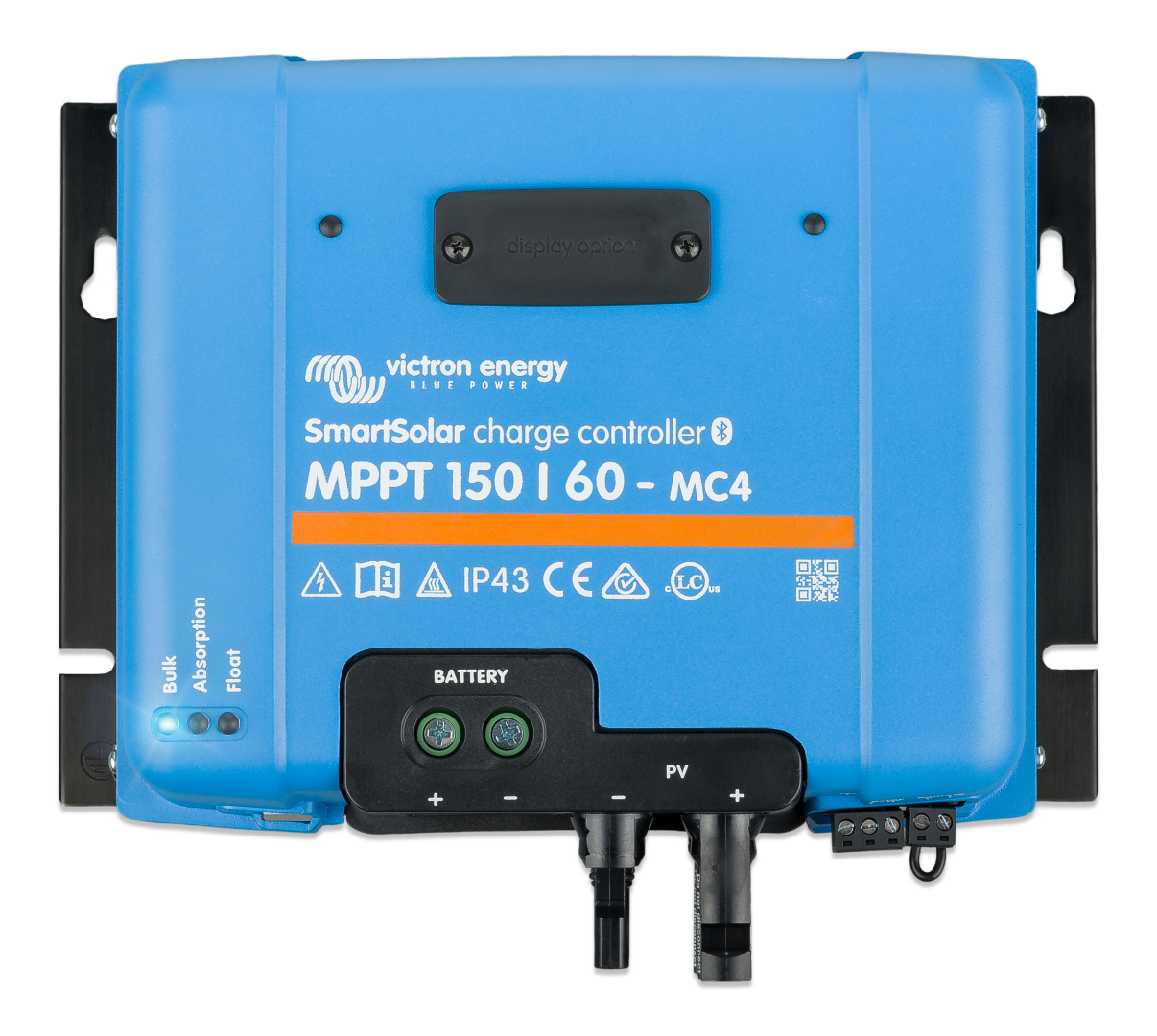

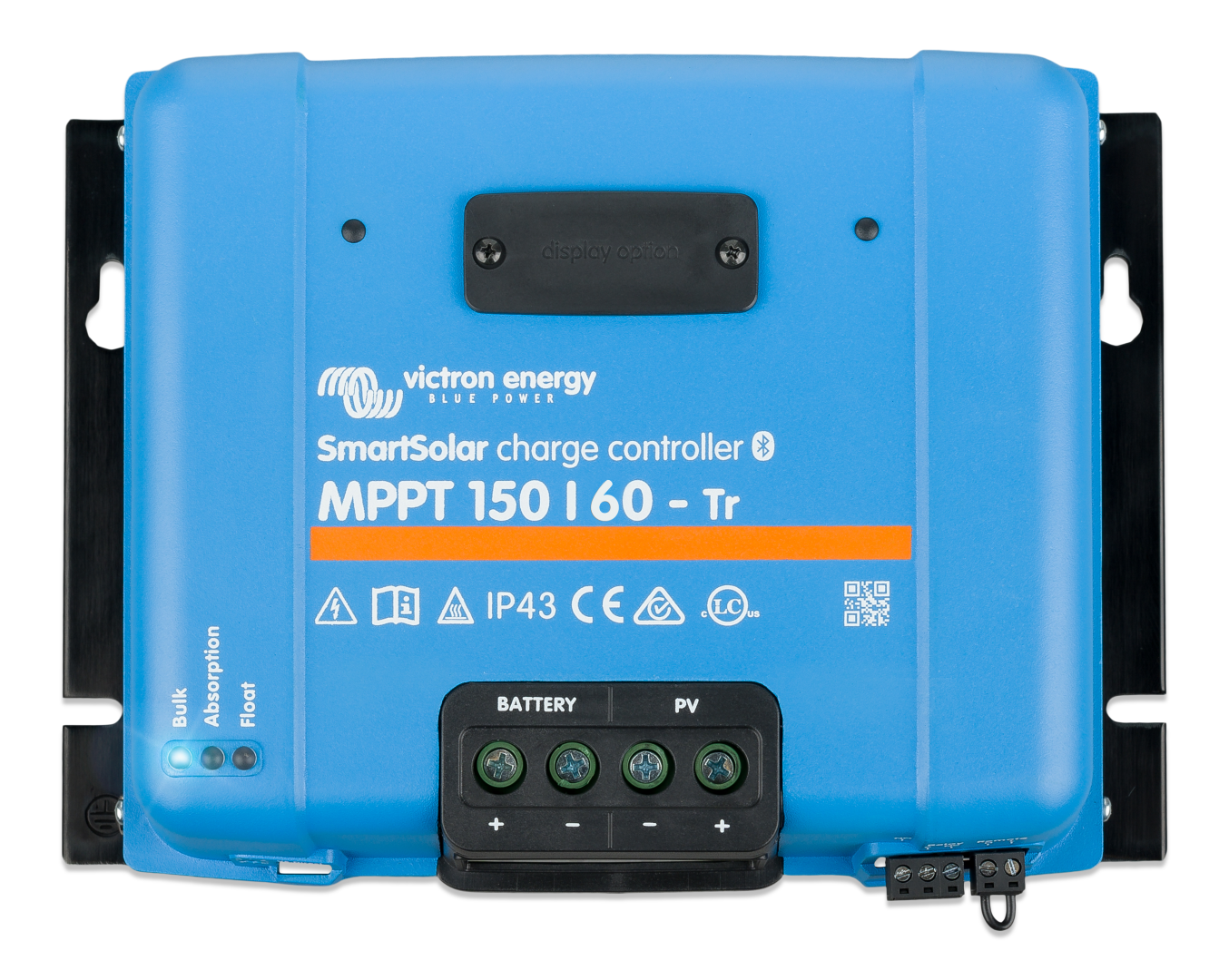

- Available with 35 mmý screw terminals (TR) or 3 sets of MC4 connectors (MC4)
- Up to 98% efficient
- 8 preprogrammed algorithms selectable with a rotary switch
- Electronic protection:
- Battery reverse polarity (fuse, not user accessible)
- PV reverse polarity / Output short circuit / Over temperature
- Internal temperature sensor, compensates absorption and float charge voltages
- Remote on/off (2 pole connector)
- Programmable relay - DPST AC rating: 240VAC / 4A DC rating: 4A up to 35VDC, 1A up to 60VDC
- Optional display - plugs into front of controller for VSS-MPPT150/60 to VSS-MPPT250/60 units.
- 5 years warranty
