Victron SCC110020170R BlueSolar MPPT 100/20
Victron SCC110020170R BlueSolar MPPT 100/20
SKU:792-SCC110020170R
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

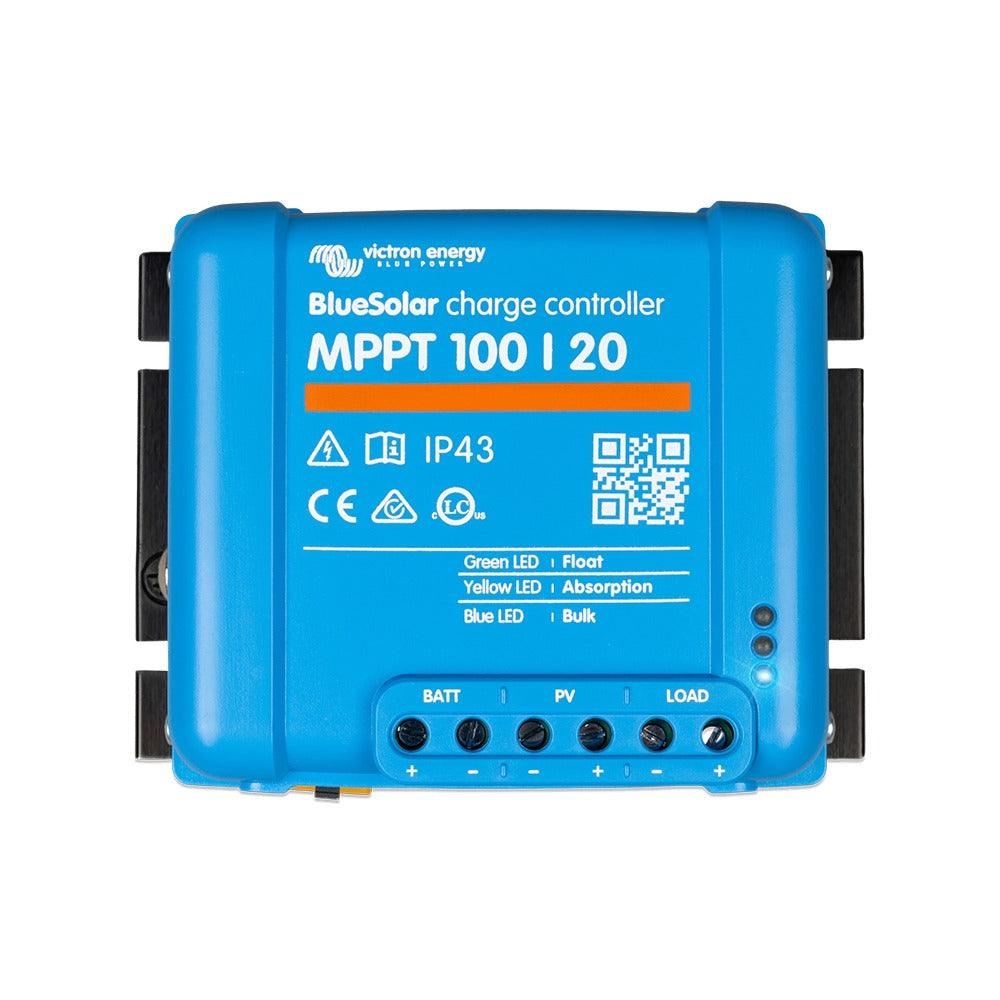

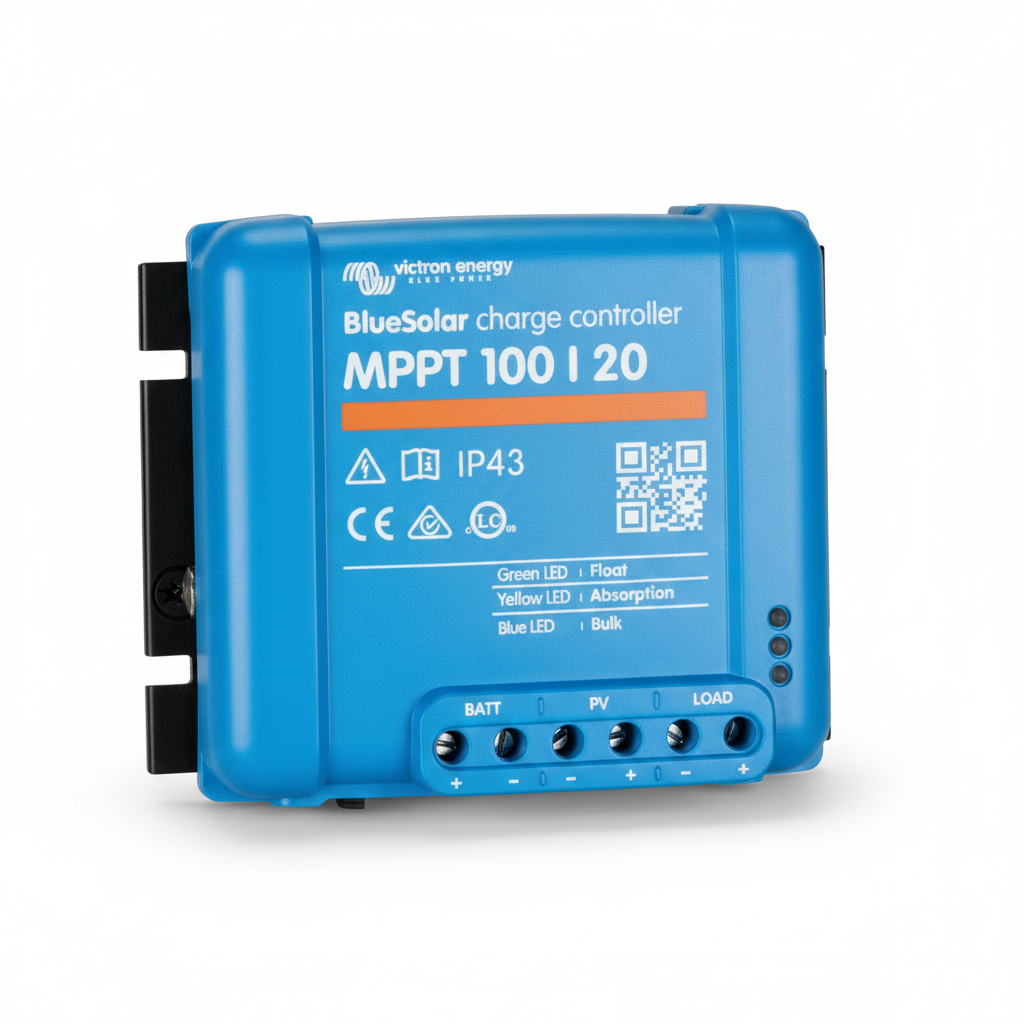

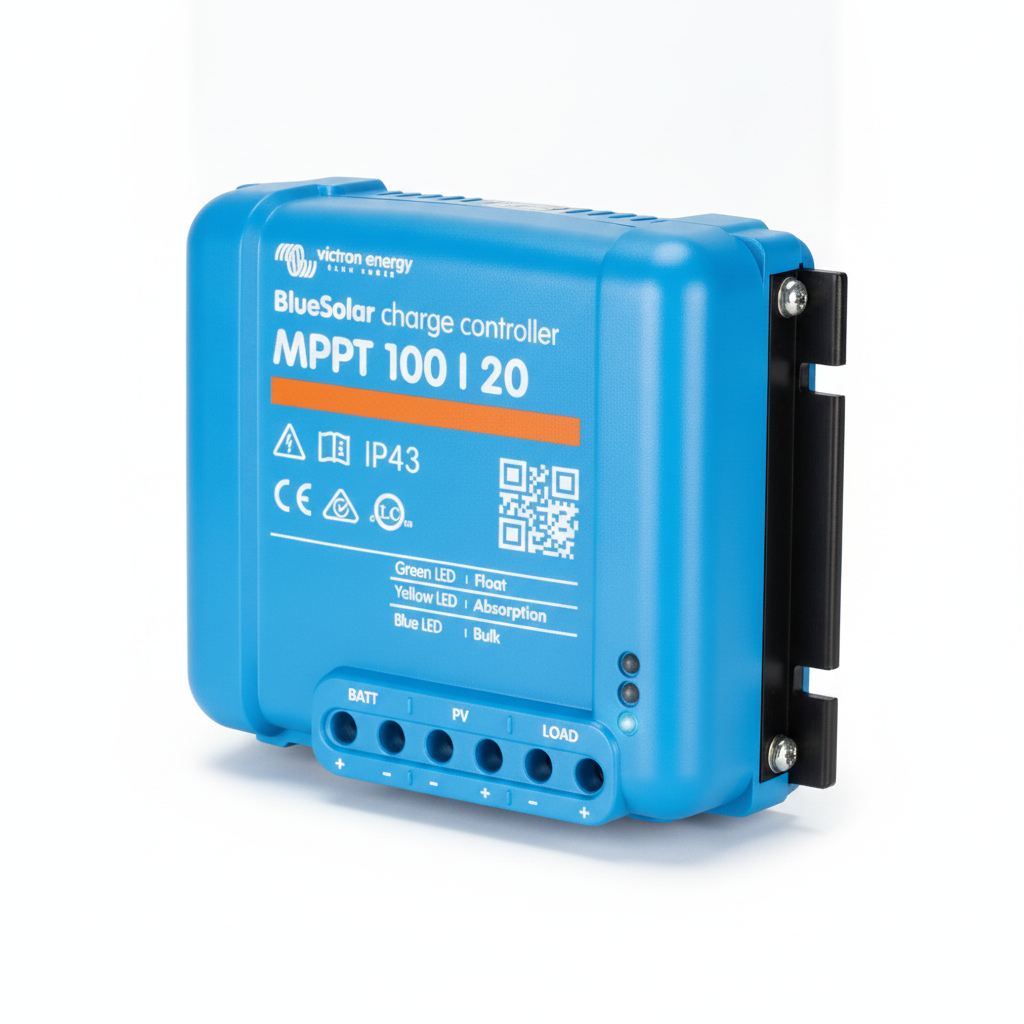

Victron BlueSolar MPPT 100/20 Solar Charge Controller
SCC110020170R | 12/24/48V Auto-Select | 20A Charge Current
The Victron BlueSolar MPPT 100/20 (model SCC110020170R) is a high-performance solar charge controller designed to efficiently harvest energy from your solar panels and intelligently manage battery charging. Utilising ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller optimises energy yield, particularly in variable light conditions, ensuring your batteries reach full charge in the shortest possible time.
Suitable for 12V, 24V, and 48V battery systems, the BlueSolar MPPT 100/20 automatically detects the battery voltage and delivers a rated charge current of 20A. It supports a maximum PV open circuit voltage of 100V, making it compatible with a wide range of solar panel configurations for off-grid, marine, RV, and remote solar applications.
KEY COMPONENT: Essential for efficient solar energy harvesting and maintaining battery health in various renewable energy systems.
Key Features
| ▶ Ultra-Fast MPPT Technology — Maximises energy harvest by up to 30% compared to PWM controllers, especially in changing light conditions. |
| ▶ Automatic Battery Voltage Detection — Automatically adapts to 12V, 24V, or 48V battery systems for versatile use. |
| ▶ Intelligent Load Output — Prevents battery over-discharge by disconnecting loads at a pre-set voltage, extending battery life. |
| ▶ Battery Life Algorithm — Smart battery management system that adjusts load disconnect levels to ensure regular full recharges, preserving lead-acid battery health. |
| ▶ Programmable Charge Algorithm — Offers flexible charging settings, including day/night timing and light dimming options. |
| ▶ VE.Direct Communication Port — Allows for advanced monitoring and configuration via a VE.Direct Bluetooth Smart dongle (sold separately) or GX devices. |
| ▶ High Peak Efficiency — Operates at up to 98% efficiency with a fanless design for silent and reliable performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | BlueSolar MPPT 100/20 |
| SKU / MPN | SCC110020170R |
| Battery Voltage (Auto Select) | 12V / 24V / 48V |
| Rated Charge Current | 20A |
| Nominal PV Power (12V) | 290W |
| Nominal PV Power (24V) | 580W |
| Nominal PV Power (48V) | 1160W |
| Max. PV Open Circuit Voltage | 100V |
| Max. PV Short Circuit Current | 20A |
| Peak Efficiency | 98% |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Operating Temperature Range | -30°C to +60°C |
| Dimensions (H x W x D) | 100 x 131 x 60mm |
| Weight | 0.65 kg |
Charging & Battery Management
The Victron BlueSolar MPPT 100/20 incorporates advanced features to ensure optimal battery charging and longevity:
- Adaptive 3-Stage Charging: Ensures batteries are charged efficiently and safely through Bulk, Absorption, and Float stages.
- Battery Life Algorithm: An intelligent feature that monitors battery state of charge and, if needed, incrementally increases the load disconnect voltage to ensure regular full recharges, preventing damage from chronic partial charging.
- Programmable Settings: Allows customisation of battery charge algorithms, day/night timing, and light dimming options to suit specific system requirements.
- Battery Compatibility: Suitable for use with various battery chemistries, including lead-acid (AGM, Gel, flooded) and lithium batteries.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Outbuildings | Efficiently charges batteries for lighting, small appliances, and essential power in remote locations. |
| Campervans & Motorhomes | Manages solar input to leisure batteries, providing reliable power for mobile living. |
| Marine Leisure Installations | Ideal for boats and yachts, ensuring house batteries are optimally charged from solar panels. |
| Remote Monitoring Stations | Provides stable and efficient power management for critical remote equipment. |
Built-In Protection Functions
The Victron BlueSolar MPPT 100/20 is equipped with comprehensive electronic protection features to ensure safe and reliable operation. These include output short circuit protection, overheat protection, and reverse polarity protection for the PV array (with caution). The load output is short-circuit proof, safeguarding connected devices and the controller itself. It holds international safety certifications including EN/IEC 62109-1, UL 1741, and CSA C22.2 No.107.1-16.
Common Questions
Does the BlueSolar MPPT 100/20 have built-in Bluetooth?
No, the BlueSolar MPPT 100/20 does not have built-in Bluetooth. For wireless monitoring and configuration via the VictronConnect app, a separate VE.Direct Bluetooth Smart dongle is required.
What is the "Battery Life" algorithm?
The Battery Life algorithm is an intelligent battery management feature designed to prevent damage to lead-acid batteries from chronic partial charging. It monitors the battery's state of charge and, if necessary, gradually adjusts the load disconnect voltage to ensure the battery achieves a near 100% recharge approximately once a week, extending its lifespan.
Can I connect an inverter to the load output?
While the load output is short-circuit proof, Victron recommends connecting high-power loads, especially inverters, directly to the battery. The inverter's remote control can then be connected to the load output for intelligent control. Always refer to the product manual for specific wiring guidance.
What is the maximum PV voltage this controller can handle?
The Victron BlueSolar MPPT 100/20 has a maximum PV open circuit voltage of 100V. It is crucial not to exceed this voltage to prevent damage to the controller.
Installation Notes
- Mount the charge controller vertically on a non-flammable surface, ensuring adequate clearance (minimum 10cm above and below) for optimal cooling.
- Install the controller within 3 metres of the battery, but never directly above it, to prevent damage from battery gassing.
- Ensure all wiring connections (battery, PV array, and load) are made with correct polarity and appropriate cable sizing.
- A battery fuse is required as per local regulations and the product manual; for the MPPT 100/20, a 25A to 30A fuse is recommended.
- Always disconnect the battery bank before connecting or disconnecting the solar array or load.
- Consult the official Victron Energy manual for detailed installation instructions and safety precautions.
Before You Buy
- Verify System Voltage: Confirm your battery bank operates at 12V, 24V, or 48V, which this controller supports.
- Check PV Array Compatibility: Ensure your solar panel array's open circuit voltage (Voc) does not exceed 100V and its short circuit current (Isc) does not exceed 20A.
- Consider Communication Needs: If remote monitoring or advanced configuration via Bluetooth is desired, remember that a separate VE.Direct Bluetooth Smart dongle is required.
- Battery Type: Confirm compatibility with your battery chemistry (lead-acid or lithium).
- Installation Environment: Ensure the intended installation location meets the IP rating requirements and temperature range for optimal performance.
Always consult the manufacturer's official documentation for precise specifications, installation guidelines, and warranty information before purchase and installation. Product specifications are subject to change by the manufacturer.
