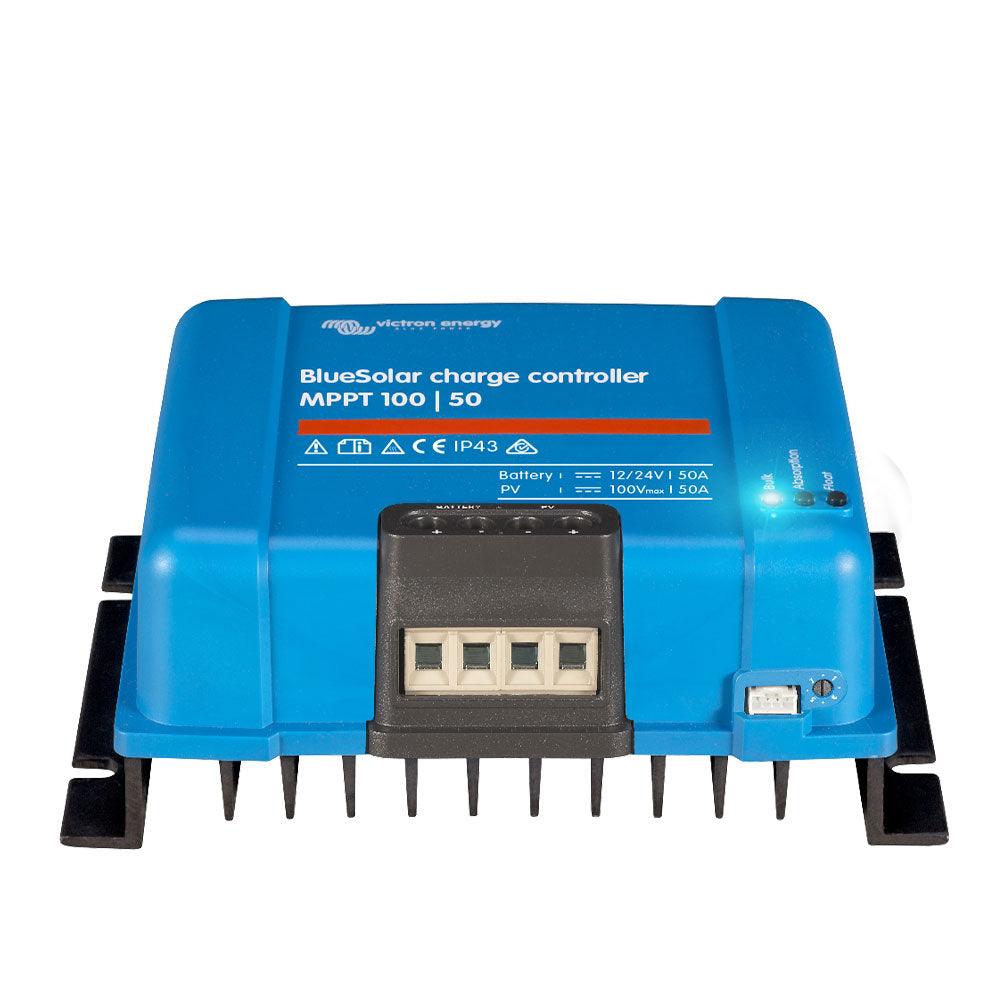

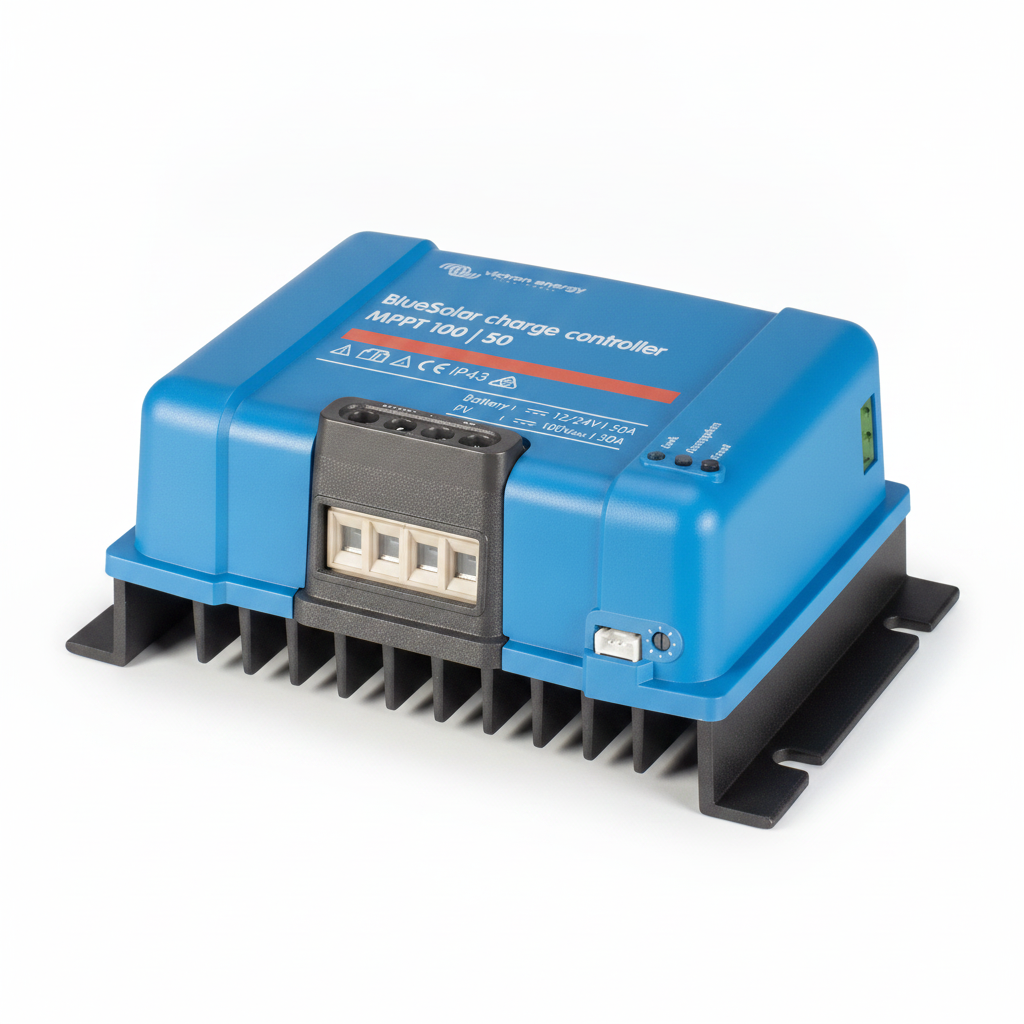

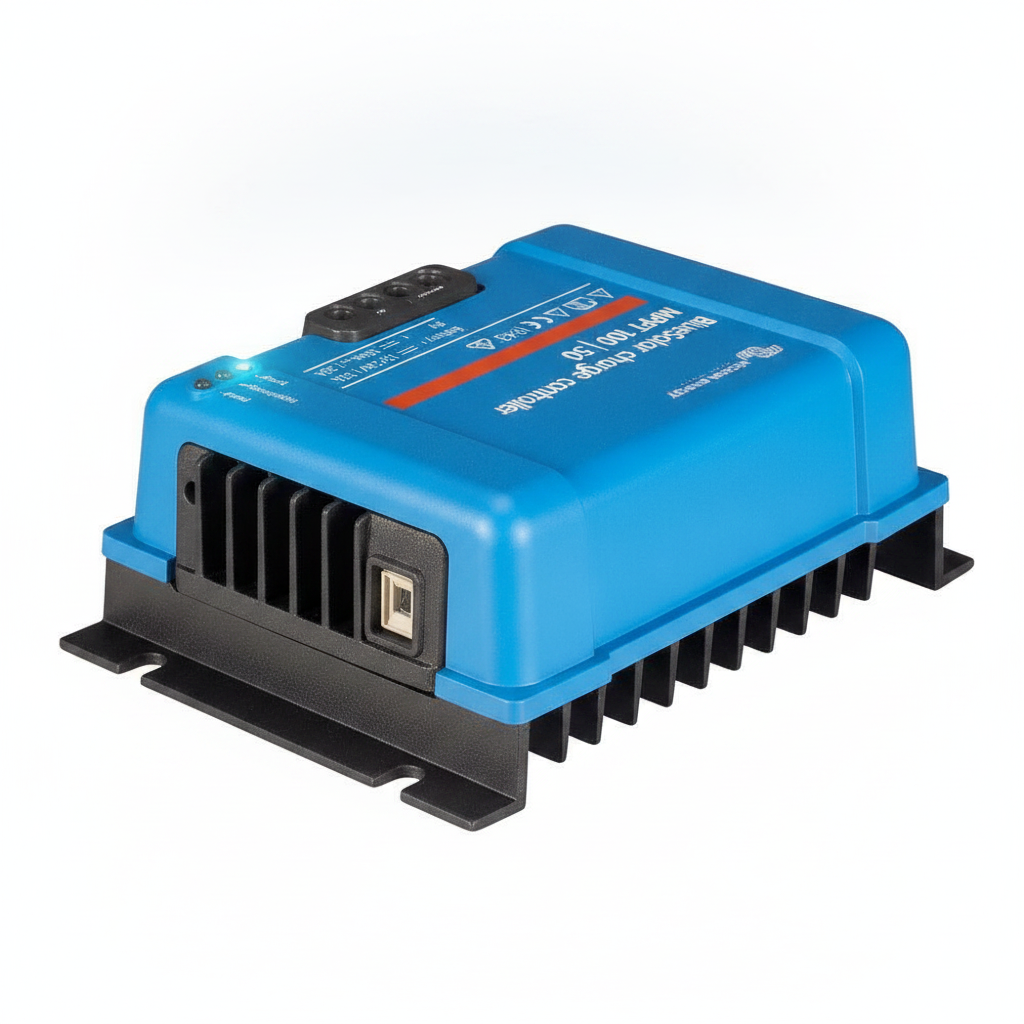

Victron BlueSolar MPPT 100/50 Solar Charge Controller
Model SCC020050200 | 12/24V | 50A | 100V PV Input
The Victron BlueSolar MPPT 100/50 Solar Charge Controller (SCC020050200) is engineered to maximise energy harvest from your solar panels, efficiently storing it in your batteries. Utilising ultra-fast Maximum Power Point Tracking (MPPT) technology, this controller intelligently optimises power output, especially under challenging conditions such as partial shading or rapidly changing light intensity.
Designed for 12V and 24V battery systems with automatic voltage detection, the BlueSolar MPPT 100/50 ensures optimal battery health and extended lifespan through its adaptive charging algorithm. It is a robust solution for various off-grid and grid-tied solar installations, providing reliable performance and comprehensive electronic protection.
Note on Bluetooth: This BlueSolar model does not have built-in Bluetooth. Remote monitoring via the VictronConnect App requires an optional VE.Direct Bluetooth Smart dongle.
Key Features
| ▶ Ultrafast MPPT Technology — Maximises energy harvest by up to 30% compared to PWM controllers, especially in variable light conditions. |
| ▶ Advanced Partial Shading Detection — Ensures optimal energy capture by identifying the true Maximum Power Point (MPP). |
| ▶ High Conversion Efficiency — Achieves up to 98% efficiency without a cooling fan, ensuring full output current up to 40°C. |
| ▶ Flexible Charge Algorithm — Features a fully programmable charge algorithm and eight pre-programmed options for diverse battery types. |
| ▶ Extensive Electronic Protection — Includes safeguards against over-temperature, PV short circuit, PV reverse polarity, and PV reverse current. |
| ▶ Internal Temperature Sensor — Compensates absorption and float charge voltages based on ambient temperature for optimal battery charging. |
| ▶ VE.Direct Communication Port — Allows connection to Victron monitoring devices (e.g., ColorControl GX) or a Bluetooth dongle for remote monitoring. |
| ▶ BatteryLife Algorithm — Intelligently manages load output to prevent excessive battery discharge, extending battery lifespan. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12/24V Auto Select |
| Rated Charge Current | 50A |
| Nominal PV Power (12V) | 700W |
| Nominal PV Power (24V) | 1400W |
| Max. PV Open Circuit Voltage | 100V |
| Max. PV Short Circuit Current | 60A |
| Maximum Efficiency | 98% |
| Protection Category (Electronics) | IP43 |
| Protection Category (Connection Area) | IP22 |
| Dimensions (H x W x D) | 130 x 186 x 70 mm |
| Weight | 1.3 kg |
Charging & Battery Modes
| Mode/Feature | Description |
|---|---|
| Adaptive 3-Stage Charging | Optimises battery charging with Bulk, Absorption, and Float stages to ensure full charge and prolong battery life. |
| Programmable Algorithm | Allows customisation of charging parameters or selection from eight pre-programmed algorithms via a rotary switch. |
| BatteryLife Algorithm | Intelligent load output management that gradually raises the disconnect voltage if the battery cannot be fully recharged daily, preventing deep discharge. |
| Fully Discharged Battery Recovery | Can initiate charging even when the battery is deeply discharged, provided there is sufficient PV voltage. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Ideal for cabins, remote homes, and small independent power systems where grid connection is unavailable. |
| Recreational Vehicles (RVs) & Caravans | Efficiently charges leisure batteries from solar panels, extending autonomy on the road. |
| Marine Applications | Suitable for boats and yachts to maintain battery banks using solar power. |
| Small Commercial Installations | Can be integrated into smaller commercial setups requiring reliable solar battery charging. |
Built-In Protection Functions
The Victron BlueSolar MPPT 100/50 is equipped with comprehensive electronic protection features to ensure safe and reliable operation. These include: Over-temperature protection and power derating when temperature is high • PV short circuit protection • PV reverse polarity protection • PV reverse current protection.
Common Questions
What is the maximum PV voltage this controller can handle?
The Victron BlueSolar MPPT 100/50 can handle a maximum PV open circuit voltage of 100V.
Does this model have built-in Bluetooth for monitoring?
No, the BlueSolar MPPT 100/50 does not have built-in Bluetooth. To enable remote monitoring via the VictronConnect App, a separate VE.Direct Bluetooth Smart dongle is required.
What battery voltages are supported?
This charge controller automatically detects and supports both 12V and 24V battery systems.
Can it charge a deeply discharged battery?
Yes, the BlueSolar MPPT 100/50 has a function to recover fully discharged batteries, provided there is sufficient PV voltage available.
Installation Notes
- Ensure the charge controller is mounted in a well-ventilated area, protected from direct sunlight and moisture, within its specified IP ratings.
- Always connect the battery to the charge controller first, before connecting the solar panels, and disconnect in reverse order.
- Use appropriate cable gauges for PV and battery connections to minimise voltage drop and ensure safety.
- Refer to the official Victron Energy manual for detailed installation instructions and wiring diagrams.
Before You Buy
- Verify your battery bank voltage (12V or 24V) and ensure it matches the controller's auto-detection capability.
- Confirm your total solar panel array power (in Watts) and ensure it does not exceed the controller's nominal PV power ratings (700W for 12V, 1400W for 24V).
- Check the maximum open circuit voltage (Voc) of your solar panel array; it must not exceed 100V.
- Consider if remote monitoring is required. If so, plan to purchase a separate VE.Direct Bluetooth Smart dongle or a Victron GX device.
- Consult a qualified installer if you are unsure about system design or electrical connections.
All specifications are based on manufacturer data and are subject to change. Always refer to the official Victron Energy documentation for the most current information. Victron Energy offers a standard 5-year warranty on this product.
