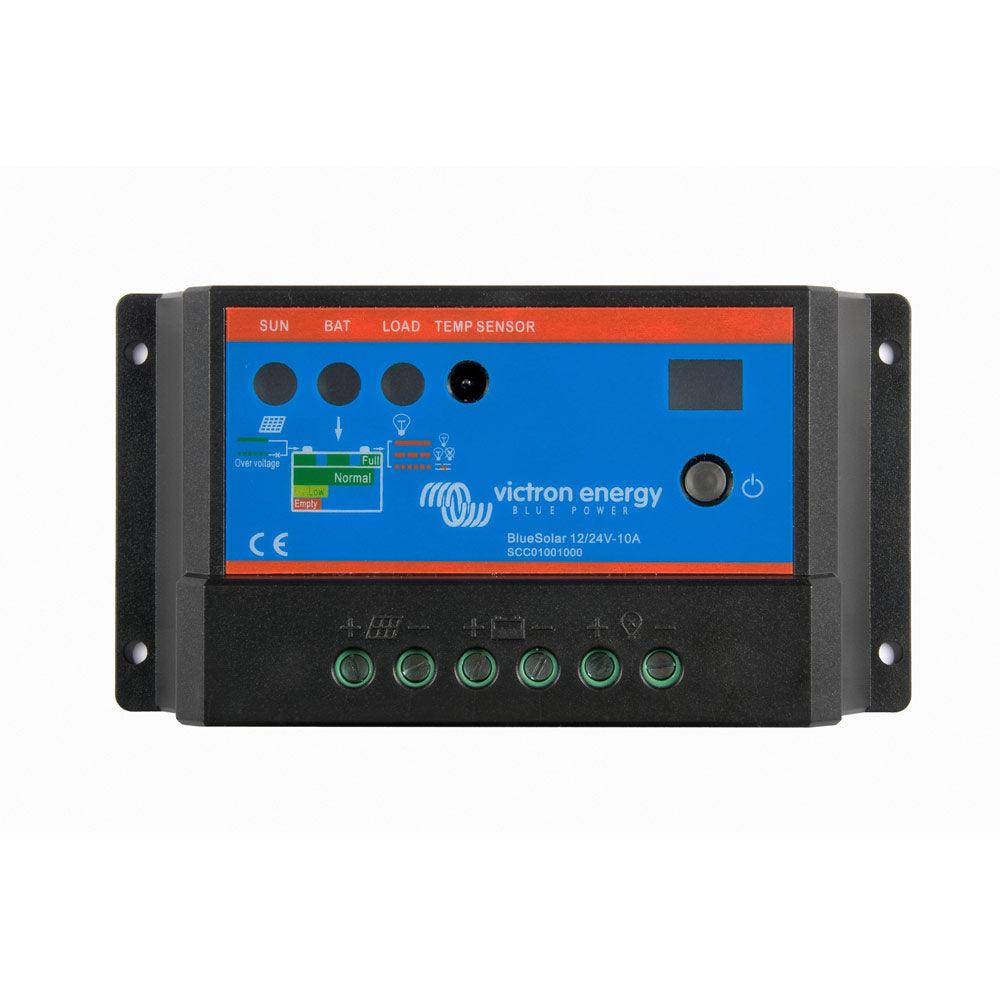

Victron BlueSolar PWM Light Charge Controller 12/24V 10A
Model: SCC010010000 | Efficient Solar Battery Management | Off-Grid Lighting Control
The Victron BlueSolar PWM Light Charge Controller 12/24V 10A (SCC010010000) provides a reliable and efficient solution for managing solar energy in small to medium-sized off-grid systems. This charge controller automatically detects 12V or 24V battery systems and delivers a rated charge current of 10A, ensuring optimal battery charging and protection.
Designed for straightforward operation, the BlueSolar PWM Light features a programmable load output with a dedicated lighting control mode, making it ideal for solar lighting applications. It incorporates a three-stage battery charging algorithm (bulk, absorption, float) to enhance battery performance and longevity, alongside comprehensive protection mechanisms for system safety.
KEY FUNCTION: Manages solar panel output to efficiently charge 12V or 24V batteries and control a DC load, often used for lighting.
Key Features
| ▶ Automatic Voltage Detection — Seamlessly adapts to 12V or 24V battery systems for versatile use. |
| ▶ 10A Rated Charge Current — Efficiently charges batteries in small to medium solar setups. |
| ▶ Three-Stage Charging — Utilises bulk, absorption, and float stages to optimise battery health and lifespan. |
| ▶ Programmable Load Output — Features a low battery voltage disconnect function to prevent over-discharge. |
| ▶ Integrated Lighting Control — Includes a single timer for managing solar lighting systems. |
| ▶ Two-Digit Display — Provides a clear seven-segment display for easy setting of load output functions. |
| ▶ Comprehensive Protection — Safeguards against overcurrent, short circuits, and reverse polarity. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SCC010010000 |
| Manufacturer | Victron Energy |
| System Voltage | 12V / 24V Auto-select |
| Rated Charge Current | 10A |
| Max. Solar Voltage | 50V |
| Self-Consumption | <10 mA |
| Battery Charging | 3-stage (Bulk, Absorption, Float) |
| Load Output | Yes, with LVD & Lighting Control |
| Protection Category | IP20 |
| Operating Temperature | -20°C to +50°C |
| Dimensions (H x W x D) | 70 x 133 x 33.5 mm |
| Weight | 0.15 kg |
Charging & Battery Modes
| Mode | Description |
|---|---|
| Bulk Charge | Delivers maximum current to rapidly charge the battery until a set voltage is reached. |
| Absorption Charge | Maintains a constant voltage to fully charge the battery without overcharging, with current gradually decreasing. |
| Float Charge | Reduces voltage to a lower level to maintain the battery at full charge, ready for use. |
| Load Output Control | Manages a connected DC load with low battery voltage disconnect and a single timer for lighting applications. |
Typical Applications
| Application | Description |
|---|---|
| Small Off-Grid Systems | Ideal for cabins, sheds, or remote installations requiring basic solar battery charging. |
| Solar Lighting | Perfect for managing outdoor solar lights, garden features, or security lighting with its integrated timer. |
| Caravans & Motorhomes | Provides essential battery charging and protection for leisure vehicles. |
| Marine Applications | Suitable for small boats or marine systems needing reliable 12V/24V solar charging. |
Built-In Protection Functions
The Victron BlueSolar PWM Light Charge Controller is equipped with multiple safety features to protect your system components. These include protection against reverse polarity connection of the solar array and/or battery • load output protected against overload and short circuit • and a low battery voltage disconnect function to prevent over-discharge.
Common Questions
What type of batteries is this controller suitable for?
This PWM charge controller is primarily designed for lead-acid batteries, including AGM, GEL, and Flooded types. For lithium batteries, a controller with a dedicated LiFePO4 charging profile is generally recommended.
Does this controller have Bluetooth connectivity?
No, the Victron BlueSolar PWM Light series does not feature built-in Bluetooth connectivity. It is a standalone unit designed for straightforward operation without app integration.
Can I use this controller with both 12V and 24V solar panels?
Yes, the Victron BlueSolar PWM Light Charge Controller automatically detects and adapts to either 12V or 24V battery systems. Ensure your solar panel voltage is compatible with the selected battery voltage.
What is the purpose of the load output?
The load output allows you to connect DC loads directly to the controller. It features a low battery voltage disconnect function to protect your battery from over-discharge, and a programmable timer for lighting control.
Installation Notes
- Mount the controller vertically on a non-flammable surface in a dry, well-ventilated area, away from direct sunlight.
- Always connect the battery to the charge controller first, ensuring correct polarity.
- Connect the solar panel(s) to the controller after the battery, again observing correct polarity.
- Connect any DC loads to the designated load output terminals, ensuring the load current does not exceed the controller's rating.
- Use appropriate wire gauges for all connections to prevent overheating and ensure efficient power transfer.
Before You Buy
- Verify your battery system voltage (12V or 24V) and ensure it matches the controller's auto-detection capability.
- Confirm your total solar panel array current does not exceed the controller's 10A rated charge current.
- Check the maximum open-circuit voltage (Voc) of your solar array to ensure it is below the controller's maximum solar voltage of 50V.
- Consider the type of battery you are using; this PWM controller is best suited for lead-acid batteries.
- Ensure you have adequate space for mounting and proper ventilation for the controller.
Specifications are subject to change by the manufacturer. Always refer to the official Victron Energy documentation for the most current information. This product typically comes with a 5-year manufacturer's limited warranty.
