VICTRON RJ45 UTP CABLE (3M) FOR VE.BUS AND VE.CAN CONNECTIONS
VICTRON RJ45 UTP CABLE (3M) FOR VE.BUS AND VE.CAN CONNECTIONS
SKU:VE-UTPCABLE30
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

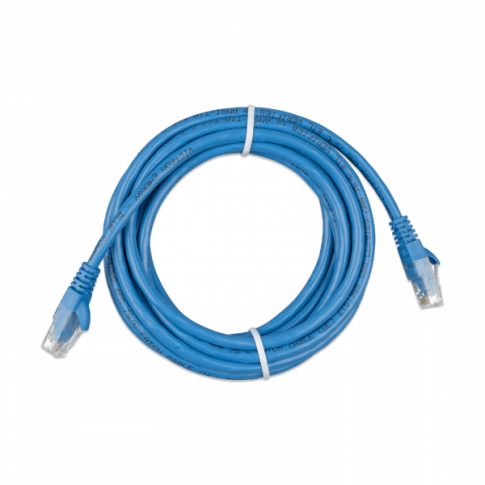

Victron RJ45 UTP Cable (3M)
Essential for VE.Bus & VE.Can Connections | 3 Metre Length
The Victron RJ45 UTP Cable (3M), SKU VE-UTPCABLE30, is an unshielded twisted pair (UTP) data cable specifically engineered by Victron Energy for reliable communication within their power systems. This 3-metre cable is crucial for establishing stable VE.Bus and VE.Can connections, ensuring seamless data flow between various Victron devices. It provides the necessary link for monitoring, control, and integrated operation of your solar and energy storage components.
Designed for precision and dependable performance, this cable facilitates the expansion and oversight of your Victron setup, from inverters and chargers to advanced GX monitoring devices.
CORE FUNCTION: Enables critical VE.Bus and VE.Can data communication for Victron Energy systems.
Key Features
| ▶ Dedicated Victron Connectivity — Specifically designed for VE.Bus and VE.Can protocols. |
| ▶ VE.Bus Device Integration — Connects Digital Multi Control, Phoenix Inverter Control, and Interface MK3-USB. |
| ▶ GX Device Compatibility — Facilitates essential VE.Bus and VE.Can connections to Victron GX devices for system overview. |
| ▶ 3-Metre Length — Offers practical reach for various installation layouts within a system. |
| ▶ UTP Technology — Utilises Unshielded Twisted Pair for clear and stable data transmission. |
| ▶ Robust Construction — Built to Victron's standards for dependable long-term performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model / SKU | VE-UTPCABLE30 |
| Cable Type | RJ45 UTP (Unshielded Twisted Pair) |
| Length | 3 Metres |
| Connector Type | RJ45 (both ends) |
| Intended Use | VE.Bus & VE.Can Communication |
System Integration & Data Flow
The Victron RJ45 UTP Cable is fundamental for establishing robust communication pathways within your Victron Energy system. It supports two primary communication protocols: VE.Bus and VE.Can.
| Protocol | Function & Devices |
|---|---|
| VE.Bus | A proprietary Victron protocol for connecting inverter/chargers (e.g., MultiPlus, Quattro) to their accessories like Digital Multi Control, Phoenix Inverter Control, and Interface MK3-USB. It's also used for parallel and three-phase configurations. No terminators are required for VE.Bus connections. |
| VE.Can | An RJ45 CANbus-based network for larger Victron products, typically used in a daisy-chain configuration. This is the preferred connectivity method where available, especially for GX devices like the Cerbo GX. VE.Can networks require terminators at each end of the string. |
By facilitating these connections, the cable ensures that all components of your Victron system can communicate effectively, enabling comprehensive monitoring via GX devices and coordinated operation for optimal energy management.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Connecting Victron inverters, chargers, and GX devices for comprehensive system management in remote or standalone power setups. |
| Marine & RV Installations | Ensuring reliable communication between power components on boats and recreational vehicles for integrated control and monitoring. |
| Backup Power Systems | Linking MultiPlus or Quattro inverter/chargers with control panels and GX devices for seamless backup power management. |
| Industrial & Commercial | Facilitating data exchange in larger Victron installations requiring robust and integrated system control. |
Common Questions
What is the difference between VE.Bus and VE.Can?
VE.Bus is a Victron proprietary communication protocol primarily used for inverter/chargers and their accessories. VE.Can is an industry-standard CANbus protocol, also used by Victron, especially for larger products and GX devices. While both use RJ45 connectors, they are distinct protocols and are not interchangeable.
Do I need terminators for this cable?
For VE.Bus connections, no terminators are required. For VE.Can networks, terminators are essential and must be installed at each end of the daisy-chain. These are typically supplied with VE.Can-enabled devices like MPPTs and GX devices.
Can this cable be used for standard Ethernet networking?
While the cable uses RJ45 connectors and UTP technology similar to standard Ethernet, it is specifically designed and wired for Victron's proprietary VE.Bus and VE.Can communication protocols. Using it for general Ethernet networking is not its intended purpose and may not function correctly.
Are other lengths of this cable available?
Yes, Victron RJ45 UTP cables are available in various lengths, including 0.3m, 0.9m, 1.8m, 5m, 10m, 15m, and 30m, to suit different installation requirements.
Installation Notes
- Ensure correct port identification: Connect the cable to the designated VE.Bus or VE.Can ports on your Victron devices.
- Avoid sharp bends: Route the cable carefully to prevent damage and maintain signal integrity.
- Secure connections: Ensure RJ45 connectors are fully seated and latched to prevent accidental disconnections.
- Cable management: Use cable ties or conduits to keep wiring neat and protected, especially in mobile or harsh environments.
- Refer to device manuals: Always consult the specific Victron device manuals for detailed connection diagrams and requirements.
Before You Buy
- Verify Compatibility: Confirm that your Victron devices require an RJ45 UTP cable for VE.Bus or VE.Can communication.
- Check Length: Measure the required cable run accurately, accounting for bends and slack, to ensure the 3-metre length is sufficient. Other lengths are available if needed.
- Understand Protocols: Be aware of the specific requirements for VE.Bus (no terminators) and VE.Can (terminators required) networks.
- System Design: Consider your overall Victron system layout to ensure all necessary communication links are planned.
- Genuine Victron: Purchase genuine Victron Energy cables for guaranteed compatibility and performance.
Always verify product specifications and compatibility with your existing Victron Energy system before purchase. Victron Energy offers a 5-year standard warranty on this product.
