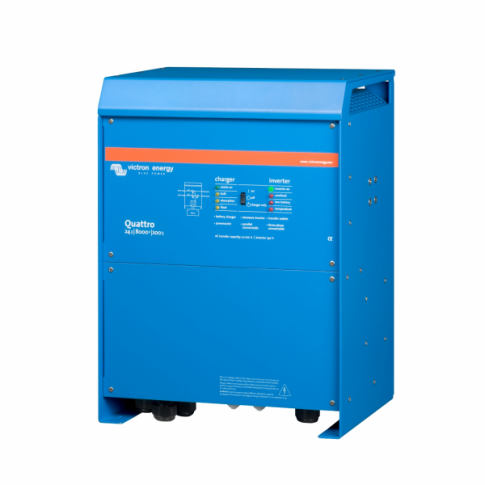

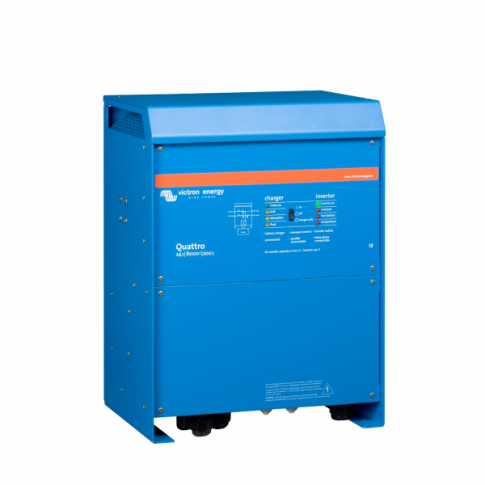

Victron Quattro 8000VA 24V Inverter with 200A Charger
QUA248020010 | 24V DC to 230V AC | Dual 100A Transfer Switch
The Victron Quattro 24/8000/200-100/100 230V VE.Bus is a highly versatile and robust hybrid inverter/charger, engineered for advanced power management in the UK and beyond. This single unit intelligently combines a powerful 8000VA (6400W) pure sine wave inverter, a sophisticated 200A adaptive battery charger, and dual 100A high-speed AC transfer switches.
Designed for seamless integration, the Quattro is an ideal solution for off-grid homes, backup power systems, and complex hybrid energy setups, including marine and commercial applications. Its ability to manage multiple AC inputs and provide uninterruptible power makes it a cornerstone for reliable energy systems.
Key Capability: Seamless power management with dual AC inputs and UPS functionality for critical loads.
Key Features
| ▶ 8000VA Pure Sine Wave Inverter — Delivers 6400W continuous power (16000W peak) for sensitive electronics. |
| ▶ Adaptive 200A Battery Charger — 4-stage smart charging (bulk, absorption, float, storage) for 24V battery banks. |
| ▶ Dual 100A AC Transfer Switches — Connects to two independent AC sources (e.g., grid, generator) with automatic switching. |
| ▶ Uninterruptible Power Supply (UPS) — Main output provides no-break functionality (<20ms switchover) for critical loads. |
| ▶ PowerControl & PowerAssist — Prevents generator/grid overload and boosts limited AC sources with battery power. |
| ▶ Parallel & Three-Phase Capability — Up to six Quattro units can operate in parallel for increased power output; three units for three-phase. |
| ▶ Remote Monitoring & Control — Compatible with Victron GX devices and the free Victron VRM portal for local and remote management. |
Technical Specifications
| Parameter | Value |
|---|---|
| Inverter Input Voltage Range | 19 - 33 V DC |
| Output Voltage & Frequency | 230 VAC ± 2% @ 50Hz ± 0.1% |
| Continuous Output Power (25°C) | 8000 VA (6400W) |
| Peak Power | 16000W |
| Maximum Efficiency | 94% |
| Zero-Load Power (Standard) | 30W |
| AC Input Voltage Range (Charger) | 187 - 265 VAC |
| Charge Voltage 'Absorption' | 28.8 V DC |
| Charge Voltage 'Float' | 27.6 V DC |
| Storage Mode Voltage | 26.4 V DC |
| Charge Current (House Battery) | 200 A |
| Charge Current (Starter Battery) | 4 A |
| AC Transfer Switch | 2 x 100 A |
| Auxiliary Output | Yes (50A) |
| Operating Temperature Range | -40 to +65 °C |
| Humidity (Non-Condensing) | Max 95% |
| VE.Bus Communication Port | Yes |
| Protection Category | IP21 |
| Battery Connection | Four M8 bolts (2 positive, 2 negative) |
| 230 VAC Connection | M6 bolts |
| Weight | 41 kg |
| Dimensions (H x W x D) | 470 x 350 x 280 mm |
Charging & Output Modes
| Mode/Connection | Description |
|---|---|
| AC Input 1 (Main) | Primary connection for grid or generator power, with an integrated 100A transfer switch. |
| AC Input 2 (Secondary) | Secondary connection for an alternative grid or generator source, also with a 100A transfer switch. |
| AC Output 1 (Main) | Provides uninterruptible power with a switchover time of less than 20 milliseconds, ideal for critical loads. |
| AC Output 2 (Auxiliary) | Active only when an AC input source is available, suitable for non-essential loads that should not discharge the battery. |
| Adaptive 4-Stage Charging | Microprocessor-controlled charging algorithm (Bulk, Absorption, Float, Storage) optimises battery health and lifespan. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Homes & Cabins | Provides reliable 230V AC power from battery banks, seamlessly integrating with solar and generator inputs. |
| Backup Power Systems | Ensures continuous power during grid failures with rapid, automatic transfer for essential loads. |
| Marine & RV Systems | Manages multiple AC sources (shore power, generator) and efficiently charges batteries for mobile applications. |
| Commercial & Industrial | Scalable solutions for larger power demands, supporting parallel and three-phase configurations. |
| Hybrid Solar Systems | Integrates with solar chargers and the grid for optimised self-consumption and energy independence. |
Built-In Protection Functions
The Victron Quattro 24/8000/200-100/100 includes comprehensive protection features to ensure safe and reliable operation. These include safeguards against output short circuit • overload • battery overvoltage • battery undervoltage • overheating • 230 VAC on inverter output • and excessive input voltage ripple.
Common Questions
What is the primary difference between the Victron Quattro and MultiPlus?
The Quattro features two independent AC inputs and two AC outputs, allowing connection to two distinct power sources (e.g., grid and generator) and managing essential/non-essential loads separately. The MultiPlus typically has one AC input.
Can this Quattro model be expanded for higher power?
Yes, up to six Quattro units can be connected in parallel for increased power output. Three units can also be configured for true three-phase operation, offering significant scalability.
What is PowerAssist technology?
PowerAssist intelligently supplements limited AC input power (from a generator or shore connection) with additional power drawn from the battery. This prevents overloads on the input source and allows for the use of smaller generators.
Is remote monitoring available for this unit?
Yes, when connected to a Victron GX device (e.g., Cerbo GX), the Quattro can be monitored and controlled locally or remotely via the free Victron VRM portal website and app, accessible from various devices.
Installation Notes
- Professional installation by a qualified electrician or certified solar installer is strongly recommended to ensure safety and compliance with local regulations.
- Always refer to the official Victron Energy product manual for detailed wiring diagrams, safety guidelines, and commissioning procedures specific to the Quattro 24/8000/200-100/100.
- Ensure adequate ventilation and clearance around the unit to prevent overheating and maintain optimal performance.
- Proper battery bank sizing, DC cabling, and AC wiring are crucial for the system's efficiency, safety, and longevity.
Before You Buy
- Verify your existing or planned system's DC voltage (24V) to ensure compatibility with this inverter/charger.
- Calculate your total power requirements (VA/W) for both continuous and peak loads to confirm the 8000VA capacity is sufficient.
- Consider your AC input sources (grid, generator) and how the dual inputs will integrate into your specific energy setup.
- Plan for appropriate battery bank capacity to support your desired autonomy and discharge rates.
- Consult with a renewable energy specialist if you are unsure about system design or compatibility.
Specifications are based on manufacturer data and may be subject to change. Always consult the official Victron Energy datasheet for the most current information.
