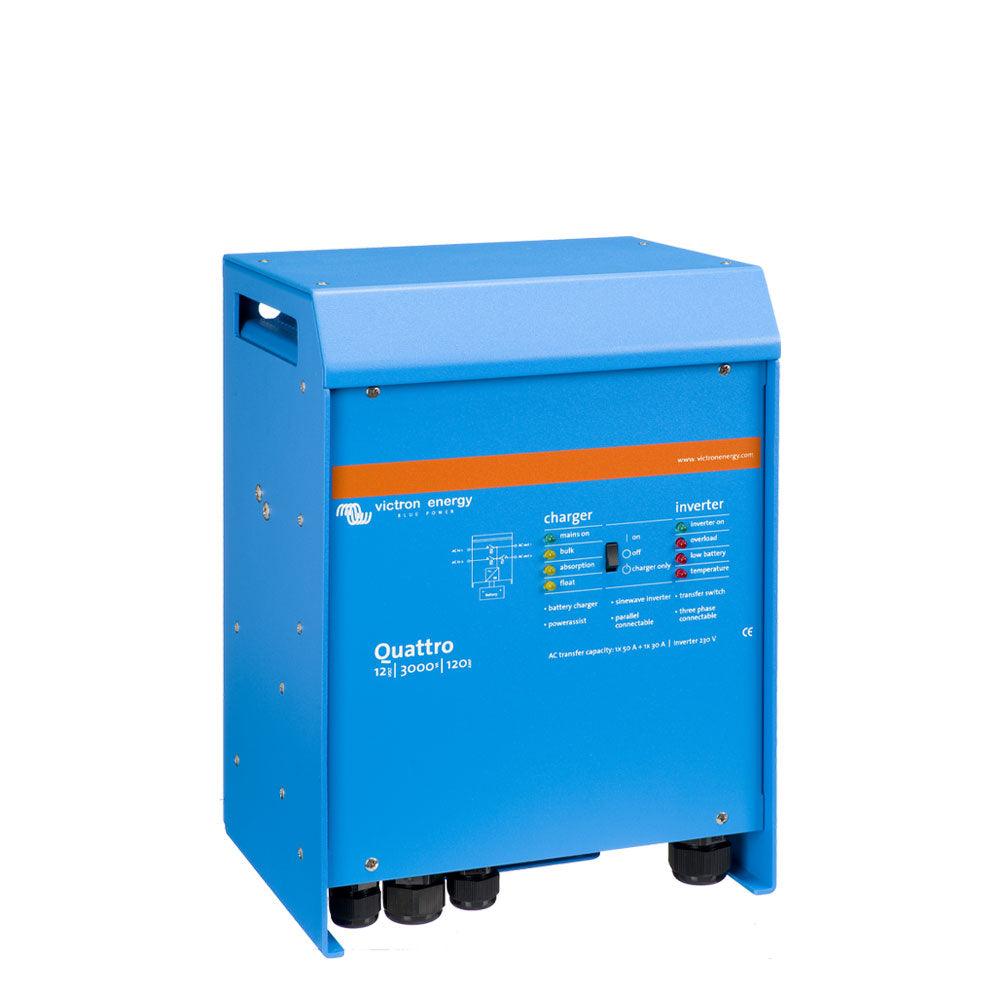

Victron Quattro 12/3000/120-50/50 Inverter/Charger
12V DC to 230V AC | 3000VA Inverter | 120A Charger | Dual 50A AC Inputs
The Victron Quattro 12/3000/120-50/50 230/50 is a powerful multi-functional inverter/charger designed for advanced energy systems. It seamlessly integrates a true sine wave inverter, an adaptive battery charger, and a high-speed AC transfer switch into a single compact unit. This model is engineered to provide reliable 230V AC power from a 12V DC battery bank, making it ideal for a wide range of applications in the UK and Europe.
Distinguished by its dual AC inputs, the Quattro can connect to two independent AC sources, such as shore power and a generator, or two generators, automatically switching to the active source. This ensures continuous power supply, even during grid failures or when primary AC sources are disconnected.
MODEL IDENTIFIER: Victron Energy Quattro 12/3000/120-50/50 230/50 (SKU: QUA123020010)
Key Features
| ▶ Dual AC Inputs — Connects to two independent AC sources (e.g., shore power and generator) for automatic, seamless switching. |
| ▶ Two AC Outputs — Features a main output with no-break functionality for critical loads and a secondary output for non-critical loads active only when AC input is present. |
| ▶ No-Break Functionality — Ensures uninterrupted power supply to sensitive electronics with a transfer time of less than 20 milliseconds. |
| ▶ PowerControl — Manages input current from limited AC sources, automatically reducing battery charging to prevent overload. |
| ▶ PowerAssist — Boosts the capacity of limited AC sources by supplementing with power drawn from the battery, ideal for peak loads. |
| ▶ Parallel & 3-Phase Capability — Up to 6 Quattro units can operate in parallel for increased power output, and three units can be configured for three-phase systems. |
| ▶ Adaptive 120A Battery Charger — Provides efficient and safe charging for 12V battery banks, adapting to battery condition. |
| ▶ Pure Sine Wave Output — Delivers high-quality 230V AC power suitable for all types of electronic equipment. |
Technical Specifications
| Parameter | Value |
|---|---|
| DC Input Voltage Range | 9.5 – 17V DC |
| Inverter Output Voltage (AC) | 230V AC, 50Hz |
| Continuous Output Power (25°C) | 3000 VA / 2400 W |
| Peak Power | 6000 W |
| Battery Charger Current (12V) | 120 A |
| AC Transfer Switch Rating | 2 x 50 A |
| Zero-load Power (Standard/AES/Search mode) | 15 W / 10 W / 5 W |
| Dimensions (H x W x D) | 362 x 258 x 218 mm |
| Weight | 19 kg |
Charging & Output Modes
The Victron Quattro offers sophisticated power management for diverse energy needs:
- Main AC Output: Provides continuous, no-break power to critical loads. In the event of grid or generator failure, the inverter seamlessly takes over within milliseconds.
- Secondary AC Output: Designed for non-critical loads, this output is only active when one of the AC inputs is available. This prevents unnecessary battery discharge for appliances like water heaters or air conditioning.
- PowerControl: Intelligently manages the charging current drawn from limited AC sources (e.g., small generators or shore power) to prevent overloading. It prioritises AC loads and uses any spare capacity for battery charging.
- PowerAssist: Enhances the capacity of a limited AC source by supplementing it with power from the battery. This feature is particularly useful during peak demand, ensuring that insufficient input power is immediately compensated.
- Adaptive Charger: The integrated 120A battery charger features an adaptive 4-stage charge characteristic, ensuring optimal charging for various battery types and extending battery lifespan.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Provides reliable 230V AC power for remote homes, cabins, and standalone installations. |
| Marine & RV | Ideal for boats, yachts, and motorhomes, managing power from shore, generator, and battery sources. |
| Backup Power Systems | Ensures continuous power for residential or small business critical loads during grid outages. |
| Hybrid PV Systems | Integrates seamlessly with solar PV systems, allowing AC power availability even during grid failures. |
Built-In Protection Functions
The Victron Quattro 12/3000/120-50/50 230/50 is equipped with comprehensive protection features to ensure safe and reliable operation. These include safeguards against output short circuit • overload • battery voltage too high • battery voltage too low • high temperature • 230 VAC on inverter output • and excessive input voltage ripple.
Common Questions
What is the primary difference between a Victron MultiPlus and a Quattro?
The main distinction is that the Victron Quattro features two independent AC inputs, allowing connection to two separate power sources (e.g., grid and generator, or two generators). The MultiPlus typically has only one AC input.
Can this Quattro unit be integrated into a solar power system?
Yes, the Victron Quattro is designed to be used in both off-grid and grid-connected PV (photovoltaic) systems, as well as other alternative energy setups. It can manage AC power even during grid failures.
What does the PowerAssist feature do?
PowerAssist allows the Quattro to supplement a limited AC source (like a small generator or shore connection) with power from the battery. When peak power is required for a short period, the Quattro will draw power from the battery to prevent the AC input from being overloaded.
Is this model suitable for UK electrical standards?
Yes, the "230/50" in the model name indicates it provides a 230V AC, 50Hz output, which is the standard for the UK and many European countries.
Installation Notes
- Professional installation by a qualified electrician or solar installer is strongly recommended to ensure safety and compliance with local regulations.
- Ensure adequate ventilation around the unit to prevent overheating, as specified in the manufacturer's manual.
- Proper DC fusing and cabling are essential for safe operation and to protect the battery bank and inverter.
- Verify all wiring connections are secure and correctly polarised before applying power.
- The unit can be configured using DIP switches for basic settings or via VE.Bus software for more advanced features and parallel/three-phase operation.
Before You Buy
- Verify DC Voltage: Confirm your battery bank is a 12V system to match this Quattro model.
- Assess Power Requirements: Ensure the 3000VA (2400W) continuous output and 6000W peak power are sufficient for your intended loads.
- Consider AC Input Sources: Plan for the two AC input connections (e.g., grid, generator, shore power) and their respective current limits.
- Check Physical Space: Review the dimensions (362 x 258 x 218 mm) to ensure adequate mounting space and ventilation.
- System Compatibility: If integrating with other Victron Energy components (e.g., GX devices, MPPT solar chargers), ensure overall system compatibility for optimal performance and monitoring.
Always refer to the official Victron Energy datasheet and manual for complete specifications and installation guidelines. Compatibility with specific systems should be verified by a qualified professional.
