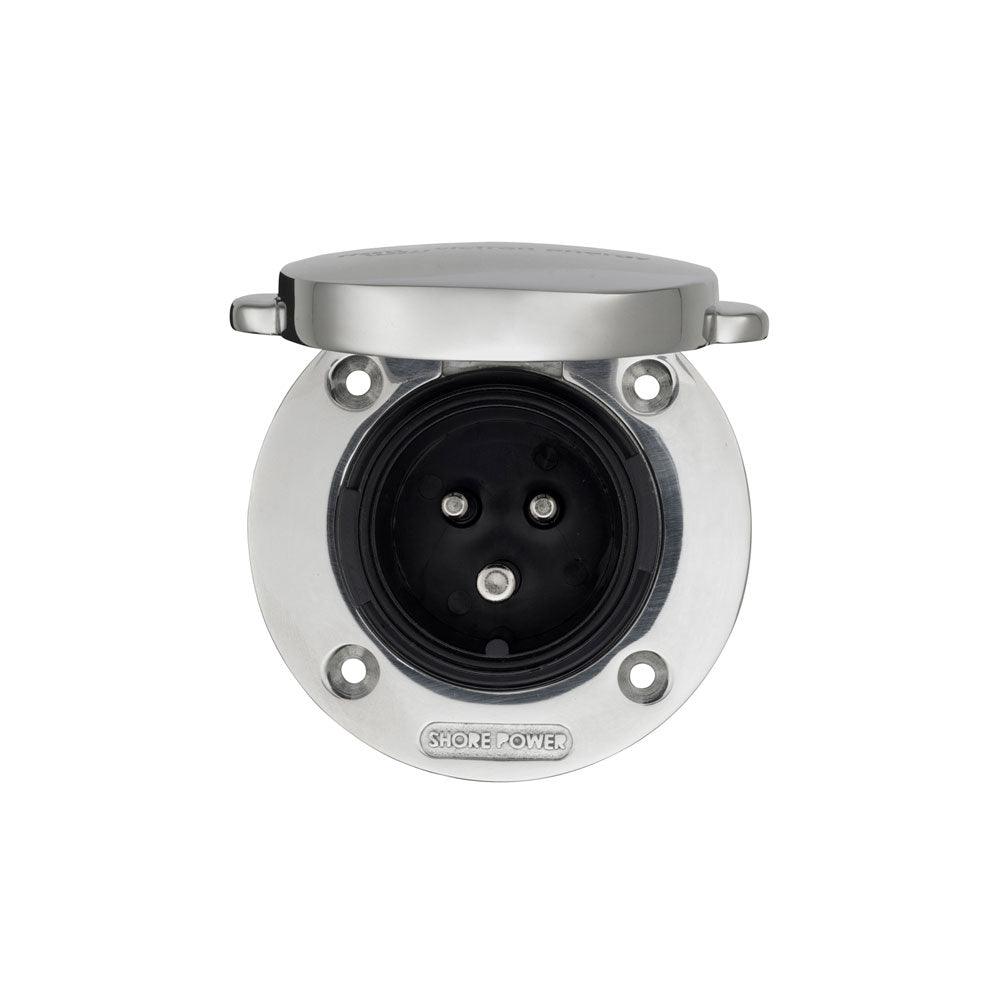

Victron Power Inlet 32A Stainless Steel with cover
Victron Power Inlet 32A Stainless Steel with cover
SKU:792-SHP303202000
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron Power Inlet 32A Stainless Steel with Cover
Robust Shore Power Connection | Marine & RV Grade | IP56 Weatherproof
The Victron Power Inlet 32A Stainless Steel with Cover (SHP303202000) is a high-quality, durable shore power connection point designed for demanding environments. Rated at 32A and 250V AC, this inlet provides a secure and reliable entry point for mains power into your vessel, RV, or off-grid system.
Constructed with a solid cast 316 stainless steel cover and an IP56 waterproof rating, it offers exceptional resistance to corrosion and harsh weather conditions, making it ideal for marine and outdoor applications.
UK & EU Standard: Complies with IEC 60309 (2P+E) for wide compatibility with shore power cables.
Key Features
| ▶ 32A / 250V AC Rating — Handles high current loads for robust power delivery. |
| ▶ Solid Cast 316 Stainless Steel Cover — Provides superior corrosion resistance, especially in marine environments. |
| ▶ IP56 Waterproof Rating — Ensures protection against dust ingress and strong water jets. |
| ▶ CE Certified — Meets European safety and performance standards. |
| ▶ IEC 60309 (2P+E) Standard — Guarantees compatibility with common shore power cables and plugs. |
| ▶ Durable Construction — Features a robust PA6 polyamide body and nickel-plated brass pins for long-lasting performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model / MPN | SHP303202000 |
| Product Type | Shore Power Inlet |
| Current Rating | 32A |
| Voltage Rating | 250V AC |
| Standard | IEC 60309, 2P+E |
| Cover Material | Solid Cast 316 Stainless Steel |
| Body Material | PA6 (Polyamide) |
| Pins Material | Nickel-plated Brass |
| IP Rating | IP56 Waterproof |
| Certifications | CE Certified |
| Weight | 0.65 kg |
Typical Applications
| Application | Description |
|---|---|
| Marine Vessels | Ideal for yachts, motorboats, and other marine craft requiring a robust shore power connection. |
| RVs & Caravans | Provides a reliable and weatherproof AC power entry point for motorhomes and touring caravans. |
| Off-Grid Systems | Suitable for off-grid cabins, site offices, or portable power systems needing a secure mains input. |
| Industrial & Commercial | Used in various industrial or commercial settings for temporary or permanent high-current power connections. |
Built-In Protection Functions
The Victron Power Inlet is designed with inherent protection features to ensure safe and reliable operation. Its IP56 rating provides robust defence against dust and strong water jets, crucial for outdoor and marine environments. The solid cast 316 stainless steel cover offers exceptional resistance to corrosion and physical damage. Furthermore, the inlet is CE certified, confirming its compliance with essential European health, safety, and environmental protection standards.
Common Questions
What does the IP56 rating mean?
The IP56 rating indicates that the power inlet is protected against dust ingress sufficient to prevent interference with the equipment's operation, and against strong jets of water from any direction.
Why is 316 stainless steel used?
316 stainless steel is a marine-grade alloy known for its superior corrosion resistance, particularly in saltwater and harsh outdoor environments, ensuring long-term durability and appearance.
Is this inlet compatible with standard UK/EU shore power cables?
Yes, this Victron Power Inlet complies with the IEC 60309 (2P+E) standard, which is widely used for shore power connections across the UK and Europe.
What is the recommended installation method?
The inlet is designed for flush or panel mounting. It is recommended to consult a qualified electrician for installation to ensure compliance with local electrical regulations and safety standards.
Installation Notes
- Professional installation by a qualified electrician is highly recommended to ensure safety and compliance with all relevant electrical standards.
- Ensure the mounting surface is flat, stable, and provides adequate space for the inlet and cable connections.
- Use appropriate cable glands and sealing compounds to maintain the IP56 waterproof rating at all cable entry points.
- Verify that the wiring is correctly terminated and secured to prevent loose connections or short circuits.
- Always disconnect shore power before attempting any installation or maintenance.
Before You Buy
- Confirm the 32A current rating and 250V AC voltage are suitable for your specific electrical system requirements.
- Check the physical dimensions and mounting requirements to ensure proper fitment in your intended location.
- Verify compatibility with your existing or planned shore power cables and plugs (IEC 60309, 2P+E type).
- Consider any additional accessories, such as a rear protection boot for electrical terminals, if not already included or required by your setup.
- Consult local electrical codes and marine regulations if installing on a vessel.
Always verify product specifications and compatibility with your system before purchase and installation. E&OE.
