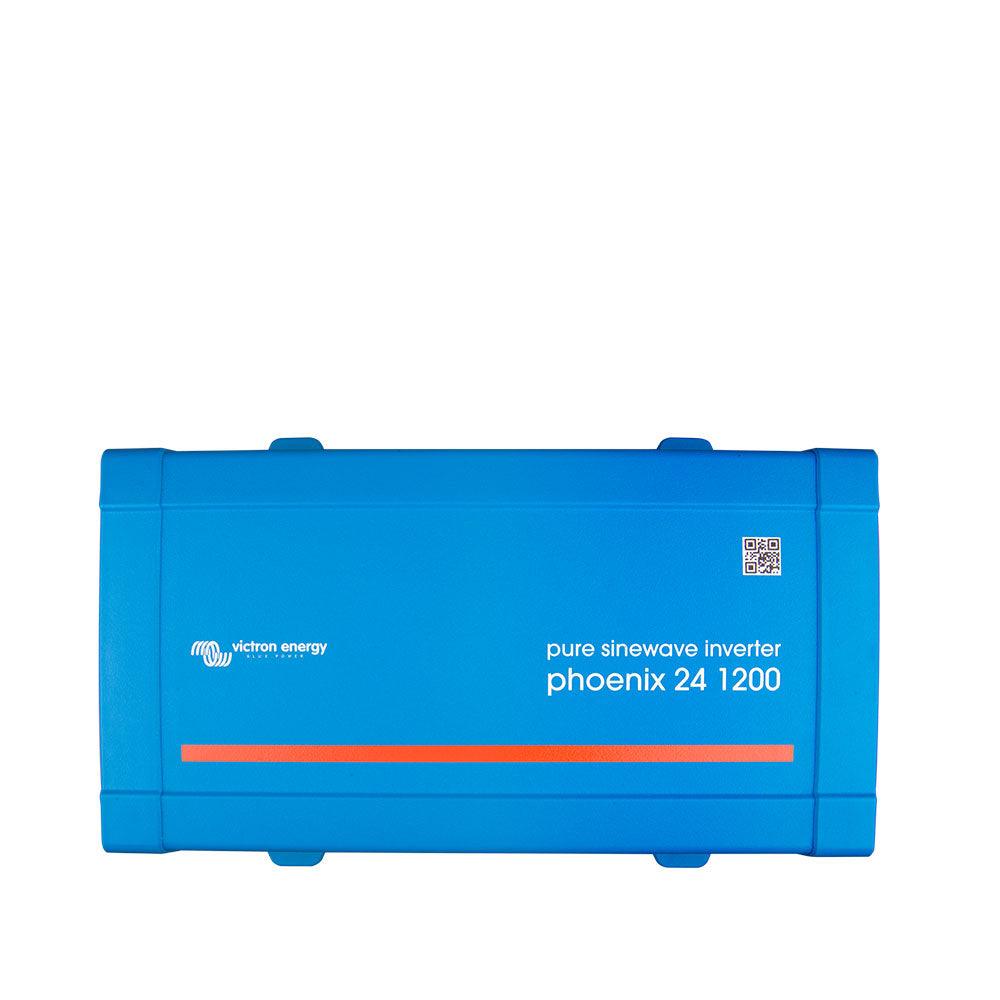

Victron Phoenix Inverter 24/1200 230V VE.Direct UK
Pure Sine Wave | 1200VA / 1000W | 24V DC to 230V AC
The Victron Phoenix Inverter 24/1200 230V VE.Direct UK is a robust pure sine wave inverter designed to convert 24V DC battery power into stable 230V AC electricity. Manufactured by Victron Energy, this model (SKU: 792-PIN242120400) is engineered for reliability and efficiency, making it suitable for a wide range of applications from off-grid solar systems to marine and automotive setups in the UK.
Featuring Victron's renowned SinusMax technology, this inverter delivers high start-up power, enabling it to handle demanding loads such as refrigeration compressors, electric motors, and power tools. The VE.Direct communication port allows for comprehensive monitoring and configuration via the VictronConnect app, offering precise control over various system parameters.
UK Specific: This inverter model is supplied with a 230V AC output and a UK socket type, ensuring direct compatibility with British appliances.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable power suitable for sensitive electronics and appliances. |
| ▶ SinusMax Technology — Delivers very high start-up power for demanding inductive loads like motors and tools. |
| ▶ VE.Direct Communication Port — Allows for remote monitoring and configuration via the VictronConnect app on various devices. |
| ▶ ECO Mode Functionality — Reduces power consumption by switching to standby when the load drops below a preset value. |
| ▶ Fully Configurable Settings — Adjust low battery alarms, cut-off levels, output voltage (210-245V), frequency (50/60Hz), and ECO mode settings. |
| ▶ Robust Protection — Built-in safeguards against short circuits, overload, and overheating ensure long-term reliability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 24V |
| Output Voltage (AC) | 230V (Adjustable 210-245V) |
| Continuous Power (VA) | 1200VA |
| Continuous Power (W) | 1000W |
| Peak Power (Surge) | 2200W |
| Output Frequency | 50Hz (Adjustable 50/60Hz) |
| Max. Efficiency | 91% |
| Zero Load Power (ECO Mode) | < 1W (in ECO mode standby) |
| Dimensions (H x W x D) | 117 x 232 x 327 mm |
| Weight | 7.4 kg |
Operating & Power Guidance
| Aspect | Detail |
|---|---|
| Output Waveform | Pure sine wave ensures compatibility with all types of electronic equipment, including sensitive devices. |
| High Start-up Power | Capable of handling high surge currents required by motor-driven appliances, LED lamps, and power tools. |
| ECO Mode Operation | Automatically switches to standby when the load is low (min. 15W), reducing idle power consumption to less than 1W. |
| Remote Control | Features a remote on/off connector for convenient system management. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Provides reliable AC power for homes, cabins, and remote installations powered by 24V battery banks. |
| Marine & Automotive | Ideal for converting 24V DC from vehicle or boat batteries to run standard 230V AC appliances. |
| Backup Power Solutions | Can be integrated into backup systems to provide essential AC power during grid outages. |
Built-In Protection Functions
The Victron Phoenix Inverter 24/1200 is equipped with multiple protection features to ensure safe and reliable operation. These include: Overload Protection • Over-temperature Protection • Short Circuit Protection • Low Battery Voltage Alarm • Low Battery Voltage Cut-off • Dynamic Cut-off (load dependent).
Common Questions
What is SinusMax technology?
SinusMax is Victron Energy's proprietary technology that provides exceptionally high peak power, far beyond its continuous rating. This allows the inverter to start demanding loads like motors and compressors that require a large initial surge of power.
Can this inverter power sensitive electronics?
Yes, the Victron Phoenix Inverter produces a pure sine wave output, which is identical to or often better than grid power. This makes it perfectly safe and suitable for powering all types of sensitive electronic equipment, including computers, medical devices, and audio-visual equipment.
What is the VE.Direct port used for?
The VE.Direct communication port enables connection to a computer (via a VE.Direct to USB interface cable) or smartphones/tablets (via a VE.Direct Bluetooth Smart dongle), both sold separately. This allows users to monitor input/output voltage, load percentage, alarms, and configure various settings using the free VictronConnect app.
What battery voltage is required for this inverter?
This specific model, the Victron Phoenix Inverter 24/1200, requires a 24V DC battery bank for operation. It is designed to convert 24V DC power into 230V AC.
Installation Notes
- Professional Installation: For safety and optimal performance, installation should be carried out by a qualified electrician or solar installer in accordance with local wiring regulations.
- Ventilation: Ensure the inverter is installed in a well-ventilated area to prevent overheating and maintain efficiency.
- DC Cabling: Use appropriate DC cabling and fusing, sized correctly for the inverter's input current and the distance from the battery bank.
- Mounting: Mount the inverter securely on a non-flammable surface, ensuring adequate clearance around the unit for airflow.
Before You Buy
- Power Requirements: Calculate the total continuous and peak power requirements of the appliances you intend to run to ensure the 1200VA / 1000W capacity is sufficient.
- Battery System: Confirm your battery bank operates at 24V DC to match the inverter's input voltage.
- Monitoring Accessories: If remote monitoring or advanced configuration is desired, consider purchasing the VE.Direct to USB interface cable or VE.Direct Bluetooth Smart dongle separately.
- Consult an Expert: If unsure about system design or compatibility, consult with a qualified solar or electrical professional.
Always verify product specifications and compatibility with your existing system components before purchase. All technical data is based on manufacturer specifications and may be subject to change.
