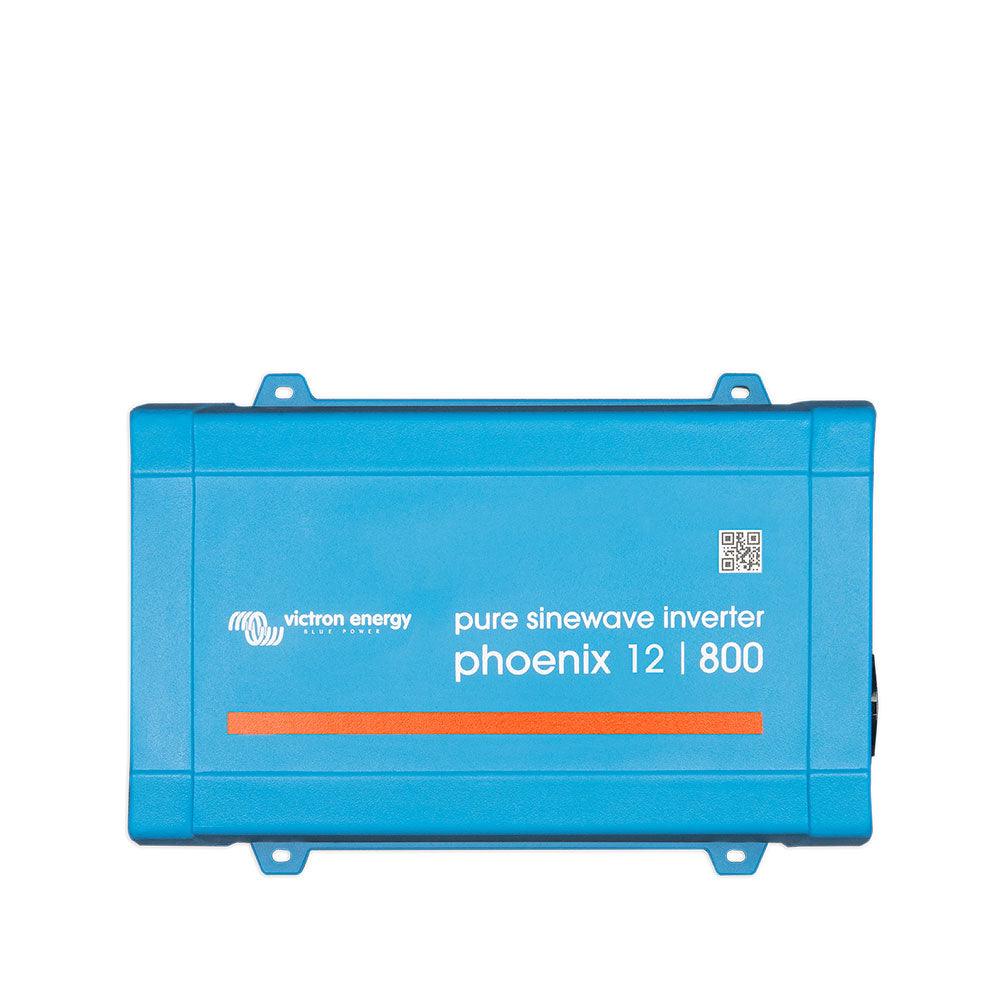

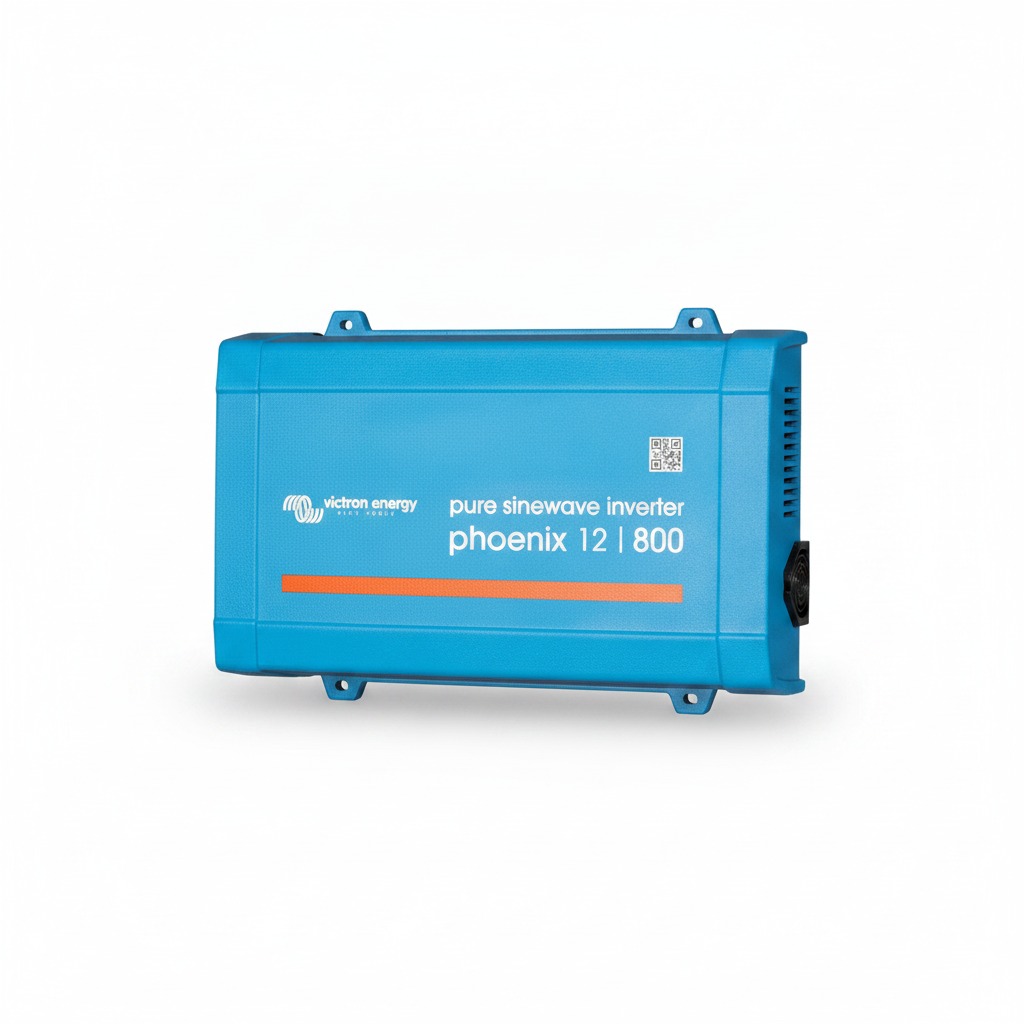

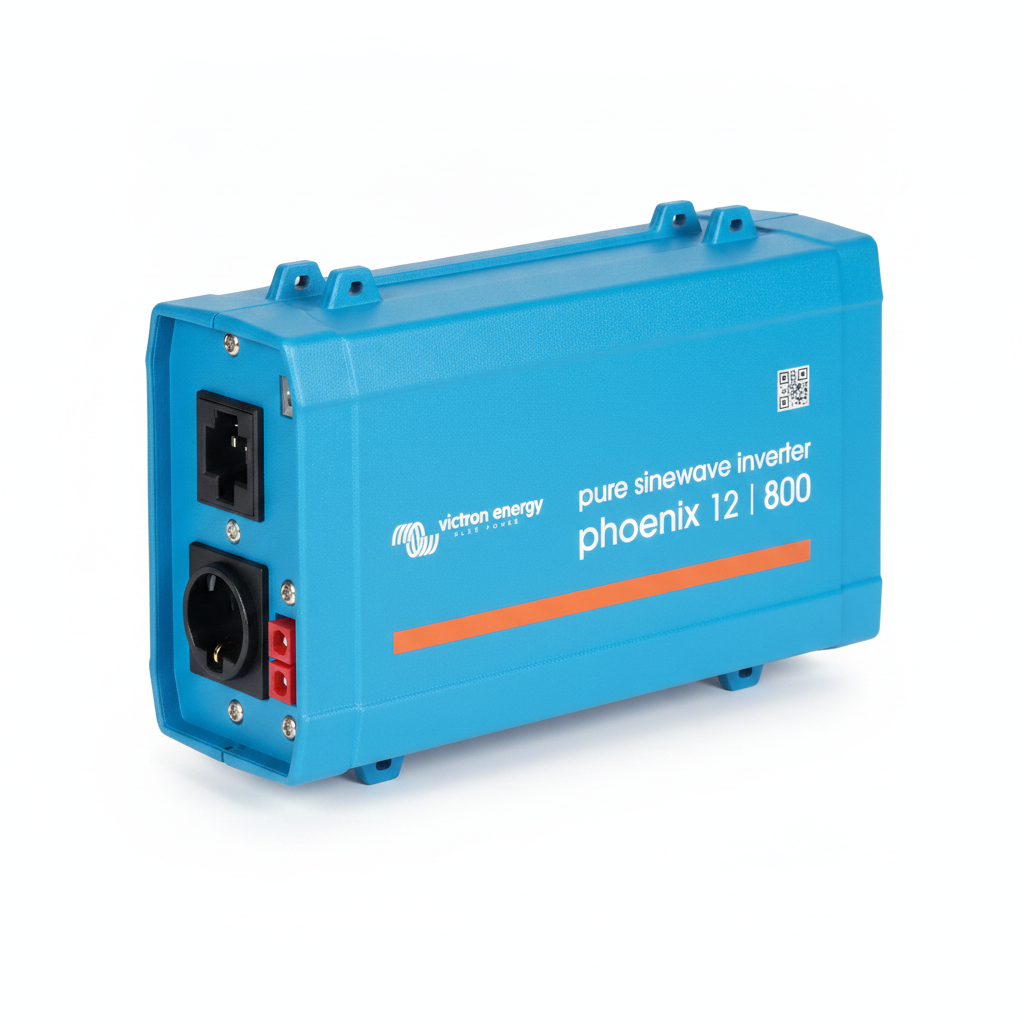

Victron Phoenix Inverter 12V / 800VA Pure Sine Wave
Model: PIN121800400 | 12V DC Input | 230V AC UK Output
The Victron Phoenix Inverter 12V / 800VA UK (PIN121800400) is a robust pure sine wave inverter designed to convert 12V DC battery power into stable 230V AC electricity. Ideal for powering sensitive domestic equipment, this inverter ensures clean and reliable power, making it suitable for a wide range of off-grid, mobile, and backup power applications in the UK. Its proven reliability and advanced features make it a dependable choice for various setups.
Equipped with a VE.Direct communication port, the Phoenix Inverter allows for comprehensive monitoring and configuration via a computer or smart device (with optional accessories). This enables users to fine-tune settings such as low battery voltage alarms, cut-off levels, and ECO mode parameters, optimising performance and battery life.
KEY SPECIFICATION: 800VA Continuous Power, 12V DC Input, 230V AC UK Output.
Key Features
| ▶ Pure Sine Wave Output — Provides clean, stable AC power suitable for sensitive electronics and appliances. |
| ▶ VE.Direct Communication Port — Enables monitoring and configuration via PC (USB cable) or smart devices (Bluetooth dongle), sold separately. |
| ▶ High Start-up Power — Capable of handling demanding inductive loads like power tools and LED lamps with a 1500W peak power. |
| ▶ ECO Mode Functionality — Reduces standby power consumption by switching to standby when the load drops below a preset level. |
| ▶ Fully Configurable Settings — Adjust low battery alarms, cut-off levels, output voltage (210-245V), and frequency (50/60Hz). |
| ▶ Robust & Reliable Design — Features a full bridge plus toroidal transformer topology for proven durability and performance. |
| ▶ Integrated Safety Protections — Includes protection against short circuit, overload, and overheating. |
| ▶ Remote On/Off Capability — Allows for convenient system management and control. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input DC Voltage | 12V DC (9.2 - 17V DC) |
| Continuous Output Power (25°C) | 800VA / 650W |
| Continuous Output Power (40°C) | 560W |
| Peak Power | 1500W |
| Output AC Voltage | 230V AC (Adjustable 210-245V) |
| Output AC Frequency | 50Hz or 60Hz (Configurable) |
| Max. Efficiency | 89% |
| No-Load Power Consumption | 5.6W |
| ECO Mode Zero-Load Power | 0.9W |
| Protection Category | IP21 |
| AC Output Socket | UK (BS 1363) |
| Dimensions (H x W x D) | 105 x 216 x 305mm |
| Weight | 5.5kg |
| Warranty | 5 Years (Manufacturer) |
Operating & Power Guidance
The Victron Phoenix Inverter 12/800 offers flexible operation modes to suit various power needs. Its ECO mode is designed to minimise standby consumption, switching the inverter to standby when the load drops below a preset value (minimum 15W). It then periodically checks for load (default: every 2.5 seconds) and reactivates if the load exceeds the set level. This intelligent feature helps conserve battery energy, especially in low-power scenarios.
Through the VE.Direct communication port, users can access a range of configurable settings. These include precise adjustments for low battery voltage alarm, trip, and reset levels, as well as dynamic cut-off levels that respond to load changes. Output voltage (210-245V) and frequency (50Hz or 60Hz) can also be configured to match specific appliance requirements. Real-time monitoring of input/output voltage, load percentage, and alarms is available via the VictronConnect app when connected with an optional VE.Direct to USB cable or Bluetooth Smart dongle.
The inverter's high start-up power capability ensures it can handle demanding loads that require a significant power surge upon activation, such as certain power tools or LED lighting systems.
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Provides reliable 230V AC power for cabins, sheds, and small remote installations. |
| Mobile & Automotive | Powers appliances in campervans, motorhomes, caravans, boats, and commercial vehicles. |
| Backup Power | Ensures essential appliances remain operational during mains power outages. |
| Sensitive Electronics | Safely runs laptops, chargers, audio equipment, and other devices requiring pure sine wave power. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/800 is engineered with multiple protection features to ensure safe and reliable operation. These include: Output Short Circuit Protection • Overload Protection • Overheating Protection (due to overload or high ambient temperature) • Battery Voltage Low/High Protection. The robust full bridge plus toroidal transformer topology further enhances its durability and resilience.
Common Questions
What does 'pure sine wave' mean?
A pure sine wave inverter produces AC power that is identical to or even better than mains electricity. This makes it safe and suitable for all electronic devices, especially sensitive equipment like laptops, medical devices, and power tools, preventing potential damage or malfunction.
How can I monitor and configure the inverter?
The inverter features a VE.Direct communication port. To monitor and configure settings, you will need an optional VE.Direct to USB interface cable for a computer, or a VE.Direct Bluetooth Smart dongle for Apple/Android smartphones and tablets. These accessories allow access to the VictronConnect app for detailed control.
What is the purpose of ECO mode?
ECO mode is a power-saving feature that puts the inverter into standby when the AC load drops below a user-defined level (e.g., 15W). It periodically "wakes up" to check for a higher load and will remain on if detected. This significantly reduces idle power consumption and extends battery runtime.
What kind of loads can this 800VA inverter handle?
With a continuous output of 800VA (650W) and a peak power of 1500W, this inverter can power a variety of small to medium domestic appliances. This includes laptops, phone chargers, LED lighting, small kitchen appliances (like blenders), and some power tools, provided their combined wattage does not exceed the continuous rating for prolonged periods.
Installation Notes
- Professional Installation Recommended: For safety and optimal performance, installation should be carried out by a qualified professional familiar with DC and AC electrical systems.
- Ventilation: Ensure the inverter is installed in a well-ventilated area to prevent overheating, as it features fan-assisted cooling.
- Cable Sizing: Use appropriate DC cable sizing for the input connections to minimise voltage drop and ensure efficient power transfer. The inverter uses screw terminals for DC connection.
- Mounting: Mount the inverter securely on a stable, non-combustible surface, away from direct sunlight or heat sources.
Before You Buy
- Verify Load Requirements: Calculate the total wattage of all appliances you intend to power simultaneously to ensure it does not exceed the inverter's continuous power rating (800VA / 650W). Consider peak power requirements for motor-driven appliances.
- Battery System Compatibility: This inverter is designed for 12V DC battery systems. Ensure your battery bank voltage matches this requirement.
- Optional Accessories: For full monitoring and configuration capabilities, consider purchasing a Victron VE.Direct to USB cable or a VE.Direct Bluetooth Smart dongle separately.
- UK Plug Type: This model is supplied with a standard UK 3-pin plug socket.
Always verify product specifications and compatibility with your specific system requirements before purchase. Victron Energy offers a 5-year standard warranty on this power product.
