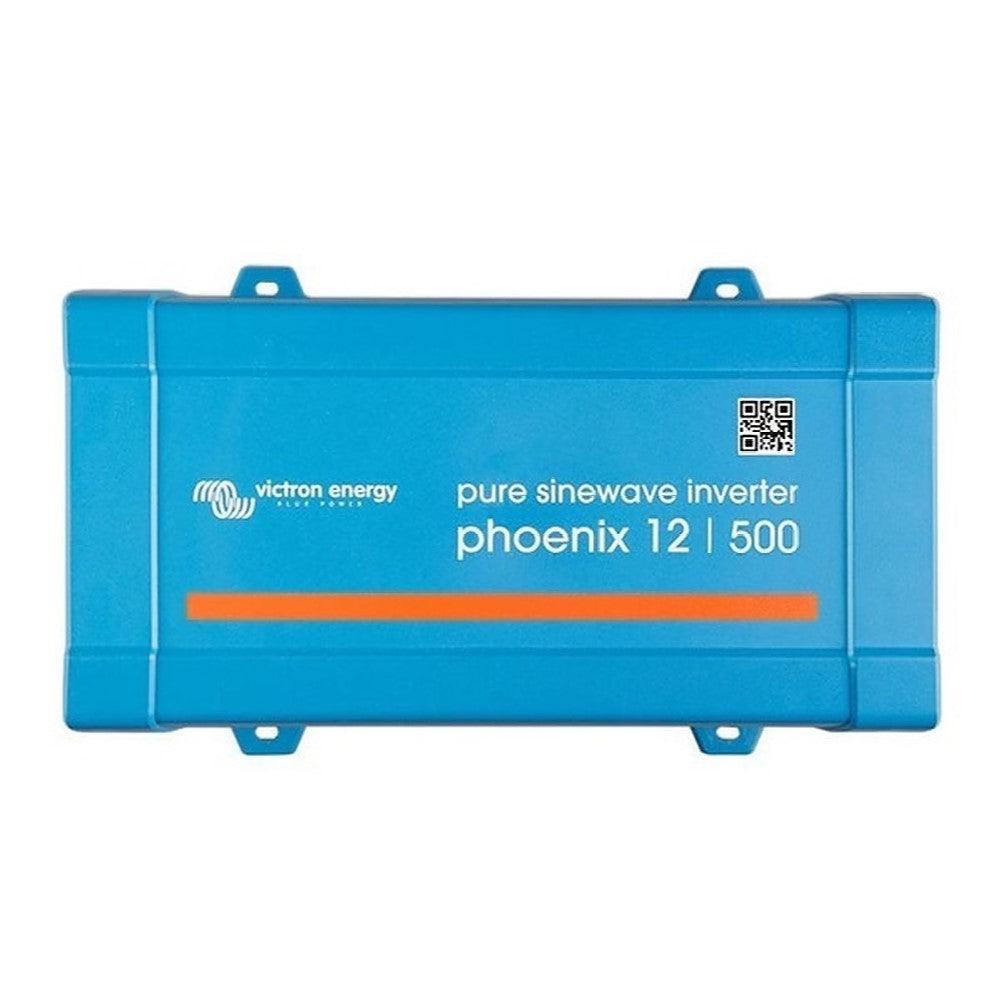

Victron Phoenix Inverter 12/500 VE.Direct
Pure Sine Wave | 12V DC to 230V AC | 500VA Continuous Power
The Victron Phoenix Inverter 12/500 VE.Direct is a robust pure sine wave inverter designed to convert 12V DC battery power into stable 230V AC electricity, suitable for a wide range of domestic and professional equipment. With a continuous power rating of 500VA (400W) and a peak power capability of 900W, this inverter can handle demanding start-up loads from various appliances and tools.
Equipped with a VE.Direct communication port, it offers advanced monitoring and configuration options via a computer or smartphone, making it ideal for off-grid cabins, motorhomes, boats, and small business applications where reliable AC power is essential.
UK Plug Type: Features a standard UK 3-pin socket for direct connection of appliances.
Key Features
| ▶ Pure Sine Wave Output — Delivers clean, stable AC power suitable for sensitive electronics. |
| ▶ VE.Direct Communication Port — Enables remote monitoring and configuration via PC or smart devices with VictronConnect. |
| ▶ High Peak Power (900W) — Provides extra start-up power for demanding inductive loads like motors and power tools. |
| ▶ ECO Mode Functionality — Reduces standby power consumption by switching to standby when the load is low, preserving battery life. |
| ▶ Fully Configurable Settings — Customise low battery voltage levels, output voltage, frequency, and ECO mode parameters. |
| ▶ Robust & Reliable Design — Features a full bridge plus toroidal transformer topology for proven durability and efficiency. |
| ▶ Comprehensive Protection — Includes safeguards against short circuit, overload, and overheating for safe operation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 12V |
| Continuous AC Power (25°C) | 500VA / 400W |
| Peak Power | 900W |
| Max. Efficiency | 90% |
| Output Voltage (AC) | 230V (configurable 210-245V) |
| Output Frequency | 50Hz (configurable 50/60Hz) |
| No-load Power Consumption | 6W (1W in ECO mode) |
| Output Socket Type | UK 3-pin (BS1363) |
| IP Rating | IP21 |
| Dimensions (H x W x L) | 86 x 172 x 275mm |
| Weight | 3.9kg |
| Manufacturer Warranty | 5 Years |
Operating & Power Guidance
| Feature | Description |
|---|---|
| Configurable Settings | Adjust low battery voltage alarm, cut-off, and restart levels; set output voltage (210-245V) and frequency (50/60Hz). |
| Dynamic Cut-off | Load-dependent cut-off level to prevent excessive battery discharge under varying loads. |
| ECO Mode Operation | Automatically switches to standby when load drops below 15W, periodically checking for load and reactivating when needed. |
| Monitoring Capabilities | Monitor in- and output voltage, percentage load, and receive alarms via the VE.Direct port. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Provides reliable AC power for remote cabins, sheds, and small off-grid homes. |
| Mobile & Marine | Powers appliances in caravans, motorhomes, campervans, boats, and other vehicles. |
| Backup Power | Ideal for small backup power solutions during grid outages for essential loads. |
| Small Business & Industrial | Suitable for powering specific tools or equipment in workshops or commercial vehicles. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/500 VE.Direct incorporates multiple safety features to ensure reliable and protected operation. These include output short circuit protection • battery voltage low/high protection • power overload protection • and thermal overload protection, safeguarding both the inverter and connected appliances. The robust toroidal transformer design further enhances its resilience against various electrical stresses.
Common Questions
What is the benefit of a pure sine wave inverter?
A pure sine wave inverter produces AC power identical to grid electricity, ensuring safe and efficient operation for all electronic devices, especially sensitive equipment like laptops, medical devices, and power tools, without risk of damage or malfunction.
How does the VE.Direct port work?
The VE.Direct port allows you to connect the inverter to a computer (via a VE.Direct to USB interface cable, sold separately) or a smartphone/tablet (via a VE.Direct Bluetooth Smart dongle, sold separately). This enables advanced monitoring of performance and customisation of various settings using the free VictronConnect app.
Can this inverter power appliances with high start-up current?
Yes, with a high peak power rating of 900W, the Victron Phoenix Inverter 12/500 is designed to handle the initial surge current required by appliances such as refrigerators, pumps, power tools, and certain lighting types.
What is the purpose of ECO mode?
ECO mode helps conserve battery power by automatically switching the inverter to a low-power standby state when the connected load drops below a preset minimum (e.g., 15W). It periodically checks for a load and will reactivate fully if a significant load is detected, reducing idle power consumption.
Installation Notes
- Ensure the inverter is installed in a dry, well-ventilated area, protected from direct sunlight and moisture, with adequate clearance for cooling.
- Connect the inverter as close as possible to the battery bank using appropriately sized DC cables to minimise voltage drop.
- All DC and AC wiring should comply with local electrical codes and safety standards.
- Consider installing appropriate DC fusing or circuit breakers between the battery and the inverter for protection.
- The inverter features screw terminals for DC connection; no special tools are needed for installation.
Before You Buy
- Verify the 12V DC input voltage matches your battery system.
- Confirm the 500VA / 400W continuous power output is sufficient for your intended appliances.
- Consider the peak power requirement of your loads, especially for motor-driven appliances.
- Ensure you have the necessary VE.Direct accessories (USB cable or Bluetooth dongle) if remote monitoring and configuration are desired.
- Review the product manual for detailed installation instructions and safety guidelines.
Always verify product specifications and compatibility with your existing system before purchase. All information is based on manufacturer-provided data and verified public sources.
