Victron Phoenix Inverter 12/500 12V 500VA 230V VE.Direct PIN121501400
Victron Phoenix Inverter 12/500 12V 500VA 230V VE.Direct PIN121501400
SKU:VPX500-12
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

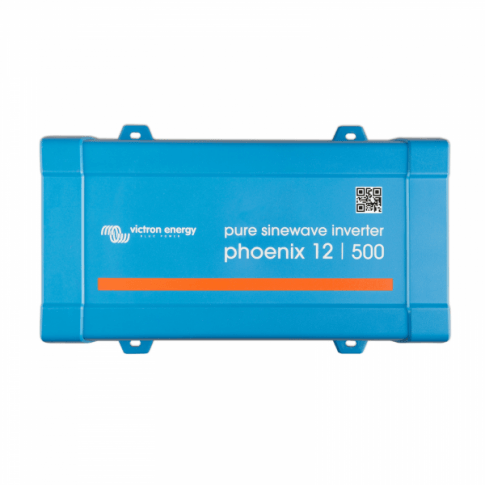

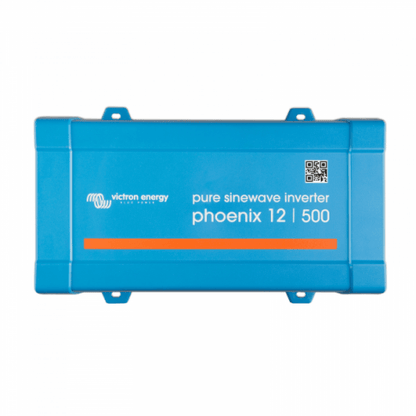

Victron Phoenix Inverter 12/500 VE.Direct
12V DC to 230V AC Pure Sine Wave | 500VA / 400W Continuous Power
The Victron Phoenix Inverter 12/500 VE.Direct (PIN121501400) is a robust pure sine wave inverter designed to convert 12V DC battery power into high-quality 230V AC electricity. Ideal for UK off-grid applications, marine setups, and campervans, this inverter delivers a continuous output of 500VA (400W), ensuring reliable power for sensitive electronics and appliances.
Featuring Victron's proven toroidal transformer technology, it offers high peak power capability for starting demanding loads and excellent efficiency. The integrated VE.Direct communication port allows for comprehensive monitoring and configuration, providing users with full control over their power system.
UK Model Specific: This is the PIN121501400 variant, designed for 230V AC output with a UK socket type.
Key Features
| ▶ Pure Sine Wave Output — Safely powers sensitive electronics without interference. |
| ▶ VE.Direct Communication — Connects to PC or optional Bluetooth dongle for monitoring and configuration. |
| ▶ ECO Mode Functionality — Reduces no-load power consumption to less than 1W, saving battery energy. |
| ▶ High Peak Power (900W) — Provides extra surge capacity for starting inductive loads like motors. |
| ▶ Fully Configurable Settings — Customise low battery cut-off, alarm levels, and ECO mode via VictronConnect app. |
| ▶ Proven Reliability — Built with a full-bridge plus toroidal transformer topology for long-term durability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage: | 12V DC |
| Output Voltage: | 230V AC ± 3% (UK) |
| Continuous Power (25°C): | 500VA / 400W |
| Peak Power: | 900W |
| Max Efficiency: | 90% |
| No-Load Power (ECO Mode): | < 1W |
| Dimensions (H x W x D): | 86 x 172 x 275 mm |
| Weight: | 3.9 kg |
| MPN (UK Socket): | PIN121501400 |
Operating & Power Guidance
The Victron Phoenix Inverter 12/500 VE.Direct is engineered for optimal power delivery and efficiency. Its ECO Mode intelligently monitors the load, switching the inverter to standby when power demand drops below a configurable level (e.g., 15W minimum load). This significantly reduces quiescent current draw, conserving battery life. The inverter periodically "wakes up" to check for a connected load, resuming full operation if detected.
Thanks to SinusMax technology, this inverter provides exceptional peak power, allowing it to handle the high inrush currents often required by motor-driven appliances, power tools, or certain lighting systems during startup. This capability ensures smooth and reliable operation even with challenging loads.
Typical Applications
| Application Area | Description |
|---|---|
| Marine & Boating | Powering navigation equipment, small galley appliances, and entertainment systems on boats. |
| Campervans & RVs | Running laptops, LED TVs, phone chargers, and other low-power domestic electronics on the move. |
| Off-Grid Solar Systems | Providing reliable AC power for remote cabins, sheds, or backup power for essential loads. |
| Mobile Workstations | Enabling the use of power tools and equipment from a 12V vehicle battery. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/500 VE.Direct incorporates multiple protection features to ensure safe and reliable operation. These include safeguards against short circuit, overload, high temperature, low battery voltage, high battery voltage, and high DC ripple. The inverter is designed to perform intelligent restart attempts after certain shutdowns, preventing false alarms and ensuring system stability.
Common Questions
What is the difference between VA and Watts?
VA (Volt-Amperes) is the apparent power, while Watts (W) is the real power. For resistive loads (like heaters), VA and Watts are often similar. For inductive loads (like motors or electronics with power supplies), the Watt rating is typically lower than the VA rating due to power factor. This inverter provides 500VA and 400W continuous power.

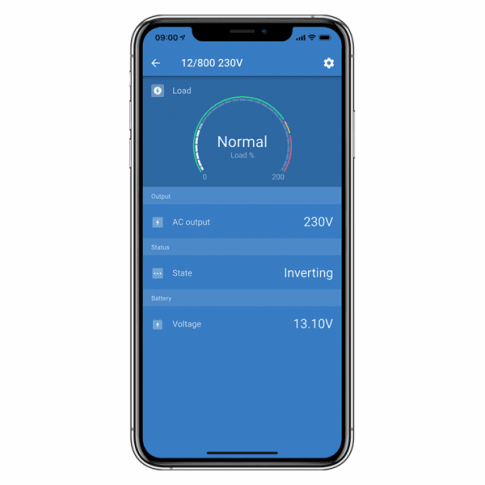

Can I monitor this inverter with my smartphone?
Yes, the integrated VE.Direct port allows for monitoring and configuration. While the inverter does not have built-in Bluetooth, you can connect an optional Victron VE.Direct Bluetooth Smart Dongle (sold separately) to enable wireless connectivity with the VictronConnect app on your smartphone or tablet.
Is this inverter suitable for all 12V battery types?
The Victron Phoenix Inverter 12/500 is compatible with various 12V battery types, including Lead-Acid (AGM, Gel, Flooded) and Lithium (LiFePO4) systems. Its configurable low battery cut-off and alarm levels can be adjusted to suit the specific requirements of your battery chemistry.
Installation Notes
- Ensure adequate ventilation around the inverter to prevent overheating.
- Connect the inverter directly to your 12V battery bank using appropriately sized cables to minimise voltage drop.
- Observe correct polarity when connecting DC input cables.
- Installation should ideally be performed by a qualified professional to ensure safety and compliance.
- For remote control, an optional remote on/off switch can be connected.
Before You Buy
- Verify your battery system voltage is 12V DC.
- Confirm your total continuous AC load does not exceed 400W (or 500VA).
- Consider peak power requirements for motor-driven appliances (up to 900W).
- For remote monitoring via smartphone, an optional VE.Direct Bluetooth Smart Dongle is required.
- Review the product manual for detailed specifications and safety guidelines.
Please ensure all specifications and compatibility requirements are verified for your specific application before purchase. All technical data is based on manufacturer specifications for the Victron Phoenix Inverter 12/500 VE.Direct PIN121501400.
