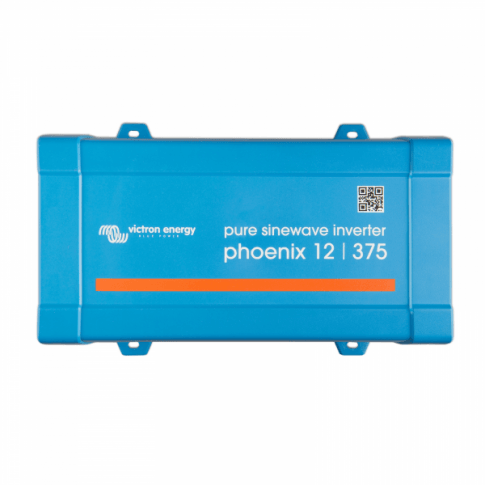

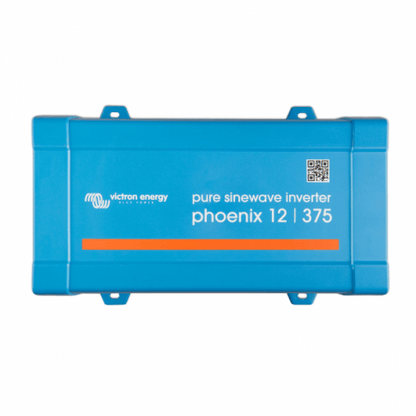

VICTRON PHOENIX INVERTER 12/375 230V WITH VE.DIRECT PORT

Experience unwavering power independence with the Victron Phoenix Inverter 12/375 230V with VE.Direct Port. This advanced inverter reliably transforms your 12V DC battery power into a stable 230V AC supply, essential for off-grid living, marine applications, or mobile setups. Benefit from its intelligent VE.Direct port, allowing precise remote monitoring and configuration, combined with robust safety features. This ensures you maintain full control and enjoy consistent, safe electricity, freeing you to power your essential devices with confidence.

Key features that make the Victron Phoenix Inverter an excellent choice include:

• Effortless Power Conversion: Reliably converts 12V DC battery power to clean 230V AC electricity for your appliances.
• High Peak Performance: Offers an impressive 700W peak power, perfect for starting motors or high-demand devices.
• Advanced Monitoring & Control: The integrated VE.Direct port enables seamless connection to VictronConnect software via PC/laptop or a Bluetooth dongle for smartphone/tablet access.
• Remote Programmability: Adjust critical settings like low-battery cut-off, output voltage/frequency (50/60Hz), and ECO mode parameters from your device.
• Superior Build Quality: Features a highly efficient toroidal transformer for cooler operation and extended lifespan.
• Comprehensive Safety Protection: Equipped with safeguards against short-circuit, overload, battery overvoltage, and overheating.
• Smart Power Saving (ECO Mode): Automatically enters standby when loads are low, waking periodically to check demand, significantly reducing idle power consumption.
• Dynamic Cut-Off: Intelligently disconnects the DC supply based on the battery's discharge rate to protect your battery.

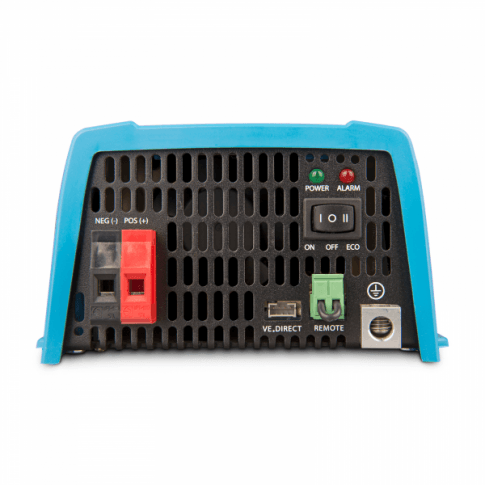

• Flexible On/Off Control: Includes a dedicated connection point for an optional remote on/off switch.
• AC Power Transfer Ready: Can be integrated with an optional automatic transfer switch to seamlessly switch between AC sources.
• Clear Status Indicators: Built-in red/green LEDs provide immediate visual feedback on inverter operation and protection status.
• Convenient Output: Fitted with a standard UK 3-pin plug socket for direct connection.

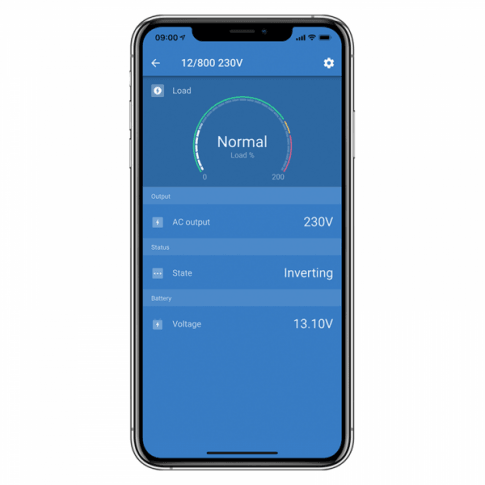

Beyond its core function, the Victron Phoenix Inverter 12/375 is engineered with user convenience and system health in mind. The advanced VE.Direct communication port truly sets this inverter apart, offering unparalleled control and insight into your power system. Through the free VictronConnect software, available for PC/laptop, or via the VictronConnect app when using an optional VE.Direct Bluetooth dongle, you can remotely monitor essential data. This includes battery and AC output voltage, a clear load indicator, and any active alarms, all from the palm of your hand or your computer screen. Moreover, this connectivity allows you to fully customize the inverter's behavior. You can define precise low-battery cut-off and reconnection levels, choose your desired output voltage and frequency (either 50Hz or 60Hz), and fine-tune the settings for the power-saving ECO mode. For vehicle installations, you can even program the inverter to activate or deactivate with your vehicle's ignition.

The inverter's robust design contributes significantly to its reliability and longevity. It features a highly efficient toroidal transformer, which generates less heat and delivers more power to your devices compared to standard designs. Safety is paramount, with comprehensive integrated protection against short-circuits, overloads, battery overvoltage, and overheating, safeguarding both the unit and your connected equipment. A key energy-saving feature is the innovative ECO mode. This mode intelligently shifts the inverter into a minimal power standby when the connected load drops. It periodically "wakes up" (every 2.5 seconds by default, adjustable) to check if the load has returned, effectively conserving battery power. Furthermore, the dynamic cut-off feature actively monitors your battery's discharge rate to precisely determine the optimal DC disconnect voltage, thereby extending battery life and enhancing overall system reliability.

Specifications for the Victron Phoenix Inverter 12/375 230V include:

• Input DC Voltage Range: 9.2V - 17V
• Output AC Voltage: 230V
• Output AC Frequency: 50Hz / 60Hz (User Programmable)
• Continuous Power (at 25°C): 375VA / 300W
• Continuous Power (at 40°C): 260W
• Peak Power: 700W
• Zero-Load Power: 5.6W (Standard)
• Zero-Load Power (ECO Mode): 0.9W (Default retry interval 2.5s, adjustable)
• Output Waveform: Pure Sine Wave
• Compatible Battery Types: Sealed Lead Acid, Gel, AGM
• AC Socket Type: UK (BS 1363)
• Minimum Battery Capacity: 40Ah
• Nominal Inverter Efficiency: 89%
• Low Battery Shutdown: 9.3V (Programmable via App)
• Operating Temperature Range: -40°C to +65°C (Fan Assisted Cooling)
• Maximum Cable Cross Section: 10mm²
• Humidity (Non-Condensing): Max. 95%
• Dimensions (HxWxL): 86 x 165 x 260 mm
• Weight: 3kg

This product comes with a comprehensive 5-year manufacturer warranty, offering long-term assurance for your investment. For detailed technical information, user guides, or installation specifics, the following documents are readily available for download:

• User manual for Victron Phoenix Inverter 12/375 230V with VE.Direct port (VPX375-12)
• Datasheet for Victron Phoenix Inverter 12/375 230V with VE.Direct port (VPX375-12)
• Technical drawing for Victron Phoenix Inverter 12/375 230V with VE.Direct port (VPX375-12)

In summary, the Victron Phoenix Inverter 12/375 230V with VE.Direct Port is more than just a power converter; it's a complete power management solution. Its pure sine wave output ensures your sensitive electronics receive clean, stable power, while the high peak power capability handles demanding startup loads with ease. With its intuitive monitoring and remote programming via VE.Direct, coupled with advanced safety features and an efficient ECO mode, this inverter empowers you with control and peace of mind. It's the ideal choice for anyone requiring a robust, smart, and dependable AC power source for their off-grid adventures, small cabins, or mobile setups. Invest in the Phoenix Inverter and experience reliable power, wherever your journey takes you.
