Victron Phoenix Inverter 12/250 VE.Direct
Victron Phoenix Inverter 12/250 VE.Direct
SKU:792-PIN121251400
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

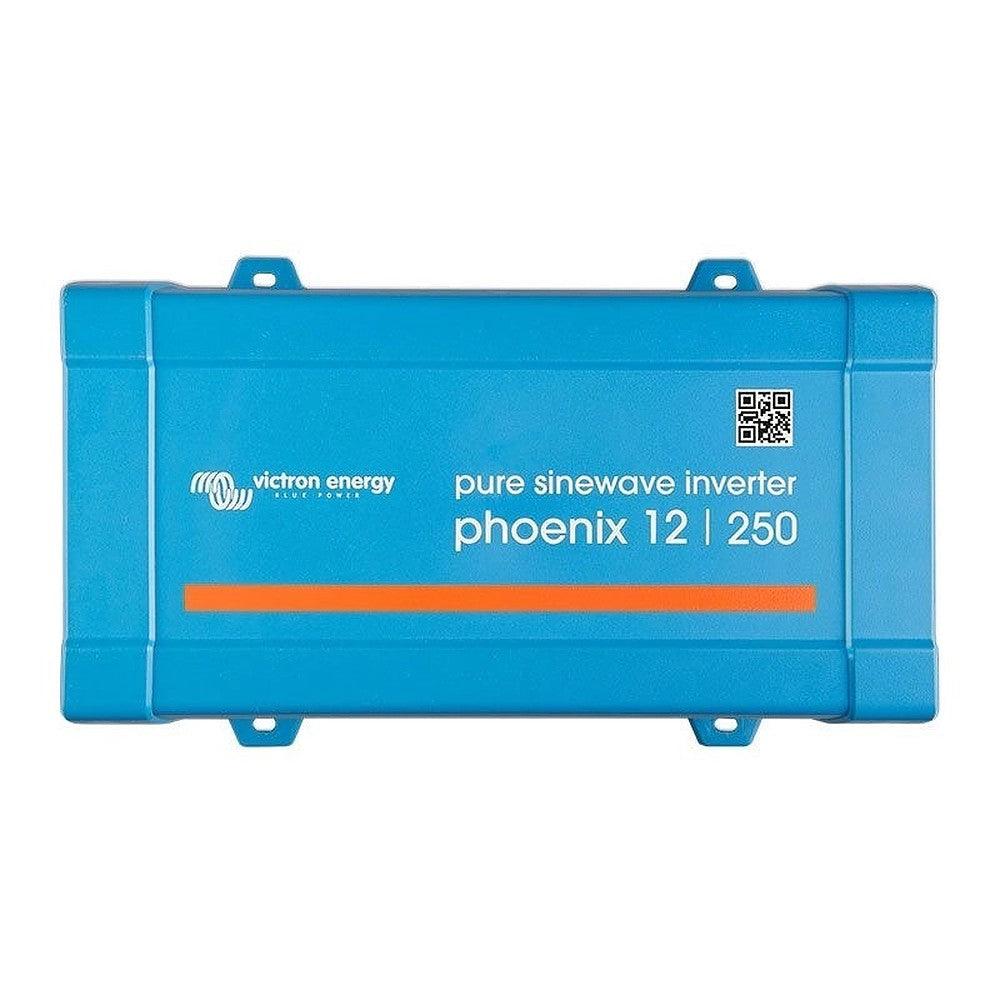

Victron Phoenix Inverter 12/250 VE.Direct
Pure Sine Wave Inverter | 12V DC to 230V AC | 250VA Continuous Power
The Victron Phoenix Inverter 12/250 VE.Direct is a compact and reliable pure sine wave inverter designed to convert 12V DC battery power into 230V AC mains electricity. Ideal for a wide range of applications, this inverter allows you to power standard domestic appliances and sensitive electronics from your leisure or automotive battery bank. Its robust design, featuring a full bridge plus toroidal transformer topology, ensures proven reliability and high start-up power for demanding loads.
Equipped with a VE.Direct communication port, the Phoenix Inverter 12/250 offers comprehensive monitoring and configuration options via a computer or smart device, providing users with control over various parameters including battery voltage levels, output voltage, and ECO mode settings.
COMPATIBILITY NOTE: This inverter requires a 12V DC battery bank for operation. Ensure your power source matches this voltage specification.
Key Features
| ▶ Pure Sine Wave Output — Ensures clean power suitable for all electronics, including sensitive equipment. |
| ▶ VE.Direct Communication Port — Enables remote monitoring and configuration via computer or smart devices. |
| ▶ High Start-Up Power — Capable of starting demanding loads such as power converters for LED lamps or electric tools. |
| ▶ ECO Mode Functionality — Reduces standby power consumption by switching to standby when the load is low. |
| ▶ Fully Configurable Settings — Adjust low battery alarm/cut-off, output voltage (210-245V), and frequency (50/60Hz). |
| ▶ Remote On/Off Capability — Allows for convenient control of the inverter from a distance. |
| ▶ Robust Toroidal Transformer — Provides proven reliability and excellent performance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 12V (9.2 - 17V range) |
| Output Voltage (AC) | 230V AC ± 3% |
| Continuous Output Power (25°C) | 250VA |
| Continuous Output Power (40°C) | 220VA |
| Peak Power | 400W |
| Max Efficiency | 87% |
| Zero Load Power | 4.2W |
| Zero Load Power (ECO Mode) | 0.8W |
| Output Frequency | 50Hz (Configurable 60Hz) |
| Plug Type | UK |
| IP Rating | IP21 |
| Dimensions (H x W x D) | 86 x 165 x 260mm |
| Weight | 2.4kg |
Operating & Power Guidance
| Feature | Description |
|---|---|
| Configurable Settings | Adjust low battery voltage alarm, trip, and reset levels; low battery voltage cut-off and restart levels; dynamic cut-off; output voltage (210-245V); and frequency (50/60Hz). |
| ECO Mode | When enabled, the inverter enters standby if the load drops below a preset value (min. 15W). It periodically checks for load (default: every 2.5 seconds) and switches on if the load exceeds a preset level, saving power. |
| Monitoring Capabilities | Monitor in- and output voltage, percentage load, and receive alarm notifications via the VE.Direct port. |
Typical Applications
| Application | Description |
|---|---|
| Small Off-Grid Systems | Providing 230V AC power for lighting, small appliances, and charging devices in cabins, sheds, or remote workshops. |
| Mobile & Marine Use | Suitable for caravans, motorhomes, boats, and other vehicles to run domestic equipment from a 12V battery. |
| Backup Power | As a reliable source of emergency power for essential electronics during grid outages. |
Built-In Protection Functions
The Victron Phoenix Inverter 12/250 VE.Direct is designed with multiple protection features to ensure safe and reliable operation. These include protection against output short circuits • overload • battery voltage too high or too low • and overheating due to overload or high ambient temperature. The unit also carries CE, EN/IEC 60335-1, and EN/IEC 62109-1 certifications, affirming its compliance with relevant safety standards.
Common Questions
What can I power with a 250VA inverter?
A 250VA inverter can power small appliances and electronics such as laptops, phone chargers, LED lights, small TVs, and some low-power kitchen gadgets. Always check the power consumption of your devices to ensure they do not exceed the inverter's continuous or peak power ratings.
How does the VE.Direct port work?
The VE.Direct port allows you to connect the inverter to a computer (using a VE.Direct to USB cable) or a smartphone/tablet (using a VE.Direct Bluetooth Smart dongle). This enables detailed monitoring of performance and configuration of various settings via Victron's software or app.
What is ECO mode and how does it save power?
ECO mode is a power-saving feature. When the load connected to the inverter drops below a configurable minimum (e.g., 15W), the inverter will switch to a standby state. It then periodically "wakes up" for a short period to check if a load has returned. If a load exceeding the preset level is detected, the inverter will switch back on. This significantly reduces idle power consumption.
Is this inverter suitable for sensitive electronics?
Yes, the Victron Phoenix Inverter 12/250 VE.Direct produces a pure sine wave output. This type of output is identical to grid power, making it safe and suitable for all types of electronic devices, including sensitive equipment like laptops, medical devices, and audio-visual equipment.
Installation Notes
- Installation should be carried out by a qualified professional or competent person familiar with 12V DC and 230V AC electrical systems.
- Ensure adequate ventilation around the inverter to prevent overheating, especially when operating at higher loads.
- Connect the inverter directly to the battery bank using appropriately sized cables and fuses to prevent voltage drop and ensure safety.
- Observe correct polarity when connecting DC input cables to avoid damage to the unit.
- Mount the inverter in a dry, protected location, away from direct sunlight, moisture, and flammable materials.
Before You Buy
- Verify the total power consumption (in Watts or VA) of all appliances you intend to run simultaneously to ensure it does not exceed the inverter's continuous output rating.
- Confirm your battery bank voltage is 12V DC to match this inverter's input requirements.
- Consider the surge or peak power requirements of your appliances, especially those with motors or compressors, and ensure the inverter's peak power rating is sufficient.
- Familiarise yourself with the VE.Direct communication options if you plan to use monitoring and advanced configuration features.
- Consult the official Victron Energy documentation for detailed specifications and installation guidelines.
All specifications are based on manufacturer data and are subject to change. Always verify compatibility and requirements before purchase. This product comes with a 5-year manufacturer's warranty.
