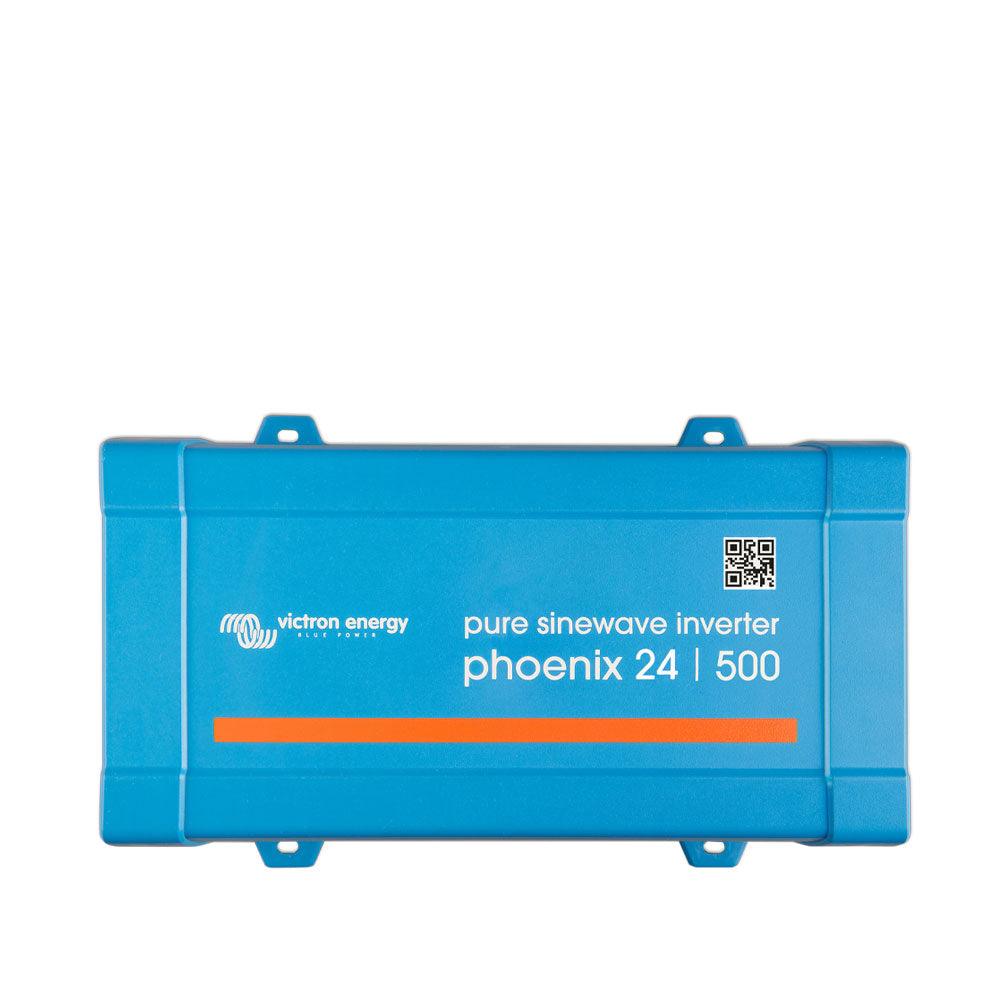

Victron Phoenix Inverter 24V/500W VE.Direct
Pure Sine Wave | 24V DC to 230V AC | UK Outlet
The Victron Phoenix Inverter 24V/500W VE.Direct is a robust pure sine wave inverter designed to convert 24V DC battery power into stable 230V AC electricity, suitable for a wide range of UK domestic appliances and sensitive electronics. This model, part of the acclaimed Victron Phoenix series, delivers reliable off-grid power with a continuous rating of 500VA (400W) and a peak power capability of 900W, ensuring smooth operation for demanding loads.
Equipped with a VE.Direct communication port, this inverter allows for comprehensive monitoring and configuration via a computer (with a VE.Direct to USB interface cable) or smart devices (with an optional VE.Direct Bluetooth Smart dongle). This feature provides users with detailed insights into system performance and the flexibility to adjust settings such as low battery voltage alarms and ECO mode.
MODEL IDENTIFIER: SKU: 792-PIN245010400 ● MPN: PIN245010400
Key Features
| ▶ Pure Sine Wave Output — Ensures compatibility with all AC appliances, including sensitive electronics. |
| ▶ 500VA / 400W Continuous Power — Provides ample power for medium-sized loads. |
| ▶ 900W Peak Power — Handles high start-up currents for motor-driven appliances. |
| ▶ VE.Direct Communication Port — Enables monitoring and configuration via VictronConnect app on smart devices or PC. |
| ▶ ECO Mode Functionality — Reduces standby power consumption by switching to standby when load is low. |
| ▶ Robust Toroidal Transformer — Proven reliability and short-circuit protection. |
| ▶ UK 3-Pin Outlet — Direct connection for standard British plugs. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage (DC) | 24V (Range: 18.4 - 34V) |
| Output Voltage (AC) | 230V AC ±3% (Configurable) |
| Continuous Power @ 25°C | 500VA / 400W |
| Peak Power | 900W |
| Output Frequency | 50Hz (Configurable to 60Hz) |
| Maximum Efficiency | 90% |
| Zero-Load Power | 6.5W (1.5W in ECO mode) |
| Output Socket Type | UK 3-Pin |
| Communication Port | VE.Direct |
| Protection Category | IP21 |
| Dimensions (H x W x D) | 85 x 182 x 274 mm |
| Weight | 3.9 kg |
Operating & Power Guidance
| Feature | Description |
|---|---|
| Pure Sine Wave | Delivers clean, stable AC power identical to grid electricity, safe for sensitive electronics like laptops, medical equipment, and audio systems. |
| High Start-up Power | Capable of handling high initial power surges required by motor-driven appliances, power tools, and LED lighting. |
| ECO Mode | Intelligently switches to standby when the load drops below a configurable level, conserving battery energy. |
| Remote On/Off | Allows for convenient remote control of the inverter's power state. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Ideal for small cabins, sheds, or remote installations requiring reliable AC power from a 24V battery bank. |
| Mobile & Marine | Powers appliances in caravans, motorhomes, boats, and other vehicles. |
| Backup Power | Provides essential AC power during outages for critical loads like lighting, communication, or small electronics. |
| Sensitive Electronics | Safely operates computers, audio-visual equipment, and other devices sensitive to power quality. |
Built-In Protection Functions
The Victron Phoenix Inverter includes multiple safeguards for reliable operation and system longevity. These include protection against output short circuit • overload • high battery voltage • low battery voltage with alarm and cut-off • and over-temperature conditions. It also features ripple voltage protection at the input.
Common Questions
What does "Pure Sine Wave" mean?
A pure sine wave inverter produces AC power that is identical to or even better than the electricity supplied by the utility grid. This ensures that all electronic devices, especially sensitive ones, operate correctly and without damage.
What is the VE.Direct port used for?
The VE.Direct port is a communication interface that allows you to connect the inverter to a computer or smart device (via optional accessories) to monitor its status, view alarms, and configure various settings using the VictronConnect app.
Can this inverter power a kettle or microwave?
With a continuous power rating of 400W and peak power of 900W, this inverter is generally suitable for smaller appliances. A typical electric kettle or microwave often requires significantly more power (e.g., 1500W-2500W), so this 500VA model would likely be insufficient for such high-demand appliances. Always check the power requirements of your specific appliance.
Does this inverter have a cooling fan?
The Victron Phoenix 24/500 model is designed without a built-in fan and relies on natural convection for cooling. For optimal thermal performance, it should be mounted in a vertical position.
Installation Notes
- Installation should be performed by a qualified professional to ensure safety and compliance with local regulations.
- Mount the inverter in a dry area with good ventilation. For this fanless model, vertical mounting is recommended for optimal natural convection cooling.
- Keep DC cable runs between the battery and inverter as short as possible to minimise voltage drop and maximise efficiency.
- Ensure appropriate DC fusing is installed close to the battery bank to protect the system.
- The VE.Direct port allows for connection to monitoring devices; optional cables or dongles may be required.
Before You Buy
- Verify Power Requirements: Confirm the continuous and peak power draw of your intended appliances does not exceed the inverter's capacity.
- Check Battery Voltage: This inverter requires a 24V DC battery system. It is not compatible with 12V or 48V systems.
- Output Socket: This model features a standard UK 3-pin AC outlet.
- System Compatibility: Consider any other Victron Energy components in your system for seamless integration via VE.Direct.
- Environmental Conditions: Ensure the installation location meets the IP21 rating requirements and allows for proper heat dissipation.
All specifications are based on manufacturer data and are subject to change. Always consult the official product manual for the most current and complete information. Professional installation is recommended.
