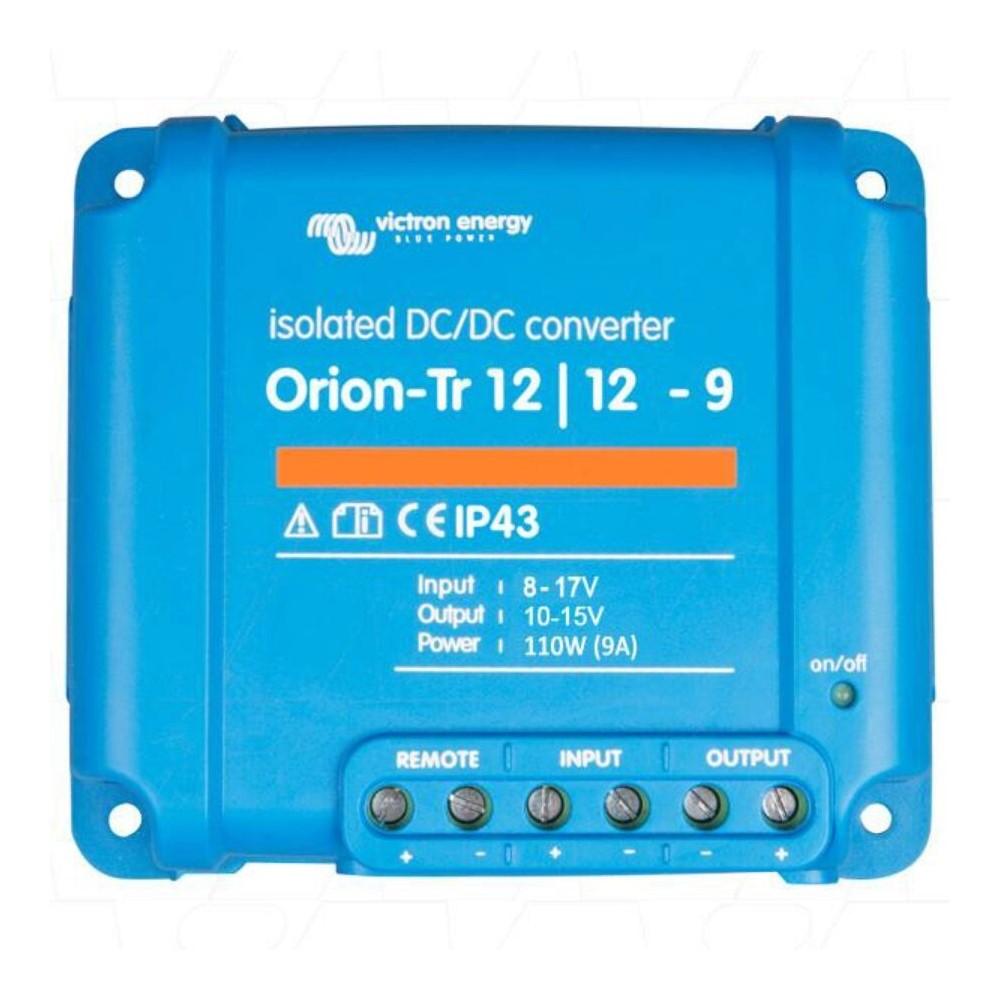

Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)
Victron Orion-Tr Isolated DC-DC Converter 12/12-9A (110W)
SKU:792-ORI121210110R
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
- Input Voltage Range: 8-17V
- Under Voltage Shutdown: 7V
- Under Voltage Restart: 7.5V
- Nominal Output Voltage: 12.2V
- Output Voltage Adjust Range: 10-15V
- Short Circuit Output Current: 32A
- Cont. Output Power at 25°C: 110W
- DC Connection: Screw Terminals
- Protection Category: IP43
- Dimensions: 100 x 113 x 47mm
- Weight: 0.42Kg
- Warranty: 5 Years
Remote on-off: The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
Adjustable output voltage: can also be used as a battery charger: For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.
All models are short circuit proof and can be paralleled to increase output current: An unlimited number of units can be connected in parallel.
IP43 protection: When installed with the screw terminals oriented downwards.
Screw terminals: No special tools needed for installation.
