Victron Orion 24/12-70 DC-DC Converter | 24V to 12V 70A Step-Down

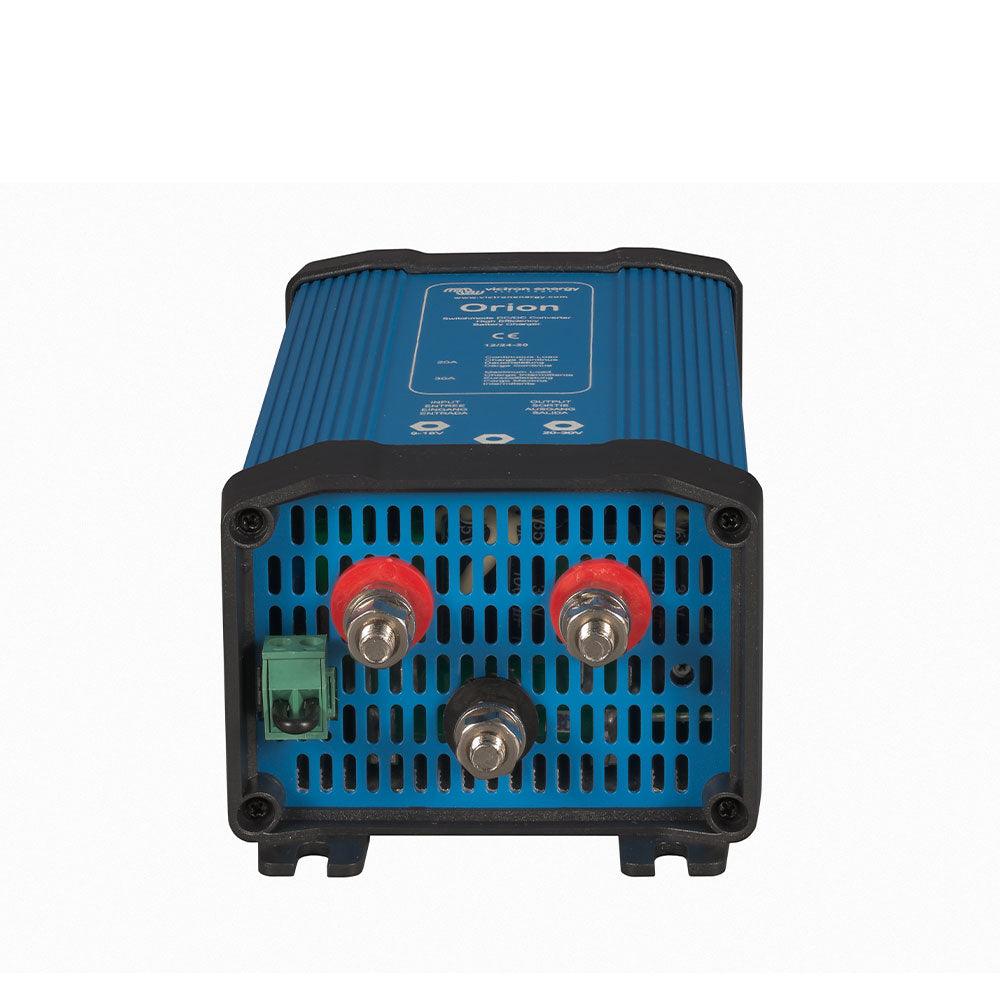

Victron Orion 24/12-70 DC-DC Converter (ORI241270020)

The Victron Orion 24/12-70 DC-DC Converter is a robust and efficient solution for stepping down a 24V DC input to a stable 12V DC output. Designed for demanding applications, this non-isolated converter is ideal for powering 12V equipment from a 24V battery bank or system, commonly found in commercial vehicles, marine vessels, and off-grid solar installations across the UK.

With a continuous output of 70 Amps, it provides reliable power for a wide range of 12V accessories and systems, ensuring your critical equipment receives consistent voltage.

Key Benefits for Your System

• Reliable 12V Power: Converts 24V to a stable 12V, ensuring optimal performance for your 12V devices.
• High Output Current: Delivers a continuous 70A, capable of handling significant loads.
• Adjustable Output Voltage: Output voltage can be adjusted between 10V and 15V, allowing for flexibility in various applications or for use as a battery charger.
• Parallel Capability: Up to five units can be connected in parallel to increase the total output current for higher power demands.
• Remote On/Off Functionality: Allows for convenient remote control, eliminating the need for a high-current switch in the input wiring.
• High Efficiency: Achieves up to 92% efficiency, minimising power loss and heat generation.

Features at a Glance

• Non-isolated DC-DC converter design.
• Input voltage range: 18-35V DC.
• Continuous output current: 70 Amps.
• Peak output current: 85 Amps.
• Adjustable output voltage (10-15V, factory set to 13.2V).
• Temperature-controlled fan assisted cooling.
• Remote on/off connector for system integration.
• Can be used to buffer-charge a 12V battery from a 24V system.
• Protection features including under-voltage shutdown and over-temperature protection.
• IP20 protection rating.

Technical Specifications

Applications & Compatibility

The Victron Orion 24/12-70 is highly versatile and suitable for a range of applications where a stable 12V supply is needed from a 24V source:

• Commercial Vehicles: Powering 12V accessories like radios, navigation systems, and lighting in trucks and buses with 24V electrical systems.
• Marine Applications: Supplying 12V equipment such as navigation electronics, communication radios, and LED lighting on boats with 24V battery banks.
• Off-Grid & Solar Systems: Integrating 12V loads into 24V solar battery storage systems for enhanced efficiency.
• RV & Camper Conversions: Running 12V appliances from a 24V house battery system.
• Battery Charging: Can be configured to charge a 12V starter or auxiliary battery from a 24V system.

Installation & Usage Notes

For optimal performance and safety, please consider the following general guidelines:

• Mount the converter vertically on a non-flammable surface, ensuring the power terminals face downwards.
• Allow for a minimum clearance of 10 cm (approximately 4 inches) above and below the product to ensure adequate cooling.
• Position the converter close to the battery, but never directly above it, to prevent potential damage from battery gassing.
• Always ensure correct polarity when connecting cables. Reverse polarity can damage the device and is not repairable.
• The input positive connection should be protected by an appropriately rated fuse (refer to the manufacturer's manual for specific recommendations).
• The adjustable output voltage can be set using a potentiometer; always connect a small load when adjusting the voltage for accurate readings.
• For detailed installation instructions, wiring diagrams, and fuse recommendations, always consult the official Victron Energy manual for this specific model.

Frequently Asked Questions

Q: Is this converter isolated?

A: No, the Victron Orion 24/12-70 is a non-isolated DC-DC converter.

Q: Can I use this to charge a 12V battery from my 24V system?

A: Yes, models with adjustable output, like this one, can be used as a battery charger for a 12V starter or accessory battery in an otherwise 24V system.

Q: How many of these converters can I connect in parallel?

A: Up to five units of the Victron Orion 24/12-70 can be connected in parallel to increase the total output current.

Q: Does it have a remote on/off feature?

A: Yes, it includes a remote on/off connector, which can be operated with a low power switch or an engine run/stop switch.

Important Note: While we strive for accuracy, specifications are subject to change by the manufacturer. Please always verify the model, SKU, and compatibility with your specific system requirements against the latest manufacturer's datasheet or manual before making a purchase.
