Victron Orion 12/24-8 DC-DC Converter | Step-Up 12V to 24V 8A
Victron Orion 12/24-8 DC-DC Converter | Step-Up 12V to 24V 8A
SKU:792-ORI122408020
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

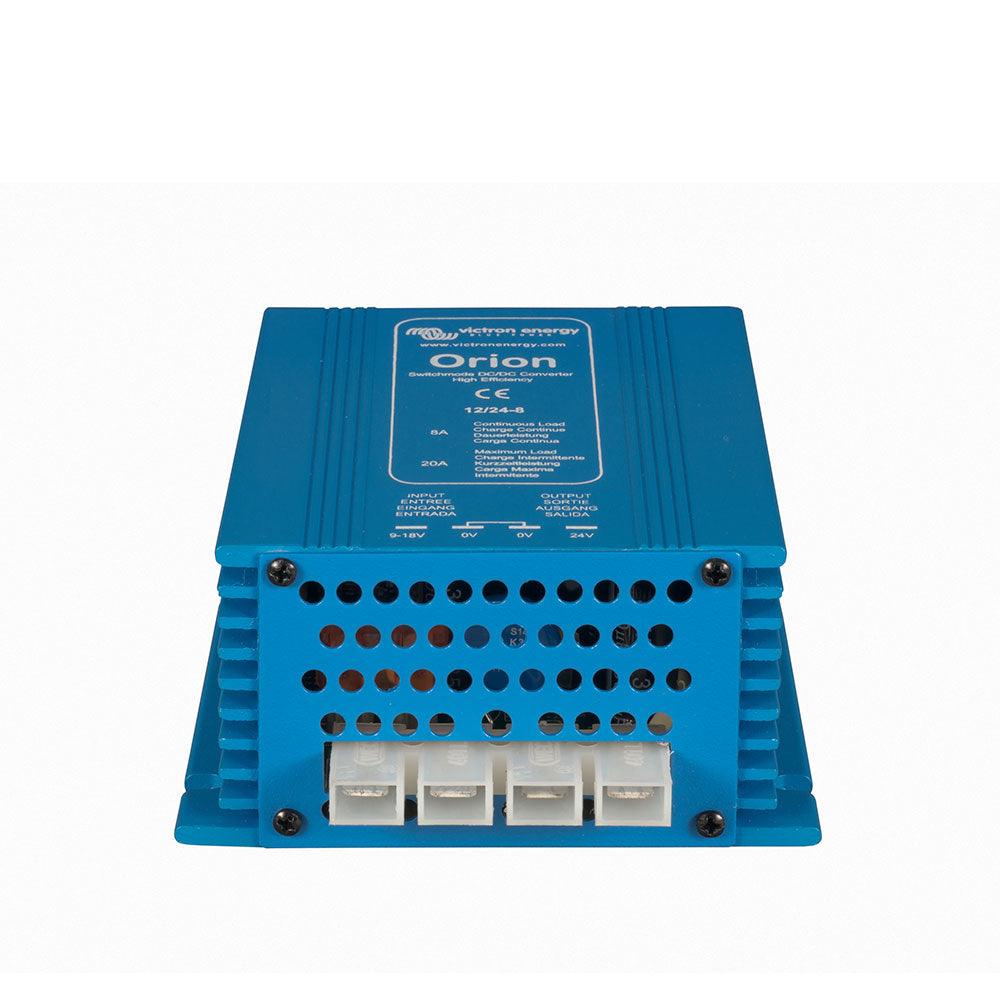

Victron Orion 12/24-8 DC-DC Converter
Step-Up 12V to 24V ย |ย 8A Continuous Output ย |ย Non-Isolated
The Victron Orion 12/24-8 DC-DC Converter (MPN: ORI122408020) is a robust and efficient solution for stepping up a 12V DC input to a stable 24V DC output. Available at Solarika, this non-isolated converter is engineered to provide reliable power for 24V appliances and systems from a 12V battery bank or power source. It is an essential component for integrating 24V equipment into 12V setups, commonly found in vehicles, boats, and off-grid solar installations across the UK.
Designed for demanding environments, the Orion 12/24-8 ensures your 24V devices receive a consistent and regulated power supply, enhancing compatibility and performance within your 12V system. Its high efficiency and compact design make it a practical choice for various applications where space and reliability are key considerations.
PRODUCT NOTE: This is a non-isolated, fixed 24V output step-up converter. It is not designed for battery charging or parallel operation.
Key Features
| โถย Seamless 12V to 24V Conversion โ Power 24V devices effortlessly from a standard 12V system. |
| โถย High Efficiency โ Achieves up to 95% efficiency for minimal power loss and optimal energy use. |
| โถย Compact & Durable Design โ Small footprint and robust construction for demanding, space-limited installations. |
| โถย Reliable Power Supply โ Delivers a stable and regulated 24V output, crucial for sensitive electronics. |
| โถย Wide Input Voltage Range โ Accepts 9-18V DC input for versatile compatibility with various 12V sources. |
| โถย Fixed Output Voltage โ Provides a consistent 24V DC output that is non-adjustable. |
| โถย Continuous Output Current โ Delivers 8A continuous output, with a surge capability of up to 20A. |
| โถย Remote On-Off Functionality โ Features a remote on-off connector for convenient control via a low-power switch. |
| โถย Low Off-Load Current Draw โ Consumes less than 10mA when idle, helping to preserve battery life. |
| โถย Convection Cooled โ Operates silently without a fan, relying on natural convection for cooling. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product SKU/MPN | ORI122408020 |
| Input Voltage Range | 9-18V DC |
| Output Voltage | 24V DC (Fixed) |
| Continuous Output Current | 8A |
| Max. Output Current (Surge) | 20A |
| Efficiency | Up to 95% |
| Off-load Current Draw | <10mA |
| Operating Temperature Range | -20ยฐC to +55ยฐC (derating above 40ยฐC) |
| Cooling | Convection |
| DC Connection | Faston tabs 6.3 mm |
| Dimensions (H x W x D) | 45 x 90 x 115 mm |
| Weight | 0.4 kg |
| Protection Class | IP20 |
| Isolation | Non-isolated |
| Certifications | CE, RoHS, E-mark, EN 60950, EN 61000-6-3, EN 55014-1, 95/48/EC |
Conversion & Output Details
The Victron Orion 12/24-8 is specifically designed for reliable DC voltage step-up. Understanding its operational characteristics is crucial for correct system integration.
| Parameter | Description |
|---|---|
| Input Voltage Type | Accepts a 12V DC nominal input from sources like battery banks. |
| Output Voltage Type | Provides a stable and fixed 24V DC output for connected loads. |
| Isolation Type | This model is non-isolated, meaning the input and output grounds are common. |
| Output Regulation | Offers a precisely regulated 24V output, ensuring consistent power delivery. |
Typical Applications
| Application | Description |
|---|---|
| Automotive & Marine | Ideal for powering 24V radios, navigation systems, refrigeration units, and other equipment in 12V vehicles, RVs, vans, and boats. |
| Off-Grid & Solar Systems | Integrate 24V components into 12V solar power setups, ensuring stable voltage for various loads. |
| Industrial & Commercial | Suitable for low to medium power 24V applications in mobile workstations and service vehicles. |
Built-In Protection Functions
The Victron Orion 12/24-8 DC-DC Converter incorporates essential safeguards to ensure reliable and safe operation. These include protection against short circuit ย โขย overload ย โขย overheating ย โขย and reverse polarity, enhancing the longevity of the unit and the safety of your electrical system.
Common Questions
Q: Is the Victron Orion 12/24-8 a battery charger?
A: No, the Victron Orion 12/24-8 is a DC-DC converter designed to provide a stable 24V output from a 12V input. It is not suitable for charging batteries.
Q: Can I connect multiple Victron Orion 12/24-8 units in parallel?
A: This specific non-adjustable output model (ORI122408020) cannot be connected in parallel with other units to increase output current.
Q: Is this DC-DC converter isolated?
A: No, the Victron Orion 12/24-8 is a non-isolated DC-DC converter, meaning the input and output grounds are common.
Installation Notes
- Professional installation by a qualified electrician or installer is highly recommended to ensure safety and optimal performance.
- Always refer to the official Victron Energy product manual for detailed wiring diagrams, safety instructions, and mounting guidelines.
- Ensure correct input and output polarity during connection to prevent damage to the converter and connected equipment.
- Mount the unit in a well-ventilated area to facilitate convection cooling and prevent overheating.
- This converter is non-isolated and provides a fixed 24V output; it is not designed for battery charging or for parallel operation with other units.
Before You Buy
- Verify Model & SKU: Confirm the Victron Orion 12/24-8 (MPN: ORI122408020) is the exact model required for your application.
- Input Voltage Compatibility: Ensure your source system provides a 12V DC input within the 9-18V range.
- Output Requirements: Confirm your 24V DC load requires a fixed 24V output and does not exceed the 8A continuous / 20A surge current rating.
- Isolation Needs: Understand that this is a non-isolated converter. If galvanic isolation is required for your application, a different model will be necessary.
- Application Suitability: This unit is for stepping up voltage to power 24V loads, not for charging batteries or for parallel connection with other units.
Always verify product specifications and compatibility with your specific system requirements before purchase. Refer to the manufacturer's official documentation for the most accurate and up-to-date information.
