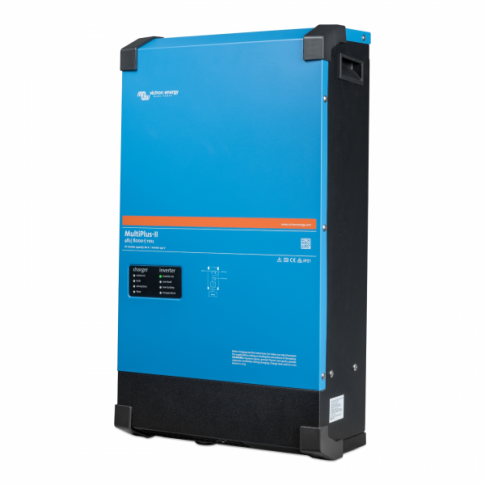

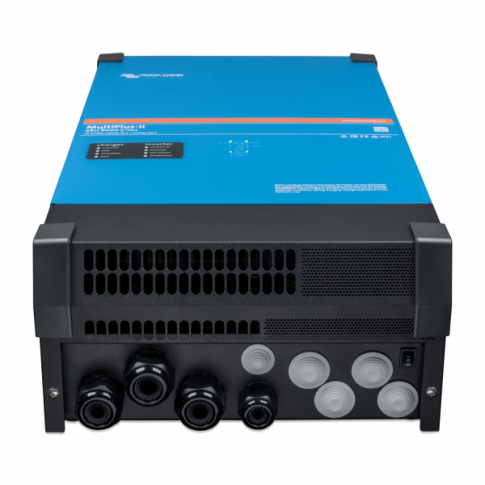

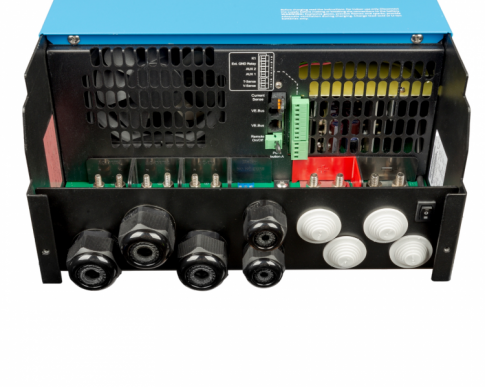

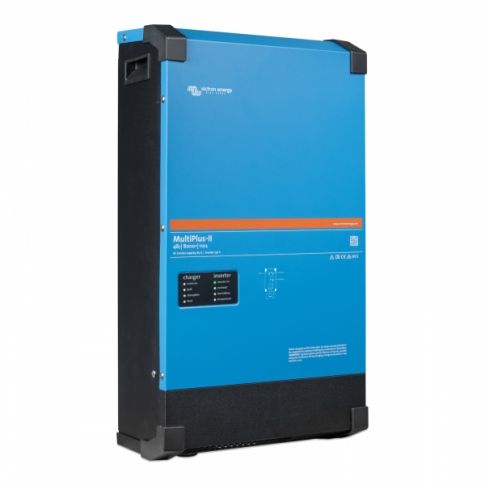

Victron MultiPlus-II 8000VA 48V Inverter Charger
PMP482805000 | 8000VA Pure Sine Wave | 110A Adaptive Charger | 100A Transfer Switch
The Victron MultiPlus-II 48/8000/110-100 230V is a sophisticated hybrid inverter/charger designed for advanced energy systems. This single unit intelligently combines a powerful 8000VA (6400W) pure sine wave inverter, a 110A adaptive battery charger, and a high-speed 100A AC transfer switch. It is ideal for applications requiring reliable power conversion and efficient battery management in a compact form factor.
Engineered by Victron Energy, a globally renowned manufacturer, the MultiPlus-II offers robust performance for both off-grid and grid-connected installations. Its integrated design simplifies system setup, reduces cabling, and enhances overall reliability for residential, marine, vehicle, and commercial applications.
VERSATILE POWER SOLUTION: Combines inverter, charger, and transfer switch functions for comprehensive energy management.
Key Features
| ▶ Integrated Design — Combines a powerful pure sine wave inverter, adaptive battery charger, and high-speed AC transfer switch in one unit. |
| ▶ 8000VA Pure Sine Wave Inverter — Delivers 6400W of continuous AC power from a 48V DC battery bank, suitable for sensitive electronics. |
| ▶ 110A Adaptive Battery Charger — Features 4-stage adaptive charge technology (bulk, absorption, float, storage) for optimal battery health and lifespan. |
| ▶ 100A High-Speed AC Transfer Switch — Provides Uninterruptible Power Supply (UPS) functionality, switching over in less than 20 milliseconds during power outages. |
| ▶ PowerControl & PowerAssist — Manages limited AC input (grid or generator) by reducing battery charging or boosting output with battery power to prevent overload. |
| ▶ Parallel & 3-Phase Capability — Allows up to six identical units to be connected in parallel for increased power, or configured for 3-phase systems. |
| ▶ Remote Monitoring & Control — Compatible with Victron GX devices (e.g., Cerbo GX) for local and remote system management via the VRM app/portal. |
| ▶ Auxiliary AC Output (AC-out-2) — Provides a secondary output for non-critical loads, which can be disconnected when on battery power. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model Number | PMP482805000 |
| DC Input Voltage Range | 38 - 66 V |
| Output Voltage & Frequency | 230 VAC ± 2% @ 50Hz ± 0.1% |
| Continuous Output Power (25°C) | 8000 VA (6400W) |
| Peak Power | 15000 W |
| Maximum Efficiency | 95% |
| AC Input Voltage Range | 187 - 265 VAC (45 - 65 Hz) |
| Charge Voltage 'Absorption' | 57.6 V |
| Charge Voltage 'Float' | 55.2 V |
| Charge Current (House Battery) | 110 A |
| Transfer Switch Rating | 100 A |
| Auxiliary AC Output | Yes (50A) |
| External AC Current Sensor (Optional) | Up to 100A (for PowerControl/PowerAssist) |
| Operating Temperature Range | -40 to +65 °C |
| Protection Category | IP22 |
| Dimensions (H x W x D) | 642 x 363 x 206 mm |
| Weight | 41.2 kg |
Charging & Output Modes
| Mode/Function | Description |
|---|---|
| PowerControl | Sets a maximum AC input current, prioritising AC loads and using surplus for battery charging. |
| PowerAssist | Supplements limited AC input (e.g., generator or shore power) with power from the battery during peak demand. |
| UPS Functionality | Ensures uninterrupted power to connected loads by switching to inverter operation in less than 20ms upon grid failure. |
| Programmable Relay | Can be configured for various applications, such as generator start/stop or alarm functions. |
| Energy Storage Systems (ESS) | Key component for Victron ESS, allowing integration with MPPT solar chargers or grid-tie PV inverters for self-consumption optimisation. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Provides reliable AC power for remote homes, cabins, or mobile applications where grid connection is unavailable. |
| Backup Power Solutions | Ensures continuous power supply during grid outages for critical loads in residential or commercial settings. |
| Hybrid Energy Systems | Integrates seamlessly with solar PV and grid power to optimise energy usage and reduce electricity bills. |
| Marine & Vehicle Use | Suitable for yachts, boats, and recreational vehicles requiring a robust 48V inverter/charger with high AC output. |
Built-In Protection Functions
The Victron MultiPlus-II is equipped with comprehensive safety features to protect both the unit and your energy system. These include protection against: short circuit • overload • over/undervoltage • overheating • voltage ripple. Additional intelligent features such as WeakAC, BatterySafe mode, Storage mode, Bulk protection, and Temperature compensation ensure optimal battery care and system longevity. The unit also features built-in anti-islanding for grid-connected applications.
Common Questions
What is the difference between VA and W for this inverter?
VA (Volt-Amperes) is the apparent power, while W (Watts) is the real power. For the Victron MultiPlus-II 8000VA, the continuous real power output is 6400W. VA accounts for reactive power, providing a more comprehensive measure of load capability, especially for inductive loads like motors.
Can this unit be used with different battery types?
Yes, the MultiPlus-II features an adaptive 4-stage battery charger that can be configured for various battery chemistries, including lead-acid (AGM, Gel, Flooded) and lithium-ion batteries. Proper configuration is essential for optimal performance and battery longevity.
Is remote monitoring available for this inverter?
Yes, when paired with a Victron GX device (such as a Cerbo GX), the MultiPlus-II can be monitored and controlled remotely via the free Victron Remote Management (VRM) app or portal. This allows for comprehensive system oversight from anywhere in the world.
What is PowerAssist and how does it work?
PowerAssist is an intelligent feature that prevents overloading of a limited AC source (like a generator or shore power). If the AC demand exceeds the source capacity, the MultiPlus-II will automatically supplement the power from the battery, ensuring continuous supply to your loads. When the load reduces, any surplus power is used to recharge the battery.
Installation Notes
- Installation of this Victron MultiPlus-II unit should only be carried out by a qualified and certified professional.
- Ensure all wiring adheres to local electrical regulations and manufacturer guidelines.
- Proper ventilation is crucial for optimal performance and longevity of the inverter/charger.
- Refer to the official Victron Energy manual for detailed installation instructions and safety precautions.
Before You Buy
- Verify that the 48V DC input and 230V AC output specifications meet your system requirements.
- Confirm compatibility with your existing battery bank and other solar components (e.g., MPPT charge controllers).
- Consider the total power demand of your loads to ensure the 8000VA (6400W) continuous output is sufficient.
- For grid-connected applications, ensure local grid operator approval and compliance with relevant standards (e.g., G98/G99 in the UK).
- Consult with a qualified solar installer or system designer to ensure correct system sizing and configuration.
All specifications are subject to change by the manufacturer. Please verify details with the latest product datasheet. This product is covered by a 5-year manufacturer warranty.
