ADVANCED PERFORMANCE: Featuring PowerAssist to prevent overloading of limited AC sources by boosting power with battery energy during peak loads.

Key Features

• ✔ Pure Sine Wave Output: Safe for all electronics
• ✔ UPS Function: Seamless transition (< 20ms)
• ✔ PowerAssist: Supplements grid/generator power
• ✔ Scalable Power: Parallel & 3-Phase capable
• ✔ Remote Monitoring: Compatible with GX devices

Technical Specs

Nominal Voltage:	48V DC
Cont. Output (25°C):	3000VA / 2400W
Peak Power:	5500W
AC Input Voltage:	187-265 VAC
Charge Current:	35A
Transfer Switch:	32A
Weight / IP Rating:	19kg / IP22

System Type	Application	Notes
Off-Grid Solar	Cabins, Homes, Workshops	Perfect for 48V battery banks.
Marine / Mobile	Yachts, Large RVs, Vans	Compact design for limited space.
Energy Storage (ESS)	Residential Battery Backup	Supports grid feed-in and UPS modes.

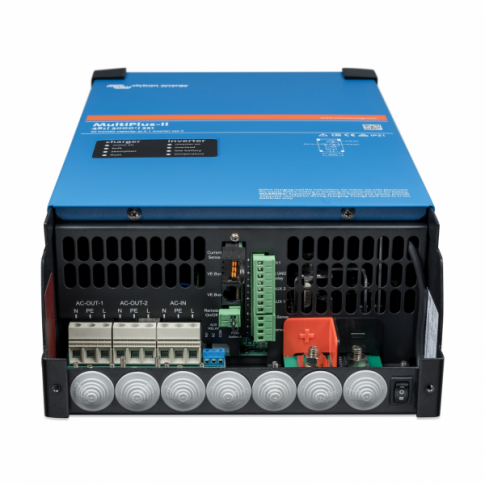

This unit should be wall-mounted in a dry, well-ventilated area. Connection requires M8 battery cables and screw terminal AC wiring (6 AWG recommended). Always ensure the 48V DC polarity is correct before commissioning. Professional electrical installation is required to comply with local grid-code standards (G98/G99 in the UK).

Is this a genuine original part?

This is a premium quality aftermarket replacement part supplied by solarika, engineered to meet or exceed the technical specifications of the original equipment (OE) for performance and durability.

How do I know if it is compatible?

Check your existing unit for the part number PMP482305010 or the SKU VMPLUS-II-48-3000. If your system is a 48V DC configuration requiring 3kVA output, this is the correct replacement.

Can this unit be used with Lithium (LiFePO4) batteries?

Yes, the VMPLUS-II-48-3000 features fully programmable charge profiles and is compatible with Lithium, AGM, Gel, and Lead-Acid batteries when configured correctly via VEConfigure.
