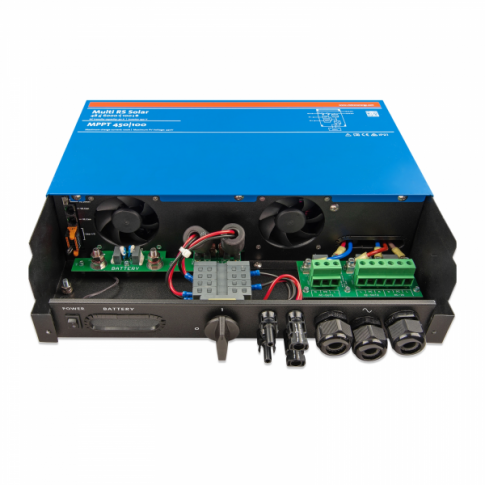

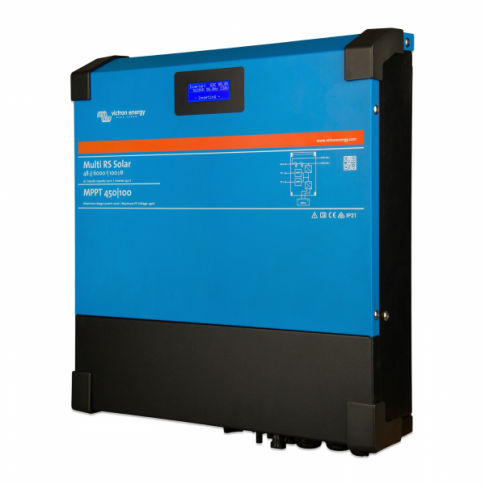

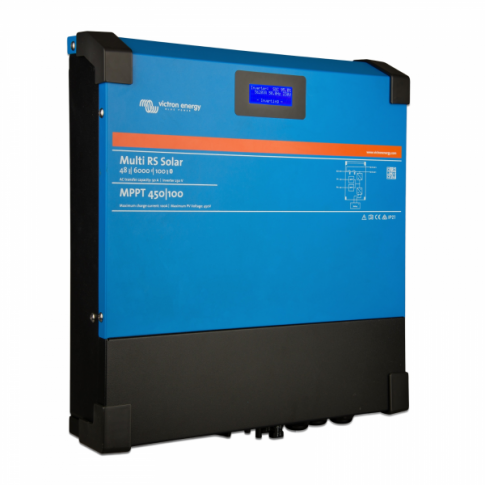

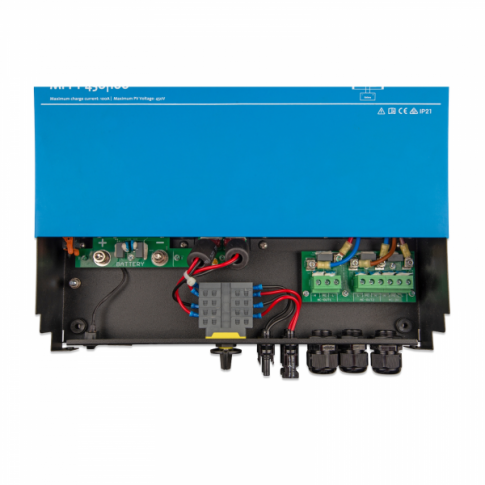

Victron Multi RS Solar 48/6000/100 Hybrid Inverter with 100A charger and 2 MPPT trackers up to 450V (PMR482602020)
Victron Multi RS Solar 48/6000/100 Hybrid Inverter with 100A charger and 2 MPPT trackers up to 450V (PMR482602020)
SKU:MULTIRS-48-6000
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron Multi RS Solar 48/6000/100 Hybrid Inverter
6000VA Pure Sine Wave | 100A Adaptive Charger | Dual 3kW MPPT (450V)
The Victron Multi RS Solar 48/6000/100 (PMR482602020) is a versatile hybrid inverter/charger designed for advanced off-grid, backup power, and hybrid energy systems. This single unit intelligently combines a powerful 6000VA 48V pure sine wave inverter, a sophisticated 100A adaptive battery charger, and dual 3kW MPPT solar charge controllers with up to 450V input. Its compact design makes it ideal for installations where space is limited, simplifying system setup and reducing cabling compared to using separate components.
Engineered by Victron Energy, a globally renowned manufacturer, this Multi RS Solar model offers exceptional reliability and efficiency. It features the unique capability to power AC appliances directly from solar energy without requiring a battery connection, providing flexibility for initial system setups with future battery expansion.
KEY ADVANTAGE: Operates directly from solar power without a battery, allowing for flexible system expansion.
Key Features
| ▶ 6000VA Pure Sine Wave Inverter — Delivers stable 230VAC mains electricity for sensitive appliances, with 4600W-5200W continuous power and 9000W peak capability. |
| ▶ Dual 3kW MPPT Trackers — Two independent Maximum Power Point Tracking inputs, each handling up to 3000W of solar PV, for a combined 6000W total PV power. |
| ▶ 100A Adaptive Battery Charger — Provides safe and efficient 4-stage smart charging (bulk – absorption – float – storage) for 48V battery banks. |
| ▶ Direct Solar Operation — Unique ability to power AC loads directly from solar PV without a battery, offering flexibility for system design and expansion. |
| ▶ PowerAssist Functionality — Supplements AC input capacity by drawing additional power from the battery when demand exceeds the grid or generator source. |
| ▶ Remote Monitoring & Control — Compatible with GX devices (e.g., Cerbo GX Mark 2) for local or remote system management via the free VRM app or portal. |
| ▶ 3-Phase Operation Capability — Can be paralleled with two additional identical units for increased power output in a three-phase configuration. |
| ▶ Programmable Relay — Allows for custom applications such as automatic generator start/stop. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Code (MPN) | PMR482602020 |
| Nominal Battery Voltage | 48 V |
| Inverter Continuous Output Power (25°C) | 4600W (at 46VDC) / 5200W (at 52VDC) |
| Inverter Peak Power | 9000W (3s) / 7000W (4min) |
| Output Voltage & Frequency | 230 VAC ± 2% @ 50Hz ± 0.1% |
| Maximum Efficiency | 96.5% (at 1kW load) / 94% (at 5kW load) |
| MPPT Max Open Circuit Voltage | 450 V |
| MPPT Operating Voltage Range | 65 - 450 V |
| Maximum PV Connection Power (Total) | 6 kW (3kW per tracker) |
| Charger AC Input Voltage Range | 187 - 265 VAC (45 - 65 Hz) |
| Charge Current (House Battery) | 100 A |
| Transfer Switch | 50 A |
| Operating Temperature Range | -40 to +65 °C (fan assisted) |
| Protection Category | IP21 |
| Dimensions (H x W x D) | 462 x 425 x 127 mm |
| Weight | 12.3 kg |
Charging & Output Modes
The Victron Multi RS Solar offers dynamic operating modes to suit various energy requirements:
- Hybrid Mode: Optimises energy flow by storing excess solar in batteries and supplementing grid power with battery energy during high demand.
- Back-up Mode: Provides seamless power to critical loads during mains power failures by switching to battery or solar power.
- Off-grid Mode: Enables complete energy independence, operating solely from solar and battery power.
- Generator Mode: Manages generator input efficiently, ensuring optimal charging and load support.
- PV Inverter Mode: Allows the unit to function primarily as a solar inverter, converting PV DC power to AC.
- Adaptive 4-Stage Charging: Ensures optimal battery health and longevity through bulk, absorption, float, and storage stages.
- PowerControl: Allows setting a maximum AC input current, prioritising AC loads (requires optional Multi Control Panel).
Typical Applications
| Application | Description |
|---|---|
| Residential Off-Grid Systems | Provides reliable power for homes not connected to the national grid, utilising solar and battery storage. |
| Backup Power Solutions | Ensures continuous power supply during grid outages for essential loads in homes or businesses. |
| Hybrid Energy Systems | Integrates solar, battery, and grid power for optimised energy management and cost savings. |
| Marine & Vehicle Installations | Suitable for boats, yachts, and large recreational vehicles requiring robust and efficient power conversion. |
| Small Commercial & Industrial | Provides reliable power for small businesses, workshops, or industrial applications with specific power needs. |
Built-In Protection Functions
The Victron Multi RS Solar is equipped with comprehensive safety features to protect both the unit and your system. These include protection against short circuit • overload • over/undervoltage • overheating • voltage ripple • 230VAC on inverter output • solar earth leakage. Additionally, it features WeakAC, BatterySafe mode, Storage mode, Bulk protection, and Temperature compensation for optimal battery care and system longevity.
Common Questions
Can the Multi RS Solar operate without a battery?
Yes, this inverter has the unique capability to power AC appliances directly from solar PV without a connected battery. This is ideal for initial setups, allowing batteries to be added later.
What type of batteries are compatible with this inverter?
The 100A adaptive 4-stage smart battery charger is designed for 48V battery banks and is tailored for various battery types, ensuring safe and efficient charging. Always verify battery compatibility with Victron Energy specifications.
How can I monitor and control the Multi RS Solar?
The unit features an integrated display for battery, inverter, and solar parameters. For advanced remote monitoring and control, it can be coupled with a Victron GX device (e.g., Cerbo GX Mark 2) and accessed via the free Victron VRM app or VRM portal. Bluetooth connectivity via the VictronConnect app is also available.
Can I expand the PV capacity beyond 6kW?
Yes, the integrated 6kWp PV capacity can be extended by adding external solar chargers or AC-coupled PV inverters. The system can automatically control these additional sources.
Installation Notes
- Installation of this hybrid inverter should only be carried out by a qualified and certified professional to ensure safety and compliance with local regulations.
- Ensure adequate ventilation around the unit for optimal cooling, especially given its fan-assisted cooling system.
- Verify all DC and AC wiring adheres to appropriate sizing and safety standards for the specified power ratings.
- Refer to the official Victron Energy manual for detailed installation instructions, wiring diagrams, and commissioning procedures.
Before You Buy
- Confirm that your battery bank voltage is 48V to ensure compatibility with this inverter/charger.
- Calculate your total AC load requirements to ensure the 6000VA (4600W-5200W continuous) output meets your needs.
- Assess your solar PV array specifications (voltage and power) to ensure they fall within the MPPT input limits (max 450V, 3kW per tracker, 6kW total).
- Consider any additional accessories, such as a GX device for remote monitoring or a Multi Control Panel for PowerControl functionality, if desired.
All specifications are based on manufacturer data. This product is covered by a 5-year manufacturer warranty.
