Victron MIDI-fuse 60A/58V for 48V products
Victron MIDI-fuse 60A/58V for 48V products
SKU:792-CIP133060010
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

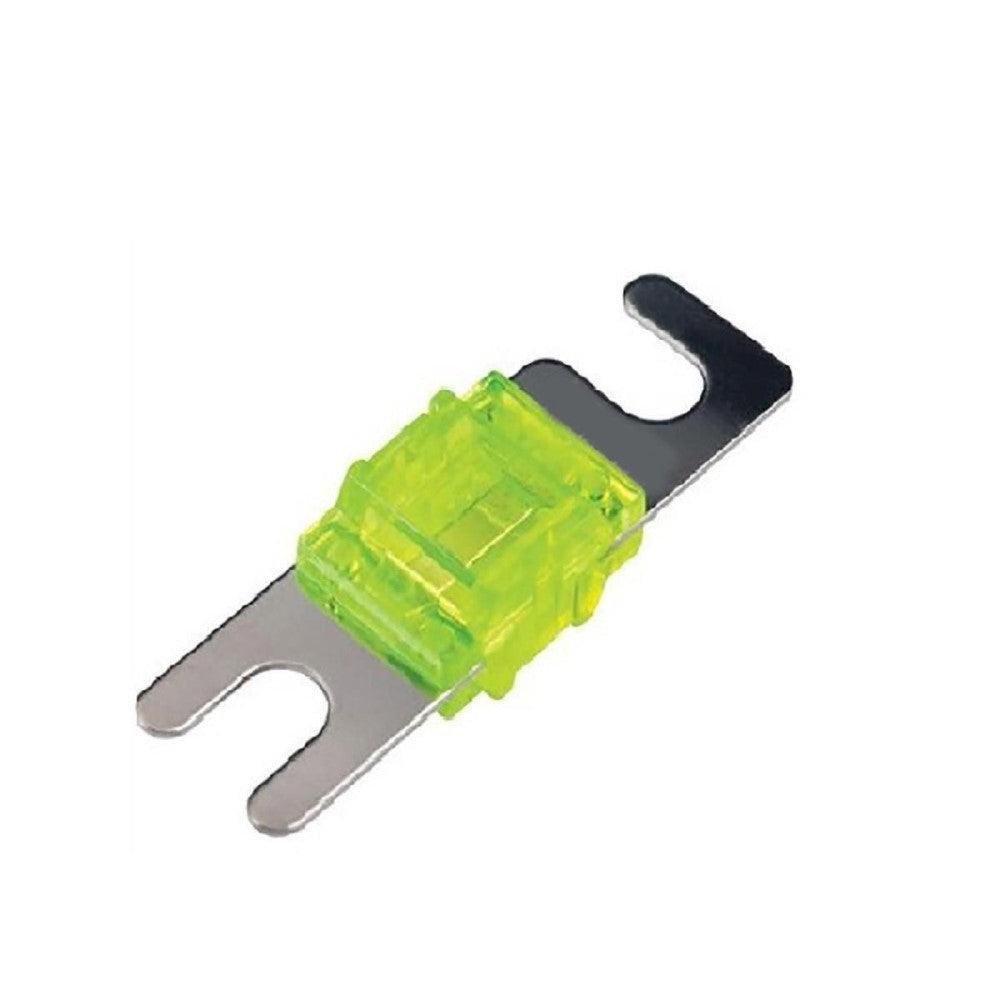

Victron MIDI-fuse 60A/58V
Essential DC Circuit Protection | For 48V Systems
The Victron MIDI-fuse 60A/58V provides crucial overcurrent protection for your 48V DC electrical systems. Designed by Victron Energy, a trusted name in renewable energy, this MIDI-fuse safeguards valuable components like inverters, charge controllers, and battery banks from potential damage caused by excessive current flow or short circuits.
Ideal for a range of applications including off-grid solar installations, marine setups, RVs, and industrial DC power systems, this 60 Ampere fuse ensures reliable operation and enhanced safety. It is supplied individually, allowing for precise system customisation or replacement needs.
Key Specification: 60 Ampere (A) | 58 Volt (V) DC Rating
Key Features
| ▶ High Current Protection — Effectively safeguards 48V DC circuits from overcurrent events. |
| ▶ 58V DC Rating — Suitable for a wide array of 48V nominal battery and inverter systems. |
| ▶ Reliable Performance — Engineered by Victron Energy for consistent safety and durability. |
| ▶ Compact MIDI Form Factor — Offers a space-efficient solution for various electrical installations. |
| ▶ Individual Supply — Convenient for specific circuit protection needs or replacements. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Product Type | MIDI-fuse |
| Current Rating | 60A |
| Voltage Rating | 58V DC |
| System Voltage Compatibility | Primarily 48V DC systems |
| Terminal Connection | M6 Bolt |
| MPN (Manufacturer Part Number) | CIP133060010 |
| SKU (Solarika) | 792-CIP133060010 |
System Integration Notes
| Parameter | Guidance |
|---|---|
| Fuse Type | MIDI (Medium Current) fuse for DC applications. |
| Required Holder | Requires a compatible MIDI fuse holder (sold separately) for secure installation. |
| DC System Voltage | Optimised for 48V DC systems, with a maximum voltage rating of 58V. |
| Installation Location | Typically installed between the battery bank and inverter/charger, or other high-current DC loads. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Protecting inverters, charge controllers, and battery banks in 48V setups. |
| Marine & RV | Safeguarding critical DC loads and power distribution in boats and recreational vehicles. |
| Industrial DC Systems | Overcurrent protection for various 48V industrial equipment and control circuits. |
| Backup Power Systems | Ensuring safety in 48V battery backup and uninterruptible power supply (UPS) applications. |
Built-In Protection Functions
The Victron MIDI-fuse is designed to provide essential electrical safeguards for your DC system. Its primary function is Overcurrent Protection • Short Circuit Protection • ensuring System Component Safety by interrupting the circuit when current exceeds safe levels.
Common Questions
What is a MIDI-fuse used for?
A MIDI-fuse provides essential overcurrent protection for DC electrical circuits, commonly found in solar, marine, and automotive applications. It prevents damage to wiring and components from excessive current flow.
Do I need a special fuse holder for this MIDI-fuse?
Yes, Victron MIDI-fuses require a specific MIDI fuse holder for proper installation and secure connection. The fuse holder is typically sold separately.
Can this 58V fuse be used in a 12V or 24V system?
This 60A/58V MIDI-fuse is primarily designed for 48V DC systems, as indicated by its product title and common applications. While a 58V fuse can technically operate in lower voltage systems (like 12V or 24V), the critical factor is selecting the correct *amperage* for the specific circuit's load and wire gauge. Always match the fuse amperage to the circuit's requirements.
Installation Notes
- Requires a compatible MIDI fuse holder for secure and safe installation.
- Always disconnect all power sources before installing or replacing fuses to prevent electrical shock.
- Ensure the correct amperage rating matches the circuit's maximum current draw and the wire gauge used.
- Install in a dry, protected environment, away from direct moisture, corrosive elements, or extreme temperatures.
- Consult a qualified electrician or refer to your system's documentation for proper wiring diagrams and safety guidelines.
Before You Buy
- Verify the required amperage for your specific 48V DC application to ensure adequate protection.
- Confirm you have a compatible MIDI fuse holder, as this fuse is supplied individually.
- Check the voltage compatibility of your system; this fuse is rated for 58V, suitable for 48V nominal systems.
- Consider the overall system design and relevant safety standards for optimal fuse placement and circuit protection.
Always verify product specifications and compatibility with your specific system requirements before purchase.
