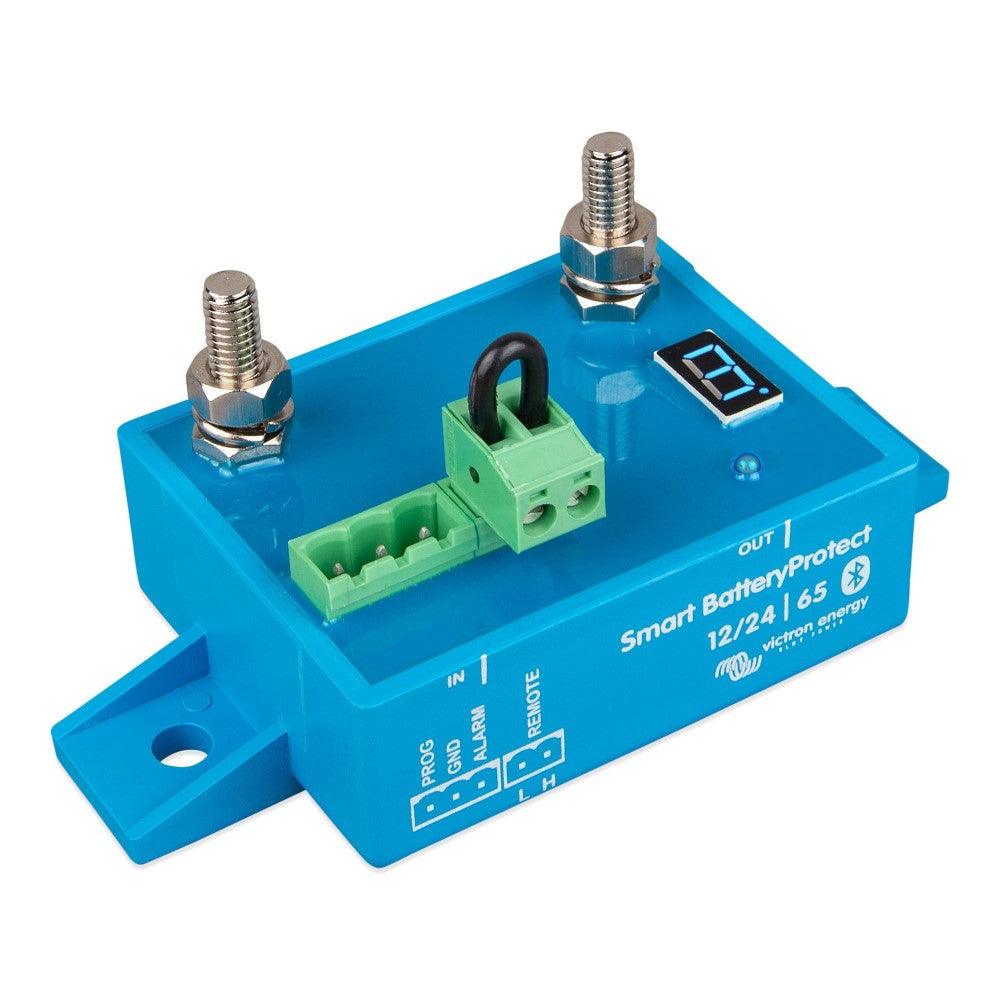

Victron Energy Smart Battery Protect 12/24V - 65A
Victron Energy Smart Battery Protect 12/24V - 65A
SKU:792-BPR065022000
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Smart Battery Protect 12/24V - 65A
Battery Protection & System Switch ย |ย 12V/24V Auto-Ranging ย |ย 65A Continuous
The Victron Energy Smart Battery Protect 12/24V - 65A is an essential device designed to safeguard your battery from excessive discharge, which can lead to permanent damage. This intelligent unit automatically disconnects non-essential loads when the battery voltage drops below a user-defined level, ensuring enough power remains for critical functions or engine starting.
Featuring 12/24V auto-ranging capability and Bluetooth connectivity, the Smart Battery Protect allows for easy programming of engage and disengage voltage levels via a smartphone or tablet. It also offers a special setting for Li-ion batteries, enabling control by a VE.Bus BMS for enhanced system integration.
IMPORTANT NOTE: This Smart Battery Protect is not designed for reverse currents from charging sources.
Key Features
| โถย Battery Protection โ Prevents deep discharge, extending battery lifespan and ensuring power for critical loads. |
| โถย System On/Off Switch โ Can be used to control the entire system's power, offering flexible management. |
| โถย 12/24V Auto-Ranging โ Automatically detects system voltage for versatile application in various setups. |
| โถย Bluetooth Connectivity โ Enables easy programming of engage/disengage levels via a smartphone app. |
| โถย Li-ion Battery Mode โ Dedicated setting for seamless integration and control with a VE.Bus BMS. |
| โถย Ultra-Low Current Consumption โ Minimises parasitic drain, crucial for Li-ion batteries after low voltage shutdown. |
| โถย Ignition Proof Design โ Utilises MOSFET switches instead of relays, eliminating sparks for enhanced safety. |
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage | 12/24V (Auto-Ranging) |
| Max. Continuous Load Current | 65A |
| Peak Current (30 Seconds) | 250A |
| Connection Type | M6 Terminals |
| IP Rating (Electronics) | IP67 (Potted) |
| IP Rating (Connections) | IP00 |
| Dimensions (Incl. Terminals) | 40 x 48 x 106mm |
| Weight | 0.2 kg |
Operating & Power Guidance
The Smart Battery Protect offers advanced control over your DC loads, ensuring reliable power management and battery longevity. Its intelligent features are designed to prevent common issues in 12V and 24V systems.
- Programmable Engage/Disengage Levels: Set precise voltage thresholds for load connection and disconnection, either via Bluetooth or nine predefined settings using the programming pin.
- Over Voltage Protection: Automatically disconnects the load if the DC voltage exceeds 16.3V (for 12V systems) or 32.6V (for 24V systems) to protect sensitive electronics.
- Delayed Alarm Output: An alarm output is activated if the battery voltage drops below the preset disconnect level for more than 12 seconds, preventing false alarms from engine starting.
- Delayed Load Disconnect & Reconnect: Loads are disconnected 90 seconds after the voltage drops below the threshold and reconnected 30 seconds after the voltage rises above the reconnect threshold, preventing rapid cycling.
Typical Applications
| Application | Description |
|---|---|
| Leisure & Marine Vehicles | Protects auxiliary batteries in caravans, motorhomes, and boats from deep discharge by non-essential loads. |
| Off-Grid Solar Systems | Ensures critical loads remain powered and battery health is maintained in remote power setups. |
| Automotive & Commercial Fleets | Prevents vehicle starting issues by disconnecting non-essential loads when battery voltage is low. |
| Backup Power Solutions | Manages battery discharge in small-scale backup systems to prolong battery life. |
Built-In Protection Functions
The Victron Smart Battery Protect incorporates several safety features to ensure reliable operation and protection for your battery and connected loads. These include: Over Voltage Protection to prevent damage from excessive voltage spikes ย โขย Under Voltage Disconnect to prevent deep battery discharge ย โขย Ignition Proof Design with MOSFET switches for spark-free operation ย โขย Short Circuit Proof Alarm Output (max 50mA) for external indicators.
Common Questions
What is the primary function of the Smart Battery Protect?
Its main purpose is to disconnect non-essential loads from your battery before it becomes fully discharged, thereby protecting the battery from damage and ensuring power for critical functions.
Can I use this with Li-ion batteries?
Yes, the Smart Battery Protect has a special mode for Li-ion batteries, allowing it to be controlled by a Victron VE.Bus BMS for optimal management.
How do I program the voltage levels?
You can easily program the engage and disengage voltage levels wirelessly via Bluetooth using the VictronConnect app on your smartphone or tablet. Alternatively, nine predefined levels can be set using the programming pin.
Is it suitable for charging circuits?
No, the Smart Battery Protect is specifically designed for load disconnection and is not intended for use with reverse currents from charging sources.
Installation Notes
- Ensure the device is installed in a dry, well-ventilated area, protected from direct weather exposure.
- Connect the Battery Protect between the battery and the DC loads you wish to protect.
- Always follow the wiring diagrams provided in the manufacturer's manual for correct and safe installation.
- Use appropriately sized cables and fuses for the continuous load current to prevent overheating.
- For Li-ion battery systems, ensure proper integration with a compatible VE.Bus BMS for optimal performance and safety.
Before You Buy
- Verify the continuous load current of your system does not exceed 65A for this model.
- Confirm your system voltage is either 12V or 24V for compatibility.
- Consider if you require Bluetooth programming or if predefined settings are sufficient for your application.
- Note that this device is designed for load protection and should not be used in charging circuits where reverse currents are present.
- Consult the official Victron Energy manual for detailed technical specifications and installation guidelines.
All specifications are based on manufacturer data and are subject to change. Always refer to the official product documentation for the most current information. This product is supplied with a 5-year manufacturer's warranty.
