Victron Energy Lynx Power In DC busbar 1000A M10 terminals 12V/24V/48V
Victron Energy Lynx Power In DC busbar 1000A M10 terminals 12V/24V/48V
SKU:VLYNXPI-M10
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron Energy Lynx Power In DC Busbar
1000A Nominal Current | M10 Interconnection | 12V/24V/48V Systems

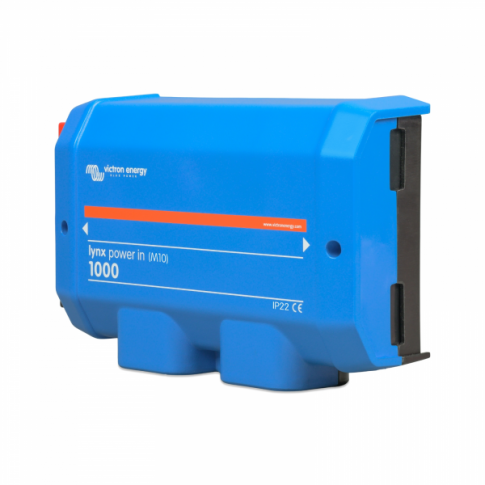

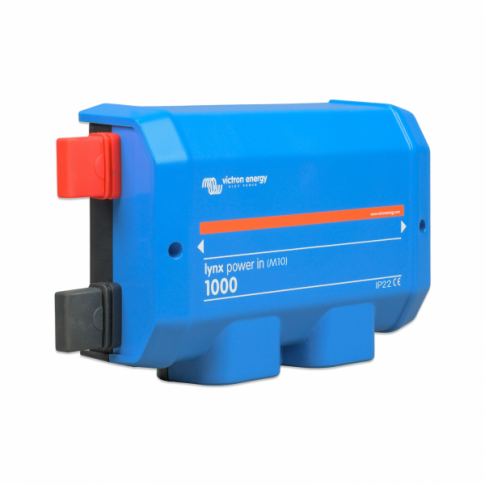

The Victron Energy Lynx Power In is a crucial modular DC busbar designed to form the backbone of a robust power distribution system. As an integral part of the Victron Lynx distribution family, this unit provides a centralised connection point for batteries, loads, and chargers, capable of handling a substantial 1000A nominal current. It features M10 bolts for seamless interconnection with other Lynx modules, ensuring a professional and expandable setup.

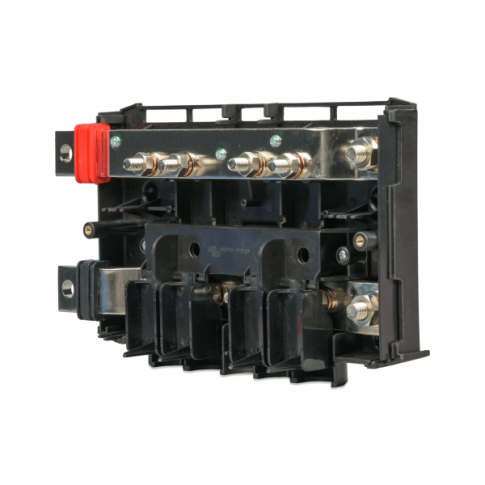

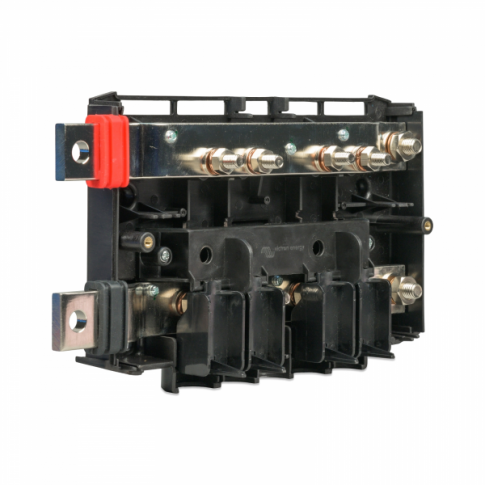

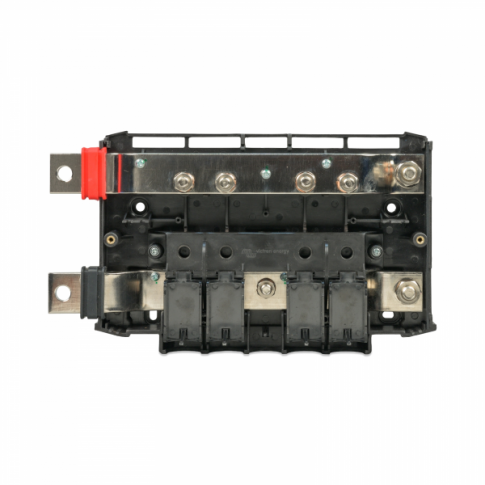

This Lynx Power In module comprises both positive and negative busbars, each equipped with four M8 cable connection points for secure wiring of your DC components. A dedicated ground connection is also included. Unlike other Lynx modules, the Lynx Power In does not incorporate built-in fuses, meaning all connected circuits must be protected by an appropriate external fuse system with the correct fault current interruption rating.
CRITICAL NOTE: External fusing is mandatory for all connected batteries, loads, and chargers.
Key Features
| ▶ Modular DC Distribution — Forms the foundation for organised, high-current DC power systems. |
| ▶ High Current Capacity — Rated for 1000A continuous current, suitable for demanding applications. |
| ▶ Wide Voltage Compatibility — Fully compatible with 12V, 24V, and 48V DC battery systems. |
| ▶ Robust Connections — Features four M8 cable connections per busbar and M10 interconnection bolts. |
| ▶ Expandable Design — Seamlessly integrates with other Victron Lynx modules for future system growth. |
| ▶ Durable Construction — Built with heavy-duty tinned copper busbars for excellent conductivity and corrosion resistance. |
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 9 - 60Vdc |
| Supported System Voltages | 12V, 24V, 48V |
| Current Rating | 1000A |
| Cable Connections | 4x M8 positive, 4x M8 negative |
| Busbar Interconnection | M10 |
| Enclosure Dimensions (H x W x D) | 290 x 170 x 80 mm |
| Unit Weight | 2.1 kg |
| Busbar Material | Tinned copper |
| Operating / Storage Temperature | -40°C to +60°C |
| Humidity | Max. 95% (non-condensing) |
| Protection Class | IP22 |
System Integration & Flexibility
The Victron Lynx Power In serves as the essential backbone for tying together your batteries, loads, and chargers within a comprehensive Victron Lynx Distribution System. Its modular design allows for easy expansion and customisation, providing a clean and organised solution for complex DC power setups.
This module is designed to seamlessly integrate with other components of the Lynx family, including the Lynx Distributor (for fused outputs), Lynx Shunt VE.Can (for battery monitoring), Lynx Smart BMS (for lithium battery management), and Lynx Class-T Power In (for high-interrupt fusing).
Typical Applications
| Large Marine & RV Systems | Centralised DC power distribution for multiple loads, battery banks, and charging sources. |
| Off-Grid & Hybrid Solar | Organising high-current battery banks, inverter connections, and solar charge controller outputs. |
| Industrial DC Installations | Robust and reliable power distribution in demanding industrial and commercial environments. |
| Custom Power Setups | Providing a flexible and high-capacity foundation for bespoke high-power DC electrical systems. |
Built-In Protection Functions
The Victron Lynx Power In is designed with an IP22 protection class, offering protection against solid objects over 12.5mm and vertically dripping water. It provides a robust physical connection point for high-current DC systems. However, it is crucial to remember that this module does not include internal fusing. All connected batteries, loads, and chargers must be protected by appropriately rated external fuses to safeguard against overcurrent and short-circuit events.
Common Questions
What is the primary function of the Lynx Power In?
The Lynx Power In is a modular DC busbar that acts as a central connection point for batteries, loads, and chargers within a Victron Lynx DC distribution system. It provides high-current positive and negative busbars.
Does the Lynx Power In include fuses?
No, the Lynx Power In does not have built-in fuses. All connected batteries, loads, or chargers must be protected by external fuses with appropriate ratings.
How does the Lynx Power In integrate with other Victron products?
It is designed to seamlessly connect with other Victron Lynx distribution modules, such as the Lynx Distributor, Lynx Shunt VE.Can, Lynx Smart BMS, and Lynx Class-T Power In, using M10 interconnection bolts.
What are the cable connection sizes?
The Lynx Power In features four M8 bolt terminals for connecting individual cables from batteries, loads, or chargers to the positive and negative busbars.
Installation Notes
- Professional Installation: For safety and optimal system performance, installation by a qualified electrician or solar professional is highly recommended.
- Adhere to Standards: Always follow local and national electrical wiring regulations and codes.
- Cable Sizing: Ensure all connecting cables are correctly sized for the anticipated current loads to prevent overheating and voltage drop.
- Torque Settings: Apply the manufacturer-specified torque values to all M8 cable connections and M10 interconnection bolts to ensure secure and reliable electrical contact.
- Ventilation: Install in a location that allows for adequate ventilation and is within the specified operating temperature range.
Before You Buy
- System Voltage: Confirm that the Lynx Power In's compatibility with 12V, 24V, or 48V DC systems matches your existing or planned setup.
- Current Requirements: Verify that the 1000A continuous current rating is sufficient for your total system load and charging currents.
- Fusing Strategy: Plan for the necessary external fuses for all connected circuits, as this unit does not provide internal fusing.
- Physical Space: Check the enclosure dimensions (290 x 170 x 80 mm) to ensure adequate space for installation and cable routing.
- System Expansion: Consider your future expansion needs and how the Lynx Power In will integrate with other Victron Lynx modules.
Always verify product specifications and compatibility with your existing system components before purchase. This product is covered by a 5-year manufacturer warranty.
