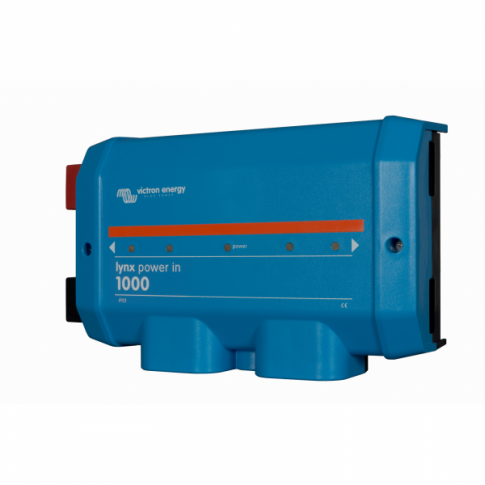

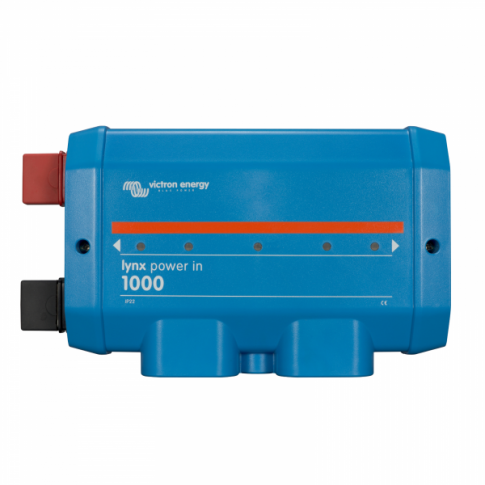

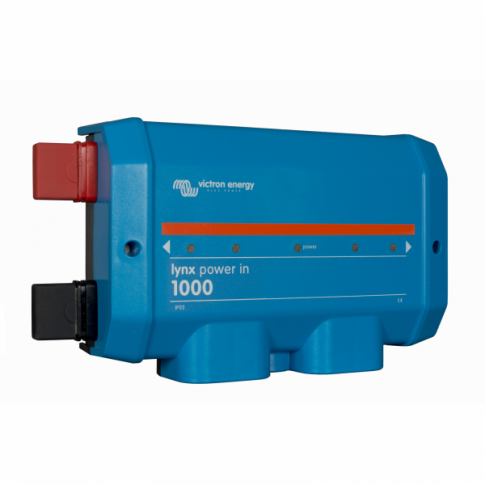

RELIABILITY: Engineered with tinned copper busbars and a robust ABS enclosure, this unit is built to withstand continuous 1000A loads in marine and off-grid environments.

Key Features

• ✔ 1000A Continuous Current Rating
• ✔ Modular "Lynx" System Compatibility
• ✔ Tinned Copper for Maximum Conductivity
• ✔ 4x Terminal Connections per Busbar
• ✔ Flame-Retardant ABS Housing

Technical Specs

Voltage Range:	9 - 60V DC
Current Rating:	1000A Continuous
Stud Size:	M8 (8mm)
Busbar Material:	Tinned Copper
Protection:	IP22 Rating
Weight:	2.1 kg

System Type	Application	Notes
Victron Lynx Modular	Distributor / Shunt VE.Can	Direct M8 link connection
Marine DC Systems	Main Battery Bus	Tinned copper prevents corrosion
RV / Off-Grid Solar	Parallel Battery Banks	Ideal for 12V/24V/48V setups

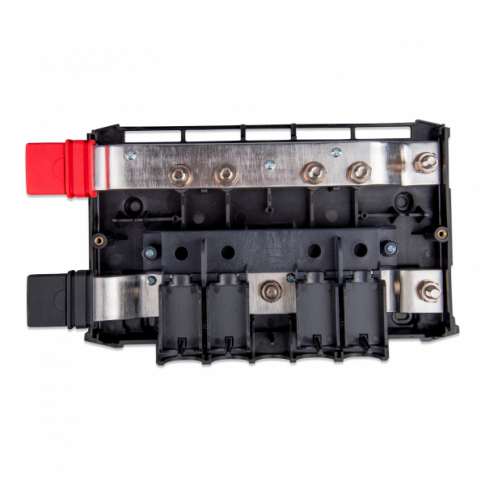

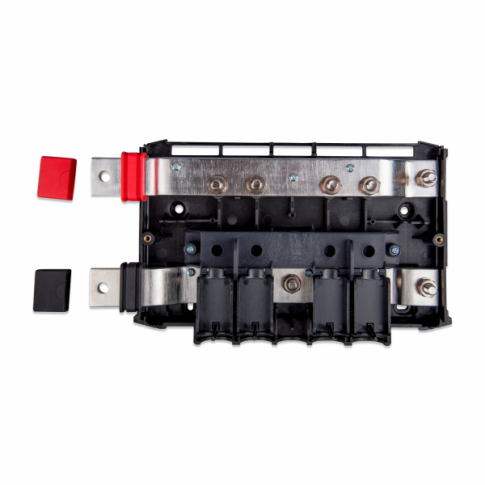

This unit is designed for modular connection to other Lynx components via the side busbar links. When connecting multiple modules, ensure the M8 joining bolts are torqued correctly. Note: The Lynx Power In does not include internal fuse holders; all battery strings and loads should be fused externally for safety.

Is this a genuine original part?

This is a premium quality aftermarket replacement part, manufactured by solarika / Aftermarket to meet or exceed original equipment (OE) standards for performance and electrical conductivity.

Does this unit include internal fuses?

No, the Lynx Power In is a non-fused modular busbar. For a fused version, please see the Lynx Distributor. All cables connected to this unit should have an external fuse system installed.

How do I know if it is compatible?

Verify the MPN (LYN020102000). If you are using the M8 version of the Lynx Distribution System, this module will bolt directly to your existing setup.
