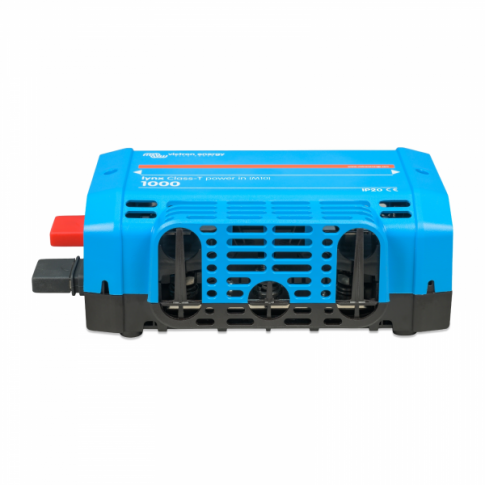

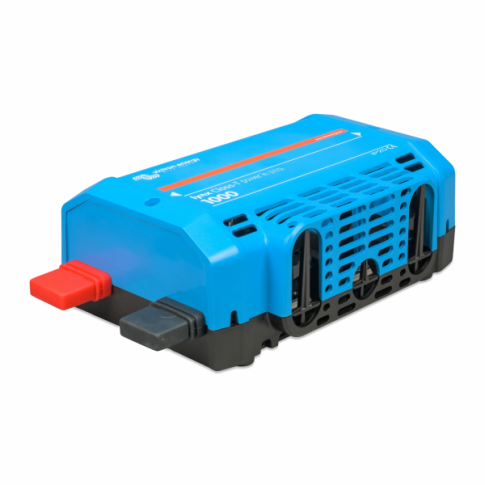

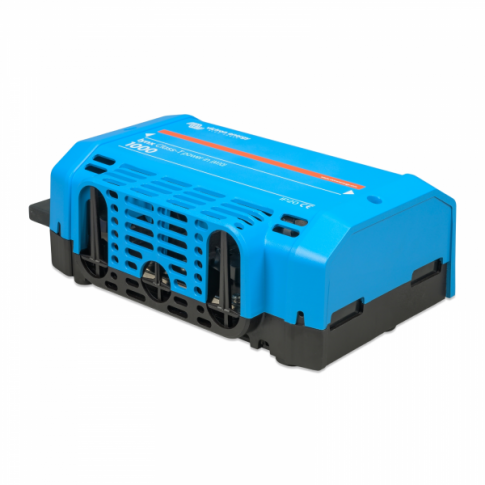

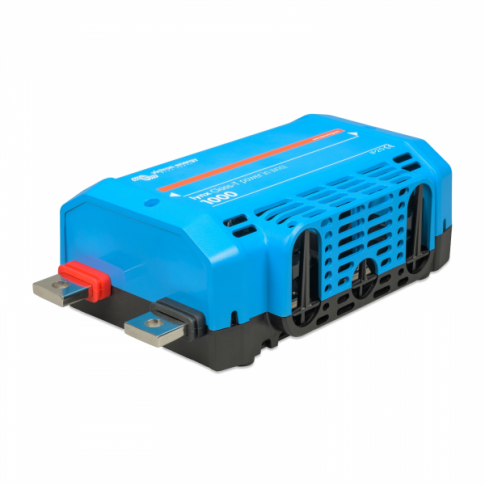

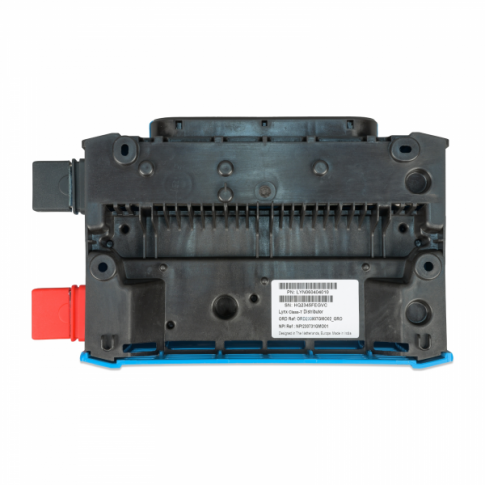

Victron Energy Lynx Class-T Power In DC Busbar
1000A M10 Terminals & Class-T Fuse Holder | For 12V, 24V, 48V Systems
The Victron Energy Lynx Class-T Power In is a crucial component within the modular Victron Energy Lynx DC distribution system. This robust busbar unit is designed to safely connect and protect high-current battery banks, particularly lithium batteries, in 12V, 24V, and 48V systems. It features both positive and negative busbars with a substantial 1000A continuous current rating.
Engineered for superior safety, the Lynx Class-T Power In includes connections for two Class-T fuses, which are essential for providing fast-acting, high-interrupt capacity protection against the significant short-circuit currents that modern lithium batteries can produce. This makes it an ideal solution for safeguarding your valuable solar, marine, RV, or off-grid power installations.
IMPORTANT NOTE: Class-T fuses (225A, 250A, 300A, 350A, 400A) are not included and must be purchased separately.
Key Features
| ▶ High Current Capacity — Rated for 1000A continuous DC current, suitable for demanding power systems. |

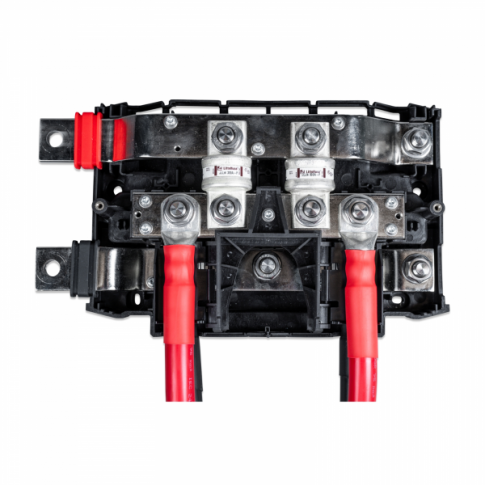

| ▶ Class-T Fuse Integration — Provides two dedicated slots for Class-T fuses (sold separately) for superior overcurrent protection. |
| ▶ Lithium Battery Optimised — Essential for safely managing the high short-circuit currents from lithium battery banks. |
| ▶ Modular Lynx System Component — Seamlessly integrates with other M10 Victron Lynx distribution modules. |
| ▶ Wide Voltage Compatibility — Supports 12V, 24V, and 48V DC systems with a 9-60Vdc operating range. |

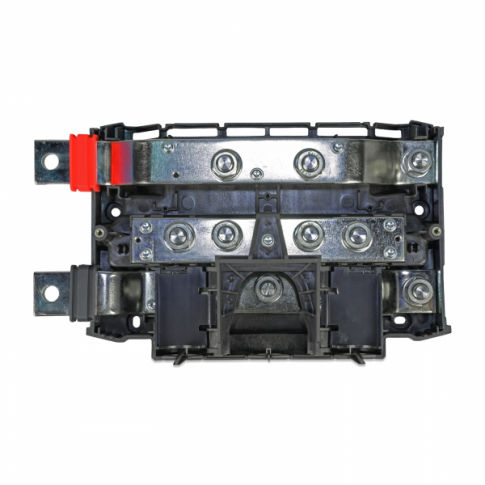

| ▶ Robust Construction — Features tinned copper busbars and an ABS enclosure for durability and reliability. |
Technical Specifications
| Parameter | Value |
|---|---|
| Voltage Range | 9 - 60Vdc |
| Supported System Voltages | 12V, 24V, 48V |
| Current Rating | 1000A continuous |
| Busbar Connections | M10 terminals |
| Fuse Connections | 3/8" (for Class-T fuses) |
| Enclosure Dimensions (H x W x D) | 279 x 169 x 97 mm |
| Unit Weight | 2.1 kg |
| Busbar Material | Tinned Copper |
| Enclosure Material | ABS |
| Operating / Storage Temperature | -40°C to +60°C |
| Protection Class | IP22 |
System Integration & Battery Management
The Lynx Class-T Power In is a core component of the Victron Energy Lynx DC distribution system, designed for seamless integration into high-power battery setups. It provides a robust, centralised point for connecting and fusing up to two strings of high-current lithium batteries, ensuring optimal safety and performance.
This module is specifically engineered to work with other M10 Lynx products, such as the Lynx Distributor and Lynx Power In, allowing for flexible and expandable system designs. Its M10 terminals support higher torque specifications, contributing to the system's overall ampacity rating and reliability.
Typical Applications
| Off-Grid Solar Systems | Provides essential overcurrent protection for large lithium battery banks in remote power installations. |
| Marine & RV Installations | Ensures safety and reliability for high-power DC systems in boats, yachts, and recreational vehicles. |
| Industrial & Commercial DC Systems | Suitable for robust power distribution in various industrial and commercial applications requiring high current handling. |
| Battery Bank Expansion | Facilitates the safe connection and fusing of multiple lithium battery strings in parallel. |
Built-In Protection Functions
The Victron Energy Lynx Class-T Power In is designed to enhance the safety of your DC power system. It provides dedicated housing for two Class-T fuses, which are critical for protecting against severe overcurrents and short circuits, especially with high-capacity lithium batteries. Class-T fuses offer a very high interrupt capacity (20kA DC) and fast-acting blow characteristics, significantly reducing the risk of damage to your system components. The unit also features a ground connection for system safety and an IP22 protection class, offering protection against solid objects larger than 12.5mm and vertically falling water drops.
Common Questions
What is the primary purpose of the Lynx Class-T Power In?
It serves as a high-current DC busbar and fuse holder, specifically designed to connect and protect up to two strings of lithium batteries within a Victron Energy Lynx distribution system. It provides critical overcurrent and short-circuit protection using Class-T fuses.
Are Class-T fuses included with this module?
No, Class-T fuses are not included and must be purchased separately. The module accepts 225A, 250A, 300A, 350A, or 400A Class-T fuses.
What other Victron Lynx modules is it compatible with?
The Lynx Class-T Power In is designed for seamless integration with other M10 Victron Lynx distribution system modules, such as the Lynx Distributor and Lynx Power In. It is important to note that the Lynx Shunt VE.Can typically uses M8 connections and cannot be directly connected to this M10 module.
Why are Class-T fuses recommended for lithium battery systems?
Lithium batteries have very low internal resistance and can deliver extremely high short-circuit currents. Class-T fuses are fast-acting and have a high interrupt capacity (up to 20kA DC), making them highly effective at safely interrupting these dangerous fault currents before significant damage occurs to the battery or system components.
Installation Notes
- Installation should be carried out by a qualified professional to ensure safety and compliance with local electrical regulations.
- Ensure all cable connections are secure and torqued to the manufacturer's specifications to prevent loose connections and overheating.
- Always disconnect power from the battery bank before installing or servicing any DC distribution components.
- Select Class-T fuses with the correct amperage rating for your specific battery bank and system requirements.
- Verify compatibility with other Victron Lynx modules, ensuring all connections are M10 for proper integration.
Before You Buy
- Confirm your system voltage (12V, 24V, or 48V) is compatible with the 9-60Vdc operating range of this busbar.
- Assess your current requirements to ensure the 1000A continuous rating meets or exceeds your system's peak loads.
- Plan for the purchase of appropriate Class-T fuses (225A, 250A, 300A, 350A, or 400A) as they are not included.
- Verify that any other Victron Lynx modules you intend to connect are M10 compatible for seamless integration.
- Consider the physical dimensions (279 x 169 x 97 mm) to ensure adequate space for installation.
Product specifications are subject to change by the manufacturer. Always refer to the official Victron Energy documentation for the most up-to-date information. This product is covered by a 5-year manufacturer warranty.
