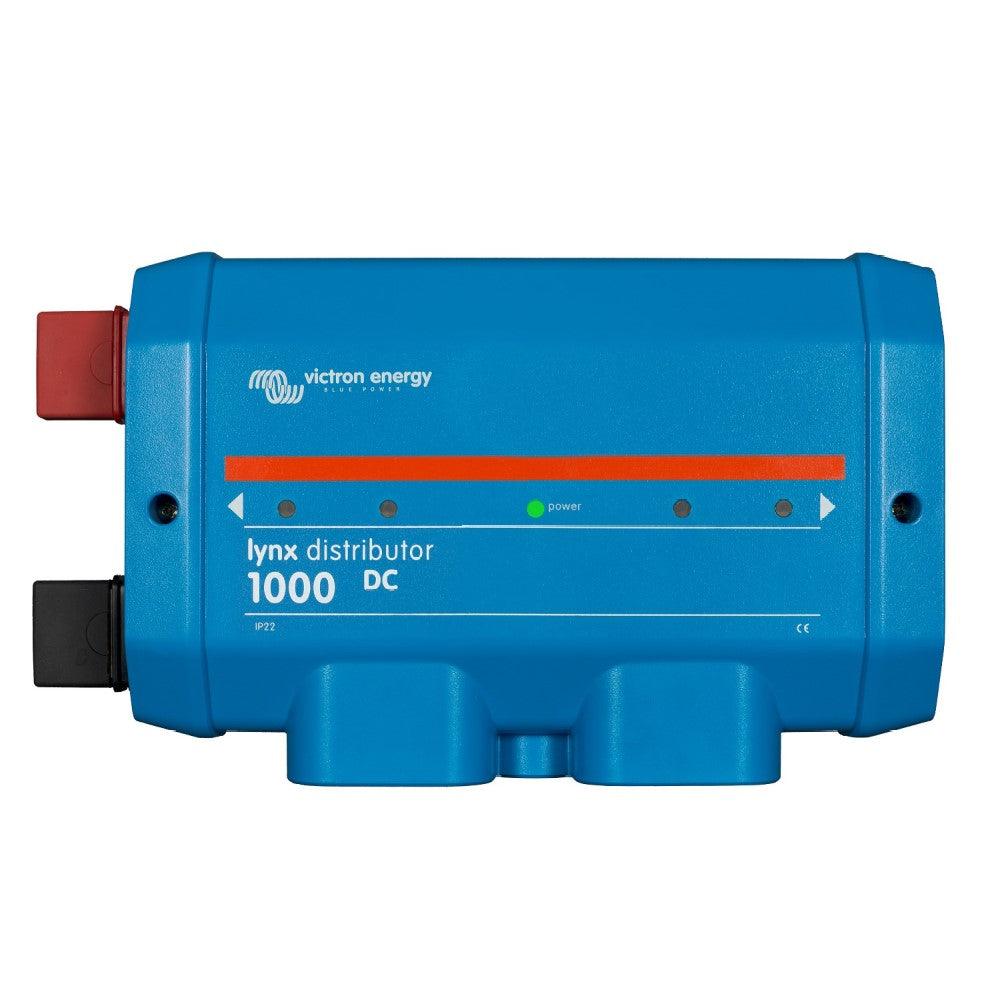

Victron Energy Lynx Distributor
Modular DC Busbar & Fuse Holder | LYN060102000 | For 12V, 24V, 48V Systems
The Victron Energy Lynx Distributor (LYN060102000) is a crucial component for efficient and safe DC power distribution in various renewable energy systems, including solar, marine, and automotive applications. As a modular DC busbar with integrated fuse holders, it streamlines the organisation and protection of your DC electrical circuits.
Designed to be part of the Victron Lynx distribution system, this unit provides a centralised point for connecting and protecting up to four individual DC equipment circuits or loads. It features both positive and negative busbars, simplifying complex wiring setups. Each positive connection is equipped with a slot for a MEGA fuse, ensuring robust overcurrent protection for your valuable equipment.
FUSE NOTE: The Lynx Distributor uses MEGA fuses, which are not supplied. For 48V systems, 58/64V rated fuses are mandatory.
Key Features
| ▶ Modular DC Busbar — Seamlessly integrates into the Victron Lynx distribution system for expandable power setups. |
| ▶ Four Fuse Holders — Provides dedicated overcurrent protection for up to four individual DC circuits or loads. |
| ▶ Fuse Status Indication — Onboard LEDs clearly show the condition of each fuse (blown or missing), enhancing safety and simplifying troubleshooting. |
| ▶ Positive & Negative Busbars — Centralises DC power distribution and simplifies wiring for a cleaner installation. |
| ▶ MEGA Fuse Compatibility — Designed for robust MEGA fuses, ensuring high current protection for demanding applications. |
| ▶ RJ10 Communication — Includes a 40cm RJ10 cable for power and data connection to compatible Victron Lynx components. |
| ▶ VictronConnect App Monitoring — When connected to a Lynx Smart BMS, allows monitoring and setup via the VictronConnect App. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | LYN060102000 |
| Manufacturer | Victron Energy |
| Product Type | DC Busbar / Distributor |
| Number of Fuse Holders | 4 |
| Fuse Type | MEGA Fuses (not supplied) |
| Nominal System Voltage | 12V, 24V, 48V |
| Voltage Range | 9 – 60V DC |
| Continuous Current Rating | 1000A |
| Busbar Connections (Module) | M10 |
| Fuse & Cable Connections | M8 |
| Enclosure Material | ABS |
| Protection Class | IP22 |
| Operating Temperature | -40°C to +60°C |
| Dimensions (H x W x D) | 80 x 290 x 170 mm |
| Weight | 2.2 kg |
Operating & Power Guidance
| Function | Detail |
|---|---|
| Fuse Monitoring Power | The fuse status LEDs require a 5V power supply, typically provided by connecting to a Victron Lynx Shunt VE.Can or Lynx Smart BMS via the supplied RJ10 cable. |
| Fuse Requirements | Uses MEGA fuses. It is critical to select fuses with the correct voltage rating for your system; for 48V systems, 58/64V rated fuses are mandatory. |
| System Integration | Designed for modular integration with other Victron Lynx components, forming a continuous positive and negative busbar system. |
| App Monitoring | When connected to a Victron Lynx Smart BMS, the Lynx Distributor's status can be monitored and configured using the VictronConnect App. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Provides centralised DC distribution and robust fuse protection for battery banks, inverters, and various DC loads. |
| Marine & RV Installations | Organises and protects onboard DC equipment, ensuring reliable power management in mobile environments. |
| Industrial DC Systems | Offers reliable fuse protection and distribution for diverse DC applications in industrial settings. |
| Vehicle Electrics | Facilitates efficient power distribution for auxiliary power systems in commercial and recreational vehicles. |
Built-In Protection Functions
The Victron Lynx Distributor incorporates essential protection features for enhanced system safety. It provides individual MEGA fuse slots to protect connected DC circuits from overcurrents and short circuits. Additionally, visual LED indicators on the front panel offer immediate feedback on the status of each fuse, turning red if a fuse is blown or missing, allowing for quick identification and resolution of issues. The unit also features reverse polarity protection for the main busbar connections.
Common Questions
What type of fuses does the Lynx Distributor use?
The Victron Lynx Distributor is designed to use MEGA fuses. These fuses are not included with the unit and must be purchased separately. It is crucial to select fuses with the correct voltage rating for your specific system, especially for 48V systems where 58/64V rated fuses are required.
Is a Lynx Shunt required for the fuse LEDs to work?
Yes, the Lynx Distributor's fuse indication LEDs require a 5V power supply. This power is typically provided by connecting the Distributor to a Victron Lynx Shunt VE.Can or a Lynx Smart BMS via the supplied RJ10 cable. Without this connection, the LEDs and fuse monitoring functions will not operate.
Can I monitor the Lynx Distributor with an app?
Yes, if the Lynx Distributor is connected to a Victron Lynx Smart BMS, you can monitor its status and perform setup via the VictronConnect App. This provides convenient access to operational data and fuse status.
What happens if not all fuse positions are used?
If you are not using all four connection points, the corresponding fuse status LEDs may turn red, indicating a missing fuse. In such cases, fitting dummy fuses may be necessary to extinguish these red LEDs.
Installation Notes
- Mount the Lynx Distributor in a dry, protected environment, ensuring adequate ventilation.
- Ensure all DC connections are made with appropriately sized cables for the expected current loads.
- Always disconnect all power sources (batteries, chargers) before attempting installation or maintenance.
- Refer to the official Victron Energy product manual for detailed installation instructions and wiring diagrams.
- Use only MEGA fuses with the correct voltage and current ratings for each connected circuit.
Before You Buy
- Verify compatibility with your existing or planned Victron Lynx system components, such as a Lynx Shunt or Lynx Smart BMS.
- Confirm the required MEGA fuse ratings for your specific DC loads and system voltage. Fuses are sold separately.
- Consider if fuse status indication is essential for your setup, as it requires connection to a compatible Lynx Shunt or Smart BMS.
- Ensure you have sufficient space for the unit's dimensions (80 x 290 x 170 mm) and for proper cable routing.
Specifications are subject to change by the manufacturer. Always refer to the latest official Victron Energy documentation for precise details and installation guidelines. This product carries a 5-year manufacturer's warranty.
