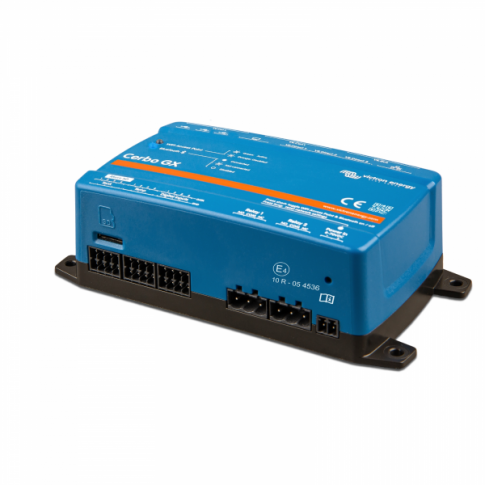

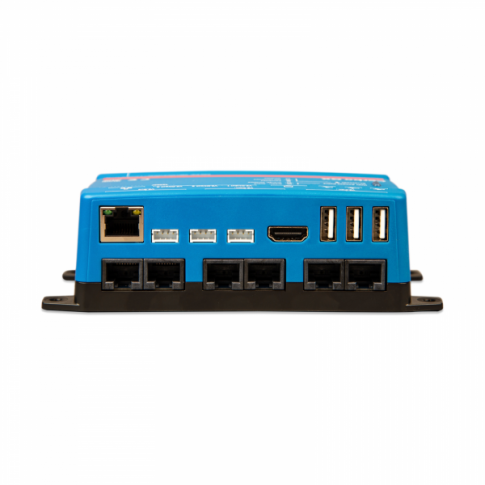

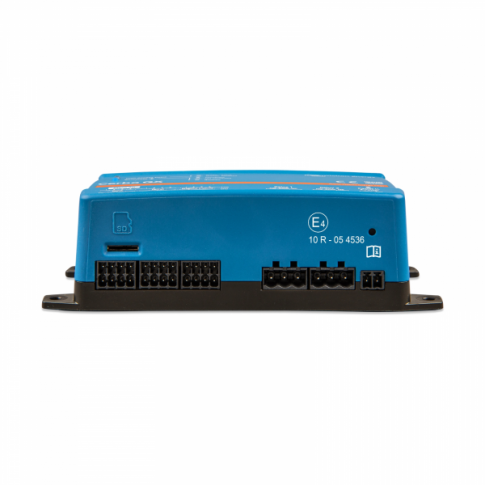

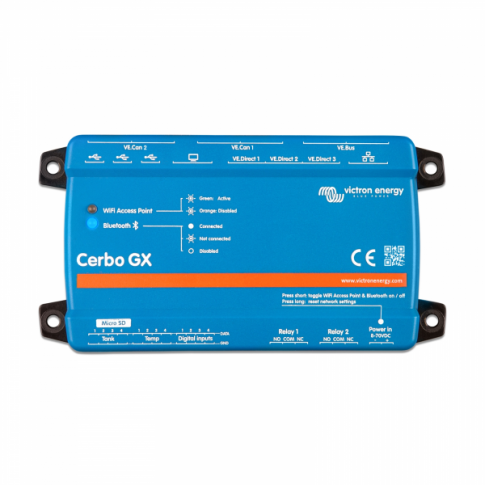

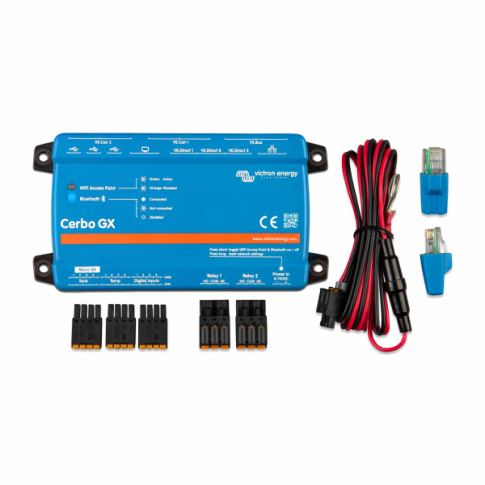

Victron Energy Cerbo GX MK2 communication unit for victron systems
Victron Energy Cerbo GX MK2 communication unit for victron systems
SKU:VE-CERGX-MK2
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Cerbo GX MK2 Communication Unit
Advanced System Monitoring & Control | For Victron Energy Systems
The Victron Energy Cerbo GX MK2 is a central communication unit designed to provide comprehensive monitoring and control over your Victron Energy power system. It acts as the brain of your installation, connecting all compatible Victron components such as inverters, solar chargers, and battery systems to enable seamless management and optimisation of your energy setup.
With the Cerbo GX MK2, you can remotely monitor system performance, adjust settings, and receive alerts from anywhere in the world via the Victron Remote Management (VRM) portal, or locally using a compatible GX Touch display or the VictronConnect App via Bluetooth.
CORE FUNCTION: Centralised monitoring and control hub for Victron Energy power systems.
Key Features
| ▶ Comprehensive Monitoring — Instantly track battery state of charge, power consumption, PV harvest, generator status, mains input, tank levels, and temperature measurements. |
| ▶ Remote Control & Management — Adjust shore power input limits and configure automatic generator start/stop based on user-defined conditions, all remotely. |
| ▶ Internet Connectivity — Connect to the Victron Remote Management (VRM) portal via Ethernet or Wi-Fi for energy usage monitoring, email alarms, and data downloads. |
| ▶ Enhanced Performance — Features a powerful Dual Core Processor and an additional CAN-bus port to support larger and more complex systems. |
| ▶ Flexible Display Options — Compatible with optional GX Touch 50 or GX Touch 70 touchscreen displays (not included) for an instant system overview and local control. |
| ▶ NMEA 2000-Out Functionality — Enables data from connected Victron devices to be made available on an NMEA 2000 network for marine Multi-Functional Displays (MFDs). |
| ▶ Simple Installation — Designed for easy DIN-Rail mounting (DIN35 adapter not included) or surface mounting, with Bluetooth for quick configuration via the VictronConnect app. |
Technical Specifications
| Parameter | Value |
|---|---|
| Supply Voltage | 8-70V DC |
| VE.Direct Ports (Isolated) | 3 |
| VE.Bus Ports (Isolated) | 2 paralleled RJ45 sockets |
| VE.Can Ports | 2 (1 isolated, 1 non-isolated) |
| USB Host Ports | 3 (fully functional) |
| Ethernet Port | 1 x 10/100 RJ45 (isolated) |
| Wi-Fi | Built-in 2.4 GHz |
| Bluetooth | Built-in 2.402 – 2.48 GHz |
| Resistive Tank Level Inputs | 4 |
| Temperature Sense Inputs | 4 |
| Digital Inputs (with pulse counting) | 4 |
| Programmable Relay Outputs | 2 (NO/NC) |
| MicroSD Card Slot | Yes (for data log storage) |
| Outer Dimensions (H x W x D) | 78 x 154 x 48 mm |
| Operating Temperature Range | -20 to +50°C |
System Integration & Connectivity
The Cerbo GX MK2 is engineered for extensive integration within Victron Energy systems and beyond, offering a wide array of connection options to ensure comprehensive control and data acquisition. Its robust connectivity features make it suitable for diverse applications requiring detailed monitoring and intelligent system management.
| Connection Type | Functionality |
|---|---|
| VE.Bus & VE.Direct | Connects to Victron inverters/chargers, solar chargers, and other devices for data exchange and control. |
| VE.Can & BMS-Can | Supports communication with compatible battery management systems (BMS) and other CAN-bus devices. |
| Digital & Relay Inputs | Allows for external control signals and programmable relay outputs for generator start/stop or alarm functions. |
| NMEA 2000 | Integrates with marine MFDs to display Victron system data on a boat's network, enhancing marine power management. |
Typical Applications
| Application Area | Description |
|---|---|
| Off-Grid & Remote Systems | Provides essential monitoring and control for standalone power systems in cabins, remote homes, or scientific stations. |
| Marine & Automotive | Ideal for yachts, boats, RVs, and emergency vehicles, enabling integrated power management and NMEA 2000 compatibility. |
| Energy Storage Systems (ESS) | Manages and optimises battery storage solutions for self-consumption, backup power, and grid interaction. |
| Backup Power Systems | Ensures reliable operation and monitoring of backup power setups for homes and small businesses during grid outages. |
Common Questions
What is the primary function of the Victron Cerbo GX MK2?
The Cerbo GX MK2 serves as the central communication hub for your Victron Energy power system, allowing you to monitor and control all connected components from a single interface.
How can I monitor my Victron system with the Cerbo GX MK2?
You can monitor your system remotely via the Victron Remote Management (VRM) portal over the internet, or locally using an optional GX Touch display or the VictronConnect App on your smartphone/tablet via Bluetooth.
Is a display included with the Cerbo GX MK2?
No, the Cerbo GX MK2 does not include a built-in display. It is designed to be paired with optional Victron GX Touch 50 or GX Touch 70 touchscreen displays, or accessed via the VRM portal or VictronConnect App.
Can the Cerbo GX MK2 be used in marine applications?
Yes, the Cerbo GX MK2 is well-suited for marine applications, offering an NMEA 2000-out function to integrate Victron system data with marine Multi-Functional Displays (MFDs).
Installation Notes
- The Cerbo GX MK2 can be surface mounted or installed on a DIN rail (requires a separate DIN35 adapter).
- Connect all compatible Victron Energy devices (inverters, solar chargers, batteries) to the Cerbo GX MK2 using the appropriate VE.Bus, VE.Direct, or VE.Can ports.
- Ensure a stable 8-70V DC power supply is connected to the unit.
- For remote monitoring, connect the Cerbo GX MK2 to the internet via its Ethernet port or built-in Wi-Fi.
- Initial configuration can be performed quickly via Bluetooth using the VictronConnect App.
Before You Buy
- Verify compatibility with your existing Victron Energy system components to ensure seamless integration.
- Consider whether you require a local display; the GX Touch 50 or GX Touch 70 are optional accessories and are not included.
- Ensure your power system can provide a stable 8-70V DC supply for the Cerbo GX MK2.
- For DIN rail mounting, a DIN35 adapter is required and sold separately.
- Familiarise yourself with the VictronConnect App for easy setup and monitoring.
Always refer to the manufacturer's official documentation for detailed specifications, installation guidelines, and system compatibility. Victron Energy products typically carry a 5-year manufacturer warranty.
