VICTRON ENERGY 16A 250VAC STAINLESS STEEL POWER INLET (2P/3W)
VICTRON ENERGY 16A 250VAC STAINLESS STEEL POWER INLET (2P/3W)
SKU:VPINLET
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

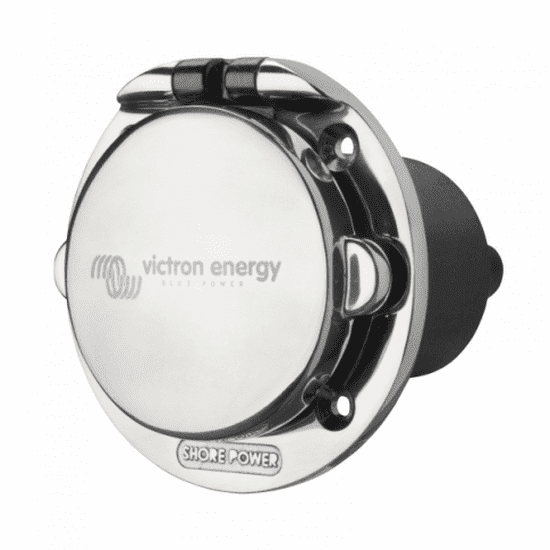

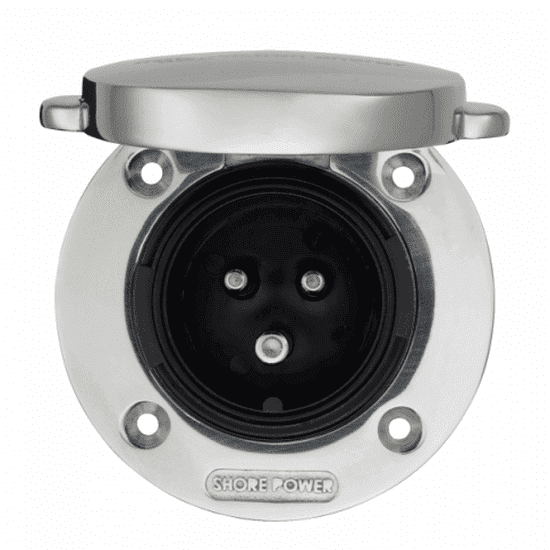

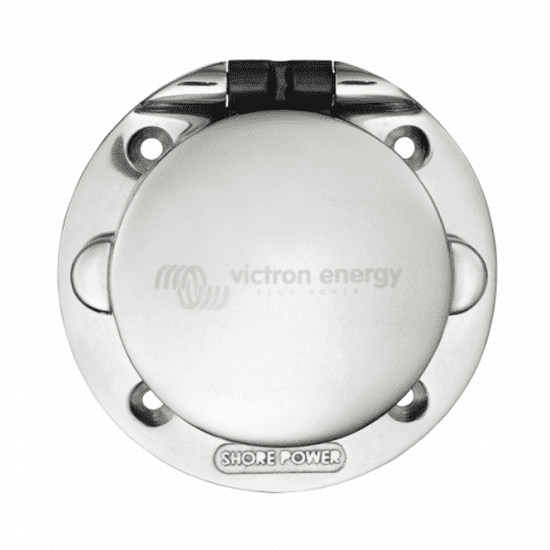

Victron Energy 16A 250VAC Stainless Steel Power Inlet
Robust 2P/3W (2 Pole + Earth) | IEC 60309 Standard | IP56 Rated
The Victron Energy 16A 250VAC Stainless Steel Power Inlet (Model: SHP301602000, SKU: VPINLET) provides a reliable and secure connection point for external mains power. Designed for durability and safety, this power inlet is an essential component for connecting your recreational vehicle, boat, or off-grid system to shore power, campsite hook-ups, or a generator.
Engineered by Victron Energy, a trusted name in power electronics, this 3-pin power inlet ensures a stable 16A, 250VAC supply. Its robust stainless steel construction and high IP56 waterproof rating offer excellent protection against the elements, making it suitable for demanding outdoor and marine environments.
IMPORTANT NOTE: An additional shore power cable is required for connection and is not included with this power inlet.
Key Features
| ▶ 16A / 250VAC Rating — Provides a robust and standard power connection for UK and European applications. |
| ▶ 316 Stainless Steel Cover — Offers superior corrosion resistance and durability, ideal for marine and outdoor use. |
| ▶ IP56 Waterproof Rating — Ensures excellent protection against dust ingress and strong water jets from any direction. |
| ▶ IEC 60309 Standard — Guarantees compatibility and safe, reliable connections with standard industrial and marine shore power cables. |
| ▶ CE Certified — Meets European safety, health, and environmental protection requirements. |
Technical Specifications
| Parameter | Value |
|---|---|
| Current Rating: | 16A |
| Voltage Rating: | 250VAC |
| Standard: | IEC 60309, 2P+E (2 Pole + Earth) |
| Cover Material: | Solid Cast 316 Stainless Steel |
| Plug Body Material: | PA6 |
| Pins: | Brass, Nickel Plated |
| Waterproof Rating: | IP56 |
| Weight: | 0.34 kg |
| Certification: | CE Certified |
Typical Applications
| Application | Description |
|---|---|
| Recreational Vehicles (RVs) | Ideal for connecting motorhomes, caravans, and campervans to campsite electric hook-ups. |
| Marine Vessels | Enables yachts, boats, and other marine craft to connect to shore power at marinas. |
| Off-Grid Systems | Provides a robust external input for connecting portable generators or temporary mains power to off-grid setups. |
| Temporary Power Needs | Suitable for various temporary installations requiring a secure and weather-resistant power input. |
Built-In Protection & Durability
The Victron Energy Power Inlet is designed with durability and safety in mind. Its solid cast 316 stainless steel cover provides exceptional resistance to corrosion, particularly in harsh marine environments. • The PA6 plug body ensures mechanical strength and longevity. • With an IP56 rating, it offers robust protection against dust and high-pressure water jets, ensuring reliable operation even when exposed to the elements. • Nickel-plated brass pins maintain excellent conductivity and resist oxidation for consistent power delivery.
Common Questions
What is the purpose of a power inlet?
A power inlet provides a safe and permanent connection point on your vehicle or boat for an external AC power source, such as shore power at a marina, a campsite hook-up, or a portable generator. It allows you to power onboard appliances and charge batteries.
Is this power inlet compatible with standard UK shore power cables?
Yes, this Victron Energy power inlet conforms to the IEC 60309 standard (2P+E), which is widely used for industrial and marine connections across the UK and Europe. It is designed to be compatible with standard 16A, 250VAC shore power cables that also meet this standard.
What does the IP56 rating mean?
The IP56 rating indicates that the power inlet is protected against dust ingress (level 5) and strong jets of water from any direction (level 6). This makes it highly suitable for outdoor and marine environments where exposure to dust and water is common.
Is a shore power cable included with this product?
No, the Victron Energy 16A 250VAC Stainless Steel Power Inlet is supplied as a standalone unit. An appropriate shore power cable is required to make the connection to an external power source and must be purchased separately.
Installation Notes
- Requires a suitable cut-out in the vehicle or boat body for secure flush mounting.
- Ensure all wiring is carried out by a qualified professional in accordance with local electrical regulations.
- Use appropriate marine-grade or outdoor-rated cabling and connectors for all external connections.
- Always ensure the power source is disconnected before attempting installation or maintenance.
Before You Buy
- Verify the current and voltage requirements of your onboard electrical system match this inlet's specifications (16A, 250VAC).
- Confirm you have an appropriate shore power cable (not included) that is compatible with IEC 60309 16A 2P+E standards.
- Consider the mounting location carefully to ensure adequate space and protection from physical damage.
- Consult the manufacturer's technical documentation for detailed dimensions and installation instructions.
Please verify all specifications and compatibility requirements with your system before purchase. Victron Energy offers a 5-year limited warranty on this power product.
