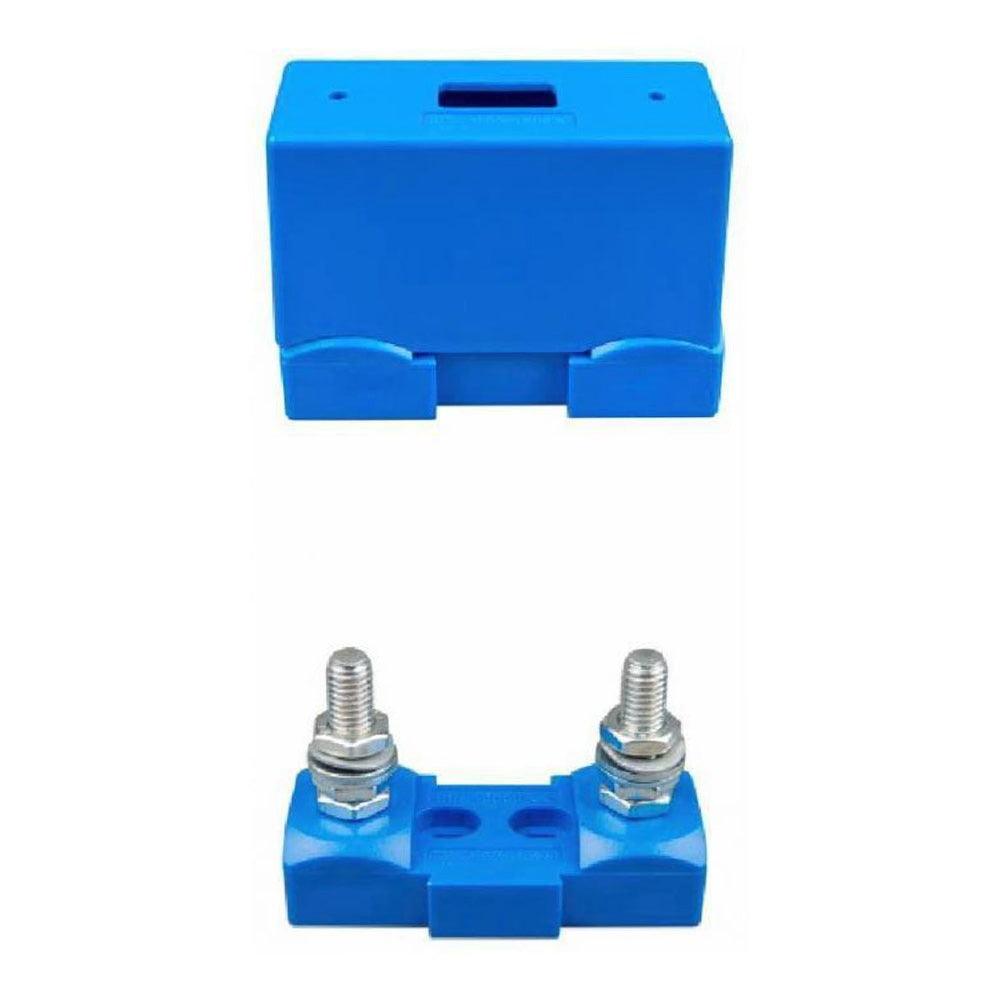

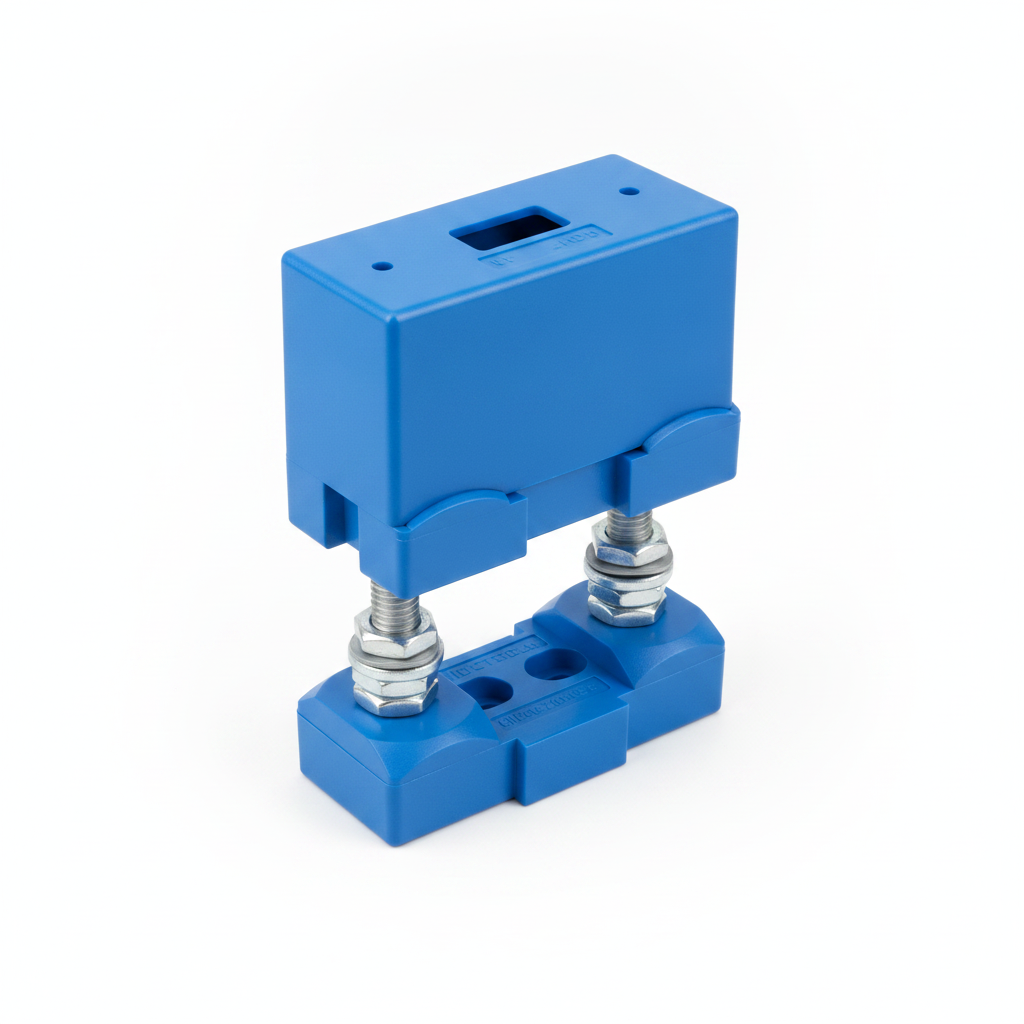

Victron Modular Fuse Holder for MEGA-Fuse
CIP100200100 | High Current DC Circuit Protection
The Victron CIP100200100 Modular Fuse Holder is an essential component for safeguarding high-current DC electrical systems. Designed specifically for robust MEGA-Fuses, this holder provides reliable overcurrent protection for critical equipment in various applications, including solar power, marine, RV, and off-grid installations.
Its innovative modular design features a dovetail interlocking mechanism, allowing you to connect multiple fuse holders together for a neat, expandable, and highly organised fuse bank. This flexibility makes it ideal for systems requiring multiple fused circuits or future expansion.
System Integration Note: Essential for safe high-current DC circuit protection. Fuses sold separately.
Key Features
| ▶ Modular Dovetail Design — Interlocks multiple fuse holders for expandable and tidy fuse bank configurations. |
| ▶ High Current Capacity — Supports MEGA-Fuses for demanding power distribution, handling up to 500A at 32V DC or 300A at 58V DC. |
| ▶ Robust Construction — Built from a high-strength plastic compound, ensuring durability in challenging environments. |
| ▶ Pre-Mounted Hardware — Includes nuts and snap rings for quick, secure installation and optimal electrical contact. |

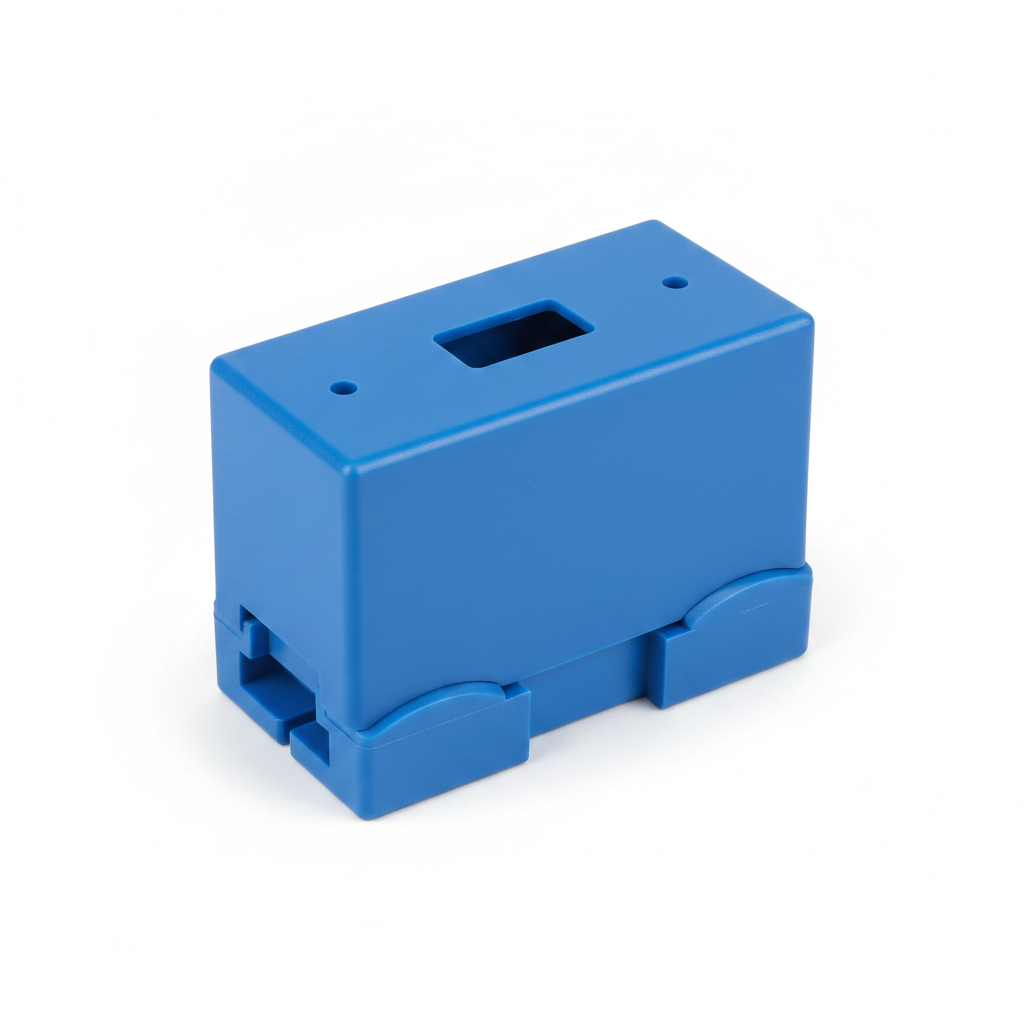

| ▶ Protective Cover — Helps safeguard terminals and fuses from environmental elements and accidental contact. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CIP100200100 |
| Manufacturer | Victron Energy |
| Product Type | Modular Fuse Holder |
| Compatible Fuse Type | MEGA-Fuse (strip fuses) |
| Max Current (32V DC) | 500A |
| Max Current (58V DC) | 300A |
| Max Voltage | 58V DC |
| Housing Material | High-Strength Plastic Compound |
| Weight | 0.1 kg (approx. 3.52 oz) |
| Certifications | IEC 60947, CE |
System Integration & Capacity
The Victron Modular Fuse Holder is designed to integrate seamlessly into high-current DC systems, providing a secure housing for MEGA-Fuses. It is crucial to select the correct MEGA-Fuse rating (sold separately) to match your specific application's current draw and voltage. This ensures optimal protection against overcurrents, safeguarding your valuable batteries, inverters, and other electrical components.
While this product is a single fuse holder, its modular design allows for easy expansion. For larger systems requiring multiple fused outputs or high-current distribution, it can be combined with optional Victron high-current busbars (available separately) to create a comprehensive and organised power distribution solution.
Typical Applications
| Application | Description |
|---|---|
| Solar Power Systems | Protecting battery banks, inverters, and charge controllers in renewable energy installations. |
| Marine & RV Installations | Safeguarding critical DC electrical systems in boats, caravans, and motorhomes. |
| Off-Grid Power Systems | Essential circuit protection for remote and independent power solutions. |
| Automotive Auxiliary Systems | High-current protection for winches, audio systems, and other vehicle accessories. |
Built-In Protection Functions
This fuse holder is designed to securely house MEGA-Fuses, providing a critical point of overcurrent protection for high-amperage DC circuits. Its robust construction from a high-strength plastic compound and adherence to safety standards like IEC 60947 ensure reliable operation, safeguarding connected equipment from potential damage due to excessive current.
Common Questions
What type of fuses does this holder accept?
This Victron fuse holder is designed specifically for MEGA-Fuses (strip fuses), which are ideal for high-current applications.
Are MEGA-Fuses included with the holder?
No, MEGA-Fuses are sold separately. You will need to select the appropriate fuse rating based on your system's specific current requirements.
Can I connect multiple Victron Modular Fuse Holders?
Yes, the integrated dovetail feature allows you to interlock multiple holders side-by-side, creating a neat and expandable fuse bank for your system.
What is the maximum current and voltage rating?
This fuse holder can handle up to 500A at 32V DC or up to 300A at 58V DC, depending on the specific MEGA-Fuse installed.
Installation Notes
- Professional Installation: For safety and optimal performance, installation should be carried out by a qualified electrician or solar professional.
- Correct Fuse Sizing: Always select a MEGA-Fuse with a rating appropriate for the circuit it protects and the connected equipment.
- Secure Mounting: Mount the fuse holder securely in a dry, protected location, ensuring good ventilation.
- Proper Cable Termination: Use correctly sized cables and ensure all connections are clean, tight, and properly insulated to prevent overheating and electrical faults.
- System Compatibility: Ensure the fuse holder's voltage and current ratings are compatible with your overall electrical system.
Before You Buy
- Verify Current Requirements: Confirm the maximum current draw of the circuit you intend to protect to select the correct MEGA-Fuse rating.
- Ensure Fuse Compatibility: This holder is exclusively for MEGA-Fuses; ensure you have or plan to purchase the correct fuse type.
- Consider System Expansion: The modular design is excellent for future additions, so plan your layout accordingly.
- Consult an Expert: If unsure about system design, fuse sizing, or installation, seek advice from a qualified electrician or renewable energy specialist.
Always verify product specifications and compatibility with your specific system requirements before purchase. Manufacturer specifications are subject to change.
