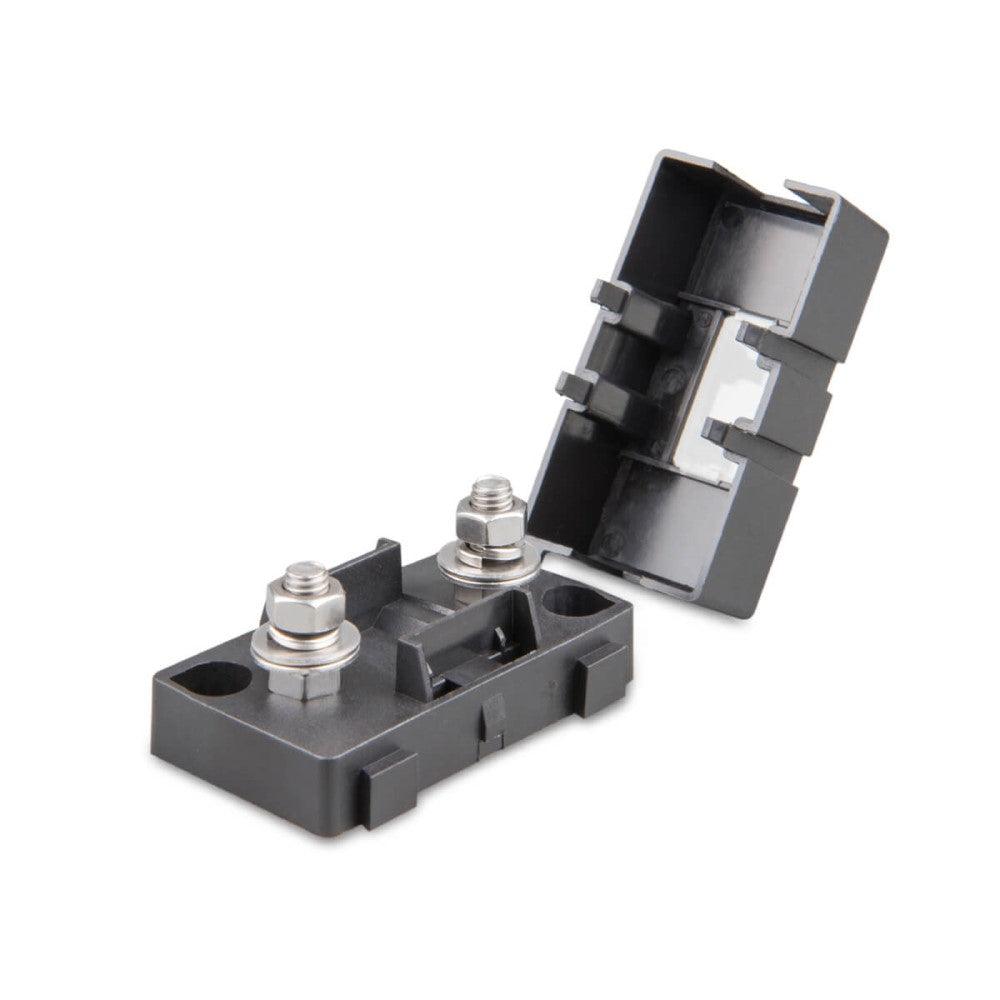

Victron CIP000050001 Fuse Holder
Essential Protection for MIDI-Fuses | DC System Integration
The Victron CIP000050001 Fuse Holder is a robust and essential component designed to securely house MIDI-fuses within your DC electrical systems. Manufactured by Victron Energy, a trusted name in renewable energy, this fuse holder ensures reliable overcurrent protection for critical circuits in various applications, from solar installations to marine and automotive setups.
It provides a safe and insulated enclosure for MIDI-fuses, preventing accidental contact and facilitating straightforward installation and replacement. This holder is crucial for maintaining the safety and longevity of your valuable electrical equipment.
IMPORTANT: MIDI-fuses are sold separately and must be selected based on your circuit's specific current requirements.
Key Features
| ▶ Dedicated MIDI Fuse Compatibility — Ensures a precise fit and optimal electrical contact for Victron MIDI-fuses. |
| ▶ Robust Construction — Engineered for durability, providing a secure and stable housing in demanding environments. |
| ▶ Enhanced Circuit Safety — Facilitates critical overcurrent protection, safeguarding your DC electrical components. |
| ▶ Secure Terminal Connections — Features M8 cable studs and M5 fuse studs for reliable and safe wiring. |
| ▶ Versatile DC Application — Ideal for integration into solar, marine, RV, and automotive electrical systems. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | CIP000050001 |
| Product Type | Fuse Holder |
| Manufacturer | Victron Energy |
| Fuse Type Compatibility | MIDI Fuse |
| Maximum Voltage | 58V DC (suitable for common Victron MIDI fuses) |
| Maximum Current | Up to 200A (dependent on installed MIDI fuse) |
| Cable Connection | M8 Studs |
| Fuse Connection | M5 Studs |
| Mounting Type | Surface/Panel Mount |
Electrical System Integration
| Parameter | Detail |
|---|---|
| Function | Provides a secure, insulated housing for MIDI-fuses. |
| Protection Role | Enables overcurrent protection for DC circuits when paired with a suitable MIDI fuse. |
| System Voltage | Compatible with 12V, 24V, 48V, and other DC systems up to 58V. |
| Installation | Designed for straightforward surface or panel mounting within an electrical enclosure or compartment. |
Typical Applications
| Application | Description |
|---|---|
| Solar Power Systems | Protecting DC circuits in off-grid, grid-tied, and hybrid solar installations. |
| Marine & RV Systems | Safeguarding electrical components in boats, caravans, and motorhomes. |
| Automotive | Providing circuit protection for high-current accessories and auxiliary systems. |
| Battery Banks | Essential for protecting battery circuits from overcurrent conditions. |
Built-In Protection Functions
While the Victron CIP000050001 Fuse Holder itself does not have active protection functions, it is an integral component for enabling passive overcurrent protection within DC electrical systems. When correctly installed with a suitable MIDI fuse, it provides a secure and insulated housing that facilitates the fuse's role in safeguarding circuits against excessive current, short circuits, and potential damage to connected equipment. Its robust design helps maintain the integrity of the fuse and its connections.
Common Questions
What type of fuses does this holder accept?
This fuse holder is specifically designed to accept MIDI-fuses, ensuring a proper and secure fit for optimal performance.
Is this fuse holder suitable for high-current applications?
Yes, MIDI-fuses are commonly used in high-current DC applications up to 200A, and this holder is designed to accommodate them. The maximum current rating for your circuit will depend on the specific MIDI-fuse installed.
How is this fuse holder typically mounted?
The Victron CIP000050001 is designed for surface or panel mounting, allowing for flexible integration into various electrical enclosures or compartments.
Why is a fuse holder important?
A fuse holder provides a secure, insulated housing for the fuse, protecting it from environmental factors and preventing accidental contact with live terminals. This ensures reliable circuit protection and enhances overall system safety.
Installation Notes
- Ensure all power is disconnected from the circuit before attempting installation or fuse replacement.
- Mount the fuse holder in a dry, protected location, away from direct moisture, excessive heat, or corrosive environments.
- Use appropriate cable sizes and terminals (M8 for cables, M5 for fuse) that match the intended current and voltage of your system.
- Always refer to your overall system wiring diagram and adhere to local electrical regulations and safety standards.
Before You Buy
- Verify that your application requires a MIDI-fuse for circuit protection.
- Confirm the maximum current rating of your circuit to select the correct MIDI-fuse (sold separately) to be installed in this holder.
- Check the available mounting space to ensure the fuse holder can be securely integrated into your system.
- Consider any additional accessories needed, such as suitable MIDI-fuses, cable lugs, or mounting hardware.
Always verify product specifications and compatibility with your specific system requirements before purchase. Fuses are sold separately.
