Victron Centaur Charger 12V/60A
Universal Input ย |ย Three Isolated Outputs ย |ย Multi-Battery Charging

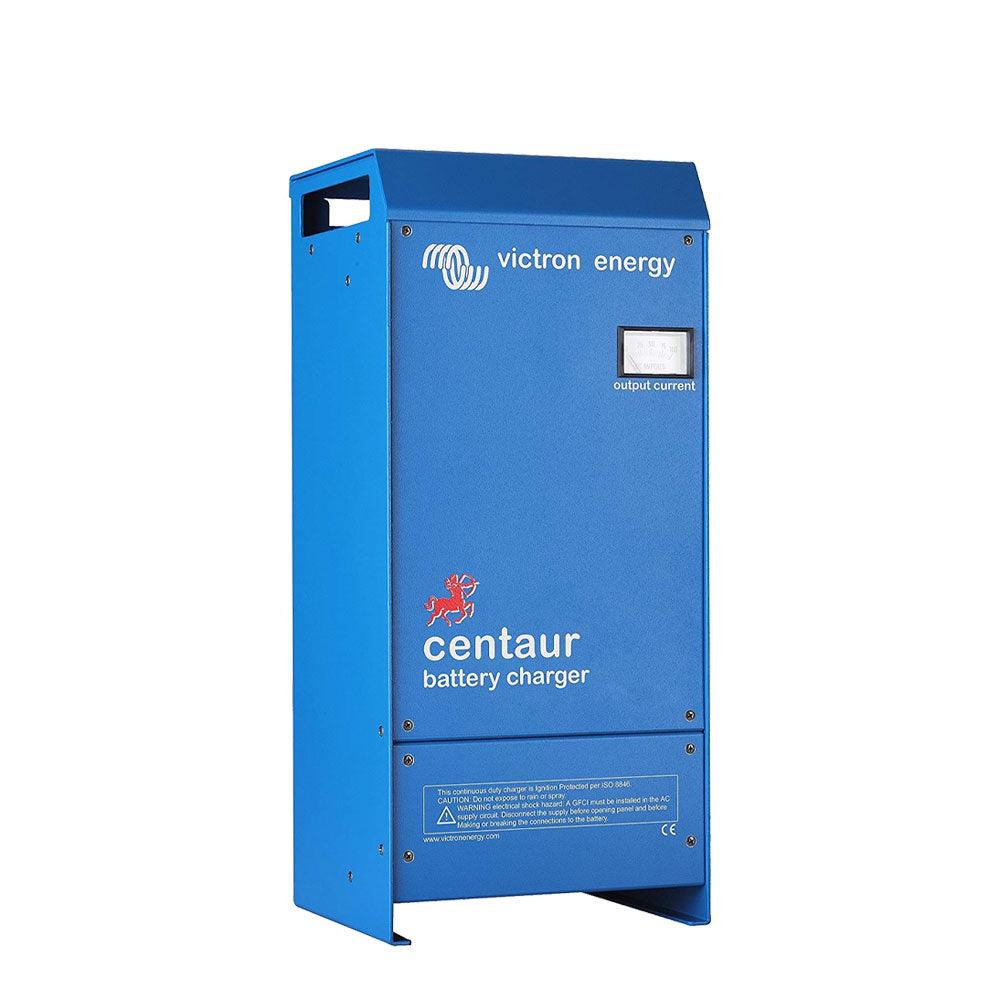

The Victron Centaur Charger 12V/60A is a robust and versatile battery charger designed for global use in demanding environments. Manufactured by Victron Energy, this model (CCH012060000) offers universal input voltage compatibility, making it suitable for a wide range of applications worldwide.
Featuring a fully automatic three-stage charging characteristic, the Centaur 12V/60A ensures optimal battery health and longevity. It provides three isolated charge outputs, allowing for simultaneous and independent charging of up to three battery banks, ideal for complex power systems.
COMPATIBILITY NOTE: Suitable for 12V battery banks; auto-ranging 90-265VAC or 90-400VDC input for flexible power sources.
Key Features
| โถย Universal Input Voltage โ Operates seamlessly on 90-265VAC (50/60Hz) or 90-400VDC, ensuring worldwide compatibility without adjustments. |
| โถย Full Output Power โ Maintains its full 60A output current across the entire specified input voltage range. |
| โถย Three Isolated Outputs โ Independently charges up to three separate 12V battery banks simultaneously, with each output capable of supplying the full rated current. |
| โถย Three-Stage Charging โ Features intelligent Bulk, Absorption (timed), and Float stages with temperature compensation for optimal battery care. |
| โถย Battery Type Selection โ A convenient DIP switch allows selection of optimal charge/float voltages for Flooded Lead-acid, Gel, or AGM batteries. |
| โถย Robust Construction โ Built with an aluminium epoxy powder-coated case, drip shield, and stainless steel fixings for durability in harsh environments. |
| โถย Corrosion Resistance โ Circuit boards are protected with an acrylic coating to maximise resistance against corrosion. |
Technical Specifications
| Parameter | Value |
|---|---|
| Model | Centaur 12/60 |
| SKU / MPN | CCH012060000 |
| Output Voltage | 12V DC |
| Output Current | 60A |
| AC Input Voltage Range | 90-265V AC (50/60Hz) |
| DC Input Voltage Range | 90-400V DC |
| Number of Outputs | 3 (Isolated) |
| Charging Stages | 3-Stage (Bulk, Absorption, Float) |
| Selectable Battery Types | Flooded, Gel, AGM |
| Operating Temperature | -20 to 60ยฐC |
| Recommended Battery Capacity | 240-600 Ah |
| Certifications | CE, UL, EN Standards |
| Enclosure Material | Aluminium (Epoxy Powder Coated) |
Charging & Output Modes
The Victron Centaur 12V/60A employs an advanced three-stage charging algorithm to ensure batteries are charged efficiently and safely, prolonging their lifespan.
- Bulk Stage: Delivers maximum current to rapidly charge the battery until it reaches approximately 80% of its capacity.
- Absorption Stage: Charges at a constant voltage for a timed period (typically 4 hours after output current drops to 70% of rated Amps) to bring the battery to 100% charge.
- Float Stage: Maintains the battery at a safe, lower voltage to compensate for self-discharge, keeping it fully charged and ready for use.
- Temperature Compensation: An internal temperature sensor adjusts charge voltages to suit ambient conditions, optimising charging performance and preventing over/under-charging.
- Battery Type Selection: A DIP switch allows users to select specific charge/float voltages tailored for Flooded Lead-acid, Gel, or AGM battery types.
Typical Applications
| Application | Description |
|---|---|
| Marine Vessels | Ideal for charging service, engine start, and auxiliary battery banks on boats, yachts, and commercial vessels. |
| Off-Grid Systems | Reliable charging for battery banks in remote cabins, RVs, caravans, and other standalone power setups. |
| Industrial & Commercial | Suitable for backup power systems, telecommunications, and other industrial battery charging requirements. |
| Diesel Electric Systems | Functions effectively as a DC-DC converter/charger within diesel-electric power configurations. |
Built-In Protection Functions
The Victron Centaur Charger incorporates several protection features to ensure safe and reliable operation. These include automatic reduction of output current under extreme environmental conditions via temperature sensors, safeguarding power components. Additionally, the charger is equipped with reverse polarity protection and over-temperature protection to prevent damage to batteries and the unit itself.
Common Questions
What battery types can this charger handle?
The Victron Centaur 12V/60A is compatible with Flooded Lead-acid, Gel, and AGM batteries. You can select the appropriate charging profile using a built-in DIP switch.
Can I charge multiple battery banks at once?
Yes, this charger features three isolated outputs, allowing you to charge up to three separate 12V battery banks simultaneously without interference between them. Each output can supply the full rated current.
Is this charger suitable for international use?
Absolutely. The Centaur charger has an auto-ranging input covering 90-265VAC (50/60Hz) and also accepts 90-400VDC, making it a true worldwide product that can be used almost anywhere.
What does "three-stage charging" mean?
Three-stage charging refers to the Bulk, Absorption, and Float phases. This intelligent process ensures batteries are charged quickly and then maintained optimally, preventing overcharging and extending battery life.
Installation Notes
- Installation should ideally be performed by qualified personnel to ensure safety and correct operation.
- Ensure the charger is mounted in a dry, well-ventilated area, preferably in a vertical position for optimal cooling.
- Verify that all cables and wiring are properly anchored to relieve strain and twisting.
- Always use appropriate fuses and circuit breakers in the connecting wires as specified in the manufacturer's manual.
- Keep the cables between the charger and the battery as short as possible to minimise voltage losses.
Before You Buy
- Confirm that your battery system operates at 12V to ensure compatibility with this charger.
- Check the total current requirements of your battery banks to ensure the 60A output is sufficient for your needs.
- Consider the type of batteries you have (Flooded, Gel, or AGM) as the charger offers specific settings for each.
- Review the full technical specifications and consult the manufacturer's manual for detailed installation and operation guidelines.
All specifications are based on verified manufacturer data. Always consult the product manual for precise installation and usage instructions. Product appearance may vary slightly from images.
