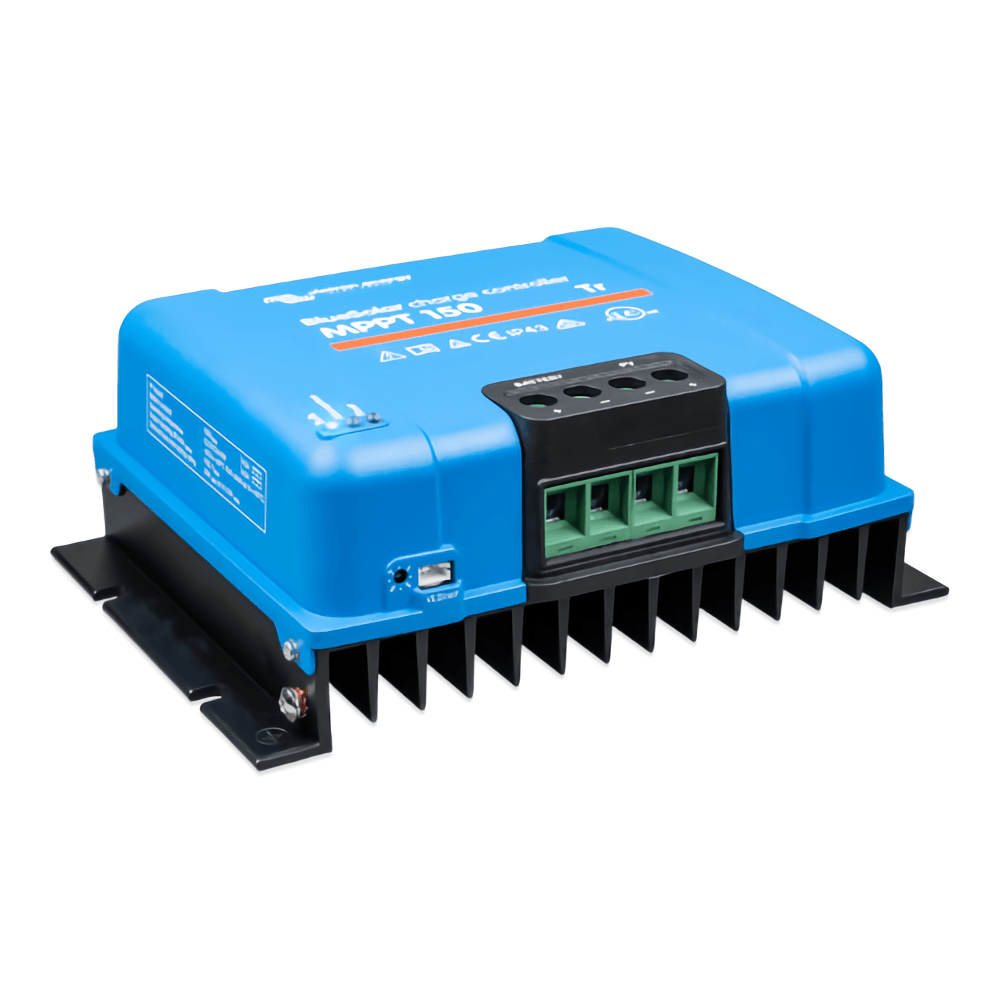

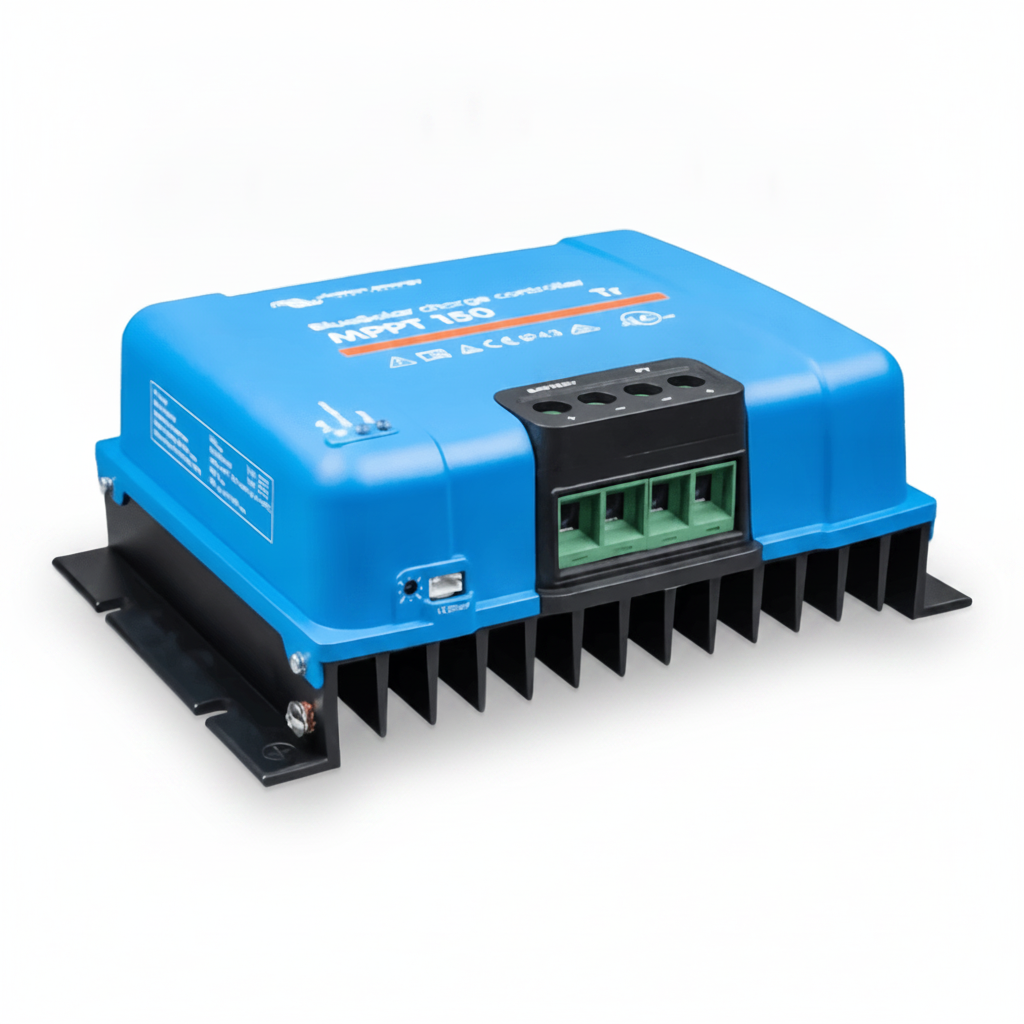

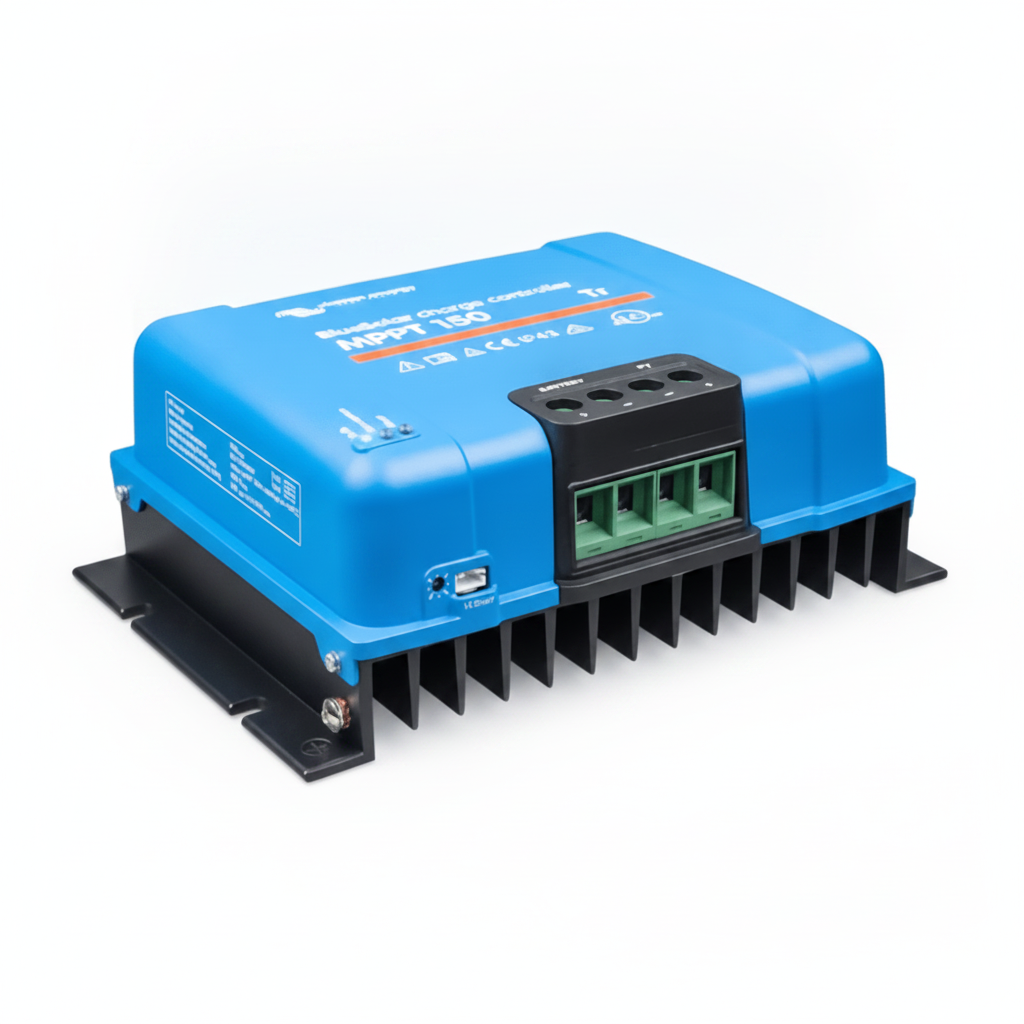

Victron BlueSolar MPPT 150/60-Tr Solar Charge Controller
12V/24V/48V System Voltage | 60A Rated Charge Current | Ultra-Fast MPPT
The Victron BlueSolar MPPT 150/60-Tr Solar Charge Controller is an advanced solution for optimising energy harvest from your solar panels. Designed for 12V, 24V, and 48V battery systems, this 60A MPPT controller intelligently maximises power collection, especially under challenging light conditions. It ensures your batteries are charged efficiently and maintained for extended life, making it ideal for a wide range of off-grid and grid-tied solar applications.
Utilising Victron Energy's ultra-fast Maximum Power Point Tracking (MPPT) technology, the 150/60-Tr significantly improves energy yield compared to traditional PWM controllers. Its robust design and comprehensive electronic protections ensure reliable performance in diverse environments.
Key Function: Maximises solar energy harvest and extends battery life through intelligent charging.
Key Features
| ▶ Ultrafast MPPT Technology — Improves energy harvest by up to 30% compared to PWM controllers, especially in changing light conditions. |
| ▶ Advanced MPP Detection — Optimises energy harvest even under partial shading conditions by locking to the true optimum Maximum Power Point. |
| ▶ High Conversion Efficiency — Exceeds 98% efficiency without a cooling fan, maintaining full output current up to 40°C. |
| ▶ Flexible Charge Algorithm — Features a fully programmable charge algorithm and eight pre-programmed options selectable via a rotary switch. |
| ▶ Extensive Electronic Protection — Safeguards against over-temperature, PV short circuit, PV reverse polarity, and PV reverse current. |
| ▶ Internal Temperature Sensor — Automatically compensates absorption and float charge voltages for optimal battery charging based on temperature. |
| ▶ Real-time Data Display Options — Compatible with Victron GX devices or via a VE.Direct Bluetooth Smart dongle (sold separately) for smartphone monitoring. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12V / 24V / 48V Auto Select |
| Rated Charge Current | 60A |
| Nominal PV Power (12V) | 860W |
| Nominal PV Power (24V) | 1720W |
| Nominal PV Power (48V) | 3440W |
| Max. PV Open Circuit Voltage | 150V (absolute max), 145V (operating max) |
| Max. PV Short Circuit Current | 50A |
| Max. Efficiency | >98% |
| Self-Consumption | 10 mA |
| Protection Category | IP43 (electronic), IP22 (connection) |
| Operating Temperature | -30°C to +60°C (full output up to 40°C) |
| Dimensions (H x W x D) | 185 x 250 x 95 mm |
| Weight | 3 kg |
Charging & Battery Modes
| Feature | Description |
|---|---|
| Adaptive Multi-Stage Charging | Ensures optimal charging for various battery types, extending battery lifespan. |
| Programmable Algorithms | Offers full programmability or selection from eight pre-set charging algorithms to match specific battery requirements. |
| Battery Compatibility | Suitable for a wide range of battery chemistries, including Lead-Acid (Flooded, AGM, Gel) and Lithium (LiFePO4). |
| Temperature Compensation | Internal temperature sensor automatically adjusts charge voltages to prevent over or under-charging due to temperature fluctuations. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Efficient power management for remote cabins, sheds, small homes, and independent power setups. |
| RV & Marine Systems | Reliable and optimised battery charging for leisure vehicles, caravans, motorhomes, and boats. |
| Small Commercial Installations | Maximising solar yield for lighting, security systems, telecommunications, or backup power in small businesses. |
| Backup Power Systems | Maintaining optimal battery charge for critical loads during grid outages or for hybrid systems. |
Built-In Protection Functions
The Victron BlueSolar MPPT 150/60-Tr is equipped with extensive electronic protection features to ensure safe and reliable operation. These include: Over-temperature protection with power derating when temperatures are high • PV short circuit protection • PV reverse polarity protection • PV reverse current protection.
Common Questions
What is MPPT and why is it important?
MPPT (Maximum Power Point Tracking) technology continuously monitors the voltage and current output of your solar panels to find the optimal point for maximum power production. This is crucial for maximising energy harvest, especially when light intensity is changing due to clouds or shading.
Can I monitor this charge controller remotely?
Yes, the BlueSolar MPPT 150/60-Tr can be monitored via Victron GX devices (e.g., ColorControl GX) or by adding a VE.Direct Bluetooth Smart dongle (sold separately) to connect with the VictronConnect app on your smartphone or other Bluetooth-enabled device.
What battery voltages does it support?
This controller automatically detects and supports 12V, 24V, and 48V battery systems.
Is this controller suitable for lithium batteries?
Yes, the Victron BlueSolar MPPT 150/60-Tr features a flexible charge algorithm that can be fully programmed to suit various battery types, including LiFePO4 (lithium iron phosphate) batteries.
Installation Notes
- Mount the charge controller in a well-ventilated area, away from direct sunlight, heat sources, and flammable materials.
- Ensure correct wiring polarity for both the PV array and battery connections to prevent damage.
- Refer to the official Victron Energy manual for detailed installation instructions, wiring diagrams, and safety guidelines.
- Consider professional installation by a qualified electrician or solar installer for optimal performance and safety.
Before You Buy
- Verify your total PV array open circuit voltage (Voc) does not exceed 145V under coldest conditions to ensure compatibility.
- Confirm your battery system voltage (12V, 24V, or 48V) matches the controller's capabilities.
- Ensure the rated charge current (60A) is appropriate for your battery bank size and PV array output.
- Consider if additional accessories, such as a VE.Direct Bluetooth Smart dongle, are needed for your desired monitoring features.
Specifications are subject to change by the manufacturer. Always consult the latest Victron Energy documentation for precise details and compatibility. This product comes with a 5-year manufacturer's warranty.
