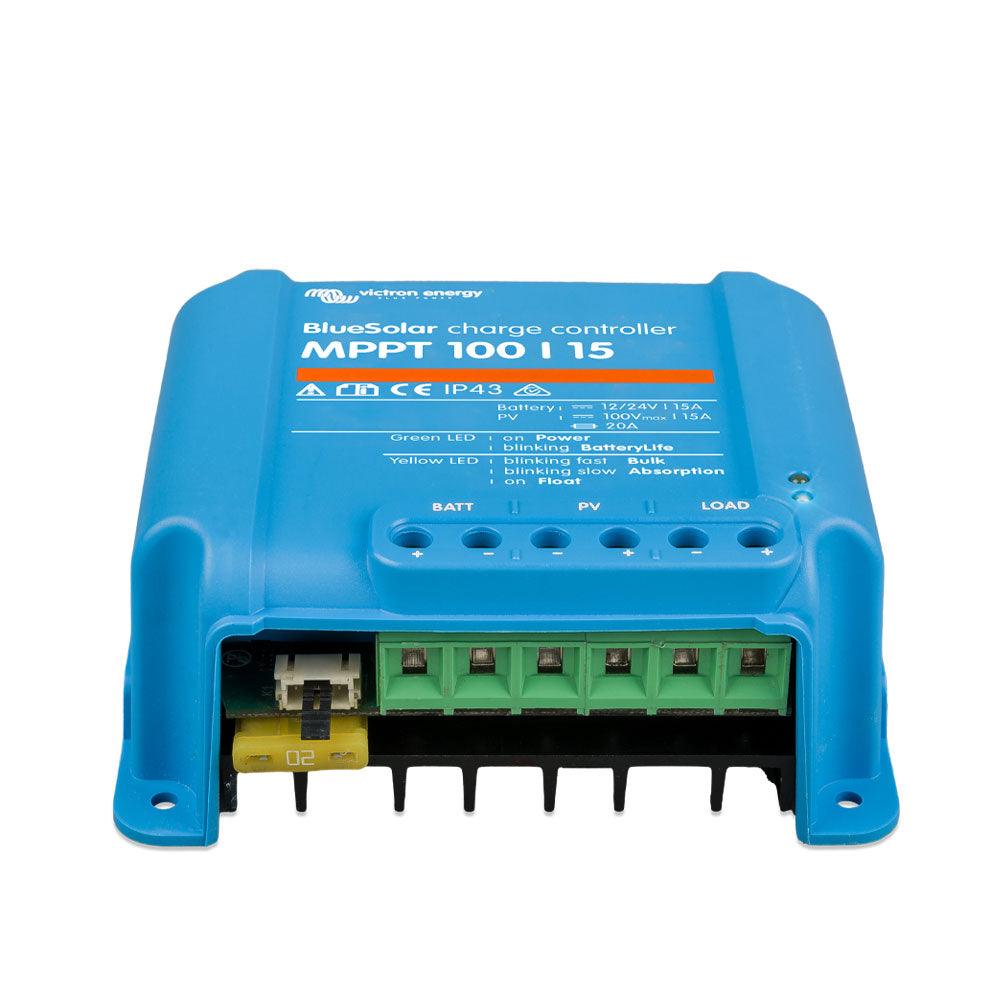

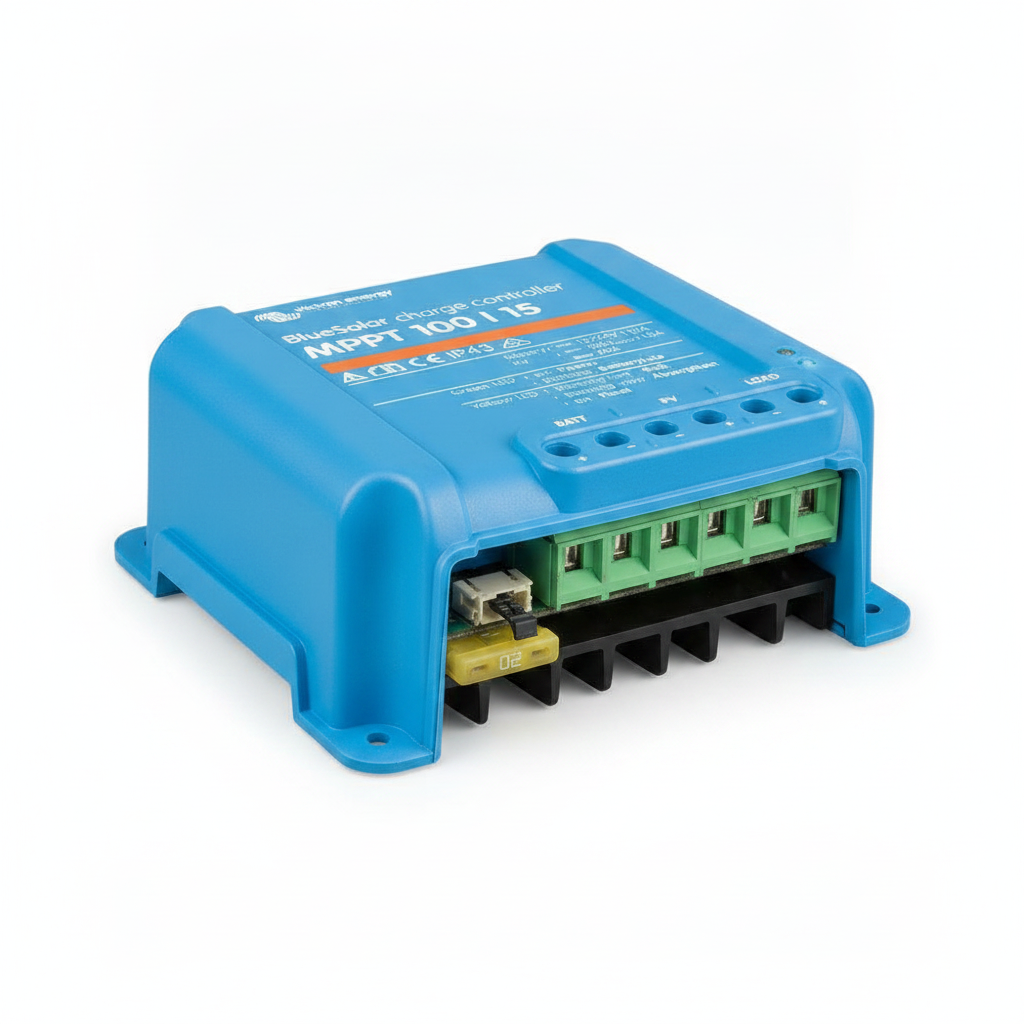

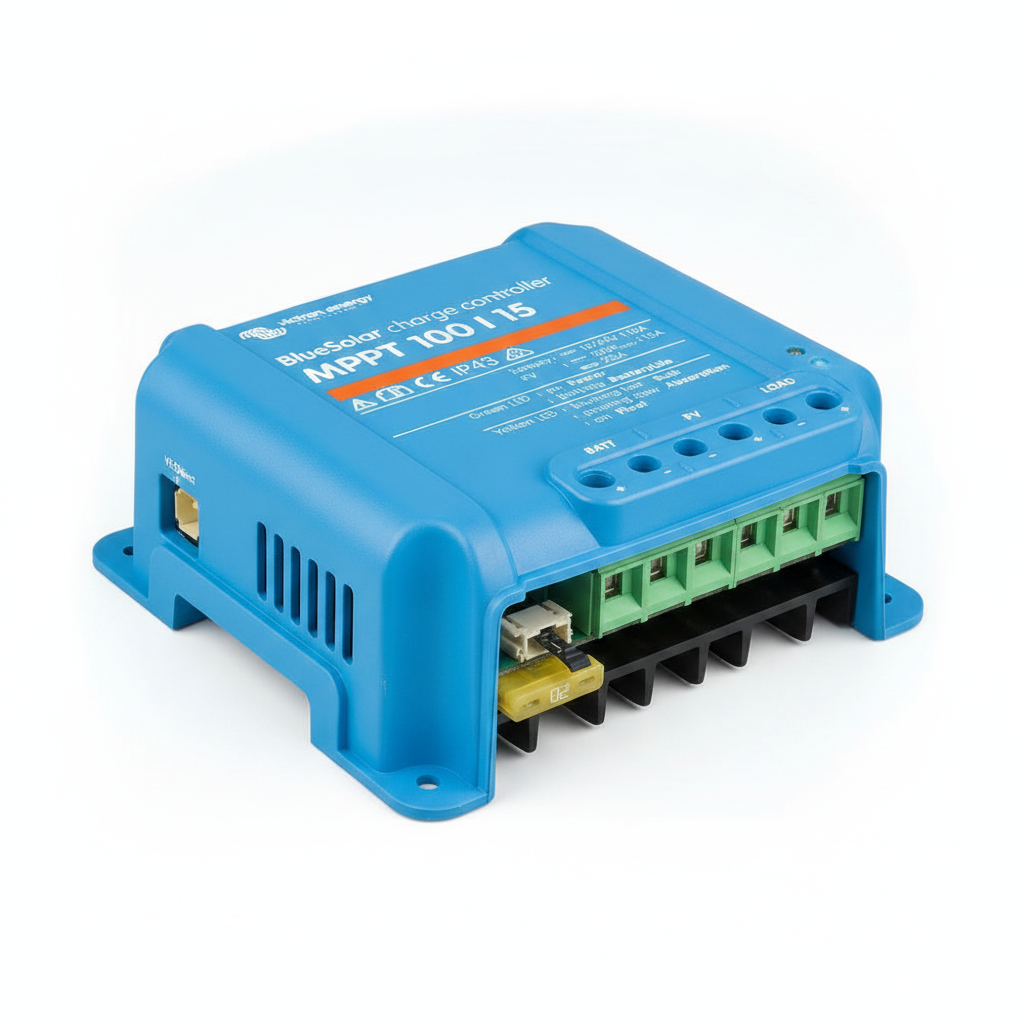

Victron Blue Solar MPPT 100/15 Retail
Victron Blue Solar MPPT 100/15 Retail
SKU:792-SCC010015200R
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron BlueSolar MPPT 100/15 Solar Charge Controller
Ultra-Fast MPPT Technology | 15A Charge Current | 12V/24V Systems
The Victron BlueSolar MPPT 100/15 Solar Charge Controller (SKU: SCC010015200R) from Victron Energy is engineered to maximise the energy harvest from your solar panels. This advanced MPPT (Maximum Power Point Tracking) controller efficiently converts solar power into charge current for your 12V or 24V battery systems, making it an ideal choice for off-grid cabins, small RVs, marine setups, and remote solar installations across the UK.
Featuring ultra-fast MPPT technology, the BlueSolar 100/15 dynamically tracks the optimal power point of your solar array, ensuring maximum energy capture even under rapidly changing light conditions, such as partially clouded skies. Its intelligent load output with the unique BatteryLife algorithm helps prevent battery over-discharge, significantly extending the lifespan of your battery bank.
KEY BENEFIT: Maximises solar energy harvest by up to 30% compared to PWM controllers, especially in variable weather conditions.
Key Features
| ▶ Ultra-Fast MPPT Tracking — Optimises power harvest from solar panels, even in changing light conditions. |
| ▶ Adaptive Multi-Stage Charging — Ensures efficient and safe charging for various battery types, extending battery life. |
| ▶ Intelligent Load Output with BatteryLife — Prevents battery over-discharge and extends battery lifespan through smart load management. |
| ▶ VE.Direct Communication Port — Enables remote monitoring and control via VictronConnect or VRM with optional accessories. |
| ▶ Automatic 12V/24V System Voltage Detection — Simplifies setup and ensures compatibility with common battery bank voltages. |
| ▶ High Efficiency & Robust Design — Achieves up to 98% peak efficiency with IP43/IP22 protection for reliable operation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Battery Voltage | 12V / 24V Auto Select |
| Rated Charge Current | 15A |
| Nominal PV Power (12V System) | 220W |
| Nominal PV Power (24V System) | 440W |
| Maximum PV Open Circuit Voltage | 100V |
| Max. PV Short Circuit Current | 15A |
| Peak Efficiency | 98% |
| Charge Algorithm | Multi-stage adaptive (Bulk, Absorption, Float) |
| Data Communication Port | VE.Direct |
| IP Rating | IP43 (electronic components) / IP22 (connection area) |
| Dimensions (H x W x D) | 100 x 113 x 40 mm |
| Weight | 0.5 kg |
Charging & Output Modes
| MPPT Technology | Ultra-Fast Maximum Power Point Tracking for optimal solar energy conversion. |
| Charge Algorithm | Adaptive 3-stage charging (Bulk, Absorption, Float) for battery health. |
| Load Output Function | Intelligent load disconnect with BatteryLife algorithm to prevent deep discharge. |
| System Voltage | Automatic detection for 12V or 24V battery systems. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Cabins & Homes | Reliable and efficient power management for remote living spaces. |
| Small RVs & Campervans | Optimised solar charging for mobile leisure vehicles. |
| Marine Systems | Dependable battery charging for boats and yachts. |
| Garden Sheds & Workshops | Powering lights and small tools in standalone setups. |
Built-In Protection Functions
The Victron BlueSolar MPPT 100/15 is equipped with multiple safeguards to ensure reliable and safe operation. These include: Battery reverse polarity protection • PV reverse polarity protection • PV short circuit protection • Output short circuit protection • Over-temperature protection. Its robust design features an IP43 rating for electronic components and IP22 for the connection area, offering protection against dust and water ingress.
Common Questions
What is MPPT technology and why is it important?
MPPT (Maximum Power Point Tracking) technology constantly monitors the voltage and current output of your solar panels to find the optimal point where they produce maximum power. This is crucial for maximising energy harvest, especially when light intensity is constantly changing due to partial cloud cover or varying sun angles.
How does the BatteryLife feature work?
The BatteryLife algorithm intelligently manages the load output to prevent prolonged partial states of charge, which can damage lead-acid batteries. If the battery cannot be fully recharged daily, BatteryLife gradually raises the load disconnect voltage until a near 100% recharge is achieved, then modulates it to maintain battery health.
Can I monitor this charge controller remotely?
Yes, the BlueSolar MPPT 100/15 features a VE.Direct communication port. To enable wireless monitoring and control via the VictronConnect app on your smartphone or other device, you will need to attach an optional VE.Direct Bluetooth Smart dongle. Alternatively, it can connect to a Victron GX device for internet-connected monitoring via the VRM portal.
What battery types are compatible with this controller?
This MPPT charge controller is compatible with a wide range of battery types, including lead-acid (flooded, GEL, AGM) and LiFePO4 (lithium iron phosphate) batteries. For optimal performance and battery longevity, especially with lithium batteries, a configuration update may be required to set the correct charging parameters.
Installation Notes
- Ensure the battery voltage (12V or 24V) matches your system requirements. The controller auto-detects, but correct battery bank setup is crucial.
- Always connect the battery to the charge controller first, then connect the solar panels. Disconnect in the reverse order (PV first, then battery).
- Mount the controller in a cool, dry, and well-ventilated area, away from direct sunlight or heat sources, to ensure optimal performance and lifespan.
- Use appropriate cable sizing for both PV and battery connections to minimise voltage drop and maximise efficiency.
- For detailed installation and safety instructions, always consult the official Victron Energy product manual.
Before You Buy
- Verify your total solar panel array's open circuit voltage (Voc) does not exceed 100V and its short circuit current (Isc) is suitable for a 15A charge controller.
- Confirm your battery bank voltage (12V or 24V) is compatible with the controller's auto-detection feature.
- Consider if remote monitoring is required; this BlueSolar model requires an optional VE.Direct Bluetooth Smart dongle or GX device for wireless connectivity.
- Ensure you have adequate space for mounting the controller, allowing for proper ventilation.
- For complex solar setups or if you are unsure about compatibility, it is always recommended to consult a qualified solar installer.
All specifications are based on manufacturer data and are subject to change. Always verify compatibility and requirements with your specific system and consult official documentation. This product comes with a 5-year manufacturer's warranty.
