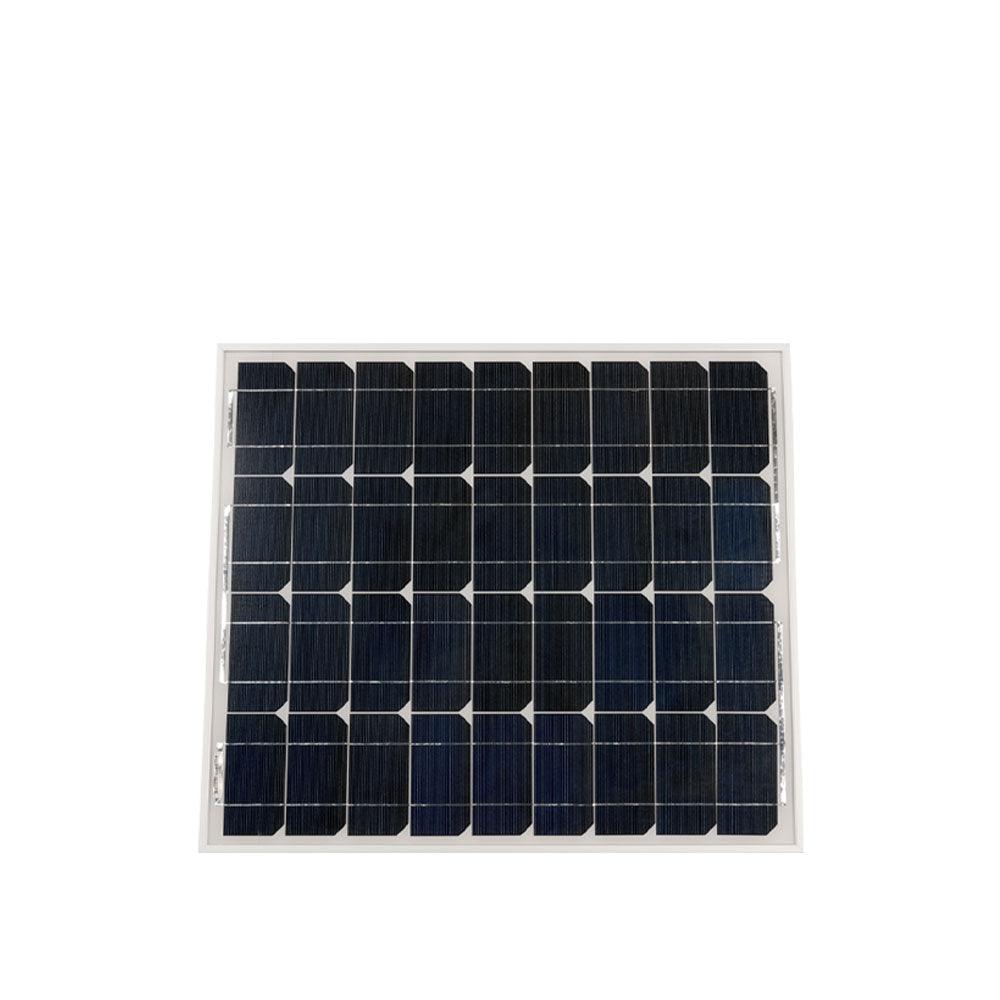

Victron BlueSolar Monocrystalline 12V Solar Panel - 55W
Victron BlueSolar Monocrystalline 12V Solar Panel - 55W
SKU:792-SPM040551200
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
Victron BlueSolar Monocrystalline Solar Panel
55W Peak Power | 12V Nominal | UK Renewable Energy
The Victron BlueSolar Monocrystalline 55W 12V Solar Panel (SPM040551200) is engineered for reliable power generation in a compact form factor. Ideal for a variety of off-grid and mobile applications, this panel delivers consistent performance even in challenging light conditions. Its robust construction and efficient monocrystalline cells make it a dependable choice for maintaining 12V battery systems.
Designed by Victron Energy, a trusted name in renewable energy, this 55W panel is built to withstand demanding environments, offering a long operational lifespan and stable energy output for your UK-based solar projects.
PRODUCT TYPE: Monocrystalline Solar Panel for 12V Systems
Key Features
| ▶ High Efficiency Monocrystalline Cells — Ensures excellent conversion of sunlight into electricity. |
| ▶ Low-Light Performance — Maintains high sensitivity to light across the entire solar spectrum, enhancing energy production on overcast days. |
| ▶ Durable Construction — Features a sturdy anodised aluminium frame and high-transmission tempered glass for enhanced stiffness and impact resistance. |
| ▶ Integrated Bypass Diodes — Minimise power loss caused by partial shading, optimising output. |
| ▶ Weatherproof Junction Box — Sealed, multi-functional junction box provides a high level of safety and protection against environmental elements. |
| ▶ Advanced Encapsulation — EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets stringent safety requirements. |
| ▶ Pre-wired for Easy Connection — Equipped with quick-connect system for straightforward installation. |
Technical Specifications
| Parameter | Value |
|---|---|
| Nominal Power (PMPP) | 55W |
| Voltage at Max Power (VMPP) | 18.8 V |
| Current at Max Power (IMPP) | 2.94 A |
| Open Circuit Voltage (Voc) | 22.9 V |
| Short Circuit Current (Isc) | 3.22 A |
| Panel Dimensions (L x W x D) | 545 x 668 x 25 mm |
| Weight | 4.0 kg |
| Cell Type | Monocrystalline Silicon |
| Number of Cells | 36 in series |
| Max System Voltage | 1000V |
| Operating Temperature Range | -40°C to +85°C |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Systems | Ideal for small cabins, sheds, or remote installations requiring a reliable 12V power source. |
| Mobile & Marine | Suitable for caravans, campervans, motorhomes, boats, and other recreational vehicles to charge leisure batteries. |
| Battery Maintenance | Perfect for trickle charging or maintaining the charge of 12V battery banks in various setups. |
| Small Autonomous Systems | Powers control boxes, monitoring equipment, or small lighting systems where grid connection is unavailable. |
Built-In Protection Functions
The Victron BlueSolar panel incorporates several features for enhanced safety and durability. This includes a sealed, waterproof, multi-functional junction box for secure electrical connections • High-performance bypass diodes to minimise power loss from shading • Advanced EVA encapsulation with a triple-layer back sheet for robust protection • High-transmission tempered glass for impact resistance and longevity.
Common Questions
What is the ideal use for a 55W 12V solar panel?
This 55W 12V panel is best suited for smaller off-grid applications, such as charging 12V batteries in caravans, motorhomes, boats, or for powering small remote devices and lighting systems. It's also excellent for battery maintenance.
Does this panel perform well in low light?
Yes, the Victron BlueSolar Monocrystalline panels are known for their exceptional low-light performance and high sensitivity across the entire solar spectrum, making them effective even on cloudy days.
What type of charge controller should I use with this panel?
For optimal efficiency and battery charging, it is generally recommended to pair this panel with a Victron Energy SmartSolar MPPT charge controller. An MPPT controller will maximise the power harvested from the panel.
Is this panel easy to install?
The panel features a sturdy anodised aluminium frame with pre-drilled holes, allowing for easy mounting with various standard mounting systems. It is also pre-wired for quick connection.
Installation Notes
- Ensure the panel is securely mounted to a stable surface, considering wind loads and potential impacts.
- Connect the panel to an appropriate charge controller suitable for 12V systems and the panel's power output.
- Always follow manufacturer guidelines and local electrical regulations for safe installation.
- Consider the angle and orientation of the panel to maximise sun exposure throughout the day.
- Professional installation is recommended for optimal performance and safety.
Before You Buy
- Verify the panel's voltage and power rating are compatible with your existing or planned solar system components, especially your charge controller and battery bank.
- Measure your available mounting space to ensure the panel dimensions (545 x 668 x 25 mm) are suitable.
- Consider your daily energy requirements to ensure a 55W panel provides sufficient power for your application.
- Check the maximum system voltage of your other components to ensure compatibility with the panel's 1000V maximum system voltage.
Always verify product specifications and compatibility with your system before purchase. Manufacturer's warranty: 25-year limited warranty on power output and performance, 5-year limited warranty on materials and workmanship.
