Victron Blue Smart IP22 Charger-EU Plug-3 Outputs-12V / 15A
Victron Blue Smart IP22 Charger-EU Plug-3 Outputs-12V / 15A
SKU:792-BPC121544002
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

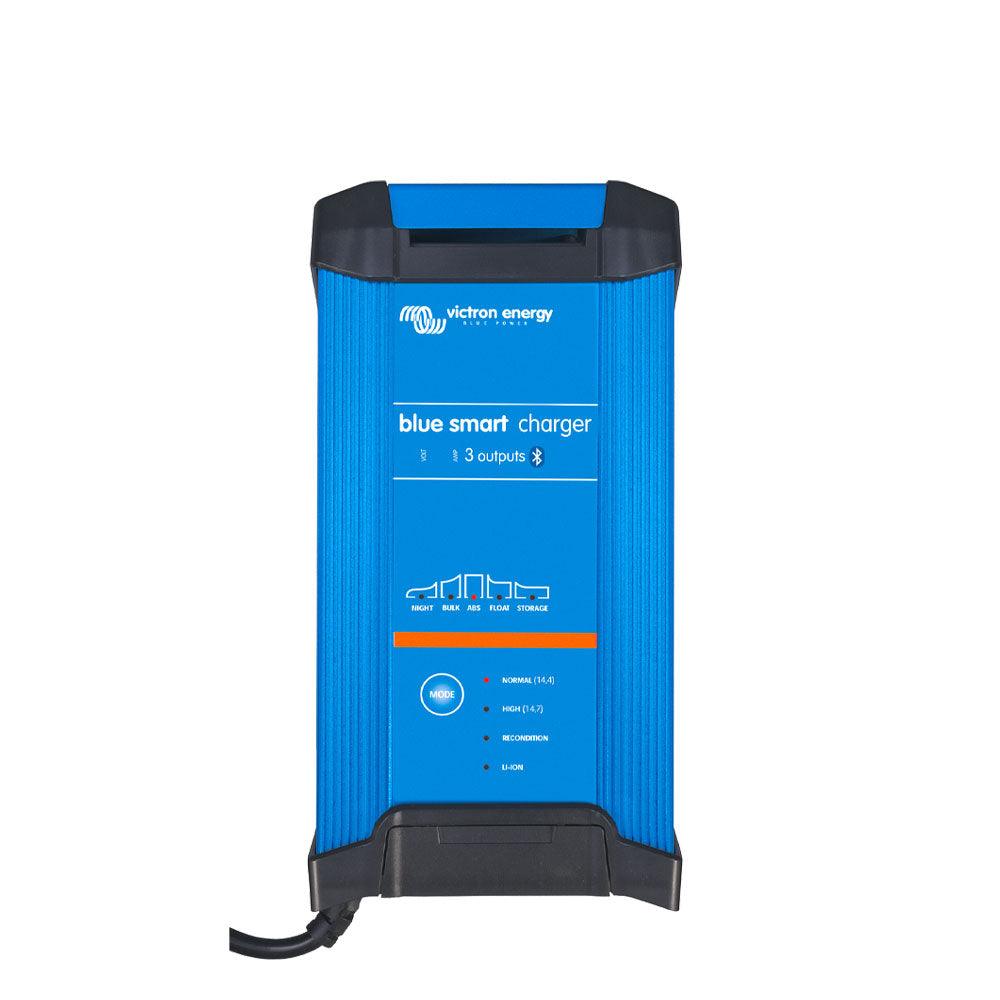

Victron Blue Smart IP22 Charger
12V ย |ย 15A ย |ย 3 Outputs ย |ย EU Plug (CEE 7/7) ย |ย Model: BPC121544002
The Victron Blue Smart IP22 Charger (Model: BPC121544002) is a professional 12V, 15A battery charger designed for a wide range of applications, from workshops to motor vehicles like campervans, boats, and classic cars. Featuring three independent outputs, this intelligent charger ensures optimal battery health and performance through its adaptive 6-stage charging algorithm. With built-in Bluetooth Smart connectivity, users can monitor and configure settings remotely via the VictronConnect app, offering convenience and precise control over the charging process.
Engineered for high efficiency, the IP22 charger generates significantly less heat compared to industry standards and reduces power consumption to just 0.5 Watt once the battery is fully charged. It supports various battery types, including lead-acid and Li-ion (LiFePOโ), and incorporates advanced features like a fully discharged battery recovery function and a specialised Storage Mode to minimise aging during periods of inactivity.
UK Compatibility Note: This charger is supplied with a CEE 7/7 (EU) plug and requires a suitable UK adapter for use with British mains sockets.
Key Features
| โถย Bluetooth Smart Connectivity โ Monitor voltage, current, and change settings wirelessly via the VictronConnect app. |
| โถย Adaptive 6-Stage Charging โ Microprocessor-controlled algorithm optimises charging for various battery types and usage patterns. |
| โถย High Efficiency (Up to 94%) โ Generates less heat and reduces power consumption to 0.5W when fully charged. |
| โถย Three Independent Outputs โ Allows for charging multiple batteries simultaneously. |
| โถย Storage Mode โ Minimises gassing and corrosion, preventing stratification and sulfation during periods of inactivity. |
| โถย Li-ion Battery Compatibility โ Charges Li-ion (LiFePOโ) batteries using a dedicated bulk โ absorption โ float algorithm. |
| โถย Fully Discharged Battery Recovery โ Can initiate charging even if a battery has been discharged to zero volts. |
| โถย VE.Smart Networking โ Enables synchronised parallel charging and external voltage/temperature compensation with compatible Victron devices. |
| โถย NIGHT and LOW Settings โ Reduces output current and ensures noiseless operation for quiet environments. |
| โถย Can Be Used As Power Supply โ Provides a stable DC power source when needed. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | BPC121544002 |
| Input Voltage | 230V AC |
| Output Voltage | 12V DC |
| Charge Current | 15A |
| Number of Outputs | 3 |
| Efficiency | Up to 94% |
| Power Consumption (Idle) | 0.5W |
| Protection Category | IP22 |
| Bluetooth Enabled | Yes |
| Plug Type | CEE 7/7 (EU Plug) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
| Warranty | 5 Years |
Charging & Output Modes
The Victron Blue Smart IP22 Charger employs a sophisticated adaptive 6-stage charging algorithm to ensure optimal battery care and longevity. This process includes: Test, Bulk, Absorption, Recondition, Float, and Storage. The 'adaptive' feature automatically optimises the charging process based on how the battery is being used.
- Fully Programmable: Absorption, Float, and Storage voltages, along with Recondition settings and temperature compensation, can be programmed via the Bluetooth app.
- Storage Mode: Activates after 24 hours of no discharge, reducing float voltage to 13.2V (for 12V batteries) to minimise gassing and corrosion. Weekly equalisation prevents stratification and sulfation.
- Li-ion Charging: Supports Li-ion (LiFePOโ) batteries with a simplified bulk โ absorption โ float algorithm.
- NIGHT and LOW Settings: Reduces output current by up to 50% for silent operation. Night mode ends automatically after 8 hours, while LOW mode can be manually ended.
- Power Supply Mode: The charger can function as a stable DC power supply, maintaining a constant voltage output.
The charger also features VE.Smart Networking, a wireless device-to-device communication network that allows compatible Victron products to optimise the charge process. This includes optional battery voltage and temperature compensation, and the ability to synchronise up to ten chargers for parallel charging, enhancing redundancy and flexibility.
Typical Applications
| Application | Description |
|---|---|
| Motor Vehicles | Ideal for charging batteries in classic cars, modern vehicles, and motorbikes, ensuring they are ready for use. |
| Campervans & Motorhomes | Maintains leisure batteries, providing reliable power for on-the-road adventures and off-grid setups. |
| Marine Applications | Suitable for boats, ensuring marine batteries are charged and maintained for optimal performance. |
| Workshops & Garages | A versatile tool for professional and home workshops, charging various 12V batteries for tools and equipment. |
Built-In Protection Functions
The Victron Blue Smart IP22 Charger is designed with multiple safety features to protect both the charger and your batteries. It includes protection against overheating, where the output current will reduce as the internal temperature increases up to 50ยฐC, ensuring the charger does not fail. It also features a recovery function for deeply discharged batteries, initiating charging even from zero volts. The IP22 rating indicates protection against solid objects larger than 12.5mm and vertically falling water drops, making it suitable for dry indoor installations.
Common Questions
What types of batteries can this charger handle?
The Victron Blue Smart IP22 Charger is compatible with a wide range of 12V batteries, including lead-acid (flooded, AGM, Gel) and Li-ion (LiFePOโ) batteries.
How does the Bluetooth feature work?
The built-in Bluetooth Smart allows you to connect the charger to your smartphone or tablet via the VictronConnect app. This enables remote monitoring of voltage and current, changing settings, and updating the charger's firmware.
Can I leave the charger connected to my battery long-term?
Yes, the charger features a 'Storage Mode' which automatically reduces the float voltage to minimise gassing and corrosion when the battery is not in use, while periodically refreshing the charge. This makes it suitable for long-term connection and maintenance.
Is this charger suitable for use in the UK?
This model comes with a CEE 7/7 (EU) plug. For use in the UK, a suitable and correctly rated UK adapter will be required to connect it to a BS 1363 mains socket.
Installation Notes
- The Victron Blue Smart IP22 Charger is designed for dry, indoor installations. Ensure adequate ventilation around the charger to prevent overheating.
- Mount the charger vertically with terminals facing down, allowing at least 10cm clearance for airflow. Do not install directly above a battery.
- Connect the DC battery cables to the screw terminals, ensuring correct polarity and secure connections. DC cables are not included.
- This charger is supplied with a CEE 7/7 (EU) plug. For UK mains power, a certified and grounded adapter is essential.
- Refer to the manufacturer's manual for detailed installation instructions and safety precautions specific to your battery type and system.
Before You Buy
- Battery Voltage: Confirm your battery system is 12V to match this charger's output.
- Battery Capacity: While this 15A charger is versatile, consider your battery bank's Ah capacity to ensure appropriate charging times.
- Plug Compatibility: Be aware that this model has an EU CEE 7/7 plug. A UK adapter will be needed for standard UK sockets.
- Environment: The IP22 rating means it is suitable for dry, indoor environments. Avoid exposure to rain or snow.
- System Integration: If integrating with other Victron devices, explore the benefits of VE.Smart Networking for enhanced system performance.
All specifications are based on manufacturer data and verified information. Always confirm product compatibility and requirements before purchase. This product benefits from a 5-year manufacturer's warranty.
