Victron Blue Smart IP22 Charger-CEE 7/7 Plug-24/12 230V
Victron Blue Smart IP22 Charger-CEE 7/7 Plug-24/12 230V
SKU:792-BPC241242002
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

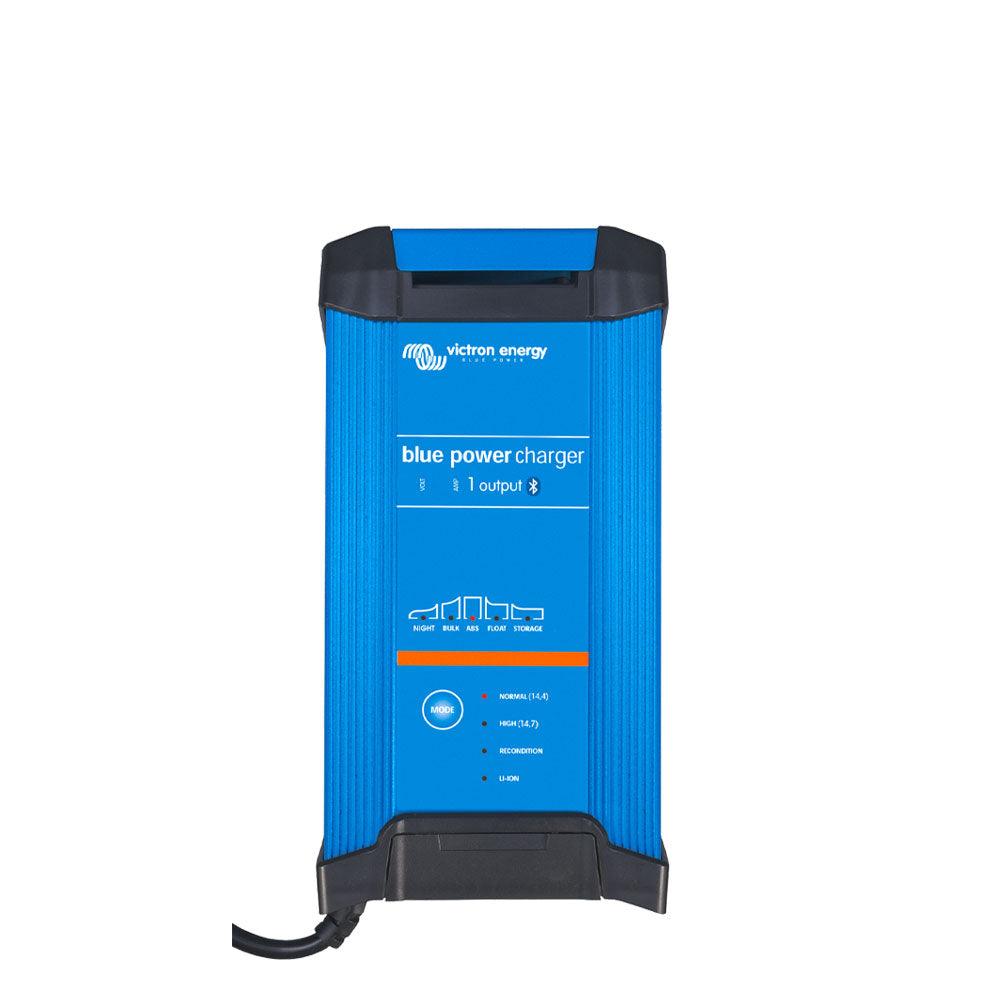

Victron Blue Smart IP22 Battery Charger
24V 12A Output ย |ย 230V AC Input ย |ย CEE 7/7 Plug
The Victron Blue Smart IP22 Charger (MPN: BPC241242002) is a professional 24V 12A battery charger designed for a wide range of applications, from workshops to motor vehicles such as classic cars, motorbikes, boats, and campervans. This advanced unit features built-in Bluetooth Smart, allowing for wireless monitoring, settings adjustments, and firmware updates via the VictronConnect app.
Engineered for high efficiency, the Blue Smart IP22 Charger generates significantly less heat compared to conventional chargers, reducing power consumption to just 0.5 Watt once the battery is fully charged. Its adaptive 6-stage charging algorithm ensures optimal battery health and extended lifespan for both lead-acid and Li-ion batteries.
COMPATIBILITY NOTE: This charger is designed for 24V battery systems and requires a 230V AC input. It comes with a CEE 7/7 plug, which is a common European standard, not a UK BS 1363 plug.
Key Features
| โถย Bluetooth Smart Connectivity โ Monitor voltage, current, change settings, and update firmware wirelessly via the VictronConnect app. |
| โถย High Efficiency (Up to 94%) โ Generates significantly less heat and reduces power consumption to 0.5W when the battery is fully charged. |
| โถย Adaptive 6-Stage Charge Algorithm โ Microprocessor-controlled management optimises the charging process for various battery types. |
| โถย Fully Programmable Settings โ Customise absorption, float, and storage voltages, recondition settings, and temperature compensation via the Bluetooth app. |
| โถย Storage Mode โ Reduces float voltage to minimise gassing and corrosion during periods of inactivity, with weekly equalisation. |
| โถย Li-ion Battery Charging โ Supports Li-ion batteries with a dedicated bulk โ absorption โ float algorithm. |
| โถย Fully Discharged Battery Recovery โ Capable of initiating charging even for batteries discharged to zero volts. |
| โถย NIGHT and LOW Settings โ Reduces output current by up to 50% for noiseless operation, ideal for quiet environments. |
| โถย VE.Smart Networking โ Allows wireless device-to-device communication for optimised charging and synchronised parallel charging of up to ten units. |
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Victron Energy |
| Model | Blue Smart IP22 Charger |
| MPN / SKU | BPC241242002 |
| Output Voltage (DC) | 24V |
| Charge Current | 12A |
| Input Voltage (AC) | 230V (180-265V AC) |
| Input Frequency | 45-65 Hz |
| Number of Outputs | 1 |
| Can Be Used As Power Supply | Yes |
| Protection Category | IP22 |
| Efficiency | Up to 94% |
| No-load Power Consumption | 0.5W |
| AC Connection | CEE 7/7 Plug (1.5m cable) |
| DC Connection | Screw terminals (16mmยฒ / AWG6) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
| Operating Temperature | -40 to +60 ยฐC (full output up to 40 ยฐC) |
Charging & Battery Modes
| Mode/Feature | Description |
|---|---|
| Adaptive 6-Stage Algorithm | Includes Test, Bulk, Absorption, Recondition, Float, and Storage stages for optimal battery care. |
| Storage Mode | Activates after 24 hours of no discharge, reducing float voltage to minimise gassing and corrosion, with weekly equalisation. |
| Li-ion Battery Support | Charges Li-ion batteries using a dedicated bulk โ absorption โ float algorithm. |
| Fully Discharged Recovery | Initiates charging even if a battery has been discharged to zero volts, and reconnects to Li-ion batteries with internal disconnect. |
| NIGHT and LOW Modes | Reduces output current to a maximum of 50% for silent operation. NIGHT mode ends automatically after 8 hours. |
| VE.Smart Networking | Enables wireless communication with other Victron Smart products for enhanced system optimisation and parallel charging. |
Typical Applications
| Application Area | Description |
|---|---|
| Automotive & Leisure Vehicles | Ideal for charging batteries in classic cars, motorbikes, campervans, and motorhomes. |
| Marine & Boating | Suitable for maintaining and charging marine batteries on boats and other watercraft. |
| Workshops & Garages | A versatile charger for various battery maintenance tasks in professional and home workshops. |
| Off-Grid & Backup Systems | Can be integrated into smaller off-grid setups or used for backup power battery maintenance. |
Built-In Protection Functions
The Victron Blue Smart IP22 Charger incorporates multiple safety features to ensure reliable and safe operation. These include protection against battery reverse polarity (fused) ย โขย output short circuit ย โขย and over-temperature. The output current will automatically reduce as the internal temperature increases, preventing damage up to 50 ยฐC.
Common Questions
What types of batteries can this charger charge?
The Victron Blue Smart IP22 Charger is compatible with both lead-acid batteries (including flooded, GEL, and AGM) and Li-ion (LiFePO4) batteries. It features an adaptive 6-stage algorithm for lead-acid and a dedicated bulk โ absorption โ float algorithm for Li-ion.
Can I monitor and control the charger remotely?
Yes, the charger has built-in Bluetooth Smart. You can use the free VictronConnect app on your smartphone, tablet, or laptop to monitor charge status, view historical data, and adjust various settings wirelessly.
What does the CEE 7/7 plug mean for UK users?
The CEE 7/7 plug is a standard used across continental Europe (compatible with Type E and Type F sockets). It is not the standard 3-pin Type G (BS 1363) plug used in the UK. UK users will require a suitable adapter to connect this charger to a standard UK mains socket.
Is this charger suitable for permanent installation?
Yes, the Blue Smart IP22 Charger is designed for permanent mounting using its integrated tabs. It should be installed on a non-flammable surface with adequate ventilation (at least 10cm clearance) and mounted vertically with terminals facing down.
Installation Notes
- โถย The charger is designed for permanent mounting. Choose a suitable, non-flammable location with at least 10cm clearance for proper ventilation.
- โถย Mount the charger vertically with the DC terminals facing downwards.
- โถย Connect appropriate DC cabling to the battery terminals, ensuring correct polarity and tightening to 2.4Nm.
- โถย Connect the AC power cable to a 230V mains outlet. Note the CEE 7/7 plug type.
- โถย Always consult the manufacturer's manual for detailed installation instructions and safety guidelines.
- โถย Installation should ideally be performed by a qualified professional to ensure safety and compliance.
Before You Buy
- โถย Verify your battery system voltage is 24V to ensure compatibility with this charger.
- โถย Confirm the battery type (lead-acid or Li-ion) to select the correct charging algorithm.
- โถย Be aware that this charger is supplied with a CEE 7/7 (European Schuko/French hybrid) plug. A suitable adapter will be required for use with UK (Type G) mains sockets.
- โถย Consider the charger's IP22 rating, which indicates protection against solid objects over 12.5mm and vertically falling water drops, making it suitable for indoor or protected installations.
- โถย For optimal performance and safety, ensure adequate ventilation around the charger during operation.
Always verify product specifications and compatibility with your existing system before purchase. Victron Energy offers a 5-year standard warranty on this power product.
