Victron 525W Monocrystalline Solar kit with SmartSolar 150/35 MPPT, Mounts, Cables & MC4s

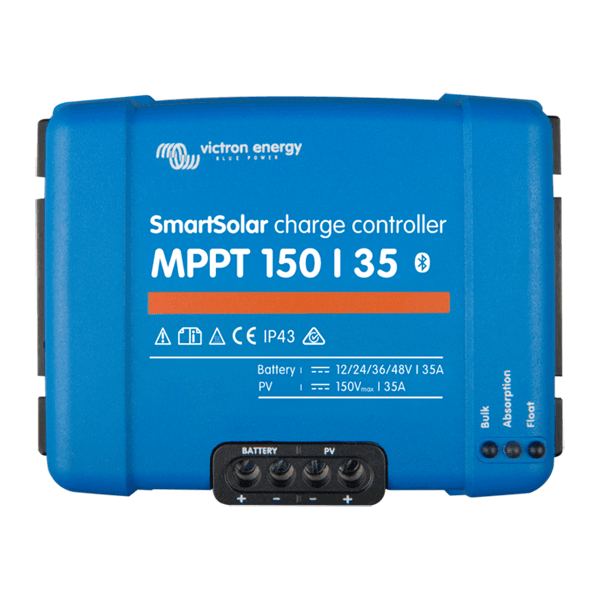

This complete solar kit features an efficient 525W Monocrystalline Solar Panel, combined with a powerful SmartSolar 150/35 MPPT Dual Battery Solar Charge Controller for maximum power efficiency. Its streamlined design also includes mounts, cables, and MC4s for effortless installation and increased durability. With an impressive 21.83% module efficiency and a 96.3% maximum efficiency, this kit takes solar energy to the next level.

Panel sizes are 1485x668x30mm

This 525w Large Solar Panel Kit is designed for off-grid, campervans, motorhomes and yachts/boats. The included Victron SmartSolar MPPT 150/35 charge controller ensures maximum power output and battery charging efficiency.  This kit is perfect for those looking to set up a reliable and efficient solar power system for campervan conversions, boats, yachts, motorhomes and other off-grid applications.

• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.

• High-performance bypass diodes minimize the power drop caused by shade.

• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.

• A sturdy, anodized aluminum frame allows modules to be easily roof-mounted with a variety of standard mounting systems.

• The highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.

• 1m pre-wired quick-connect system with MC4 (PV-ST01) connectors with additional 5m black extension leads

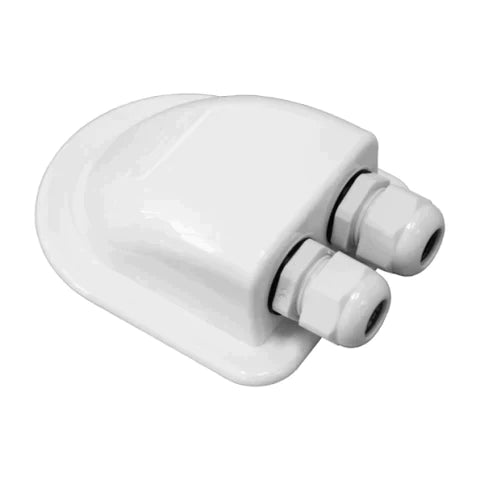

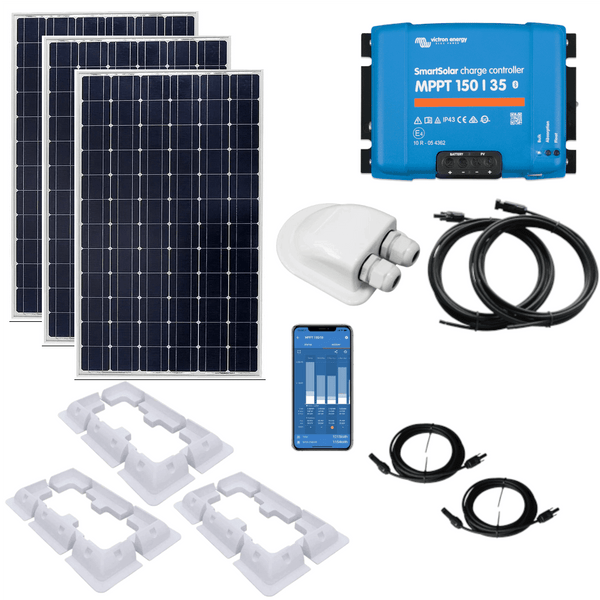

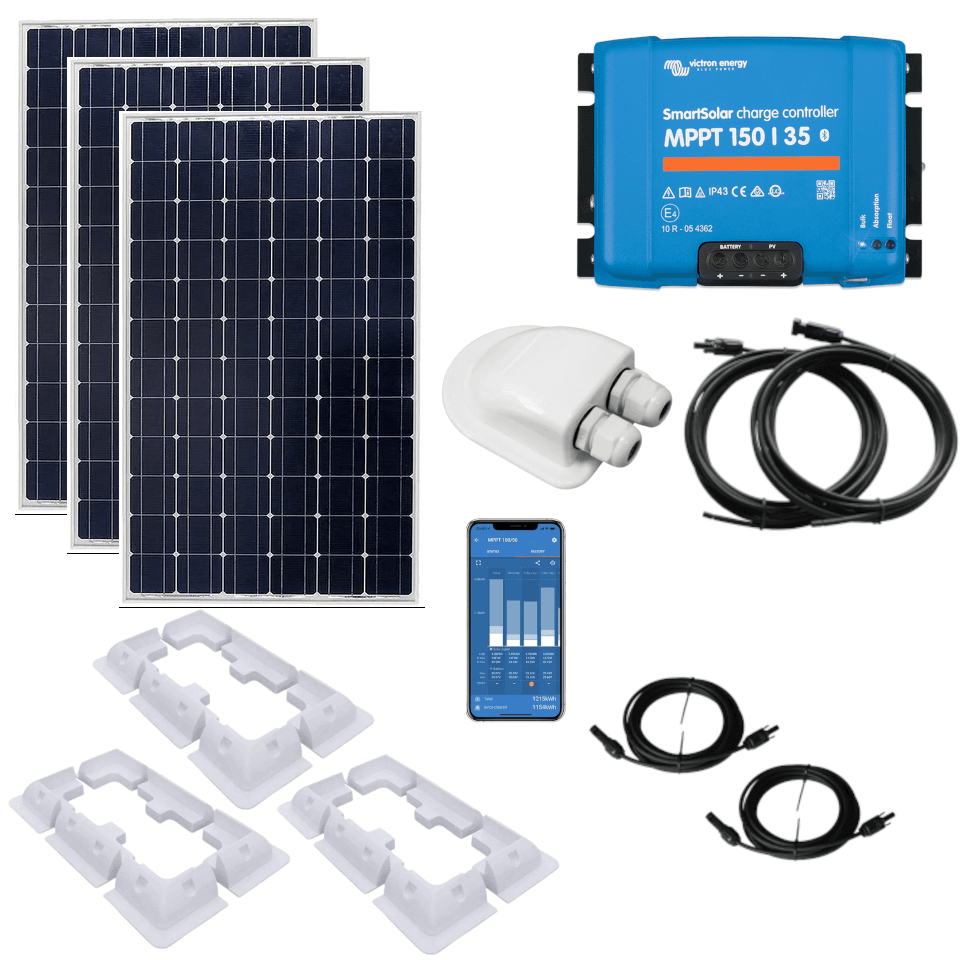

Full Kit with 3 * 175W Monocrystalline panels (792-SPM041751200), 3 * fixing brackets , Cable entry Gland, Victron SmartSolar Bluetooth enabled 150/35 MPPT charge controller (792-SCC115035210), 5m of Black PV Extension Cable s(x2) with MC4 Connectors, 2x interconnect cables to wire the panels in series.

Mounts available:

6 Piece corner Mounts (White)
6 Piece corner Mounts (Black)
Solar Panel Aluminium Z Brackets

This highly efficient solar 525w solar panel kit is ideal for Caravans, Boats, Motorhomes, Campers, sheds and many more applications.

Harness the power from the sun to provide the power you need on the move. Ideal for charging 12v batteries and directly powering 12v devices and appliances

The long-lasting, high-efficiency monocrystalline Victron solar cells and the tough, sealed, aluminium frame will give you years and years of consistent, free power. Waterproof design ensures the panel can be used in all weather conditions.

This kit comes with everything you need to get going. All the leads, fixing brackets and solar charge controller to prevent overcharging your batteries.

Wiring guide for Solar Panel Kits in Series
