Victron 16a 24v Blue Smart Ip22 Mains Battery Charger With Bluetooth Connectivity
Victron 16a 24v Blue Smart Ip22 Mains Battery Charger With Bluetooth Connectivity
SKU:VBC2416
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability

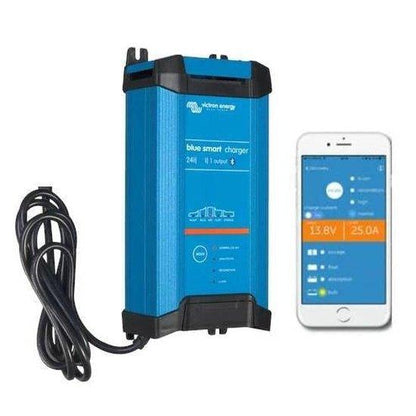

Victron 16A 24V Blue Smart IP22 Mains Battery Charger
Advanced 6-Stage Charging | Bluetooth Connectivity | Model: VBC2416
The Victron 16A 24V Blue Smart IP22 Mains Battery Charger (SKU: VBC2416) is an intelligent and highly efficient solution for charging 24V batteries or battery banks from a standard 220-240V AC mains power source. Designed for safe, unattended operation, this charger boasts an impressive 94% efficiency and features an adaptive 6-stage charging process to ensure optimal battery health and faster recharges.
Equipped with integrated Bluetooth connectivity, the Blue Smart IP22 allows users to remotely monitor charging status, adjust settings, and download updates via the free VictronConnect App on any Bluetooth-enabled mobile device. It supports a wide range of battery types, including Lithium (LiFePO4), AGM, Gel, and Wet cell lead-acid batteries, making it a versatile choice for various applications.

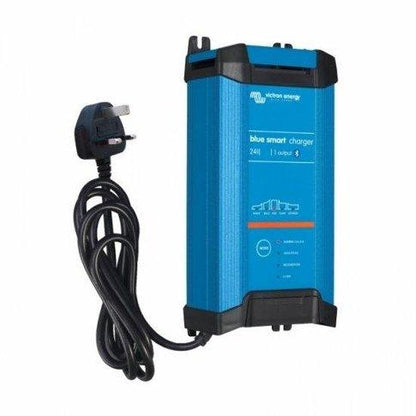

UK Ready: Supplied with a 1.5m mains AC cable and a UK 3-pin plug for immediate use.
Key Features
| ▶ High Efficiency (94%) — Generates less heat and reduces power consumption. |
| ▶ Adaptive 6-Stage Charging — Optimises the charging process for various battery conditions. |
| ▶ Bluetooth Connectivity — Monitor and configure via the VictronConnect App. |
| ▶ Multi-Battery Compatibility — Charges Lithium (LiFePO4) and Lead-Acid (AGM, Gel, Wet cell) batteries. |
| ▶ Power Supply Function — Can directly power 24V loads without a battery connected. |
| ▶ Dead Battery Recovery — Initiates charging even for deeply discharged batteries (0V). |
| ▶ Silent Night & Low Modes — Reduces output current for noiseless operation. |
| ▶ Storage Mode — Prevents battery aging during periods of inactivity. |
| ▶ Temperature Compensation — Optimises charge voltage for lead-acid batteries based on ambient temperature. |
Technical Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range (AC) | 180V - 265V |
| DC Output Current (Normal) | 16A |
| DC Output Current (Night/Low) | 8A |
| DC Output Voltage | 24V |
| Efficiency | 94% |
| Standby Power Consumption | 0.5W |
| Operating Temperature | -20°C to +50°C |
| Protection Category | IP22 (Indoor Use) |
| Dimensions (H x W x D) | 235 x 108 x 65 mm |
| Weight | 1.3 kg |
Charging & Output Modes
The Victron Blue Smart IP22 charger offers advanced modes to optimise battery performance and longevity:
| Mode | Description |
|---|---|
| Adaptive 6-Stage Algorithm | Includes Test, Bulk, Absorption, Recondition, Float, and Storage stages for comprehensive battery care. |
| Storage Mode | Reduces float voltage to minimise gassing and corrosion, preventing early battery failure during long-term storage. |
| Night & Low Modes | Reduces output current by up to 50% for quiet operation, ideal for overnight charging in sensitive environments. |
| Power Supply Function | Provides a stable 24V DC power source directly to loads, even without a battery connected. |
| Dead Battery Recovery | Capable of initiating charging for batteries discharged to 0V, restoring them to a usable state. |
Typical Applications
| Application | Description |
|---|---|
| Automotive & Marine | Ideal for charging batteries in cars, motorbikes, boats, and camper-vans, ensuring readiness for travel. |
| Off-Grid & Backup Systems | Maintains charge for battery banks in small off-grid setups or as a reliable backup power source. |
| Workshop & Garage Use | Suitable for professional workshops or home garages for charging various 24V battery types. |
| Seasonal Vehicle Storage | Storage Mode helps maintain batteries during long periods of inactivity, preventing degradation. |
Built-In Protection Functions
The Victron Blue Smart IP22 charger is engineered with multiple safety features to ensure reliable and secure operation. These include protection against DC short circuit, overheating (output current reduces as temperature increases), overcharging, and reverse polarity of the battery. This allows the charger to be left permanently connected for unattended automatic charging with peace of mind.
Common Questions
Can I charge multiple 24V batteries simultaneously?
Yes, this charger can charge a single 24V battery or several 24V batteries connected in parallel. For optimal performance and safety, ensure all batteries in the bank are of the same type, capacity, and age.
What is the VictronConnect App used for?
The VictronConnect App allows you to remotely monitor battery voltage, charge current, and charging cycle status. You can also program settings such as battery type or charging current, and download firmware updates for the charger via Bluetooth.
Is this charger suitable for Lithium (LiFePO4) batteries?
Absolutely. The Victron Blue Smart IP22 charger includes a dedicated charging mode specifically designed to optimise performance and safely charge Lithium (LiFePO4) batteries, in addition to various lead-acid types.
Can it be used as a power supply?
Yes, the charger features a power supply function, enabling it to provide a direct supply of power to a 24V load even when no battery is connected.
Installation Notes
- Ensure adequate ventilation around the charger during operation.
- Connect the charger to a grounded 220-240V AC mains power outlet.
- Observe correct DC polarity when connecting to the battery or battery bank.
- For permanent installations, consider appropriate DC cabling and fusing as per local regulations.
- The IP22 rating indicates suitability for indoor use in protected environments.
Before You Buy
- Verify your battery system voltage is 24V.
- Confirm the charger's 16A output current is appropriate for your battery capacity.
- Ensure the charger's IP22 rating meets your intended installation environment (indoor, protected).
- For parallel battery banks, ensure all batteries are of the same type, capacity, and age for balanced charging.
- Review the battery manufacturer's recommendations for charging voltages and currents.
Please verify all specifications and compatibility requirements with your specific system before purchase. This product is covered by a 5-year manufacturer warranty.
