ADVANCED WIRELESS CONTROL: Operates via 433MHz Radio Frequency (RF), eliminating the cost and labor of physical cable installations while maintaining high-response reliability.

Key Features

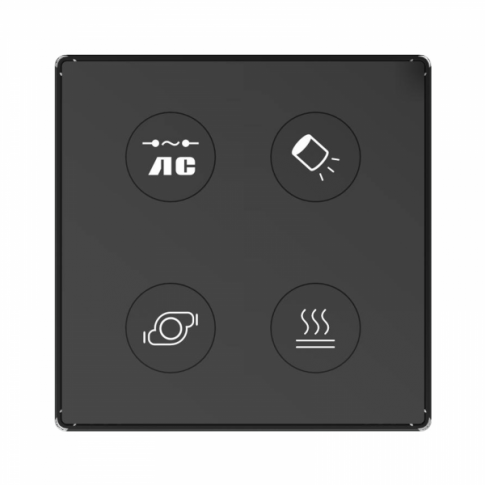

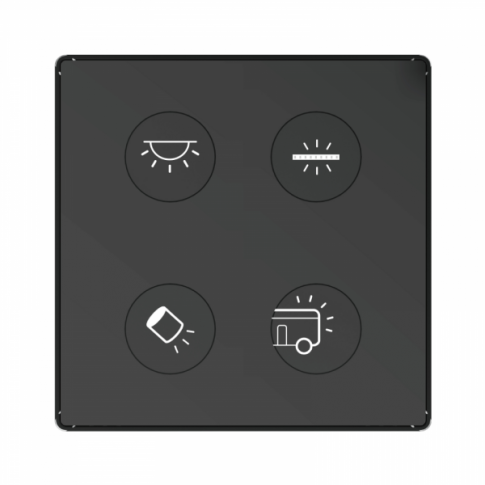

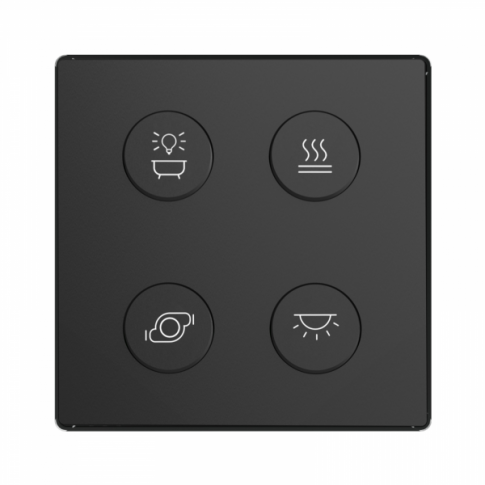

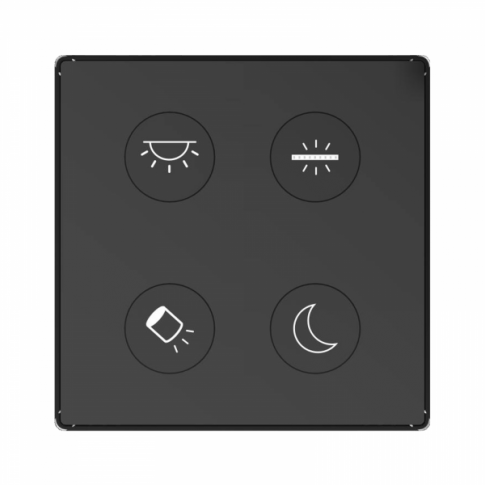

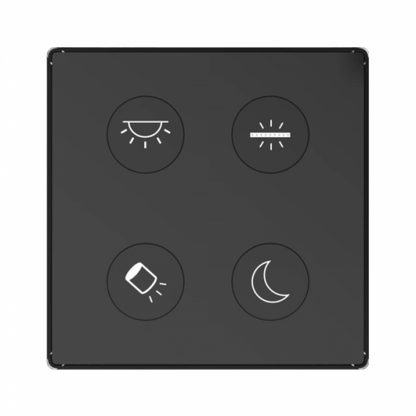

• ✔ 4-Button Interface: Labeled with load icons for intuitive operation
• ✔ Zero-Consumption Mode: Enters sleep when idle to maximize battery life
• ✔ Long Battery Life: Internal lithium cell rated for ~15,000 operations
• ✔ Multi-Unit Support: Dual dip-switches for unique unit identification

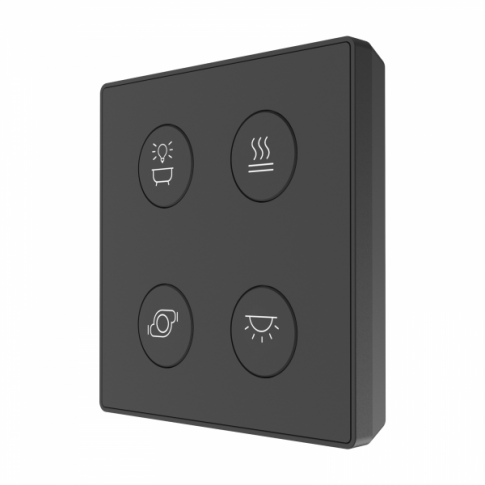

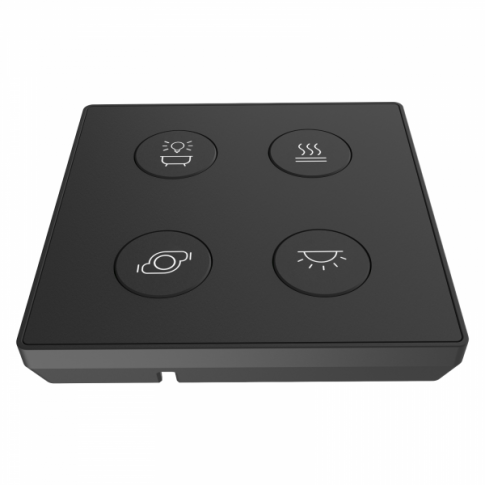

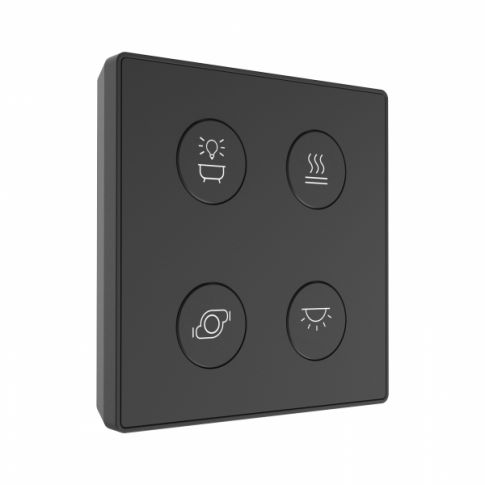

• ✔ Surface Mount: Compact, low-profile design (11.5mm depth)

Technical Specs

Communication	433MHz Radio Frequency
Rated Voltage	5V (Rated) / Internal Battery
Rated Current	10mA
Dimensions	72mm x 72mm x 11.5mm
Temp. Range	-40°C to +65°C
Buttons	4 Push-Buttons (Grid layout)

System Series	Application	Notes
TBB Power Mezzo III	Motorhomes & Caravans	Full wireless integration via Mezzo App
TBB Power Amoy	Marine & Yachts	Weather-resistant operational range
Custom Off-Grid	Solar Cabin / Portable Power	Requires TBB compatible master module

1. Separate the PICO-2 main unit from its mounting frame.
2. Fix the frame to a flat surface using appropriate screws.
3. Set the ID using the 2 dip switches if installing multiple panels in one system.
4. Snap the PICO-2 back into the frame.
5. Pair the device using the MEZZO-Smart Control mobile app via your master control module.

Is this a genuine original part?

This is a premium quality replacement part from Solarika, fully compatible with TBB Power systems and manufactured to meet original manufacturer specifications for the MZAM-PICO-2 series.

How do I know if it is compatible?

This panel is specifically designed for the Mezzo III and Amoy systems. If your current panel or master module uses the MZAM-PICO-2 SKU, this is the correct direct-fit replacement.

Does it require a power wire?

No. It is powered by an internal long-life lithium battery cell and communicates via 433MHz RF, making it a truly wireless switching solution for your vehicle or boat.
