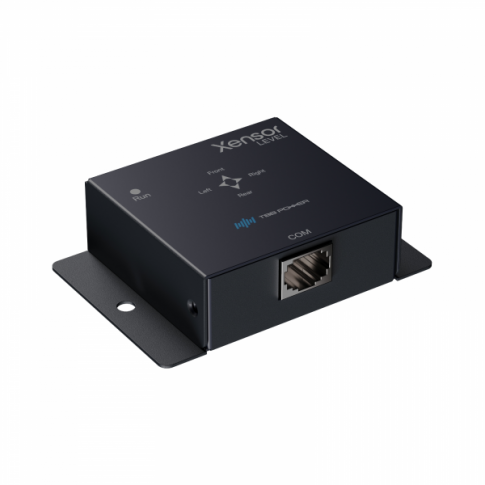

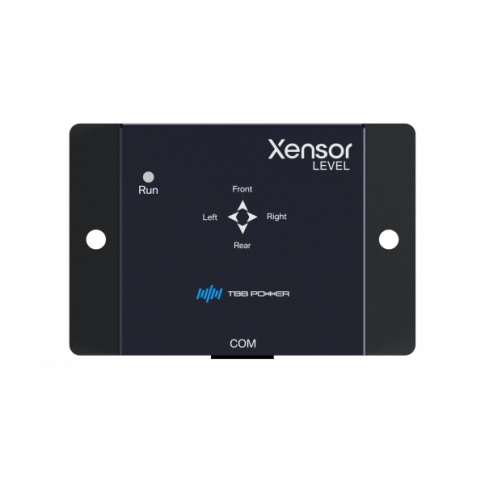

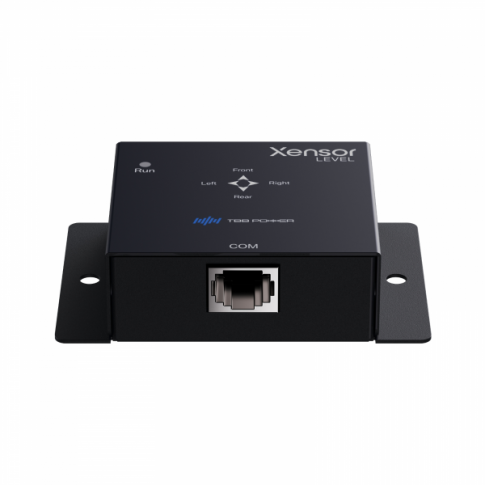

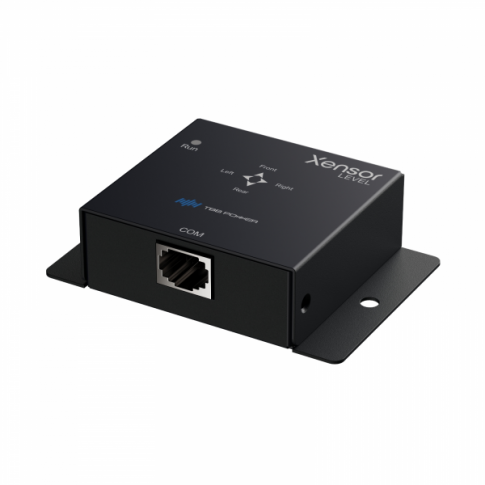

PRECISION TECHNOLOGY: Built to perform in demanding environmental conditions with a wide operating temperature range and robust RS485 data communication.

Key Features

• ✔ Integrated Gyroscope: Delivers precise real-time angle data.
• ✔ RS485 Communication: Seamless integration with monitors.
• ✔ Calibration Support: Custom tuning for real-world conditions.
• ✔ Energy Efficient: Ultra-low idle power draw (<30mA).
• ✔ Robust Protection: Built-in over-current safety features.

Technical Specs

Rated Voltage	9 - 16V DC
Rated Current	11mA
Idle Consumption	< 30mA
Communication	RS485
Temp. Range	-40°C to +65°C
Mounting Holes	M5
Dimensions	97 x 65 x 26.5 mm

System / Application	Model	Function
TBB Power Systems	MEZZO III	Direct Monitoring Integration
TBB Power Systems	AMOY Series	Core Leveling Data Source
Vehicle Leveling	Motorhomes / Caravans	Chassis & Accessory Leveling
Marine	Boats / Yachts	Stability & Tilt Measurement

Installation involves mounting the unit securely via the two M5 mounting holes and connecting the RS485 communication cable to your compatible monitoring system. Ensure the unit is oriented correctly according to the system manual for accurate axis reading. Professional installation by a qualified technician is recommended for complex vehicle integration.

Is this a genuine original part?

This is a premium Solarika part designed to meet the exact specifications of the MZAM-GY485, ensuring full compatibility with original MEZZO and AMOY hardware.

Can the sensor be calibrated once installed?

Yes, the module includes a calibration function that allows you to set the 'zero' point to match your specific vehicle or platform conditions for optimal leveling performance.

What systems can this connect to?

It is designed for the RS485 communication protocol, making it plug-and-play for TBB Power Mezzo III and Amoy monitoring hubs.
