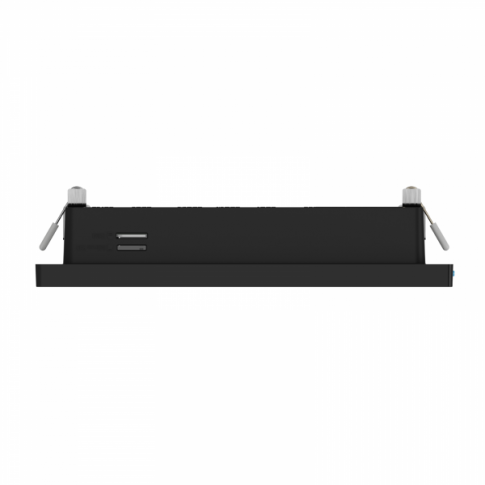

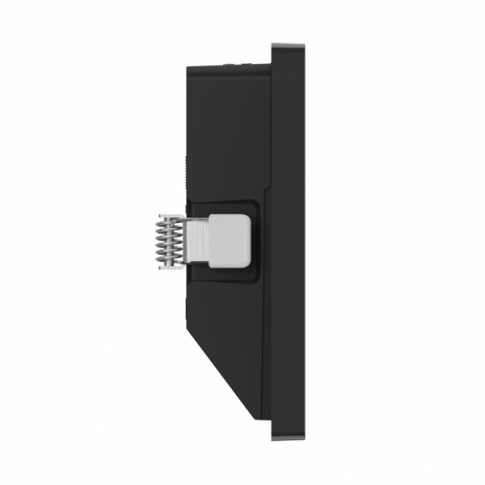

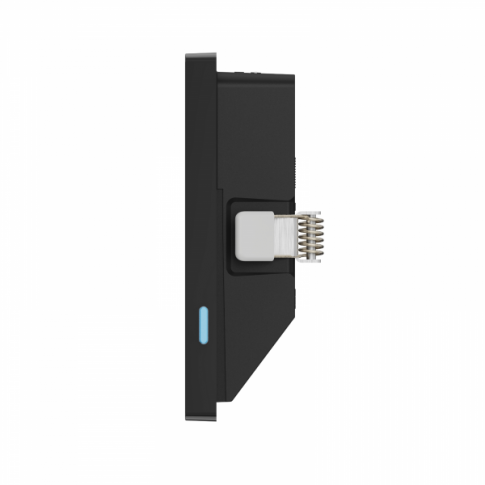

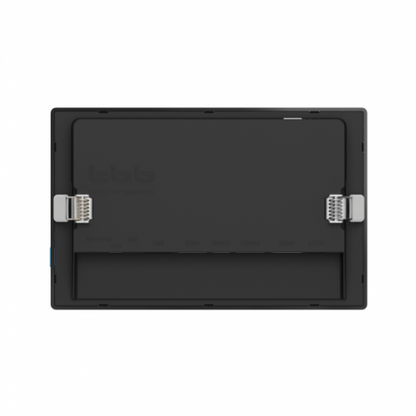

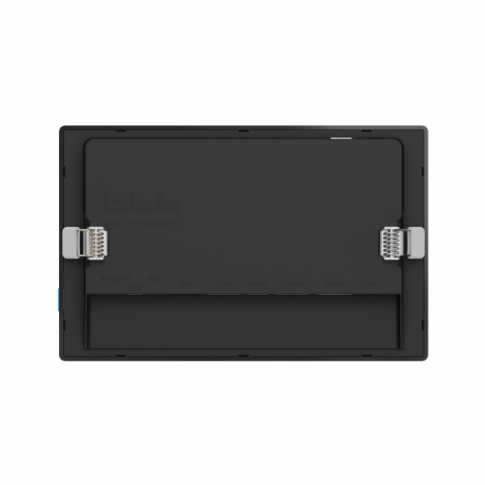

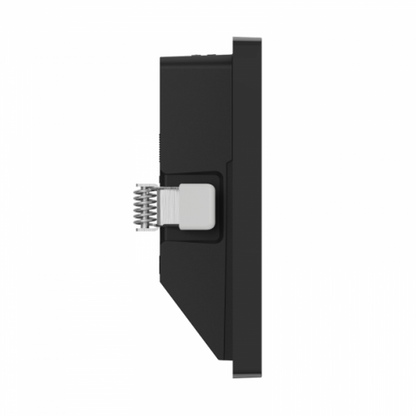

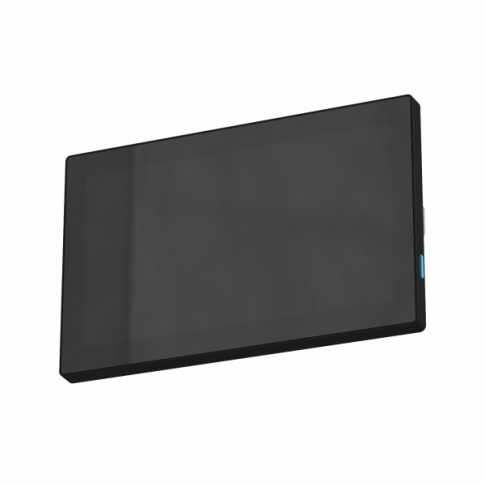

TBB Power 7'' LCD panel for Mezzo III with Bluetooth
TBB Power 7'' LCD panel for Mezzo III with Bluetooth
SKU:MZ3-L7
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
7-Inch LCD Control Panel
MZ3-L7 | Bluetooth & Multi-Port Connectivity
The TBB Power MZ3-L7 is a sophisticated 7-inch Linux-based LCD monitor designed for seamless integration within the TBB Power Mezzo III energy management system. This high-resolution control panel serves as the central interface for comprehensive monitoring and management of advanced energy setups.
Engineered for reliability and versatility, the MZ3-L7 provides clear visualisation of critical system metrics, battery status, water tank levels, and DC load control, making it an essential component for motorhomes, marine vessels, and various off-grid industrial applications.
SYSTEM INTEGRATION: Centralised monitoring and control for TBB Power Mezzo III systems.
Key Features
| ▶ 7-Inch High-Resolution Display — Offers clear visualisation of battery, power, and system metrics. |
| ▶ Integrated Bluetooth Connectivity — Enables mobile app integration for convenient system management. |
| ▶ Rich Communication Ports — Features 1 CAN and 2 RS485 ports for versatile system integration. |
| ▶ Linux-Based Operating System — Ensures reliable and efficient operation for advanced control applications. |
| ▶ Data & Software Support — Includes TF card slot for data storage and USB for software upgrades. |
Technical Specifications
| Parameter | Value |
|---|---|
| Product Model | MZ3-L7 |
| Manufacturer | TBB Power |
| Operating System | Linux-Based |

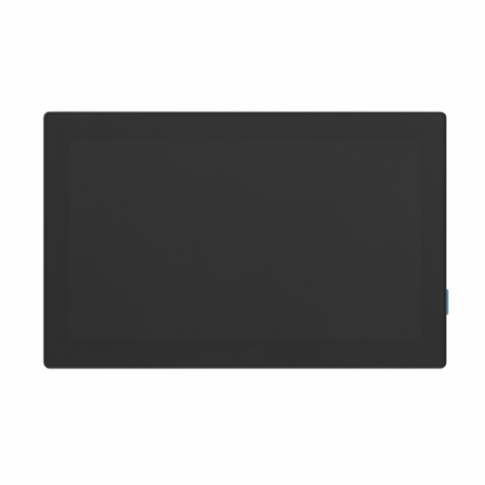

| Screen Size | 7-Inch LCD |

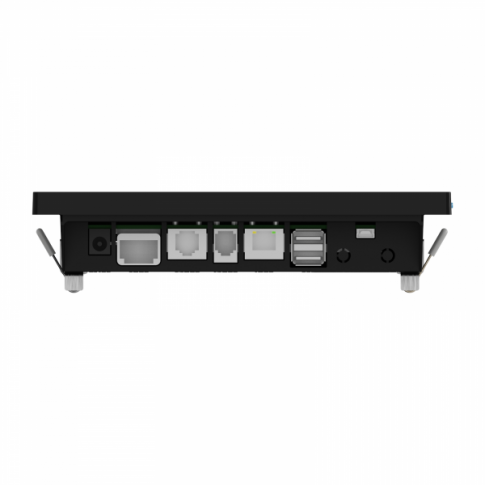

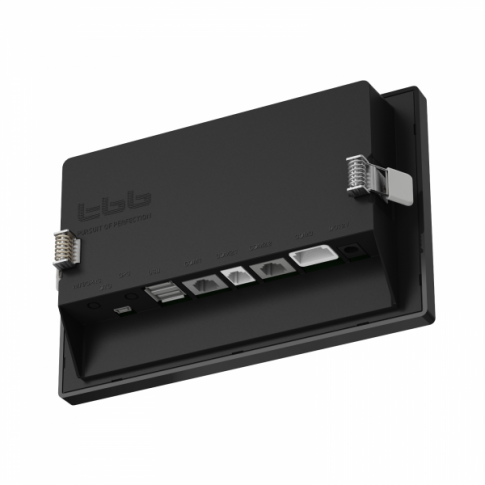

| Communication Ports | CAN x1, RS485 x2 |
| Data Interfaces | TF Card Slot, USB Port |
| Wireless Connectivity | Bluetooth |
| Approx. Dimensions (L x W x D) | 180 x 115 x 33.8 mm |
System Integration & Control
The TBB Power MZ3-L7 display is designed to be the central control point for your Mezzo III power management system, providing intuitive access to vital information and control functions.
| Function | Description |
|---|---|
| Battery Monitoring | Real-time display of battery status, voltage, current, and State of Charge (SOC). |
| DC Load Management | Direct control over connected DC loads, such as lighting and water pumps. |
| Water Tank Levels | Monitors and displays levels for up to four water tanks. |
| System Performance Metrics | Provides an overview of power status and overall system performance. |
Typical Applications
| Application | Description |
|---|---|
| Off-Grid Solar Systems | Centralised monitoring and control for remote power setups. |
| Motorhomes & Caravans | Integrated energy management and display for leisure vehicles. |
| Marine Vessels | Reliable system control and monitoring for yachts and boats. |
| Industrial Applications | Robust monitoring and control in demanding industrial environments. |
Common Questions
What is the TBB Power MZ3-L7?
The TBB Power MZ3-L7 is a 7-inch Linux-based LCD control panel specifically designed for the TBB Power Mezzo III energy management system, providing comprehensive monitoring and control capabilities.
How does it connect to the Mezzo III system?
It connects primarily via a CAN communication port and also features two RS485 ports, a USB port, and integrated Bluetooth for versatile system integration and mobile app connectivity.
Can it monitor battery status and DC loads?
Yes, the MZ3-L7 offers clear visualisation of battery information, power status, water tank levels, and allows for direct control of connected DC loads when integrated with a compatible Mezzo III power hub.
Installation Notes
- Connect the TBB Power MZ3-L7 monitor to your Mezzo III system using the designated CAN communication port.
- Always ensure that power is disconnected from the battery bank and other system components before commencing installation.
- The USB port can be used for initial firmware updates or maintenance as required by your specific system version.
- For optimal performance and safety, professional installation is recommended, especially for complex vehicle or off-grid electrical systems.
Before You Buy
- Verify that your existing energy management system is a TBB Power Mezzo III to ensure full compatibility with the MZ3-L7.
- Confirm that the required communication protocols (CAN, RS485) match your current system setup.
- Consult the TBB Power Mezzo III system manual for detailed integration guidelines and specific wiring instructions.
Please verify all specifications and system compatibility before purchase. Product details are based on manufacturer information.
