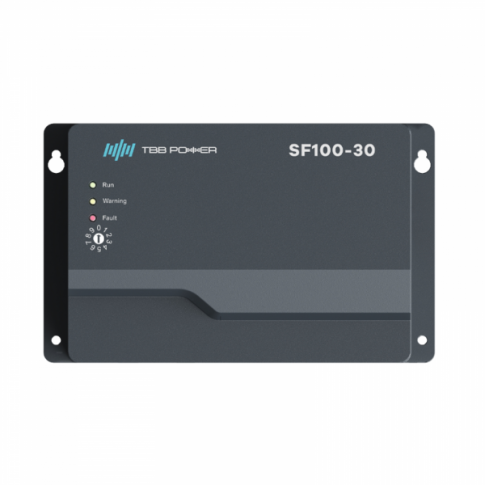

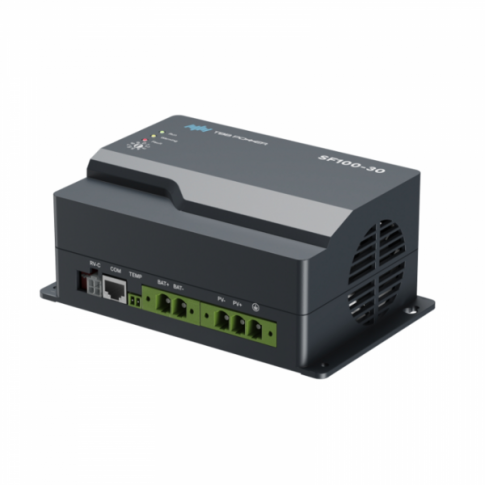

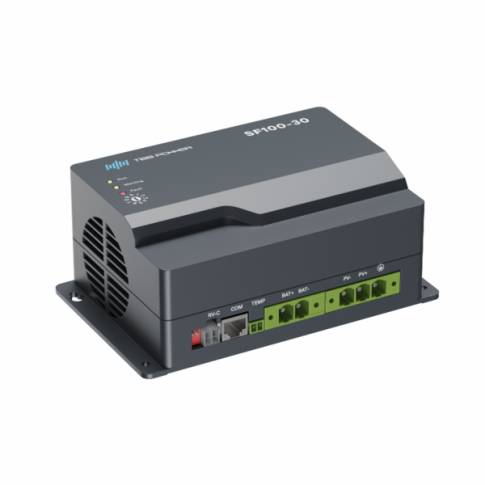

TBB Power 30A 12V/24V MPPT solar charge controller
TBB Power 30A 12V/24V MPPT solar charge controller
SKU:TBB-SF100-30
Our stock levels are dynamic and can change frequently. If a product appears to be in stock, it may have already sold out. Please contact us if you have any questions about availability. Thank you for your understanding.
Couldn't load pickup availability
TBB SF100-30 MPPT Controller
30A High-Efficiency Solar Charging with Bluetooth Monitoring
The TBB SF100-30 is a professional-grade Maximum Power Point Tracking (MPPT) solar charge controller designed to maximize energy harvest from your solar array. With a peak conversion efficiency of over 97% and advanced tracking technology, it ensures your battery bank—whether Lithium, AGM, or Gel—receives the most efficient charge possible, even in overcast conditions.
Key Features
- ✔ Built-in Bluetooth: Real-time monitoring via Solar Mate II App.
- ✔ 99.9% MPPT Efficiency: Rapidly tracks the optimal power point.
- ✔ Lithium Compatible: Pre-set profiles for LiFePO4 (LFP) batteries.
- ✔ Multi-Communication: Supports RS485 and CAN (RV-C).
Technical Specs
| Battery Voltage | 12V / 24V Auto |
| Rated Charge Current | 30A |
| Max PV Voc | 100V |
| Max PV Power (12V) | 500W |
| Max PV Power (24V) | 1000W |
| Dimensions | 189.6 x 116 x 76 mm |
Compatibility / Fitment Guide
| System / Battery | Compatibility | Notes |
|---|---|---|
| Lithium (LiFePO4) | Full Compatibility | Adjustable LFP charging profile |
| Lead-Acid / AGM / Gel | Full Compatibility | Supports multi-stage charging (Bulk-Float-Absorption) |
| RV Systems | Grand Design / Northwood | Commonly used in SolarFlex and ELP packages |
OEM Cross Reference
| Manufacturer | Part Number |
| TBB Power | SF100-30 |
| Future Solutions | FSI-SF100-30 |
Installation & Setup
1. Connect the Battery first to allow the controller to auto-detect the system voltage (12V or 24V).
2. Connect the Solar Panels (PV) ensuring the Voc does not exceed 100V.
3. Download the Solar Mate II app on iOS or Android to sync via Bluetooth and configure specific battery charging voltages.
Questions & Answers
Is this a genuine original part?
This is a premium quality TBB Power original equipment part, supplied by Solarika. It meets all industrial standards for off-grid power management.
How do I know if it is compatible?
We recommend checking the SKU/MPN (TBB-SF100-30). If your system uses a 12V or 24V battery bank and your solar array is under 100V Voc, this is an ideal high-performance fit.
Can I monitor this unit from my smartphone?
Yes. This unit features integrated Bluetooth. You can monitor charging current, battery voltage, and solar yield directly via the Solar Mate II mobile application.
Note: Solarika recommends installation by a qualified solar technician to ensure safety and system longevity.
